Title: Dan Henningson

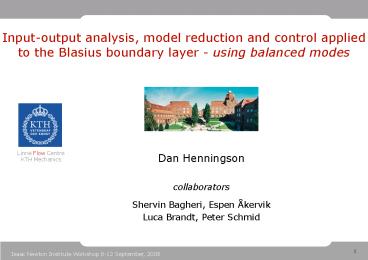

1
Input-output analysis, model reduction and
control applied to the Blasius boundary layer -
using balanced modes
  • Dan Henningson
  • collaborators
  • Shervin Bagheri, Espen Åkervik
  • Luca Brandt, Peter Schmid

2
Linearized Navier-Stokes for Blasius flow
Discrete formulation
Continuous formulation
3
Input-output configuration for linearized N-S
4
Solution to the complete input-output problem
  • Initial value problem flow stability
  • Forced problem input-output analysis

5
Ginzburg-Landau example
  • Entire dynamics vs. input-output time signals

6
Input-output operators
  • Past inputs to initial state class of initial
    conditions possible to generate through chosen
    forcing
  • Initial state to future outputs possible outputs
    from initial condition
  • Past inputs to future outputs

7
Most dangerous inputs, creating the largest
outputs
  • Eigenmodes of Hankel operator balanced modes
  • Controllability Gramian
  • Observability Gramian

8
Controllability Gramian for GL-equation
  • Correlation of actuator impulse response in
    forward solution
  • POD modes
  • Ranks states most easily influenced by input
  • Provides a means to measure controllability

9
Observability Gramian for GL-equation
Output
  • Correlation of sensor impulse response in adjoint
    solution
  • Adjoint POD modes
  • Ranks states most easily sensed by output
  • Provides a means to measure observability

10
Controllability and Observability Gramians
  • Correlation of actuator impulse response in
    forward solution
  • POD modes
  • Correlation of sensor impulse response in adjoint
    solution
  • Adjoint POD modes

11
Balanced modes eigenvalues of the Hankel
operator
  • Combine snapshots of direct and adjoint
    simulation
  • Expand modes in snapshots to obtain smaller
    eigenvalue problem

12
Snapshots of direct and adjoint solution in
Blasius flow
Direct simulation
Adjoint simulation
13
Balanced modes for Blasius flow
adjoint
forward
14
Properties of balanced modes
  • Largest outputs possible to excite with chosen
    forcing
  • Balanced modes diagonalize observability Gramian
  • Adjoint balanced modes diagonalize
    controllability Gramian
  • Ginzburg-Landau example revisited

15
Model reduction
  • Project dynamics on balanced modes using their
    biorthogonal adjoints
  • Reduced representation of input-output relation,
    useful in control design

16
Impulse response
Disturbance Sensor
Actuator Objective
Disturbance Objective
DNS n105 ROM m50
17
Frequency response
From all inputs to all outputs
DNS n105 ROM m80 m50 m2
18
Optimal Feedback Control LQG
cost function
g (noise)
Ly
fKk
z
w
controller

Find an optimal control signal f (t) based
on the measurements y(t) such that in the
presence of external disturbances w(t) and
measurement noise g(t) the output z(t) is
minimized. ? Solution LQG/H2
19
LQG controller formulation with DNS
  • Apply in Navier-Stokes simulation

20
Performance of controlled system
controller
Noise
Sensor
Actuator
Objective
21
Performance of controlled system
Noise
Sensor
Actuator
Objective
22
Conclusions
  • Input-output formulation ideal for analysis and
    design of feedback control systems
  • Balanced modes
  • Obtained from snapshots of forward and adjoint
    solutions
  • Give low order models preserving input-output
    relationship between sensors and actuators
  • Feedback control of Blasius flow
  • Reduced order models with balanced modes used in
    LQG control
  • Controller based on small number of modes works
    well in DNS

23
(No Transcript)
24
Message
  • Need only snapshots from a Navier-Stokes solver
    (with adjoint) to perform stability analysis and
    control design for complex flows
  • Main example Blasius, others GL-equation, jet in
    cross-flow

25
Outline
  • Introduction with input-output configuration
  • Matrix-free methods using Navier-Stokes snapshots
  • The initial value problem, global modes and
    transient growth
  • Particular or forced solution and input-output
    characteristics
  • Reduced order models preserving input-output
    characteristics, balanced truncation
  • LQG feedback control based on reduced order model
  • Conclusions

26
Background
  • Global modes and transient growth
  • Ginzburg-Landau Cossu Chomaz (1997) Chomaz
    (2005)
  • Waterfall problem Schmid Henningson (2002)
  • Blasius boundary layer, Ehrenstein Gallaire
    (2005) Åkervik et al. (2008)
  • Recirculation bubble Åkervik et al. (2007)
    Marquet et al. (2008)
  • Matrix-free methods for stability properties
  • Krylov-Arnoldi method Edwards et al. (1994)
  • Stability backward facing step Barkley et al.
    (2002)
  • Optimal growth for backward step and pulsatile
    flow Barkley et al. (2008)
  • Model reduction and feedback control of fluid
    systems
  • Balanced truncation Rowley (2005)
  • Global modes for shallow cavity Åkervik et al.
    (2007)
  • Ginzburg-Landau Bagheri et al. (2008)
  • Invited session on Global Instability and
    Control of Real Flows, Wednesday 8-12, Evergreen 4

27
The forced problem input-output
  • Ginzburg-Landau example
  • Input-output for 2D Blasius configuration
  • Model reduction

28
Input-output analysis
  • Inputs
  • Disturbances roughness, free-stream turbulence,
    acoustic waves
  • Actuation blowing/suction, wall motion, forcing
  • Outputs
  • Measurements of pressure, skin friction etc.
  • Aim preserve dynamics of input-output
    relationship in reduced order model used for
    control design

29
Feedback control
  • LQG control design using reduced order model
  • Blasius flow example

30
LQG feedback control
cost function
Reduced model of real system/flow
Estimator/ Controller
31
Riccati equations for control and estimation gains
