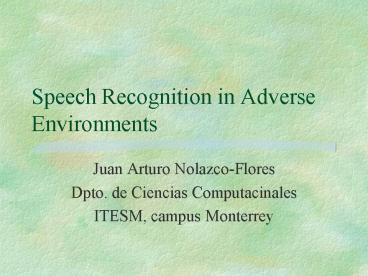

Speech Recognition in Adverse Environments

1
Speech Recognition in Adverse Environments

• Juan Arturo Nolazco-Flores
• Dpto. de Ciencias Computacinales
• ITESM, campus Monterrey

2
Talk Overview

• Introduction
• Parallel Model Combination(PMC)
• SS-PMC
• Coments and Conclusions

3
END!
4
Introduction

• Problem
• Automatic Speech Recognition performance is
  highly degraded when speech is corrupted for
  noise (additive noise, convolutional noise,
  etc.).
• Fact
• In order to have real speech recognisers ASR
  should tackle this problem.
• Knowledge.
• ASR can be improved either
• Enhancing speech before recognition
• Training models in the same environment the ASR
  is going to be used.

5
Recognition using CD-HMM
Recogniser
6
(No Transcript)
7
Enhancing Speech

• Features
• Models are trained with clean speech.
• Corrupted speech is enhanced.
• There are a number of well studied techniques
• Subtract an estimated noise found during
  nonspeech activity.
• Adaptive noise cancelling (ANC).
• Successful for low to medium SNR (gt0).

8

• Problems
• Enhancers are not perfects, therefore
• the speech is distorted and
• there are residual noise.

9
Training models in the same environment

• ASR systems which uses this technique can deal
  with low to high SNR (gt0 dB).
• In example, for an isolated digit recognition
  task where digits are corrupted for
  helicopter(Lynx) noise, you can get the following
  performance
• For TIMIT
• Problem
• There are many possible environments (no
  practical).

10

• However, using continuous HMM is possible to
  combine the clean speech model and noise model
  and obtain a noisy speech model.
• Techniques
• Model Decomposition
• Parallel Model Combination

11
Parallel Model Combination (PMC)

• Introduction
• Scheme
• Diagram

12
Introduction

• It is an artificial way to simulate that the
  system has been trained in the adverse
  environment the system is going to work.
• The clean speech CHMM and the noise CHMM
  (estimated with the noise before the word is
  uttered) are combined to obtain models adapted to
  the adverse environment.
• The combination is based in the assumption that
  that pdf of the state distribution models are
  completely defined by the mean and variance.

13
Scheme

• For simplicity, it is convenient to combine these
  models in a linear domain.
• Problem
• High performance speech recognition is obtained
  in a non-linear domain (i.e. mel-cepstral
  domain).
• Solution
• Transform coefficients to a linear domain.

14
Diagram
Clean speech HMM
Linear domain
C-gtlog
exp()
PMC HMM
C()

log()
Noise HMM
C-gtlog
exp()
Simulates training in noise.
15
SS-PMC

• Introduction
• Hypothesis prove
• SS Combination Development
• Diagram
• Results

16
Introduction

• How can we improve recognition performance in
  highly adverse environments (SNRlt0dB)?
• Thus, PMC does not represent a solution for
  highly adverse environments.

(Upper boundary conditions)
17

• On the other hand, we know that the enhancer
  returns a cleaner speech, but distorted.
• Therefore the question is
• Is it possible to improve recognition performance
  if the models where trained with this cleaner
  speech?

18
Hypothesis

• Training HMMs with enhanced speech makes the HMM
  learn both the speech distortion and the residual
  noise.
• If we show that this hypothesis is true, we can
  be confident that indeed we can improve
  recognition performance.

19

• In order to prove this hypothesis
• An enhancer scheme was selected.
• Models were trained with the enhanced speech.
• Recognition performance was developed in the same
  conditions.
• The recognition performance obtained for this
  experiment will be compared with the recognition
  performance obtained when models were trained in
  the same environment.

20
Hypothesis Prove

• Introduction
• Spectral Subtraction definition
• Experiments and results
• Conclusions

21
Introduction

• Since it is a simple (and successful) scheme,
  Spectral Subtraction (SS) was selected.

22
Spectral Subtraction Definition

• Before filterbank
• After filterbank.

23
Experiments and Results.

• CHMMs were trained speech enhanced by SS.
• Recognition performance was developed over speech
  enhance by SS in the same conditions.

24
Example 1

• Task isolated digit Recognition
• Training Using enhanced speech
• Noise Helicopter
• Database Noisex92
• Real noise is artificially added to clean speech,
  such that no Lombard effect can bias recognition
  performance.

25
Results

• bMSS

Training Models in Noise (PMC)
This values represent the upper boundary of the
ASR system.
26

• bPSS

Training Models in Noise (PMC)
27
Example 2

• Vocabulario 30 palabras (números I.e. dos mil
  quinientos dólares).

28
Example 3

• TIMIT

29
Conclusions

• Hypothesis was prove to be true.
• A new research area is open
• Tried these experiments using other databases.
• How can we combine CHMM, such that we do not need
  to train for all enhancement conditions.
• Are all the enhancement technique suited for CHMM
  combination?

30

• Now, we know that ASR can be improved either
• Enhancing speech before recognition
• Training CHMM in the same environment the ASR is
  going to be used.
• Training CHMM with the same enhancement technique
  that is used to get cleaner speech at
  recognition.
• Advantage
• Moreover, training with a better enhancement
  technique means a potential better recognition
  performance.

31
SS Model Combination

• Introduction
• Spectral Subtraction Scheme

32
Introduction

• It was proven, when training and testing CHMMs
  using the same enhancement condition the
  recognition performance is improved.
• How can we combine CHMMs without having to train
  for each enhancement and noise condition?
• Observation For CHMMs the states pdfs are
  completely defined for their means and variances.

33
Spectral Subtraction Scheme
Assuming Y and YD can be modelled as parametric
distributions with means EY and EYD and
variances VY and VYD.
It can be shown that these parameters
are distorted as follows
pdf of Y
34
Prove
where
Re-arranging
35
Hence
36
A(a,P(Y))
Assuming that Y is lognormal
Making
( )
37
Diagram
Adaptation calculations
Clean speech HMM
SS-PMC HMM
C-gtlog
exp()
C()
log()


PMC
Noise HMM
C-gtlog
exp()
Speech is pre-processed using SS.
38
Results
No compensation scheme
Spectral Subtraction
PMC
Spectral Subtraction and parallel
model combination
39
Coments and Conclusions

• Since training and recognition with the same
  speech enhancement scheme have not been tried
  before, hence a new area of research is now open.

• How can we combine CHMM, such that we do not need
  to train for all enhancement conditions.
• Are all the enhancement technique suited for CHMM
  combination?
• We show how to combine clean speech and noise
  CHMM for SS scheme.
• It was shown that equations for CHMM combination,
  when SS scheme is used, were straightforward.

40

• We expect that training with a better enhancement
  technique we can also obtain better recognition
  performance.
• Future work
• Develop equations and experiments for other
  enhancement techniques.
• Obtain the optimal alpha for SS scheme.
