Designing Out Waste

1

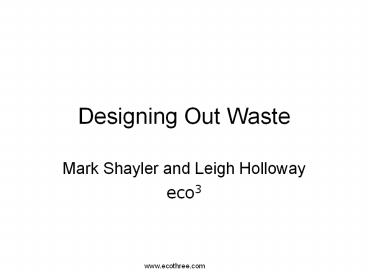

Designing Out Waste

• Mark Shayler and Leigh Holloway
• eco3

2
Designing Out Waste

• Eco-design. Why, What and How?
• Focus on WEEE and RoHS
• Disassembly Exercise
• Support for Designing Out Waste
• Peter Gafney

3
EcoDesignWhy, What and How?
4
Why the Environment?
5
Environmental Concerns

• Growing Concern
• Environmental damage
• Stricter regulations
• Customer requirements
• Public perceptions
• Changes in business practice
• Win win situations

6
Changes in Business Strategies
Environmental Compliance
Environmental Risk Assessment
Sustainable Business Strategies
7
Why Products ?
8
A product is a symbol of a companys
capabilities. It is a result of all the decisions
made before, during and after the design phase
Philips
9
Quality
Innovative
High Tech
10
Increasingly the environmental performance of
products will also say something about the
companies that make them
11
Why should I look at EcoDesign?
12
What is Driving this Shift?

• Legislation
• Waste disposal and clean-up costs
• Increasing efficiency
• Environmental management systems
• Producer responsibility
• Customer requirements
• Supply chain issues

13
Legislation!
14
Legislation

• Product-based
• Packaging Regs. 1997
• Packaging Essential Requirements 1998
• Fridge and freezer recycling (removal of CFCs)
  2002
• End-of-life Vehicles (ELV) 2000
• Waste Electrical Electronic Equipment RoHS
  Directives 2003
• Banning of certain substances to landfill
• Recovery of batteries etc.

15
Packaging Regs. Essential Requirements

• Came into force 31 May 1998
• Require
• Minimal packaging
• Noxious hazardous substances minimised
• Packaging must be recoverable
• Limits on heavy metal content
• Applies to ALL companies regardless of size and
  turnover

16
End of Life Vehicles (ELV)

• Requires the recovery and recycling of vehicles
  at the end of their life.
• Original manufacturer is ultimately responsible
• Legislation came into force in the UK 2003
• Material restrictions
• 2005 European standards for recovery and
  recyclability
• 2007 Take back of ALL ELVs

17
Waste Electrical and Electronic Equipment (WEEE)
RoHS

• UK legislation will be in place by late 2004
• Forces the recovery and recycling of electrical
  and electronic equipment
• Restricts certain substances (RoHS)
• Producers are to pay for collection and recovery
• Directive implies the benefits of using ecodesign
  principles

18
(No Transcript)
19
EcoDesign of Energy Using Products

• Similar to essential requirements in packaging
• Requirement to display a logo showing conformity
• Require a high level of environmental
  protection
• Specific design requirements such as disassembly,
  recyclability, energy efficiency to be used where
  appropriate and feasible.
• Avoid the undue use of devices, components
  materials or substances which present a threat to
  the environment..

20
Supply Chain

• Large companies are taking on the idea of
  corporate responsibility
• EMSs are being extended to cover products
• (EMAS II and ISO 14040 14060)
• Companies are auditing their suppliers for
  environmental compliance
• Many organisations are developing their own
  design guidelines and material restrictions and
  as a supplier you will need to be able to meet
  these
• Some customers are even offering price incentives
  for eco-friendly products

21
What is EcoDesign?
22
Why Focus on Products?

• 93 of production materials are never used in the
  final product
• 80 of products are discarded after a single use
• 99 of materials used are discarded in the first
  six weeks

Source Factor 4
23
Up to 80 of a products financial costs are set
at the design phase
24
Materials used in product manufacture all have
some sort of environmental impact

• Use materials with less impact
• Reduce materials used
• Make use of recyclate
• Use renewables

25
Processing uses energy and produces waste and
emissions

• Use efficient processing routes
• Recycle waste materials
• Use low energy options
• Avoid the use of hazardous materials

26
A products use can have very important effects
on its overall environmental impact

• Reduce energy consumption
• Reduce resource consumption
• Increase durability
• Design for maintenance/upgrade
• Use alternative energy sources
• Reduce weight?

27
Design changes can increase the economic
feasibility of recovery and recycling
28
Every product has an ecological footprint
They are just different sizes and shapes
29
(No Transcript)
30
(No Transcript)
31
Applied EcoDesign How to do it .. successfully!
32
Varian Medical Systems

• One-off 25K investment
• Component costs reduced by
• 14 per annum
• Component count reduced by 65
• Fasteners used reduced by 29
• Assembly time reduced by 27
• Resulted in a 145k net
• saving in the first year

33
Continental Teves UK Ltd

• Leading Supplier of braking systems to UK and
  European automotive industry.
• Brake calliper redesign
• 26 reduction in weight
• 42 reduction in production time
• 62 reduction in machining time and 420 tonnes of
  metal per year saved
• Over 120k net saving per annum

34
(No Transcript)
35
Fulleon Ltd
Savings
Materials costs reduced by 11 - 27550 Labour
costs reduced by 34 - 65100
36
Conclusions

• A new business agenda is emerging
• Much more focus on products
• Focus may drive innovation
• Ecodesign and innovation isnt rocket science

EcoDesign
Good Design
37
Focus on WEEE and RoHS
38
Background to the Directives

• Rapid innovation and increasingly short product
  cycles have lead to huge volumes of relatively
  new products being discarded
• WEEE represents a major source of organic
  contaminants and heavy metals which are
  potentially harmful to the environment
• Potentially recyclable materials are being
  landfilled
• Inefficient use of Europes remaining landfill
  capacity

39
Broad Objectives

• The WEEE Directive is aimed at
• reducing electrical waste, increasing recovery
  and recycling and minimising environmental impact
• improving environmental performance of all
  operators involved in the life cycle of EEE

40
What is a Producer?

• producer means any person who, irrespective of
  selling technique used, including by means of
  distance communication
• 1. Manufactures and sells his own brand
• 2. Resells under his own brand
• 3. Imports or exports

41
What items are covered by WEEE?

• All equipment that is dependent on electrical
  currents or electromagnetic fields
• although certain thresholds apply only equipment
  with a voltage rating not exceeding 1000V AC and
  1500V DC is included

42
10 indicative categories

• 1. Large household appliances
• 2. Small household appliances
• 3. IT and telecoms equipment
• 4. Consumer equipment
• 5. Lighting equipment
• 6. Electrical and electronic tools
• 7. Toys, leisure sports
• 8. Medical devices
• 9. Monitoring devices
• 10. Auto-dispensing machines (vending machines,
  cash machines, ticket machines)
• Exempt from RoHS requirements for now

43
Key Requirements of WEEE

• Set targets for the recovery and recycling of
  WEEE according according to category of product
• Large household and automatic dispensers (1,10)
  80/75
• IT and consumer (3,4) 75/65
• Others 70/50
• Gas discharge lamps 80 (recycled
• No target for medical equipment (8)
• Targets to met by 31 December 2006

44
Targets
Category Description Recovery Recycling
1 large household appliances 80 75
2 small household appliances 70 50
3 IT and telecoms equipment 75 65
4 consumer equipment 75 65
5 lighting equipment 70 50
6 electrical and electronic tools 70 50
7 toys leisure sports 70 50
8 medical devices no target no target
9 monitoring devices 70 50
10 auto-dispensing machines (vending machines, cash machines, ticket machines). 80 75
45
Key Requirements of WEEE

• Collection facilities to be in place from 13
  August 2005
• Kerbside, bring schemes, retailer take-back
• Consumers to return WEEE free of charge
• No absolute requirement to enforce separate
  segregation of WEEE
• A target collection of 4kg per head of population
  to be achieved by 2006
• A new target will be established by 31 December
  2008

46
Key Requirements of WEEE

• By August 2005 producers should provide financing
  for the collection, treatment, recovery and
  environmentally sound disposal of WEEE from
  private household deposited at collection
  facilities
• Products placed on the market after 2005
  producers should be responsible for financing
  waste relating to their own products

47
Key Requirements of WEEE

• WEEE put on the market before 13 August 2005 or
  historic waste is to be financed
  proportionately by producers existing in the
  relevant market when the respective costs occur
• For a transitional period of 8-10 years producers
  can show the costs incurred in the disposal of
  WEEE

48
Key Requirements of WEEE

• From August 2005 B2B producers should finance the
  collection and treatment of WEEE
• For historic B2B waste the end-user may be
  partially or wholly responsible for the financing

49
Requirements of WEEE

• Producers or third parties acting on their behalf
  to set up treatment facilities
• Carried out by regulated operators according to
  standards
• Treatment/removal of
• PCBs over 10cm2, LCDs over 100cm2, toner
  cartridges, batteries, CRTs

50
Timescales

• Common Position text - Dec. 2001
• European Parliament Second Reading - April 2002
• Conciliation process - completed Oct. 2002
• Adoption of Directives - Late 2002
• Publication - 13 February 2003
• Member States Transposition by 13 August 2004
• Producer Responsibility - 13 August 2005
• Substance Ban (RoHS) - July 2006
• Meeting Recycling Targets - 31 December 2006

51
The Restriction of Hazardous Substances Directive
52
RoHS Directive

• A Single Market Directive on the restriction of
  certain hazardous materials
• Seeks to reduce the environmental impact of WEEE
  by restricting the use of certain hazardous
  substances during manufacture
• Complementary to the WEEE Directive

53
What is Covered by RoHS?

• From 1st July 2006, the following are banned -
  lead, mercury, cadmium, hexavalent chromium,
  polybrominated biphenyls and polybrominated
  diphenyl ethers
• Some exemptions exist

54
Scope

• All equipment dependent on electrical currents or
  electromagnetic fields
• Eight broad categories, plus electric light bulbs
• All products in the WEEE Directive except
• Medical equipment and monitoring and control
  equipment

55
Annex Exemptions I

• Mercury (in some lighting applications)
• Lead in the glass of cathode ray tubes,
  electronic components and fluorescent tubes
• Lead in certain steel, aluminium and copper alloys

56
Annex Exemptions II

• Lead in high melting temperature type solders
• (Until 2010) lead in solders for servers, storage
  and array systems
• Lead in solders for network infrastructure
  equipment

57
Annex Exemptions III

• Lead in electronic ceramic parts
• Cadmium plating
• Hexavalent chromium in absorption refrigerators

58
Proposed Limits

• It is likely that limits will be set for RoHS
  substance
• The current proposals are for percentage by
  weight of homogenous material or discreet
  component
• Cadmium 0.01
• Others 0.1

59
Servicing of Older Equipment

• Article 2.3
• This Directive does not apply to spare parts for
  the repair, or to the re-use, of electrical and
  electronic equipment put on the market before 1
  July 2006

60
Arms and Munitions

• Article 2.3 of the WEEE Directive
• Equipment which is connected with the protection
  of the essential interests of the security of
  Member States, arms, munitions and war material
  shall be excluded from this Directive.

61
Future Review

• By 1/2005 proposals to include equipment in
  categories 8 (medical) and 9 (monitoring
  equipment) of the WEEE Directive
• Evaluation of the implications for
• Deca BDE this is now covered
• Mercury in straight fluorescent lamps for special
  purposes
• Lead in solders for servers etc.
• Light bulbs

62
Timetable

• Conciliation concluded October 2002
• Final text approved December 2002
• Publication in OJ January 2003
• UK legislation in place July 2004
• Substance bans 1st July 2006

63
Implications for Design

• WEEE
• Weight
• Disassembly
• Recyclability
• Removal of items requiring pre-treatment
• Labelling
• Wider re-design opportunities

64
Implications for Design

• RoHS
• Identification and replacement of proscribed
  substances
• Design implications product
• Design implications process
• Compatibility between alternative solders
• Functionality is it over-egged?

65
e3 toolkit

• Compliance check
• Obligation calculation
• Training materials

• Interactive guides
• Lead-free section
• Quizzes

66
e3 toolkit

• Video industry views
• Materials declaration forms
• Supply-chain actions

• Where to find RoHS proscribed materials
• Alternatives
• DIY testing kits

67
Disassembly Exercise
68
Group Work

• Electronics
• Take them apart carefully
• Examine
• Packaging
• Fixings
• Materials
• Labelling
• Ease of disassembly
• Opportunities for
• Simplification
• Modularity
• Reuse
• Servicing
• Ease of compliance with WEEE/RoHS?

69
Group Work

• Other products focus on packaging
• Type and mix of materials
• Does it do its job?
• Could it be simplified?
• Implications for Essential Requirements and
  Recovery costs?
• Feedback

70
eco3

• info_at_ecothree.com
• 01455 213322
