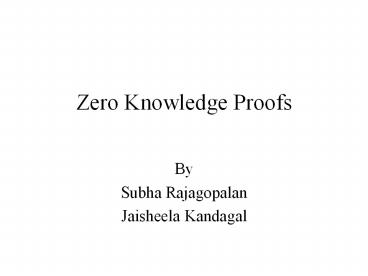

Zero Knowledge Proofs

1
Zero Knowledge Proofs

• By
• Subha Rajagopalan
• Jaisheela Kandagal

2
Zero Knowledge Proofs

• Introduction
• Properties of ZKP
• Advantages of ZKP
• Examples
• Fiat-Shamir Identification Protocol
• Real-Time Applications

3
Zero Knowledge Proofs (ZKP)

• Goldwasser, Micali, and Rackoff, 1985.
• ZKP instance of Interactive Proof System
• Interactive Proof Systems
• Challenge-Response Authentication
• Prover and Verifier
• Verifier Accepts or Rejects the Prover

4
ZKP

• Zero knowledge Transfer between the Prover and
  the Verifier
• The verifier accepts or rejects the proof after
  multiple challenges and responses
• Probabilistic Proof Protocol
• Overcomes Problems with Password Based
  Authentication

5
Properties of ZKP

• Completeness
• Succeeds with high probability for a true
  assertion given an honest verifier and an honest
  prover.
• Soundness
• Fails for any other false assertion, given a
  dishonest prover and an honest verifier

6
Advantages of ZKP

• As name Suggests Zero Knowledge Transfer
• Computational Efficiency No Encryption
• No Degradation of the protocol
• Based on problems like discrete logarithms and
  integer factorization

7
Classic Example

• Ali Babas Cave
• Alice has to convince Bob She knows the secret
  to open the cave door without telling the secret
  (Open Sesame).

(source http//www.rsasecurity.com/rsalabs/faq/2-
1-8.html)
8
Fiat-Shamir Identification Protocol

• 3 Message Protocol
• Alice A, the Prover and Bob B, the Verifier
• A ? B x r2 mod n
• A ? B e ? 0,1
• A ? B y r se mod n is y2 x ve ?
• A random modulus n, product of two large prime
  numbers p and q generated by a trusted party and
  made public
• Prover chooses secret s relatively prime to n
• prover computes v s2 mod n, where v is the
  public key
•

9
Fiat-Shamir Identification Protocol

• Alice chooses a random number r (1 ? r ? n-1)
• Sends to Bob x r2 mod n commitment
• Bob randomly sends either a 0 or a 1 ( e ?
  0,1) as his challenge
• Depending on the challenge from Bob, Alice
  computes the response as y r if e 0 or
  otherwise y rs mod n
• Bob accepts the response upon checking y2 ? x
  ve mod n

10
Fiat-Shamir Identification Protocol

• After many iterations, with a very high
  probability Bob can verify Alices identity
• Alices response does not reveal the secret s
  (with y r or y r s mod n)
• An intruder can prove Alices identity without
  knowing the secret, if he knows Bobs challenge
  in advance
• Generate random r
• If expected challenge is 1, send x r2/v mod n
  as commitment, and y r as response
• If expected challenge is 0, send x r mod n as
  commitment
• Probability that any Intruder impersonating the
  prover can send the right response is only ½
• Probability reduced as iterations are increased
• Important - Alice should not repeat r

11
Applications

• Watermark Verification
• Show the presence of watermark without revealing
  information about it
• prevents from removing the watermark and
  reselling multiple duplicate copies
• Others e-voting, e-cash etc.

12
Products

• Skys VideoCrypt
• Analogue decoding card for satellite DirecTV
  descrambler used to authenticate the subscribers
  card
• Uses Fiat-Shamir Zero Knowledge Protocol
• NGSCB New Generation Secure Computing Base
• Zero Knowledge for code attestations

13
References

• 1 Alfred J. Menezes, Paul C. van Oorschot,
  Scott A. Vanstone, Handbook of Applied
  Cryptography.
• 2 Ross Anderson, Security Engineering
• 3 Wenbo Mao, Modern Cryptography theory and
  practice
• 4 Don Coppersmith (Ed.), Advances in
  Cryptology- CRYPTO 95 Lecture Notes in Computer
  Science.
• 5 www.rsa.com
• 6 Oded Goldreich, Silvio Micali and Avi
  Wigderson, Proofs that yield nothing but their
  validity and a methodology of cryptographic
  protocol design.
• 7 Oren, Y., Properties of Zero-knowledge
  Proofs.
• 8 A Mitropoulos, and H. Meijer,
  Zero-knowledge proofs a survey.
