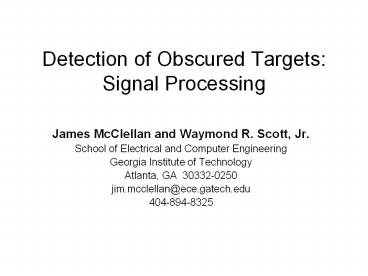

Detection of Obscured Targets: Signal Processing

1
Detection of Obscured Targets Signal Processing

• James McClellan and Waymond R. Scott, Jr.
• School of Electrical and Computer Engineering
• Georgia Institute of Technology
• Atlanta, GA 30332-0250
• jim.mcclellan_at_ece.gatech.edu
• 404-894-8325

2
Outline

• Introduction
• 3-D Quadtree Imaging
• GPR processing examples
• Location with Acoustic/Seismic Arrays
• Small Number of Receivers (moving)
• Cumulative Array strategy for imaging
• Accomplishments/Plans

3
Three Sensor ExperimentSensor Adjustments and
Features

• Adjustable Parameters for all three sensors
• Frequency range
• Frequency Resolution
• Spatial Resolution
• Integration time/bandwidth
• Height above ground
• Location

• Possible Features for sensors
• EMI
• Relaxation frequency
• Relaxation strength
• Relaxation shape
• Spatial response
• GPR
• Primary Reflections
• Multiple Reflections
• Depth
• Spatial Response
• Seismic
• Resonance
• Reflections
• Dispersion
• Spatial response

4
Multi-Resolution Processing
Features
Decision Process Exploit Correlation Training
GPR
Imaging
ID
Detect
Features
EMI
SigProc
Classify
Features
Seismic
Imaging
5
Quadtree BackProjection

• Space-Time Domain Decomposition
• Image Patch Dividing and Sub-Aperture Formation
  (Virtual Sensor)
• Divide and Conquer Strategy
• Computational Complexity O(N2log2N)

Image Patch Dividing (Sub-Patch )
Sub-Aperture Formation (Virtual Sensor)
6
GPR Processing

• Data taken in frequency domain with network
  analyzer 500 MHz to 8 GHz
• Imaging
• Quadtree
• Multi-resolution
• Approximate Backprojection
• 2-D, extend to 3-D
• Fast like w-k algorithms

Antenna Shape
7
Detection and Region Elimination

• Purpose Distinguish regions consisting coherent
  scatterers, such as mines, from other regions
  consisting of only clutter.
• Detector exploits the fact that from stage to
  stage the energy for a coherent target increases
  relative to total energy while energy of clutter
  decreases.

Define the ratio of the energy in a sub-volume
Si1 to that in its parents Si
The probability of a target being present in
stage i1 is then given by Bayes Rule
Then apply a threshold test
8
Quadtree Results
Experimental Data from the model mine
field Target A VS-50 AP Mine buried 1.3 cm deep
9
3D Detection Volume
Synthetic Data 1 target at position X 13, Y
10, Z -10 Four quadtree stages, 1 cm step size
10
Outline

• Introduction
• 3-D Quadtree Imaging
• GPR processing examples
• Location with Acoustic/Seismic Arrays
• Small Number of Receivers (moving)
• Cumulative Array strategy for imaging
• Accomplishments/Plans

11
Seismic Sensor
12
Home in on a Target

• Problem Statement
• Use a small number of source receiver positions
  to locate targets, i.e., landmines
• Minimize the number of measurements
• Three phases
• Probe phase use a tiny 2-D array (rectangle or
  cross)
• Find general target area from reflected waves
• Adaptive placement of additional sensors
• Maneuver receiver(s) to increase resolution
• RELAX/CLEAN recalculates for cumulative sensor
  array
• On-top of the target
• Verify the resonance

13
Adaptive Sensor Placement
Target
Source
Probe Array
Probe Array finds general target area
14
Wideband RELAX algorithm
15
Surface Plot for Displays
16
Examples using Sandbox Data

• Single source is used
• Only the Reverse wave is used in processing
• Or, passive listening for Buried structures
• Remove the Forward wave
• Prony analysis, or spatial filter
• Frequency range
• obtained from Spectrum Analysis of measured data
• Future work
• use RELAX to separate Forward and Reverse waves
• Cylindrical wave model

17
Spectrum Analysis via Prony
TS-50 at 1cm
VS1.6 at 5cm
18
Processing Examples

• Probe Phase
• Pick five sensors in a cross pattern
• Apply CLEAN/RELAX algorithm and plot the RELAX
  surface over a search grid
• Maneuver Phase
• Add one more sensor at a time
• Increase Aperture, or Triangulate
• Spatial resolution increases which narrows down
  the search area sfor the target

19
TS-50 (1cm)
Source at (-20,50)
20
Move Direction after PROBE Three likely
directions to move when adding one more sensor
Next Measurement
21
Next Measurement
1
2
3
22
Further Probing of Direction-1
23
Further Probing of Direction-3
24
Another Probing of Direction-1
25
On-Top
Sensor is placed at the Peak of Previous Step
26
Yet Another Strategy
27
Accomplishments

• Developed three sensor experiment to study
  multimodal processing
• Developed new metal detector and a radar
• Investigated three burial scenarios
• Showed responses for all the sensors over a
  variety of targets
• Demonstrated possible feature for
  multimodal/cooperative processing
• Developed new 3D quadtree strategy for GPR data
• Developed seismic experiments, models, and
  processing
• Improved experimental measurement by
  incorporating a Wiener filter
• Demonstrated reverse-time focusing and
  corresponding enhancement of mine signature
• Demonstrated imaging on numerical and
  experimental data from a clean and a cluttered
  environment
• Modified time-reverse imaging algorithms to
  include near field DOA and range estimates. The
  algorithms are verified for both numerical and
  experimental data with and without clutter.
• Modified wideband RELAX and CLEAN algorithms for
  the case of passive buried targets. The
  algorithms are verified for both numerical and
  experimental data with and without clutter.
• Used RELAX imaging to locate targets with
  cumulative maneuvering receivers.
• Developed a vector signal modeling algorithm
  based on IQML (Iterative Quadratic maximum
  Likelihood) to estimate the two-dimensional ?-k
  spectrum for multi-channel seismic data.
• Developed multi-static radar
• Demonstrated radar operation with and without
  clutter objects for four scenarios
• Buried structures
• Developed numerical model for a buried structure
• Demonstrated two possible configurations for a
  sensor

28
Plans

• Three sensor experiment (Landmine)
• Incorporate reverse-time focusing and imaging
• Incorporate multi-static radar
• More burial scenarios based on inputs from the
  signal processors
• More/Stronger clutter
• Distribution of targets and clutter
• Close proximity between clutter and targets
• Look for more connections between the sensor
  responses that can be exploited for
  multimodal/cooperative imaging/inversion/detection
  algorithms
• Imaging/inversion/detection algorithms
• Extend 3-D quadtree algorithm to multi-static GPR
  data.
• Investigate the use of reverse-time ideas to
  characterize the inhomogeneity of the ground
• Investigate the time reverse imaging algorithm
  for multi-static GPR data.
• Investigate the CLEAN and RELAX algorithms for
  target imaging from reflected data in the
  presence of forward waves with limited number of
  receivers.
• Investigate joint imaging algorithms for GPR and
  seismic data.
• Buried Structures
• Experiments with multi-static radar
• Develop joint seismic/radar experiment
• Signal Processing
