Title: Sobel Edge Detection: Gradient Approximation


1

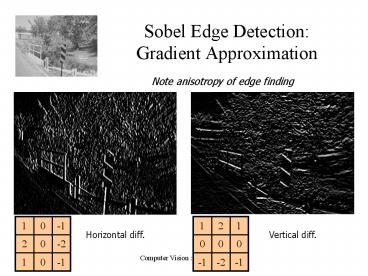

Sobel Edge Detection Gradient Approximation
Note anisotropy of edge finding
Horizontal diff.
Vertical diff.
2
Sobel
  • These can then be combined together to find the
    absolute magnitude of the gradient at each point
    and the orientation of that gradient. The
    gradient magnitude is given by
  • an approximate magnitude is computed using
  • which is much faster to compute.
  • The angle of orientation of the edge (relative to
    the pixel grid) giving rise to the spatial
    gradient is given by
  • In this case, orientation 0 is taken to mean that
    the direction of maximum contrast from black to
    white runs from left to right on the image, and
    other angles are measured anti-clockwise from
    this.

3
Derivative of Gaussian
4
Smoothing and Differentiation
  • Issue noise
  • smooth before differentiation
  • two convolutions to smooth, then differentiate?
  • actually, no - we can use a derivative of
    Gaussian filter
  • because differentiation is convolution, and
    convolution is associative

5
The Laplacian of Gaussian
  • Another way to detect an extremal first
    derivative is to look for a zero second
    derivative
  • the Laplacian
  • Bad idea to apply a Laplacian without smoothing
  • smooth with Gaussian, apply Laplacian
  • this is the same as filtering with a Laplacian of
    Gaussian filter
  • Now mark the zero points where there is a
    sufficiently large (first) derivative, and enough
    contrast

6
Marr-Hildreth operator
  • The Laplacian is linear and rotationally
    symmetric. Thus, we search for the zero crossings
    of the image that is first smoothed with a
    Gaussian mask and then the second derivative is
    calculated or we can convolve the image with the
    Laplacian of the Gaussian, also known as the LoG
    operator
  • This defines the Marr-Hildreth operator.
  • One can also get a shape similar to G'' by taking
    the difference of two Gaussians having different
    standard deviations. A ratio of standard
    deviations of 11.6 will give a close
    approximation to .This is known as the
    DoG operator (Difference of Gaussians), or the
    Mexican Hat Operator.
  • Still sensitive to noise.

7
Step edge detection 2nd-Derivative Operators
  • Method 2nd derivative is 0 for 1st-derivative
    extrema, so find zero-crossings
  • Laplacian
  • Isotropic (finds edges regardless of orientation.

Three commonly used discrete approximations to
the Laplacian filter. (Note, we have defined the
Laplacian using a negative peak because this is
more common, however, it is equally valid to use
the opposite sign convention.) Source
http//www.cee.hw.ac.uk/hipr/html/log.html
8
Laplacian of Gaussian
  • Matlab fspecial(log,)

Below Discrete approximation to LoG function
with Gaussian 1.4
9
Sobel vs. LoG Edge DetectionMatlab Automatic
Thresholds
Sobel
LoG
10
1 2
There are three major issues 1) The gradient
magnitude at different scales is different which
should we choose? 2) The gradient
magnitude is large along thick trail (for 3rd
fig) how do we identify the significant
points? 3) How do we link the relevant points
up into curves?
11
We wish to mark points along the curve where the
magnitude is biggest. We can do this by looking
for a maximum along a slice normal to the
curve (non-maximum suppression). These points
should form a curve. There are then two
algorithmic issues at which point is the
maximum, and where is the next one?
12
Non-maximum suppression
At q, we have a maximum if the value is larger
than those at both p and at r. Interpolate to get
these values.
13
Predicting the next edge point
Assume the marked point is an edge point. Then
we construct the tangent (along) to the edge
curve (which is normal to the gradient at that
point) and use this to predict the next points
(here either r or s).
14
Remaining issues
  • Check that maximum value of gradient value is
    sufficiently large
  • drop-outs? use hysteresis
  • use a high threshold to start edge curves and a
    low threshold to continue them.

15
(No Transcript)
16
fine scale high Threshold (be strict
in Accepting Edge points)
17
coarse scale, high threshold
18
coarse scale low threshold
19
Canny Edge Detection
  • Steps
  • Apply derivative of Gaussian (not Laplacian!)
  • Non-maximum suppression
  • Thin multi-pixel wide ridges down to single
    pixel
  • Thresholding
  • Low, high edge-strength thresholds
  • Accept all edges over low threshold that are
    connected to edge over high threshold (in the
    stage of predicting next edge point)
  • Matlab edge(I, canny)

20
Edge Smearing
Input
Result
from Forsyth Ponce
Sobel filter example Yields 2-pixel wide edge
band
We want to localize the edge to within 1 pixel
21
Non-Maximum Suppression Steps
  1. Consider 9-pixel neighborhood around each edge
    candidate (i.e., already over a threshold)
  2. Interpolate edge strengths E at neighborhood
    boundaries in negative positive gradient
    directions from the center pixel
  3. If the pixel under consideration is not greater
    than these two values (i.e. not a maximum), it is
    suppressed

Interpolating the E value E(r) (1 a)E(x, y)
aE(x 1, y)
22
Example Non-Maximum Suppression
courtesy of G. Loy
Non-maxima suppressed
Original image
Gradient magnitude
23
Edge Streaking
  • Can predict next pixel in edge orthogonal to
    gradient to make edge chain
  • Can also just use 8-connectedness to define
    chains
  • Streaking Gaps in edge chain due to edge
    strength dipping below threshold

courtesy of G. Loy
Original image
Strong edges
24
Edge Hysteresis
  • Hysteresis A lag or momentum factor
  • Idea Maintain two thresholds khigh and klow
  • Use khigh to find strong edges to start edge
    chain
  • Use klow to find weak edges which continue edge
    chain
  • Usual ratio of thresholds is roughly
  • khigh / klow 2 or 3

25
Example Canny Edge Detection
Strong connected weak edges
Original image
Strong edges only
Weak edges
courtesy of G. Loy
26
Example Canny Edge Detection
(Matlab automatically set thresholds)
27
Image Pyramids
  • Observation Fine-grained template matching
    expensive over a full image
  • Idea Represent image at smaller
    scales, allowing efficient coarse-
    to-fine search
  • Downsampling Cut width, height in
  • half at each iteration

from Forsyth Ponce
28
Gaussian Pyramid
  • Let the base (the finest resolution) of an
    n-level Gaussian pyramid be defined as P0 I.
    Then the ith level is reduced from the level
    below it by
  • Upsampling S"(I) Double size of image,
    interpolate missing pixels

courtesy of Wolfram
Gaussian pyramid
29
Reconstruction
30
Example fromhttp//sepwww.stanford.edu/morgan/t
exturematch/paper_html/node3.html
?decompose
Reconstruct ?
31
Laplacian Pyramids
  • The tip (the coarsest resolution) of an n-level
    Laplacian pyramid is the same as the Gaussian
    pyramid at that level Ln(I) Pn(I)
  • The ith level is obtained from the level above
    according to Li(I) Pi(I) S"(Pi1(I))
  • Synthesizing the original image Get I back by
    summing upsampled Laplacian pyramid levels

32
Laplacian Pyramid
  • The differences of images at successive levels of
    the Gaussian pyramid define the Laplacian
    pyramid. To calculate a difference, the image at
    a higher level in the pyramid must be increased
    in size by a factor of four prior to subtraction.
    This computes the pyramid.
  • The original image may be reconstructed from the
    Laplacian pyramid by reversing the previous
    steps. This interpolates and adds the images at
    successive levels of the pyramid beginning with
    the coarsest level.
  • Laplacian is largely uncorrelated, and so may be
    represented pixel by pixel with many fewer bits
    than Gaussian.

courtesy of Wolfram
33
Splining
  • Build Laplacian pyramids LA and LB for A B
    images
  • Build a Gaussian pyramid GR from selected region
    R
  • Form a combined pyramid LS from LA and LB using
    nodes of GR as weights
  • LS(I,j) GR(I,j)LA(I,j)(1-GR(I,j))LB(I,j)
  • Collapse the LS pyramid to get the final blended

34
Splining (Blending)
  • Splining two images simply requires 1)
    generating a Laplacian pyramid for each image, 2)
    generating a Gaussian pyramid for the bitmask
    indicating how the two images should be merged,
    3) merging each Laplacian level of the two images
    using the bitmask from the corresponding Gaussian
    level, and 4) collapsing the resulting Laplacian
    pyramid.
  • i.e. GS Gaussian pyramid of bitmask LA
    Laplacian pyramid of image "A" LB Laplacian
    pyramid of image "B" therefore, "Lout (GS)LA
    (1-GS)LB"

35
Example images from GTech
Image-1 bit-mask
image-2 Direct addition splining
bad bit-mask choice
36
Outline
  • Corner detection
  • RANSAC

37
Matching with Invariant Features
  • Darya Frolova, Denis Simakov
  • The Weizmann Institute of Science
  • March 2004

38
Example Build a Panorama
M. Brown and D. G. Lowe. Recognising Panoramas.
ICCV 2003
39
How do we build panorama?
  • We need to match (align) images

40
Matching with Features
  • Detect feature points in both images

41
Matching with Features
  • Detect feature points in both images
  • Find corresponding pairs

42
Matching with Features
  • Detect feature points in both images
  • Find corresponding pairs
  • Use these pairs to align images

43
Matching with Features
  • Problem 1
  • Detect the same point independently in both images

no chance to match!
We need a repeatable detector
44
Matching with Features
  • Problem 2
  • For each point correctly recognize the
    corresponding one

?
We need a reliable and distinctive descriptor
45
More motivation
  • Feature points are used also for
  • Image alignment (homography, fundamental matrix)
  • 3D reconstruction
  • Motion tracking
  • Object recognition
  • Indexing and database retrieval
  • Robot navigation
  • other
