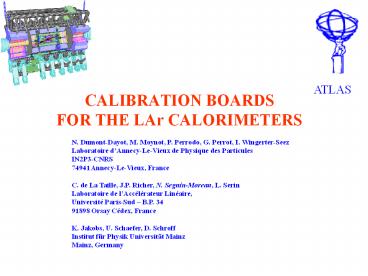

CALIBRATION BOARDS FOR THE LAr CALORIMETERS

1
CALIBRATION BOARDSFOR THE LAr CALORIMETERS
ATLAS
N. Dumont-Dayot, M. Moynot, P. Perrodo, G.
Perrot, I. Wingerter-Seez Laboratoire
dAnnecy-Le-Vieux de Physique des
Particules IN2P3-CNRS 74941 Annecy-Le-Vieux,
France   C. de La Taille, J.P. Richer, N.
Seguin-Moreau, L. Serin Laboratoire de
lAccélérateur Linéaire, Université Paris-Sud
B.P. 34 91898 Orsay Cédex, France   K. Jakobs, U.
Schaefer, D. Schroff Institut für Physik
Universität Mainz Mainz, Germany
2
OUTLINE

• ATLAS LAr CALORIMETER READOUT
• REQUIREMENTS
• HISTORY
• ANALOG and DIGITAL DMILL CHIPS
• 8 CHANNELS BOARD
• 128 CHANNELS BOARD

3
ATLAS Lar EM calorimeter readout
Calibration 116 boards _at_ 128 ch
Front End Board (FEB) 1524 boards _at_ 128 ch
Electrodes
Cold to warm Feedthrough
Front End Crate
Readout and Calib. signals
CALIB.
FEB
TBB
Controller
Cryostat
4
CALIBRATION Requirements and Principle
PULSER

• Goal Inject a precise current pulse Ical as
  close as possible as the detector pulse
• Rise time lt 1ns .
• Decay Time around 450 ns .
• Dynamic range 16 bits (100 µV to 5V) .
• Integral non linearity lt 0.1 .
• Uniformity between channels better than 0.25 (to
  keep calorimeter constant term below 0.7)
• Timing between physics and calibration pulse 1ns
• Operation in around 100 Gauss field
• Radiation hardness
• 50 Gy, 1.6 1012 Neutrons/cm2 in 10 years
• Taking account safety factors, DMILL chips must
  be qualified up to 500 Gy, 1.6 1013 Neutrons/cm2
• Run at a few kHz

LAr
ROOM T
HF SWITCH
0.1 Rinj
5
HISTORY

• 12 boards produced in 1998 with COTS LEB98 and
  LEB99
• 5 years successful operation in beam tests.
  Problems were mainly chips badly soldered and
  dead transistors, but
• Radiation tolerance
• Inadequate with COTs that failed irradiation
  tests at 20 Gy
• Chips migration to DMILL technology
• Improve parasitic signal at DAC0
• About 1.2 GeV equivalent (3 of the high gain
  range)
• HF switch redesigned with a PMOS transistor
  instead of 4 PNPs transistors in parallel 10
  times improvement
• Delay chip linearity and monotony marginal (and
  strongly dependent on power supply)
• DAC time stability improvement
• Digital part to be simplified, 10 ALTERAs
  removed and replaced by DMILL ASICs.

6
128 CHANNELS CALIBRATION BOARD ANALOG PART

• A low offset op. amp. distributes the DAC voltage
  to the 128 channels.
• One low offset op.amp. per channel generates the
  calibration current through a 5W 0.1.

V to I conversion
V follower
5 W 0.1
Low Off Op Amp
HF Switch
Vout 50 µV to 5V in 25 W
16 bits DAC
128 channels calibration board
Idc 2uA to 200 mA
7
16 bits DMILL DAC requirements and design

• 16 bits dynamic range (16 µV-1V), accuracy 0.1
• Good stability at small DAC value
• External R/2R ladder and highly degenerated
  current sources
• DAC DMILL V1 and V2 (Different Iref)
• Bandgap reference voltage (1.5 V) or external
  voltage
• DAC V2 Submitted in Sept 01, area 8 mm2
• 123 received in May 02, yield 90

DAC V2
16 I sources
DAC V2
External 0.1 R
Iref
Bandgap
V to I convertor
External 0.1 degener. R
8
DAC performance Linearity

• DC measurement performed with precise multimeter
• Measurement performed with the Bandgap reference
• Accuracy 0.01 or 10 µV
• INL lt 0.01 explained by single bit linearity

9
DAC performance

• Irradiation results shown at LEB7 (Stockholm)
• Temperature stability (with the bandgap
  reference) measured on 1 DAC V2
• better than -0.01/K
• Due to R and Isources temperature sensitivity

• Time stability measured DACs V1

Vdac with all the bits ON (DAC V2)
10
DMILL LOW OFFSET Op Amp Requirements

• Offset around 16mV DAC LSB or less .
• Offset stable in time
• Temperature sensitivity 0.1 or 1 LSB for ?
  10C
• Integral non linearity lt 0.1 .
• Speed not crucial Settling time lt 100 ms
• Input range from 5 V to 4 V
• Output range
• DC current from 2mA to 200mA
• Pulse Out 50 mV to 5V in Zout25 W
• Power supplies
• Op Amp VDD 7V and Vss 2V .

11
Low offset op amp design

• Used in 0.2 accuracy DC current source (2
  µA-200 mA) (Orsay)

5 W 0.1
External 165kW 0.1 collector resistors
Enable input
Second stage 1000/1.2 cascoded diff. pair
DAC in
External R Window of trimming
Centroid bipolar diff. Pair 10/1.2
Output PMOS 20,000/0.8 for IDAC200mA
External compens. 1 nF to VP6
Fuses for fine offset trimming to 10 µV
Current out
12
Low offset op amp versions

• First version in 0.8 µm BICMOS AMS technology in
  2000
• Selection inside 200 µV gt 23/24 Op amps95
• First DMILL chip Op Amp V1
• Op Amp design minor modifications compared to
  the AMS version
• 40 chips received in Feb 01. Area 1.82 mm2
• Ceramic package JLCC28
• 3 not working
• Selection inside 200 µV gt 32/37 Op amps86
• Final version V2
• Include HF switch (cost reduction)
• Op amp identical as V1
• Chip submitted in May 01. Area 3 mm2
• Plastic package PQFP44

Layout of Op Amp V1
19601460
Layout of Op. Amp. V2
13
Op Amp performance Offset

• Yield
• 593 chips received Nov 01.
• 574 Fully functional, 19 out of working
• ? Yield 96

• Selection inside 200 µV
• 364 Op Amp
• ? sorting yield 63.4
• Example of offset trimming

Op Amp trimmed down to 7 µV
Initial Offset254 µV
14
Op Amp performance

• Irradiation tests Performed on V1 and shown at
  LEB7 (Stockholm)
• DC Linearity DC output current measured with a
  precise multimeter.
• Offset not sensitive to the DAC value

Residuals in µV
15
Offset stability

• Time stability (10 Op Amps)
• Output DC current monitored
• Stability better than 10 mV

• Temperature stability (10 Op Amps)
• Largest variation (lt2 mV/degree) for OA with the
  largest initial offset
• 10 chips previously trimmed down to a few mV kept
  at 87 degree during 4 days. Stability found
  better than 2 mV over this period.

Offset variation
5 mA or 25 mV
40 mV
25
50
90 minutes
16
OP AMP PRODUCTION AND TEST

• 28000 op amps produced before the end of 2002
• Use of the Grenoble robot to test them and trim
  op amps with offset lt 200 µV

• DC measurements for 3 DAC values
• Total Offset (in-in-)
• DV Rc (2nd stage offset)
• IDC out after PMOS Switch
• Check 7.5 V Power Consumption

17
DIGITAL PART
CALOGIC (LAPP Annecy) Generate calib. Window
and reset signals
I2C
SPAC I2C frame
SPAC I2C
Clock40
TTCrx
TTCRx ATLAS TTC commands
CALOGIC Reg0-3 32 bits R/W register To enable
the 128 ch.
DAC REG
REG0
REG1
REG2
REG3
TTC decode
32
32
32
32
16
CALOGIC 16 bits R/W reg. To load the DAC value
Delay0
Delay1
4
4
16 bits DAC
DELAY (CERN) 0-24 ns, step 1ns
16 Pulsers
16 Pulsers
16 Pulsers
16 Pulsers
16 Pulsers.
16 Pulsers
16 Pulsers
16 Pulsers
ANALOG PART
18
Digital chips CALOGIC

• Control logic DMILL (ANNECY)
• Common DMILL chip to control DAC, pattern and
  delays registers and to decode TTCRx commands.
• 16 mm2 chip, received 39 (MPW 05/01). Yield
  100

• Irradiation tests
• SEE test performed in Feb 02 (Louvain)
• no SEU up to 8 1012 p (60 MeV)
• In ATLAS lt 2 SEU/yr

19
Digital chips DELAY

• Delay chip DMILL (CERN)
• To align physics signal and calibration pulse
• 4 delay lines/chip 0-24 ns, 1ns step
• Linearity residuals 60 ps
• Jitter 25 ps

• SEE test performed in Feb 02 (Louvain)
• 4 chips monitored
• One error occurred, cleared by power reset

Residuals (ns)
Jitter
60 ps
22 ps
- 60 ps
20
8 channels prototype towards the 128 channels
board

• Board very different from Module 0
• Channels no longer aligned but staggered in depth
• Difficult tuning
• Ground bounce
• 2V change with enabled channels
• 80 µV DAC offset
• DAC change with all channels on
• Overshoot
• Signal uniformity
• DC uniformity
• Damaged chips
• Oscillations
• Ripple noise
• Linearity
• But all hopefully fixed!

8 channels module
Module 0 128 channels board
DAC
SPAC2
Calolgic
TTCRx
Delay
8 Opamps switches
8 outputs
21
Pulse shape before shaping

• Full DAC range
• 100 µV ? 1V
• Up to 5V pulses in 50 O
• Rise time
• lt 2 ns
• Very small variation with DAC
• Undershoot
• Due to 50 O line between the switch and R0
  should be 25 O
• Will be corrected
• HF Ringings
• At small DAC values, due to parasitic package
  inductance

DAC100 µV
DAC1 mV 0dB
DAC10 mV 0dB
DAC0.1V -20dB
DAC1V -40dB
22
Pulse shape after shaping

• Parasitic injected charge
• Peak of Qinj
• Equivalent to DAC30 µV
• At signal peak
• Qinjlt DAC 15 µV
• Improvement by gt10 compared to module 0

Qinj
DAC0µV
DAC100µV 0dB
DAC1mV -20dB
DAC1V -80dB
23
Parasitic Injected Charge (PIC) Improvement

• Improvement
• CH7 had the Nwell tied to 5V, as in the original
  configuration.
• Nwell of the other channels connected to the PMOS
  source to reduce the ringings
• gt Clear improvement of Qinj
• On 8 channels
• Good uniformity of the PIC

24
DC and Pulse Linearity

• Measured on 3 gains 1-10-100
• Pulse measurements
• In red
• After shaping (tp50ns)
• DC current measur.
• In black
• With Keithley
• Example of problems
• DAC referenced to VP6 by mistake
• Bad 5O resistor brand
• Dynamic performance at the level to DC
  performance

Gain 100
Gain 10
Pulse Linearity Residuals
0.05
0.05
-0.05
-0.05
Dc Linearity Residuals
Gain 1
Gain 1
DC linearity
0.1
0.05
Dac Ref corrected
Bad R replaced
-0.05
-0.1
25
Designing the 128ch board

• 16 times replication of the 8 channels module
• Many tricky PCB layout details to avoid coupling
  between digital and sensitive analog signals
• Difficult VP6 Distribution
• Connection between 5O and ref. VP6 taken for the
  DAC
• Must be uniform for all channels within 0.1
• Cant be shared between channels to minimize
  variation of amplitude with number of enabled
  channels
• Star configuration mandatory
• All VP6 lines equalized in length
• Common reference point on board center
  dimension 2 x 1 cm 1 mO
• gt 5 layers necessary for the VP6 routing

VP6 ref
DAC
150 mm
220 mm
26
128 channels PCB layout

• Top layer analog components

• C5 layer

27
CONCLUSION

• 2 prototypes of 128 channels calibration boards
  ready for tests of final ATLAS calorimeter
  electronics next october (1/2 crate)
• Production of 130 boards for ATLAS
• Call for tenders at the beginning of 2003
• Chips production
• DELAYS (600 already produced)
• DAC, SPAC, CALOGIC to be produced on the same
  digital wafer in 2003
• OP AMPs (28 000 to be produced before the end of
  2002)
