ATLAS Software

1

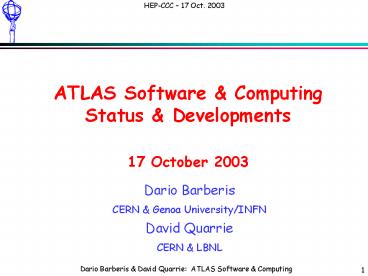

ATLAS Software ComputingStatus
Developments17 October 2003

• Dario Barberis
• CERN Genoa University/INFN
• David Quarrie
• CERN LBNL

2
ATLAS Computing Organization

• The ATLAS Computing Organization was revised at
  the beginning of 2003 in order to adapt it to
  current needs
• Basic principles
• Management Team consisting of
• Computing Coordinator (Dario Barberis)
• Software Project Leader (David Quarrie)
• Small(er) executive bodies
• Shorter, but more frequent, meetings
• Good information flow, both horizontal and
  vertical
• Interactions at all levels with the LCG project
• The new structure is now in place and working
  well
• A couple of areas still need some thought (this
  month)

3
(No Transcript)
4
ATLAS Computing Timeline
5
Simulation

• Geant4 geometry of full ATLAS detector completed
• a few details to sort out (services etc.)
• Combined test beam simulation being assembled
• Global performance tests and tuning on-going
• memory OK (300 MB for full geometry)
• CPU ?2G3 for calorimetry (dominates total CPU)
• Hit definition completed for almost all detectors
• hit persistency in progress
• Still missing (active work in progress) MC truth
• particles produced by G4 processes
• connection between hits and particles
• Could do with more people working on global
  simulation!

6
Digitization Pile-up

• Digitization implemented at some level in the
  Athena framework for all detectors
• tuning wrt test beam data still needed in most
  cases
• Pile-up procedure tested (since a long time) for
  Pixels and LAr
• work on-going for other detectors, needs careful
  checking and performance evaluation
• Simulation of ROD algorithms still incomplete for
  some detectors
• Persistency of RDOs (Raw Data Objects) in POOL
  next month
• ByteStream (raw data) format to be revisited in
  view of 2004 combined test beam

7
Reconstruction

• RTF (Reconstruction Task Force) report delivered
• sets guidelines for Reconstruction Event Data
  Model and interfaces between (sub)algorithms
• implementation already started for detector
  reconstruction
• combined reconstruction will follow soon
• co-ordination between tracking detectors (InDet
  Muons) also started in view of common (ATLAS)
  Track model
• Validation team feedback showed one significant
  problem with current major software release
  (7.0.1)
• Release 7.0.2 to be built and kept stable for
  end-users
• Next few developers releases (till end 2003) may
  be unstable as some technical code reshuffling is
  needed to conform to new common RTF-defined
  interfaces
• end users should use release 7.0.2 (plus bug
  fixes if needed)

8
Event Persistency

• POOL integrated in release 7.0.0 in September
• not all functionality needed for our Data Model
  available
• Release 7.1.0 (today) contains newer POOL/ROOT
  versions
• enough for most data classes
• being tested with generator output (HepMC)
• still missing support for DataLinks (used for
  object associations)
• Release 7.2.0 (end October) will have full
  functionality
• Hits, RDOs, RIOs, Tracks, CaloClusters etc. etc.
• Data dictionary is generated automatically once
  the machinery works, it works for all data types
• Full testing plan being discussed, several
  options
• test directly with HepMC, Geant4 hits, Athena
  RDOs, Reco EDM (full chain for functionality)
• convert DC1 hits to POOL and have large-scale
  test
• in any case a few more people could help a lot!

9
Data Management Issues

• ATLAS Database Coordination Board recently set up
• coordination of
• Production Installation DBs (TCn)
• Configuration DB (online)
• Conditions DB (online and offline)
• with respect to
• data transfer
• synchronization
• data transformation algorithms
• i.e. from survey measurements of reference marks
  on muon chambers to wire positions in space
  (usable online and offline)
• members
• Richard Hawkings (Alignment Calibration
  Coordinator), chair
• David Malon (Offline Data Management Coordinator)
• Igor Soloviev (Online DB contact person)
• Kathy Pommes (TCn Production Installation DB)

10
Conditions Data Working Group
11
Computing Model Working Group (1)

• Work on the Computing Model was done in several
  different contexts
• online to offline data flow
• world-wide distributed reconstruction and
  analysis
• computing resource estimations
• Time has come to bring all these inputs together
  coherently
• A small group of people has been put together to
  start collecting all existing information and
  defining further work in view of the Computing
  TDR, with the following backgrounds
• Resources
• Networks
• Data Management
• Grid applications
• Computing farms
• Distributed physics analysis
• Distributed productions
• Alignment and Calibration procedures
• Data Challenges and tests of computing model

12
Computing Model Working Group (2)

• This group is
• first assembling existing information and
  digesting it
• acting as contact point for input into the
  Computing Model from all ATLAS members
• preparing a running Computing Model document
  with up-to-date information to be used for
  resource bids etc.
• preparing the Computing Model Report for the
  LHCC/LCG by end 2004
• contributing the Computing Model section of the
  Computing TDR (2005)
• The goal is to come up with a coherent model
  for
• physical hardware configuration
• e.g. how much disk should be located at
  experiment hall between the Event Filter Prompt
  Reconstruction Farm
• data flows
• processing stages
• latencies
• resources needed at CERN and in Tier-1 and
  Tier-2 facilities

13
Combined Test Beam

• Most of software (infrastructure and algorithms)
  are common for full ATLAS simulation and combined
  test beam
• geometry is different (for Geant4 simulation and
  for reconstruction)
• but built out of the same basic units
• alignment procedure is completely different
• tracking for InDet is somewhat different
  (geometry and B field)
• Offline Test Beam group assembled
• includes contact people from detector test beam
  communities and major software activities
• coordinated by Ada Farilla
• Offline test beam support in parallel to DC2
• same timescale
• different constraints and priorities
• again, would need more people to support
  concurrent activities

14
Data Challenges

• DC1 completed earlier this year
• some productions still going on using the DC1
  software and organization
• they are now called continuous productions
• we foresee a semi-automatic system for these
  medium-sized productions
• DC2 operation in 2004
• distributed production of (gt107) simulated events
  in April-June
• events sent to CERN in ByteStream (raw data)
  format to Tier-0
• (possibly) prompt alignment/calibration and
  (certainly) reconstruction processes run on
  prototype Tier-0 in a short period of time (10
  days, 10 test)
• reconstruction results distributed to Tier-1s and
  analysed on Grid
• needs delivery of well-tested software by March
  for simulation and May for reconstruction

15
ATLAS DC1 (July 2002-April 2003)

• Driven by the production of data for High Level
  Trigger (HLT) and to Physics communities
• HLT-TDR in June 2003
• Athens Physics Workshop in May 2003
• Main achieved goals
• Put in place the full software chain from event
  generation to reconstruction
• Put in place the distributed production
• Experimented production with Grid tools
• NorduGrid for all phases of DC1
• ATLAS-US
• Simulation
• Pile-up and reconstruction in a very significant
  way
• gt 10K jobs 10K CPU-days gt 10 TB of data
• EDG (pioneer role) UK-Grid in test mode
• Experimented data replication transfer (Magda)

16
Grid in ATLAS DC1
US-ATLAS EDG -gt LCG
NorduGrid DC1
DC1 DC1 Part of
simulation several tests
full production Pile-up reconstruction
DC2 Same basic components for job definition
job submission recipe bookkeeping
data catalog transfer replication
17
DC2 April July 2004

• At this stage the goal includes
• Full use of Geant4 POOL LCG applications
• Pile-up and digitization in Athena
• Deployment of the complete Event Data Model and
  the Detector Description
• Simulation of full ATLAS and 2004 combined
  Testbeam
• Test the calibration and alignment procedures
• Use widely the GRID middleware and tools
• Large scale physics analysis
• Computing model studies (document end 2004)
• Run as much as possible of the production on
  LCG-1

18
Task Flow for DC2 data
Athena-POOL
Athena-POOL
Athena-POOL
ESD AOD
Hits MCTruth
Digits
Athena Pile-up Digits
Athena Geant4
Athena
HepMC
Digits
ESD AOD
Hits MCTruth
Athena Pile-up Digits
Pythia 6
Athena Geant4
HepMC
Athena
Digits
Hits MCTruth
Athena Pile-up Digits
ESD AOD
Athena Geant4
HepMC
Athena
Byte-stream
Digitization (Pile-up)
Event generation
Detector Simulation
Reconstruction
19
DC2 Scenario Time scale

• September 03 Release7
• Mid-November 03 pre-production release
• February 27th 04 Release 8 (production)
• April 1st 04
• June 1st 04 DC2
• July 15th

• Put in place, understand validate
• Geant4 POOL LCG applications
• Event Data Model
• Digitization pile-up byte-stream
• Conversion of DC1 data to POOL large scale
  persistency tests and reconstruction
• Testing and validation
• Run test-production
• Start final validation
• Start simulation Pile-up digitization
• Event mixing
• Transfer data to CERN
• Intensive Reconstruction on Tier0
• Distribution of ESD AOD
• Calibration alignment
• Start Physics analysis
• Reprocessing

20
DC2 and Grid tools

• Much work already done
• Magda (BNL) AMI (Grenoble) used already in DC1
• Other tools in different stages of development
  and test
• GANGA (ATLAS-LHCb UK main effort)
• Chimera (US) exploit Virtual Data ideas (DC1)
  DIAL (BNL)
• AtCom used to generate the jobs (batch and grid
  flavors)
• GRAT (US) Grappa (US)
• A coherent view of tools use and integration is
  emerging but need more work and thinking
• LCG-1
• We intend to use and contribute to validate LCG-1
  components when they become available
• ATLAS-EDG task force has become ATLAS-LCG testing
  task force

21
DC2 resources (based on Geant3 numbers)
To be kept if no 0 suppression in calorimeters
22
Grid activities

• LCG-1 system being deployed by LCG-GD group
• so far in several sites around the world,
  expanding fast
• somewhat later than expected and with some
  reduced functionality
• new release in November should improve
  functionality and robustness
• ATLAS-LCG testing team led by Oxana Smirnova
  actively testing the system in close contact with
  LCG-GD group
• could foresee to open the service for general
  users in December
• timescale anyway matches our Data Challenge plans
• Grid-3 ATLAS-CMS joint tests in US in
  October-November to test internal infrastructure
• including interoperability with LCG-1 system
• ARDA (Architectural Roadmap for Distributed
  Analysis) RTAG will submit final report by end
  October
• LCG common project will probably follow, we will
  participate

23
Commissioning

• Commissioning of software
• Data Challenges of increasing complexity and
  scope
• tests of ATLAS offline software
• tests of common LCG software
• tests of environment and infrastructure (LCG
  Grid)
• Test Beam operation
• real-time tests
• framework services for Level-2 trigger and Event
  Filter
• HLT and offline algorithms in EF and prompt
  reconstruction environment
• Software for commissioning
• A few simulation/reconstruction activities of
  cosmic ray, beam-gas and beam halo events already
  started
• Now need coordination of efforts (similarly to
  test beam coordination)

24
Planning Milestones

• We recently revised completely the planning of
  the Software Computing project, including
• WBS (resource loaded)
• Schedule with internal and external (LCG)
  dependencies
• Milestones (all levels)
• Integration with ATLAS Technical Coordination
  scheduling tools (schedule and PPT system)
• Last planning exercise was 3 years ago (no
  integration with TC tools at that time)
• several things changed since
• LHC t0 shifted to 2007
• LCG project started (resources moved from ATLAS
  to LCG common projects)
• Tom LeCompte (Planning Coordinator since June03)
  actively gathered and harmonized all information

25
Planning, Schedule, PPT

• Planning now kept up-to-date very actively by Tom
  LeCompte (Planning Coordinator)
• Schedule being improved with more detailed task
  specifications
• Level-1 milestones submitted to EB and LHCC last
  month
• Lower level milestones being defined (or revised)
  next week
• Schedule integration with TC master schedule in
  progress
• Full integration with PPT by end November
• Level-1 and level-2 tasks and milestones to be
  followed by PPT

26
High-Level Milestones

• 10 Sept. 2003 Software Release 7 (POOL
  integration)
• 31 Dec. 2003 Geant4 validation for DC2 complete
• 27 Feb. 2004 Software Release 8 (ready for DC2/1)
• 1 April 2004 DC2 Phase 1 starts
• 1 May 2004 Ready for combined test beam
• 1 June 2004 DC2 Phase 2 starts
• 31 July 2004 DC2 ends
• 30 Nov. 2004 Computing Model paper
• 30 June 2005 Computing TDR
• 30 Nov. 2005 Computing MOU
• 30 June 2006 Physics Readiness Report
• 2 October 2006 Ready for Cosmic Ray Run

27
Computing Manpower Review

• Final report received last week
• Main points for ATLAS according to the panel
• Must strengthen the core s/w team at CERN soon
• or we will have to recruit more people and
  sustain a larger level of effort compared to
  other experiments
• The software plan needs the backing of the
  Collaboration, its members and the funding
  agencies.
• The ATLAS Collaboration needs to take action
• or they will need twice the resources as
  compared to the other experiments and possibly
  fail to have their software ready in time for the
  start-up of the LHC.
• If they establish a core group at CERN, the
  level of effort missing from the core team is
  estimated to be about 8 FTEs of software
  engineers and computing professionals.

28
Conclusions and Perspectives

• We have an organizational structure adapted to
  the needs of the Software Computing Project
  till LHC start-up
• clearly-identified managerial roles,
  responsibilities, work packages
• The current planning update helped us to
  identify
• critical path developments
• missing manpower
• Data Challenges, Test Beams and Commissioning
  runs help us to deploy ATLAS software, assess it
  and use it in realistic environments of
  increasing complexity
