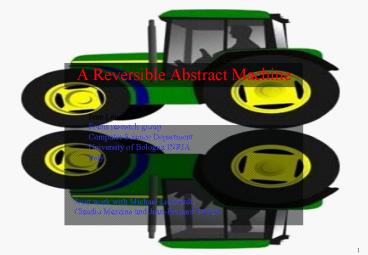

A Reversible Abstract Machine

1
A Reversible Abstract Machine
Ivan Lanese Focus research group Computer Science
Department University of Bologna/INRIA Italy
Joint work with Michael Lienhardt, Claudio
Mezzina and Jean-Bernard Stefani
2
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

3
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

4
Rhopi and space efficiency

• Rhopi is a causally-consistent reversible HOpi
• Developed by Sardes and Focus
• Used to study reversibility in presence of
  (higher-order) communication
• Memory efficiency was not considered
• Memory consumption due to storing history
  information
• Is rhopi a space efficient way of making HOpi
  reversible?
• Intuitively not, because of duplication of
  communicated messages and of trigger
  continuations
• What can we do to improve its space efficiency?

5
Giving a formal answer to the question

• Rhopi space consumption should be compared to
  HOpi one
• HOpi is at a very high-level of abstraction
• Difficult to understand the actual amount of
  memory used by an HOpi process
• HOpi may not be space efficient on its own
• We would need an abstract machine for HOpi
• Providing an efficient implementation
• Accepted by the community
• No such abstract machine exists for HOpi
• Actually no abstract machine at all

6
A path towards the solution

• We move from HOpi to Oz
• We choose a kernel language of it, which we call
  µOz
• µOz is an higher-order language
• Thread-based concurrency
• Asynchronous communication via ports
• µOz advantages
• Similar to Hopi
• Has a well-known and rather classical stack based
  abstract machine
• Suitable as a reference implementation
• We do the space complexity analysis in µOz setting

7
A side effect

• µOz is nearer to real languages
• Stores and variables
• Sequence, if-then-else and procedure calls
• We test the techniques developed for HOpi in a
  more realistic scenario
• Further steps needed to tackle real languages

8
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

9
µOz syntax
10
µOz semantics
11
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

12
Making µOz reversible

• We add history information to each thread
• Keeping trace of actions executed in the past
• For most statements, we add a delimiter esc to
  define their scope
• E.g., for let, if-then-else and procedure call
• We add unique names to threads
• We add history information also to queues
• We add a symmetric version for each rule

13
µOz reversible semantics forward rules
14
µOz reversible semantics backward rules
15
Basic properties

• The µOz reversible abstract machine enjoys the
  same basic properties of RCCS and rhopi
• Preservation of µOz semantics
• Loop Lemma
• Every step can be perfectly undone
• Causal consistent reversibility
• Coinitial traces are cofinal iff they are
  causally equivalent

16
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

17
Space complexity

• We can now go back to our original question
• We compute the space overhead of the reversible
  abstract machine w.r.t. the original one
• Size of the reversible configuration minus size
  of the corresponding µOz one
• For a fixed program, the overhead is linear in
  the number of computation steps
• Clear by looking at the size of the stored
  history information
• Only non constant information for discarded
  branch of if-then-else and number of parameters
  of procedure calls

18
Optimality of linear memory overhead

• Is the space overhead optimal (in order of
  magnitude)?
• We prove a linear lower bound by giving a program
  that requires at least a linear overhead

19
Linear lower bound

• Thread p1 sends true, thread p2 sends false
• All the computations sending the same number of
  true and of false lead to the same state

20
Proof strategy

• Consider computations where all the sends are
  done before all the receives
• Divide the sends in pair, and consider the
  computations where in each pair a send is from p1
  and one from p2
• Same number of true and false
• Two possibilities for each pair
• All the computations are coinitial and cofinal
  and not causally equivalent
• We need to distinguish them
• We need one bit for each pair
• All the possibilities, thus also incompressible
  strings
• The number of bits is linear in the number of
  steps

21
Discussion

• Overhead due to nondeterminism in communications
• A similar example can be defined for
  nondeterminism in thread scheduling
• Deterministic computations actually would need
  less space
• Just the number of performed steps, which takes
  logerithmic space
• Tradeof between space and time efficiency

22
Roadmap

• Origin of the work
• µOz
• Reversing µOz
• Space overhead
• Conclusions

23
Summary

• A reversible abstract machine for µOz
• Linear overhead with respect to the standard
  machine
• A linear lower bound for the overhead
• Due to nondeterminism

24
Future work

• Proceeding towards real languages
• Modules, types, exceptions,
• Concurrent ML?
• Analyze space efficiency for controlled
  reversibility
• Roll-pi, croll-pi
• Analyze different tradeofs between space and time
  overhead

25
Finally

• Thanks!

• Questions?
