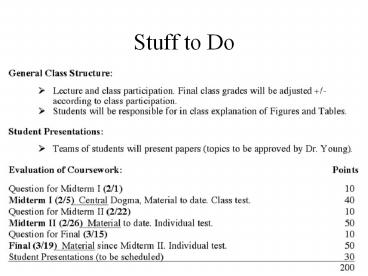

Stuff to Do

1
Stuff to Do
2
Midterm Iquestions due 1/31

• Email me your question (with answers),
• if you have the capability, mail complete
  questions, figures, etc. and all,
• if not, write questions, with instructionsi.e.
  in Figure 2 of x paper, blah, blah, blah,
• Friday afternoon, Ill post the questions on the
  WEB page, on Monday, youll have time to work on
  them together, in class.

3
Cycle SequencingChain Terminationa DNA
polymerase application.
ddNTPs
dNTPs
4
(No Transcript)
5
Linked on Course WEB Page.
Cycle Sequence Tutor
and an animation, http//www.dnalc.org/shockwave/
cycseq.html
6
Disclaimer this review is heavily biased toward
the public sequencing consortium.
7
Map First then sequence
Sequence First then map
8
Genome Sequencing Strategy 1

• Clone-by Clone Approach
• Order clones along the genome, then sequence,
• not dependent on acceleration of sequencing
  capacity,
• not dependent on advanced computer analysis,
• not dependent on as-of-yet sequencing
  technologies,
• repeats not as big a problem?
• heavy up-front demand for human labor.

9
Clone-by-Clone Ordered Approach
Online Primer mapping
10
Genomic Libraries
how many clones to cover a genome?
11
Vectors(carry insert DNA)
Vector
Host
Inserts

• Plasmid E. coli up to 15 kb,
• Phage E. coli up to 25 kb,
• Cosmid E. coli up to 45 kb,
• BAC E. coli 100-500 kb,
• YAC Yeast 250-1000 kb.

plasmid/phage hybrid
12
Genomic Sequences and Coverage

• N ln(1 -
  .9999)
• ln(1 - v/2,900,000,000)
• v average vector insert size

plasmid (5 kb) 5.3 x 106 phage (20 kb)
1.3 x 106 BAC (125 kb) 2.2 x 105
YAC (500 kb) 27,000 clones
13
Clone-by-Clone Ordered Approach
14
Contigs(Contiguos Sequences)
Find overlapping ends
Clone 1
Sequence,
Restriction Fragment Length Polymorphisms
(RFLPs).
15
Sequence Contig
16
RFLP
Restriction enzymes cut specific
DNA specifically,
Fragment lengths provide clone identification
data.
17
(No Transcript)
18
Contigs(Contiguos Sequences)
Find overlapping ends
Merge good pairs of reads into longer contigs

• Find the minimal Tilling Path,
• - minimum set of overlapping clones that cover
  the genome.

19
Minimal Tilling Path
Shotgun Sequence Each Clone
20
Bacterial Artificial ChromosomesBACs

• Universal Priming Sites,
• On the vector, flanking the genomic insert.

21
Shotgun(self-quiz)
8x - 10x coverage To shotgun sequence 10,000
bp, youd need 80k - 100k bp of sequence, or 160
- 180 sequencing reactions.
But, 10,000 bp, at 500 bp per sequencing
reaction could be done in as few as 20 sequencing
reactions.
Why Shotgun?
22
Contigs
QC
23
(No Transcript)
24
Structural Genomic Strategies 2

• Whole Genome Assembly Approach
• Sequence first, then order,
• dependent on advances in computer analysis and
  sequencing technologies,
• dependent on automated labor.

25
WGA
26
Read Pairs Mate End Pairs

• Paired End Sequencing,
• sequence both ends of the vector insert, using
  vector derived primers,
• Maintain mate pair data.

5
3
5
3
27
Example Sequence Output(example 5 kb insert)
5 read(543 bp)-atatgtatattgaattacatacatattattaatg
cacatttttatccggagttgtggaccatagaaagacatattgactcctca
aagtaaattctgcatgttacattgaaatcataggctaaatttgagatgca
ctatttttagaaagtgtagagaaaaggacaggaagaaataagcgaaagct
ttggtaagccaccaaacctgattactggaagaaaagaaaaaagttccgag
aatagagttagatcgctggtgagggttttaaatggaacacaacaatggtt
gttttagagtgtgttattcttttgtatttataccttctcataggtttctt
gtaatacacgcttcttcctctctctccctctctcttatggcctcgtcttg
aaagcgtcttgcatgctaagagaaggctttagagcaaggagagaagggag
aagttgatttatacgtccatcggatatatcttctttttatatctgtctct
cttttaaggaagaaaaatggcgactgaattctcgtgggatgaaatcaaga
aagaaaatg...
- rest of insert (unsequenced, 3.9 kb) -
...ggcttgaaatatttggggcaaacaagcttgaagagaaatcagagaac
aagtttttgaaattcttggggttcatgtggaatcctctctcatgggttat
ggagtctgctgcaatcatggctattgttttagctaatggaggaggaaagg
cgccggattggcaagattttatcggtattatggtgttgcttatcatcaac
tccaccataagtttcatcgaggagaacaatgctggcaatgccgctgctgc
tctcatggcaaatcttgcaccaaagactaaggtatgcaaatttctcaata
catatatataggtatgtattttctaaaaaggagagttatataacctatgt
gtgaatgtaggtgttgagagatggtaaatggggggagcaagaggcttcaa
tcttggttccgggtgatttgataagcatcaaattgggtgacattgttcct
gctgatgctcgtctcctcgaaggagatcctttaaaaattgaccaatctgc
tcttactggtgaatcccttccaaccaccaaacacccaggagat - 3
read(540 bp)
plus trace data files associated with these
sequence runs.
28
WGA
29
Structural Genomic Strategies 3 (Hybrid)
30
Project Comparisons(NYT 10/3/2002)

• Decoding the genome of Plasmodium falciparum, the
  most dangerous of the four single-cell parasites
  that cause malaria, took six years and cost about
  20 million, paid for by the Wellcome Trust of
  London, the National Institutes of Health in
  Bethesda, Md., and other sources. Dr. Malcolm J.
  Gardner of the Institute for Genomic Research in
  Rockville, Md., led a large team of scientists
  there and at the Sanger Centre near Cambridge in
  England. Completion of the falciparum genome was
  first announced at a conference in Las Vegas in
  February.
• The genome of Anopheles gambiae, the primary
  carrier of the parasite, was begun more recently
  and took a mere 15 months even though its genome
  is far larger some 278 million units of DNA
  encoding 14,000 genes compared with the
  parasite's 23 million units of DNA and 5,268
  genes. The mosquito team was led by Dr. Robert A.
  Holt of Celera Genomics in Rockville. The 14
  million cost was born by the National Institutes
  of Health, by Genoscope in France and other
  sources.

Hybrid
WGA
31
Wednesday

• WGA,
• Shotgun Sequencing,
• Hybrid Approach.
• Compartmentalized
• Shotgun
• Approach

• Please read
• Science 291 1304-1315
