last lecture

1

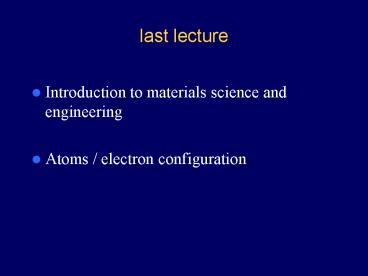

last lecture

• Introduction to materials science and engineering
• Atoms / electron configuration

2
today

• Bonding in solids
• Structure of crystal solids

3
Bonding Forces and Energies
distance r
4
The Periodic Table
increasing electronegativity
INTERMEDIATE
NONMETALS
METALS
5
Ionic Bonding Covalent Bonding
e.g. sodium chloride
e.g. methane
6
Metallic Bonding
7
Bonding Energies
8
Crystalline Structures
9
Crystalline Structures
amorphous
crystalline
10
Example Glass
O2-
Si4
quartz (crystalline)
quartz glass (amorphous)
glass (amorphous)
11
Crystalline Structures
12
Hexagonal Crystal Structures
hcp unit cell
13
Stacking Sequence of Close-Packed Structures
14
FCC and BCC Solid Sphere Model
fcc unit cell
bcc unit cell
a
a
R
R atomic radiusa unit cell length / lattice
constant
15
Crystalline Structures of Materials
16
Lattice Parameters
17
Crystal Systems
18
Crystal Systems
19
How to define a direction

• Vector of convenient length (pass through origin)
• Project the vector to the axes (and measure in a,
  b, and c)
• Multiply or divide these numbers by common factor
  to get smallest set of integers
• Write them down as uvw

20
Miller Indices Crystallographic Directions
21
Miller Indices Crystallographic Directions
(Miller Bravais)
22
How to define a plane

• Plane may not include origin!
• Determine the intercepts with appropriate axes as
  a, b, and c
• Take reciprocals (no intercept means infinity ?
  reciprocal of infinity 0)
• Multiply or divide these numbers by common factor
  to get smallest set of integers
• Write them down as (hkl)

23
Miller Indices Lattice Planes
intersection points 1/2 a, 1/2b, 1/2c reciprocal
values (222)
24
Defects

• Point defects
• Linear defects
• 2-dimensional defects

25
Point Defects
self-interstitial
vacancy
26
Impurity Atoms
interstitial
substitutional
27
Dislocations Edge Dislocation
inserted half plane
28
Dislocations Screw Dislocation
dislocation line
Burgers vector
29
Grain Boundaries
high-angle grain boundary (Qgt15)
30
next

• Properties of materials
