Genetic Engineering

1

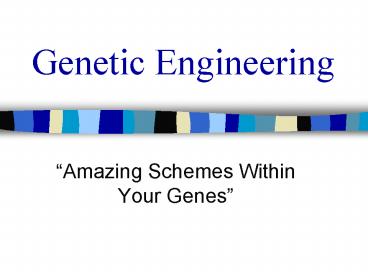

Genetic Engineering

• Amazing Schemes Within Your Genes

2
What is genetic engineering?

• Moving small pieces of DNA from one organism into
  another organism

3
What is recombinant DNA technology?

• Same thing as genetic engineering
• Recombinant DNA made by connecting (splicing)
  fragments of DNA from different sources

4
How does recombinant DNA work?

• DNA is inserted into an organism
• Organism uses foreign DNA as if it were its own

5
(No Transcript)
6
What are these new things called?

• Transgenic organisms
• contain recombinant DNA (initial foreign)

7
How do scientists move DNA (genes) to make
transgenic organisms?

1. Isolate source of foreign DNA to be inserted
2. Join DNA with a vehicle that can transport it
3. Transfer DNA (from chromosomes) into new host

8
(No Transcript)
9
How is DNA isolated?

• Restriction enzymes are used

10
What are restriction enzymes?

• Proteins that come from bacteria
• They recognize, bind to and cut DNA into smaller
  fragments at certain points
• gt200 different enzymes
• Examples are EcoRI, HinD III, Bam HI, Bgl II

11
Isolate source of DNA

• Ex EcoRI cuts between G and A whenever it
  sees CTTAAG
• A G G T C T T A A G C T A G C
• T C C A G A A T T C G A T C G

12
Isolate source of DNA

• Dont cut straight through both DNA strands
• Cut is offset by a few bases
• Sticky ends are produced
• C T T A A G
• G A A T T C
• C T T A A G
• G A A T T C

13
Isolate source of DNA

• Ex AluI cuts between C and G whenever it sees
  AGCT
• A G C T
• T C G A
• A G C T
• T C G A
• Blunt ends are produced

14
Isolate source of DNA

• Sticky Ends
• DNA can form circle because complementary bases
• OR
• DNA can pair with any other DNA fragment cut by
  the same enzyme (same bases exposed)
  Recombinant DNA

15
REFRESHER How do scientists move DNA (genes)?

• Isolate source of DNA
• Answer through Restriction Enzymes
• Join DNA to a vehicle that can transport it
• Answer ???
• Transfer DNA (from chromosomes) into target cell
• Answer ???

16
Join DNA to a transport vehicle

• Vector
• means by which DNA from one organism gets to
  target/host cell

17
Types of Vectors

• Mechanical
• Micropipette inserted into cell
• Gene gun shoots tiny metal bullet coated w/ DNA
• Biological
• Virus
• Plasmid

18
What is a plasmid?

• A small ring of DNA found in bacteria, which only
  carries genes under extreme circumstances
• Both plasmid and foreign DNA are cleaved w/ same
  restriction enzyme
• They are spliced using a glue called a ligase
  (enzyme)

19
How do we know if foreign DNA has been
successfully transferred?

• Host cell copies recombinant DNA and its own DNA
• Clones are created as host continues to divide
  (all w/ desired DNA)
• Foreign DNA codes for the production of a
  specific protein test the cloned cells to see
  if they produce protein or not

20
And the final product is

• Newly recombined DNA that undergoes mitosis,
  producing multiple copies of new DNA
• Bacteria is considered a good host because it
  reproduces quickly

21
Genetically Engineered
