Title: Tomasz Babul


1

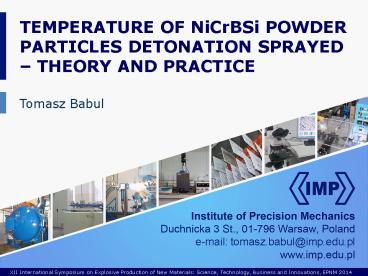

Tomasz Babul
TEMPERATURE OF NiCrBSi POWDER PARTICLES
DETONATION SPRAYED THEORY AND PRACTICE
2
DETONATION THERMAL SPRAY
  • Advantages of the detonation thermal spraying
  • Low substrate temperature the heat transferred
    to the substrate stays very low. The substrate
    temperature, during spraying, does not exceed
    150oC.
  • The highest velocity up to 1300 m/s.
  • Low 0.3 porosity and high 250 MPa adhesion.
  • Low cost of operation
  • consumption of oxygen is only 310 of HOVF (20
    to 30 l/m),
  • less electrical energy consumption very
    effective electric power consumption - the unit
    consumes a total of 200 W,
  • less downtime  the process is very simple to
    operate and very reliable. There are literally no
    components that can wear out, similar to Laval
    nozzle in the HVOF gun.
  • Can be sprayed multi-type powder from low melting
    point metal to high melting point of ceramics.

3
THERMAL SPRAYING
(www.gtv-mbh.com)
4
DETONATION SPRAYING DEVICE
Device for detonation spraying
(www.aflame.com)
5
RESEARCH METHODOLOGY
  • The used powder
  • alloy NiCrBSi
  • granulation of 2545 µm
  • chemical composition
  • Ni 70
  • Cr 16
  • Si 4
  • B 4
  • Fe 4
  • C 2
  • powder hardness 700HV

The morphology of the NiCrBSi
6
DETONATION SPRAYING DEVICE
  • To determine the stream velocity as a function of
    the stream acceleration way, there was used
    device with replaceable barrels.
  • Barrels with length of 110 mm, 140 mm, 210 mm,
    310 mm, 410 mm, 510 mm and 610 mm were used.

7
TEMPERATURE MEASURING SYSTEM
Recording and archiving of output signals were
performed using a four-channel digital
oscilloscope Tektronix TDS type 460.
System for measuring the stream temperature
8
TEMPERATURE OF THE NiCrBSi POWDER
Temperature (series of 5 meas.)
Temperature of the NiCrBSi powder stream as a
function of time measured for the barrel length
110 mm
9
TEMPERATURE OF THE NiCrBSi POWDER
Temperature (series of 5 meas.)
Temperature of the NiCrBSi powder stream as a
function of time measured for the barrel length
260 mm
10
TEMPERATURE OF THE NiCrBSi POWDER
Temperature (series of 4 meas.)
Temperature of the NiCrBSi powder stream as a
function of time measured for the barrel length
510 mm
11
TEMPERATURE OF THE NiCrBSi POWDER
Temperature (series of 4 meas.)
Temperature of the NiCrBSi powder stream as a
function of time measured for the barrel length
610 mm
12
TEMPERATURE MEASUREMENTS SUMMARY
Temperature changes for a NiCrBSi powder stream
as a function of the barrel length
13
FEM MODEL
The values of physical constants for Ni powder
14
MODEL ASSUMPTIONS

  • Temperature distributions were calculated by
    finite element method FEM, using the COSMOS/M
    program algorithm. It was assumed that the heat
    exchange takes place in the material according to
    the conduction mechanism described by Fouriers
    Law relationship
  • where
  • T - temperature,
  • t - time,
  • cp - specific heat,
  • r - density,
  • q - heat stream,
  • ki - thermal conductivity with i-direction.
  • The heat transfer between the considered system
    and the environment takes place in accordance
    with the convection mechanism where heat stream
    is expressed by the following equation
  • where
  • hc - heat transfer coefficient,
  • T - considered surface temperature,
  • T8 - ambient temperature.

15
MODEL SENSITIVITY ANALYSIS ON THE TEMPERATURE
DISTRIBUTION IN SPHERE f25 um
  • The purpose of this analysis is to examine the
    impact of model parameters on calculated
    temperature value at the considered system point.
  • As a sensitivity measure was adopted
    dimensionless index calculated from the following
    equation
  • where
  • T - temperature of the considered point,
  • pi - i-time model parameter.
  • This indicator determines the sensitivity of
    calculated temperature value at the considered
    system point for the model parameter change. The
    value of this indicator equal to unity means,
    that changing the considered parameter for 100,
    the calculated temperature value will change also
    by 100. Sensitivity indicator value equal to
    W-0.5 means, that increasing the considered
    parameter for 100, the calculated temperature
    value will be reduced by 50, etc. The results of
    such indicator calculations can be used to
    evaluate model parameters that have the most
    significant impact on the temperature
    distribution of the analyzed object.

16
MODEL PARAMETERS
  • As the parameters of the model were adopted
  • p1 sphere diameter,
  • p2 heat transfer coefficient,
  • p3 specific heat,
  • p4 density,
  • p5 thermal conductivity,
  • p6 outside temperature (ambient temperature),
  • p7 initial temperature.
  • By comparing the absolute values of the
    sensitivity indicator calculated for the
    temperature at time t4 ms, the model parameters
    can be arranged by decreasing impact as follows

17
MODEL PARAMETERS
  • On the sphere surface
  • p6 outside temperature (ambient temperature),
  • p2 heat transfer coefficient,
  • p3 specific heat,
  • p4 density,
  • p1 sphere diameter,
  • p5 thermal conductivity,
  • p7 initial temperature.

18
MODEL PARAMETERS
  • Inside the sphere
  • p6 outside temperature (ambient temperature),
  • p1 sphere diameter,
  • p3 specific heat,
  • p4 density,
  • p2 heat transfer coefficient,
  • p5 thermal conductivity,
  • p7 initial temperature.

19
EFFECT OF HEAT TRANSFER COEFFICIENT
Effect of heat transfer coefficient on the value
of temperature calculation on the surface of a
sphere (Ni) with a diameter of 45 µm
20
EFFECT OF HEATING TIME
Effect of heating time on the value of the
calculated temperature on the surface of nickel
powder with a diameter of 25 and 45  µm
21
THE TEMPERATURE DISTRIBUTION
The temperature distribution along the radius of
nickel powder with a diameter of 25 µm after 10,
50, 100, 200, 300 and 400 µs
22
THE TEMPERATURE DISTRIBUTION
The temperature distribution along the radius of
nickel powder with a diameter of 25 µm after 10,
50, 100, 200, 300 and 400 µs
The temperature distribution along the radius of
nickel powder with a diameter of 45 µm after 10,
50, 100, 200, 300 and 400 µs
23
PRACTICE AND THEORY COMPARISON
24
PRACTICE AND THEORY COMPARISON
Heat Transfer Coefficient 100 W/(m2K)
25
PRACTICE AND THEORY COMPARISON
Heat Transfer Coefficient 100 W/(m2K)
Heat Transfer Coefficient 10 W/(m2K)
26
CONCLUSIONS
  • The calculations for the assumed boundary
    conditions have shown that the particles surface
    heating depends primarily on the ambient
    temperature (temperature of the gaseous
    detonation products) and depends on adopted for
    the calculations value of heat transfer
    coefficient.
  • Changing the value of heat transfer from 10
    W/(m2K) to 100 W/(m2K) causes that the calculated
    theoretical time needed to heat the powder
    surface extends approximately 6-times, i.e. from
    about 0.5 ms to over 3.0 ms.
  • It has been shown that in the case of adoption of
    a constant heat transfer coefficient value for
    the calculations, the powder granulation (in the
    range of 25 µm and 45 µm) did not significantly
    affect on the duration of its surface heating to
    the detonation products stream temperature.
  • Maximum duration of surface heating to the
    ambient temperature (temperature of the gaseous
    detonation products T83273 K) is equal about 0.5
    ms. It is worth to mention that calculations
    shows that the powder temperature is almost
    identical on its surface and inside which
    indicates the intensive heat transfer from the
    surface into the material which is characterized
    by thermal conductivity. Due to the size of the
    individual powder particles, calculated results
    seem to be likely especially for smaller
    diameters.
  • A comparison of the graphs obtained for the
    experimental measurements and calculations using
    the FEM method shows their high compatibility.

27
Thank you for attention!
e-mail tomasz.babul_at_imp.edu.pl
