Feature Selection

1

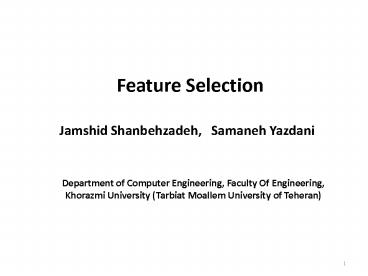

Feature Selection
Jamshid Shanbehzadeh, Samaneh Yazdani
Department of Computer Engineering, Faculty Of
Engineering, Khorazmi University (Tarbiat
Moallem University of Teheran)
2
Outline
3
Outline

• Part 1 Dimension Reduction
• Dimension
• Feature Space
• Definition Goals
• Curse of dimensionality
• Research and Application
• Grouping of dimension reduction methods

• Part 3 Application Of Feature Selection and
  Software

• Part 2 Feature selection
• Parts of feature set
• Feature Selection Approach

4
Part 1 Dimension Reduction
5

• Dimension Reduction
• Dimension

• Dimension (Feature or Variable)
• A measurement of a certain aspect of an object

• Two feature of person
• weight
• hight

6

• Dimension Reduction
• Feature Space

• Feature Space
• An abstract space where each pattern sample is
  represented as point

7

• Dimension Reduction
• Introduction

• Large and high-dimensional data
• Web documents, etc
• A large amount of resources are needed in
• Information Retrieval
• Classification tasks
• Data Preservation etc
• Dimension Reduction

8

• Dimension Reduction
• Definition Goals

• Dimensionality reduction
• The study of methods for reducing the number
  of dimensions describing the object

• General objectives of dimensionality reduction
• Reduce the computational cost
• Improve the quality of data for efficient
  data-intensive processing tasks

9

• Dimension Reduction
• Definition Goals

Class 1 overweight Class 2 underweight
Weight (kg)
60
50
Height (cm)
150
140

• Dimension Reduction
• preserves information on classification of
  overweight and underweight as much as possible
• makes classification easier
• reduces data size ( 2 features ? 1 feature )

10

• Dimension Reduction
• Curse of dimensionality

• As the number of dimension increases, a fix
  data sample becomes exponentially spars

Example
Observe that the data become more and more sparse
in higher dimensions

• Effective solution to the problem of curse of
  dimensionality is
•

  Dimensionality reduction

11

• Dimension Reduction
• Research and Application

Why dimension reduction is a subject of much
research recently?

• Massive data of large dimensionality in
• Knowledge discovery
• Text mining
• Web mining
• and . . .

12

• Dimension Reduction
• Grouping of dimension reduction methods

• Dimensionality reduction approaches include
• Feature Selection
• Feature Extraction

13

• Dimension Reduction
• Grouping of dimension reduction methods
  Feature Selection

• Dimensionality reduction approaches include
• Feature Selection the problem of choosing a
  small subset of features that ideally are
  necessary and sufficient to describe the target
  concept.

Example

• Feature Set X,Y
• Two Class

Goal Classification

• Feature X Or Feature Y ?
• Answer Feature X

14

• Dimension Reduction
• Grouping of dimension reduction methods
  Feature Selection

• Feature Selection (FS)
• Selects feature
• ex.
• Preserves weight

15

• Dimension Reduction
• Grouping of dimension reduction methods

• Dimensionality reduction approaches include
• Feature Extraction Create new feature based on
  transformations or combinations of the original
  feature set.

New Feature

• Original Feature X1,X2

16

• Dimension Reduction
• Grouping of dimension reduction methods

• Feature Extraction (FE)
• Generates feature
• ex.
• Preserves weight / height

17

• Dimension Reduction
• Grouping of dimension reduction methods

• Dimensionality reduction approaches include
• Feature Extraction Create new feature based on
  transformations or combinations of the original
  feature set.

• N Number of original features
• M Number of extracted features
• MltN

18

• Dimension Reduction
• Question Feature Selection Or Feature
  Extraction

• Feature Selection Or Feature Extraction
• It is depend on the problem. Example
• Pattern recognition problem of dimensionality
  reduction is to extract a small set of features
  that recovers most of the variability of the
  data.
• Text mining problem is defined as selecting a
  small subset of words or terms (not new features
  that are combination of words or terms).
• Image Compression problem is finding the best
  extracted features to describe the image

19
Part 2 Feature selection
20
Feature selection

• Thousands to millions of low level features
  select the most relevant one to build better,
  faster, and easier to understand learning
  machines.

n
X
m
N
21

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Three disjoint categories of features
• Irrelevant
• Weakly Relevant
• Strongly Relevant

22

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Two Class Lion and Deer
• We use some features to classify a new instance

To which class does this animal belong

23

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Two Class Lion and Deer
• We use some feature to classify a new instance

So, number of legs is irrelevant feature
Q Number of legs? A 4

• Feature 1 Number of legs

24

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Two Class Lion and Deer
• We use some features to classify a new instance

So, Color is an irrelevant feature
Q What is its color? A

• Feature 1 Number of legs
• Feature 2 Color

25

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Two Class Lion and Deer
• We use some features to classify a new instance

So, Feature 3 is a relevant feature
Q What does it eat? A Grass

• Feature 1 Number of legs
• Feature 2 Color
• Feature 3 Type of food

26

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Three Class Lion, Deer and Leopard
• We use some features to classify a new instance

To which class does this animal belong

27

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Three Class Lion, Deer and Leopard
• We use some features to classify a new instance

So, number of legs is an irrelevant feature
Q Number of legs? A 4

• Feature 1 Number of legs

28

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Three Class Lion, Deer and Leopard
• We use some features to classify a new instance

So, Color is a relevant feature
Q What is its color? A

• Feature 1 Number of legs
• Feature 2 Color

29

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Three Class Lion and Deer and Leopard
• We use some features to classify a new instance

So, Feature 3 is a relevant feature
Q What does it eat? A meat

• Feature 1 Number of legs
• Feature 2 Color
• Feature3 Type of food

30

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Goal Classification
• Three Class Lion and Deer and Leopard
• We use some feature to classify a new instance

• Feature 1 Number of legs
• Feature 2 Color
• Feature3 Type of food

• Add new feature Felidae
• It is weakly relevant feature
• Optimal set Color, Type of food Or Color,
  Felidae

31

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Traditionally, feature selection research has
  focused on searching for relevant features.

Relevant
Irrelevant
Feature set
32

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant An Example for the
  Problem

• Data set
• Five Boolean features
• C F1?F2
• F3 F2 , F5 F4
• Optimal subset
• F1, F2 or F1, F3

F1 F2 F3 F4 F5 C
0 0 1 0 1 0
0 1 0 0 1 1
1 0 1 0 1 1
1 1 0 0 1 1
0 0 1 1 0 0
0 1 0 1 0 1
1 0 1 1 0 1
1 1 0 1 0 1
33

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Formal Definition 1 (Irrelevance)

• Irrelevance indicates that the feature is not
  necessary at all.

• In previous Example
• F4, F5 irrelevance

Relevant
F4 and F5
34

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Definition1(Irrelevance) A feature Fi is
  irrelevant if

• Irrelevance indicates that the feature is not
  necessary at all

• F be a full set of features
• Fi a feature
• Si F -Fi.

35

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Categories of relevant features
• Strongly Relevant
• Weakly Relevant

Strongly
Irrelevant
Weakly
Relevant
36

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant An Example for the
  Problem

F1 F2 F3 F4 F5 C
0 0 1 0 1 0
0 1 0 0 1 1
1 0 1 0 1 1
1 1 0 0 1 1
0 0 1 1 0 0
0 1 0 1 0 1
1 0 1 1 0 1
1 1 0 1 0 1

• Data set
• Five Boolean features
• C F1?F2
• F3 F2 , F5 F4

37

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Formal Definition2 (Strong relevance)

• Strong relevance of a feature indicates that the
  feature is always necessary for an optimal subset
• It cannot be removed without affecting the
  original conditional class distribution.

• In previous Example
• Feature F1 is strongly relevant

Weakly
F1
F4 and F5
38

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Definition 2 (Strong relevance) A feature Fi is
  strongly relevant if

• Strong relevance of a feature cannot be removed
  without affecting the original conditional class
  distribution

39

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Formal Definition 3 (Weak relevance)

• Weak relevance suggests that the feature is not
  always necessary but may become necessary for an
  optimal subset at certain conditions.

• In previous Example
• F2, F3 weakly relevant

F2 and F3
F1
F4 and F5
40

• Feature selection
• Parts of feature set
• Irrelevant OR Relevant

• Definition 3 (Weak relevance) A feature Fi is
  weakly relevant if

• Weak relevance suggests that the feature is not
  always necessary but may become necessary for an
  optimal subset at certain conditions.

41

• Feature selection
• Parts of feature set
• Optimal Feature Subset

• Example
• In order to determine the target concept
  (Cg(F1, F2))
• F1 is indispensable
• One of F2 and F3 can be disposed
• Both F4 and F5 can be discarded.

optimal subset Either F1, F2 or F1, F3

• The goal of feature selection is to find either
  of them.

42

• Feature selection
• Parts of feature set
• Optimal Feature Subset

optimal subset Either F1, F2 or F1, F3

• Conclusion

• An optimal subset should include all strongly
  relevant features, none of irrelevant features,
  and a subset of weakly relevant features.

which of weakly relevant features should be
selected and which of them removed
43

• Feature selection
• Parts of feature set
• Redundancy

• Solution
• Defining Feature Redundancy

44

• Feature selection
• Parts of feature set
• Redundancy

• Redundancy
• It is widely accepted that two features are
  redundant to each other if their values are
  completely correlated

• In previous Example
• F2, F3 ( )

45

• Feature selection
• Parts of feature set
• Redundancy

Markov blanket

• The Markov blanket condition requires that Mi
  subsume not only the information that Fi has
  about C, but also about all of the other features.

46

• Feature selection
• Parts of feature set
• Redundancy

• Redundancy definition further divides weakly
  relevant features into redundant and
  non-redundant ones.

III
II
Strongly
Irrelevant
Weakly
II Weakly relevant and redundant features III
Weakly relevant but non-redundant features
Optimal Subset Strongly relevant features
Weakly relevant but non-redundant features
47

• Feature selection
• Approaches

48

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

• Framework of feature selection via subset
  evaluation

49

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset Generation
1
2
Original Feature Set
Generation
Subset
Evaluation
Goodness of the subset
Stopping Criterion
No
Validation
Yes
3
4
50

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset search method -Exhaustive Search Example

• Examine all combinations of feature subset.
• Example
• f1,f2,f3 gt f1,f2,f3,f1,f2,f1,f3,f
  2,f3,f1,f2,f3
• Order of the search space O(2d), d - feature.
• Optimal subset is achievable.
• Too expensive if feature space is large.

51

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset Evaluation
Measures the goodness of the subset Compares with
the previous best subset if found better, then
replaces the previous best subset
1
2
Original Feature Set
Generation
Subset
Evaluation
Goodness of the subset
Stopping Criterion
No
Validation
Yes
3
4
52

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset Evaluation

• Each feature and feature subset needs to be
  evaluated based on importance by a criterion.
• The existing feature selection algorithms, based
  on criterion functions used in searching for
  informative features can be generally categorized
  as
• Filter model
• Wrapper model
• Embedded methods

Note Different criteria may select different
features.
53

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Filter

• The filter approach utilizes the data alone to
  decide which features should be kept, without
  running the learning algorithm.
• The filter approach basically pre-selects the
  features, and then applies the selected feature
  subset to the clustering algorithm.

• Evaluation function ltgt Classifier
• Ignored effect of selected subset on the
  performance of classifier.

54

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Filter (1)- Independent Criterion

• Some popular independent criteria are
• Distance measures (Euclidean distance measure).
• Information measures (Entropy, Information
  gain, etc.)
• Dependency measures (Correlation coefficient)
• Consistency measures

55

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Wrappers

• In wrapper methods, the performance of a
  learning algorithm is used to evaluate the
  goodness of selected feature subsets.

• Evaluation function classifier
• Take classifier into account.

56

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Wrappers (2)

• Wrappers utilize a learning machine as a black
  box to score subsets of features according to
  their predictive power.

57

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Filters vs. Wrappers

• Filters
• Advantages
• Fast execution Filters generally involve a
  non-iterative computation on the dataset, which
  can execute much faster than a classifier
  training session
• Generality Since filters evaluate the intrinsic
  properties of the data, rather than their
  interactions with a particular classifier, their
  results exhibit more generality the solution
  will be good for a larger family of classifiers
• Disadvantages
• The main disadvantage of the filter approach is
  that it totally ignores the effects of the
  selected feature subset on the performance of the
  induction algorithm

58

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Filters vs. Wrappers

• Wrappers
• Advantages
• Accuracy wrappers generally achieve better
  recognition rates than filters since they are
  tuned to the specific interactions between the
  classifier and the dataset
• Disadvantages
• Slow execution since the wrapper must train a
  classifier for each feature subset (or several
  classifiers if cross-validation is used), the
  method can become infeasible for computationally
  intensive methods
• Lack of generality the solution lacks
  generality since it is tied to the bias of the
  classifier used in the evaluation function.

59

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Embedded methods
All features
Yes, stop!
No, continue
Recursive Feature Elimination (RFE) SVM.
Guyon-Weston, 2000. US patent 7,117,188
60

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Stopping Criterion

• Based on Generation rcdure
• Pre-defined number of features
• Pre-defined number of iterations
• Based on Evaluation Function
• whether addition or deletion of a feature does
  not produce a better subset
• whether optimal subset based on some evaluation
  function is achieved

1
2
Original Feature Set
Generation
Subset
Evaluation
Goodness of the subset
Stopping Criterion
No
Validation
Yes
3
4
61

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Result Validation
1
2
Original Feature Set
Generation
Subset
Evaluation
Basically not part of the feature selection
process itself - compare results with already
established results or results from competing
feature selection methods
Goodness of the subset
Stopping Criterion
No
Validation
Yes
3
4
62

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset Evaluation Advantage

• A feature subset selected by this approach
  approximates the optimal subset

III
II
Strongly
Irrelevant
Weakly
II Weakly relevant and redundant features III
Weakly relevant but non-redundant features
Optimal Subset Strongly relevant features
Weakly relevant but non-redundant features
63

• Feature selection
• Approaches Subset Evaluation (Feature Subset
  Selection )

Subset Evaluation Disadvantages

• High computational cost of the subset search
  makes subset evaluation approach inefficient for
  high dimensional data.

64

• Feature selection
• Approaches

65

• Feature selection
• Approaches Individual Evaluation (Feature
  Weighting/Ranking)

Individual method (Feature Ranking / Feature
weighting)

• Individual methods evaluate each feature
  individually according to a criterion.
• They then select features, which either satisfy
  a condition or are top-ranked.
• Exhaustive, greedy and random searches are
  subset search methods because they evaluate each
  candidate subset.

66

• Feature selection
• Approaches Individual Evaluation (Feature
  Weighting/Ranking)

Individual Evaluation Advantage

• linear time complexity in terms of
  dimensionality N.
• Individual method is efficient for
  high-dimensional data.

67

• Feature selection
• Approaches Individual Evaluation (Feature
  Weighting/Ranking)

Individual Evaluation Disadvantages

• It is incapable of removing redundant
  features.
• For high-dimensional data which may contain a
  large number of redundant features, this approach
  may produce results far from optimal.

Select Weakly Strongly
68

• Feature selection
• Approaches

69

• Feature selection
• New Framework

New Framework

• New framework of feature selection composed of
  two steps

• First Step (Relevance analysis) determines the
  subset of relevant features by removing
  irrelevant ones.
• Second Step (redundancy analysis) determines
  and eliminates redundant features from relevant
  ones and thus produces the final subset.

70
Part 3 Applications of Feature
Selection And Software
71

• Feature selection
• Applications of Feature Selection

72

• Feature selection
• Applications of Feature Selection
• Text categorization Importance

• Information explosive
• 80 information stored in text documents
  journals, web pages, emails...
• Difficult to extract special information
• Current technologies...

?
?
Internet
73

• Feature selection
• Applications of Feature Selection
• Text categorization

• Assigning documents to a fixed set of
  categories

sports
categorizer
cultures
News article
health
politics
economics
vacations
74

• Feature selection
• Applications of Feature Selection
• Text categorization

• Text-Categorization
• Documents are represented by a vector of
  dimension the size of the vocabulary containing
  word frequency counts
• Vocabulary 15.000 words (i.e. each document is
  represented by a 15.000-dimensional vector)
• Typical tasks
• Automatic sorting of documents into
  web-directories
• Detection of spam-email

74
75

• Feature selection
• Applications of Feature Selection
• Text categorization

• Major characteristic, or difficulty of text
  categorization

High dimensionality of the feature space

• Goal Reduce the original feature space without
  sacrificing categorization accuracy

76

• Feature selection
• Applications of Feature Selection
• Image retrieval

• Importance Rapid increase of the size and
  amount of image collections from both civilian
  and military equipments
• Problem Cannot access to or make use of the
  information unless it is organized.
• Content-based image retrieval Instead of being
  manually annotated by
• text-based keywords, images would be indexed by
  their own visual contents (features), such as
  color, texture, shape, etc.

One of the biggest problems to make content-based
image retrieval truly scalable to large size
image collections is still the curse of
dimensionality
77

• Feature selection
• Applications of Feature Selection
• Image retrieval

• Paper ReliefF Based Feature Selection In
  Content-Based Image Retrieval
• A. sarrafzadeh, Habibollah Agh Atabay, Mir
  Mosen Pedram, Jamshid Shanbehzadeh

• Image dataset Coil-20 contains
• 1440 grayscale pictures from 20 classes of
  objects.

78

• Feature selection
• Applications of Feature Selection
• Image retrieval

• In this paper They use
• Legendre moments to extract features
• ReliefF algorithm to select the most relevant
  and non-redundant features
• Support vector machine to classify images.

The effects of features on classification
accuracy
79

• Feature selection
• Weka Software What we can do with ?

• Weka is a piece of software, written in Java,
  that provides an array of machine learning tools,
  many of which can be used for data mining
• Pre-processing data
• Features selection
• Features extraction
• Regression
• Classify data
• Clustering data
• Associate rules
• More functions
• Create random data set
• Connect data sets in other formats
• Visualize data
• .

80
References
1 M. Dash and H.Liu, Dimensionality Reduction,
in Encyclopedia of Computer Science and
Engineering, John Wiley Sons, Inc 2,958-966,
2009. 2H. Liu and L. Yu, "Toward Integrating
Feature Selection Algorithms for Classification
and Clustering", presented at IEEE Trans. Knowl.
Data Eng, vol. 17, no.4, pp.491-502,
2005. 3I.Guyon and A.Elisseeff, "An
introduction to variable and feature selection",
Journal of Machine Learning Research 3,
11571182, 2003. 4 L. Yu and H. Liu,
Efficient Feature Selection via Analysis of
Relevance and Redundancy", presented at Journal
of Machine Learning Research, vol. 5,
pp.1205-1224, 2004. 5 H. Liu, and H. Motoda,
"Computational methods of feature selection",
Chapman and Hall/CRC Press, 2007. 6 I.Guyon,
Lecture 2 Introduction to Feature
Selection. 7 M.Dash and H.liu, Feature
selection for classification.
81
References
8 Makoto Miwa, A Survey on Incremental Feature
Extraction 9 Lei Yu, Feature Selection and Its
Application in Genomic Data Analysis
