Microscope

1

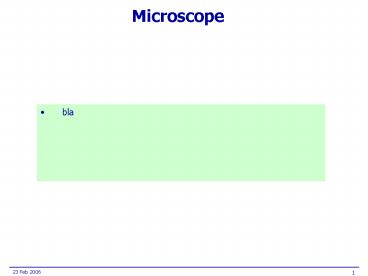

Microscope

• bla

2
The samples
3
Sample 4
Sample 5
Sample 7 new wire
4
Location of wires
5
SEM picture
6
SEM picture
Wire samples 7 Magnification Location Good
wire
7
SEM picture
Wire samples 4 and 5 Magnification
40x Location at beginning of dark region, just
below scratch
scratch
Wire sample 5
8
SEM picture
Wire sample 5 Magnification 5000x Voltage
12 kV Location at beginning of dark
region, just below scratch
9
SEM picture
Wire sample 5 Magnification 5000x Voltage
12 kV Location 0.5 mm from beginning of
dark region
10
Magnification x100 (Picture made at the UvA)
11
(No Transcript)
12
Typical EDS spectrum
DCSN0014.JPG 1207
Only peaks of Au and W
W MZ1 1.68 keV
Au Ma 2.12, 2.20 keV
13
Analysis of dark spot (16kV)
DCSN0026.JPG 1239
DCSN0028.JPG 1244
14
Difference dark/light spot
DCSN0039.JPG 1428

1. Dark spot more W
2. Light spot more Au

2)
1)
We dont understand peak at 1.40 keV The only
element there is Se
15
Check with WDS for Silicon (Wavelength
Dispersion)
DCSN0041.JPG 1438
W
16
Checked EDS of good wire
DCSN0046.JPG 1616

• 2 places wire sample 7 (new)
• 1 place wire sample 6 (non-irradiated)
• 1 place wire sample 5 (far from irr)
• ? all identical EDS spectra

17
Checked EDS of wire sample 5Every 100 um
systematically
DCSN0048.JPG 1631

1. Normal
2. A bit of W
3. A bit of W ? picture
4. A bit of W
5. A tiny bit of W
6. More W ? picture
7. A bit of W
8. A bit of W
9. A tiny bit of W
10. A bit of W

DCSN0051.JPG 1655
18
Checked for Oxygen with WDS
DCSN0054.JPG 1707 DSCN0057.JPG 1720
19
Check with WDS for Carbon Yes
PS. Also checked for Cr not found.
