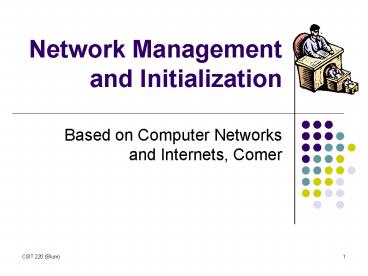

Network Management and Initialization

1
Network Management and Initialization

• Based on Computer Networks and Internets, Comer

2
Network management What is it?

• A network manager is responsible for monitoring
  and controlling the hardware and software that
  make up a network.
• The network manager works to repair the network
  when it goes down.
• The network manager also attempts to tune and
  tweak the network so that it operates more
  efficiently.
• There is a variety of software and hardware to
  help network managers in their work.

3
Network management

• Network management can include
• Security Making sure that the network is
  protected from hackers, viruses, denial of
  service (DoS) attacks, etc.
• Performance Making sure the bandwidth is used to
  the fullest, eliminating bottlenecks, etc.
• Reliability Making sure the network is up and
  running as much as possible.
• Anticipate to Avoid

4
Difficulty of Network Management

• Some failures, like a cut cable, while
  catastrophic are easy to detect.
• Intermittent or partial failures can be more
  difficult to find because TCP (with its
  retransmission procedure) is designed to hide
  (work in spite of) these problems.
• However, retransmission uses bandwidth that could
  be used for other traffic if the error did not
  occur.
• A good network manager will root out such
  problems before they become more severe.

5
SNMP
PDU UDP

• Simple Network Management Protocol is a set of
  rules for exchanging messages that allow a
  network manager to monitor and control network
  hosts/nodes.
• The messages are called Protocol Data Units
  (PDUs) and are sent using User Datagram Protocol
  (UDP).
• SNMP is part of TCP/IP and as with many other
  application layers services it is a separate
  install.
• The term manager refers not only to the person
  overseeing the network but also to special
  software used.

6
Uses UDP
7
Vocabulary change

• SNMP follows the standard client-server paradigm
  a client requests and a server
  responds/replies.
• But the situation is somewhat unusual in that
  there are more servers than clients in this case
  and the clients machine is probably the better
  machine.
• The SNMP client runs on the managers computer
  and is called the manager.
• The SNMP server runs on various hosts and
  is called the agent.

8
Vocabulary change II

• Client is to server as manager is to agent, i.e.
  the manager requests information from the agent,
  the manager initiates.

Client
Server
Manager
Agent
9
A community

• The manager (a person) organizes the computers
  into groups for management purposes, these are
  called communities.
• A computer can belong to more than one community.

• The manager (software) requests information
  (network statistics, such as how many packets
  required retransmission) from the agents in its
  community.
• The manager can set parameters on the agents and
  thus change delivery routes, configure network
  interfaces, etc.

10
Fetch and Store

• The S in SNMP is simple because it has a small
  set of commands.
• The manager can request a value from an agent a
  fetch.
• the agent receives the request, retrieves
  information from an MIB (management information
  base) and sends it to the manager.
• The manager can request an agent to set a
  parameter to a particular value a store.
• Certain parameter values are interpreted by the
  agents as a command and cause them to initiate a
  sequence of events, such as a reboot.

11
MIB

• The information (and procedures) accessed by SNMP
  are stored in the Management Information Base
  (MIB).
• The SNMP specifies a few simple messages. The
  complexity and flexibility (how to handle new
  software or hardware) is in MIB.
• A separate standard defines MIB variables and the
  meaning of the operations on each variable.

12
SNMP Messages

• Get The simplest SNMP request message. A manager
  sends a get message requesting a single MIB entry
  (e.g., the amount of free drive space) the agent
  responds with the entry provided the manager
  belongs to the same community as the agent.

13
SNMP Messages

• Get-next A type of request message that can be
  used to browse the entire collection of
  management objects. When a manager sends a
  get-next request for a particular object, the
  agent replies with the identity and value of the
  object which follows the object in the request
  message.
• Get-next is useful for accessing tables, such as
  internal IP route tables.

14
SNMP Messages

• Getbulk Requests that the data packets sent by
  the agent be as large as possible. This minimizes
  the number of protocol exchanges required.
• The maximum message size should not be larger
  than the path MTU.
• Set If the manager has write privileges, this
  message is used to update an agents MIB value.

15
SNMP Messages

• Trap Typically the manager (client) requests and
  the agent (server) responds. However, some
  situations require the agent to initiate an
  interaction. A trap is an unsolicited message
  sent by an agent to a manager when certain
  predefined conditions occur in the agent.
• The manager that receives a trap message is known
  as a trap destination. There may be more than one
  manager.
• E.g., a trap might be sent if a host is about to
  go down.
• E.g. a trap might be sent if a manager without
  permission contacts an agent.

16
SNMP Help
17
SNMP Help
18
SNMP Help
19
SNMP Help
20
Scenario from Help

• The management system (Host A), sends an SNMP
  datagram to the agent (Host B), using the agent's
  host name, IP address or IPX address.
• The SNMP agent receives the datagram and verifies
  the community name to which the management system
  belongs.
• If it is a valid community name, the agent
  retrieves the data requested from the appropriate
  SNMP subagent. The SNMP agent returns the
  datagram to the management system with the
  requested information.
• If the community name is incorrect, the agent
  sends an "authentication failure" trap to its
  trap destinations (Hosts C and D).

21
And now for something completely different
22
DHCP

• Dynamic Host Configuration Protocol does not
  require an administrator to add an entry for a
  computer into the database.
• Instead DHCP is plug-and-play networking. The
  computer runs a client to
• obtain configuration info from DHCP
• obtain a permanent address if the computer is
  nonmobile.

23
DHCP

• DHCP uses permanent address that are assigned to
  server computers and a pool of addresses that are
  allocated on demand.
• Based on the computers entry in the servers
  database, the DHCP decides the type of address to
  assign.
• For dynamic addresses, the computers IP may
  change with each boot.
• This challenges internet connections. (Recall
  dynamic DNS.)

24
DHCP Considerations

• When a system reboots, there is a flood of DHCP
  requests. This is handled by using a random wait
  time before transmitting an address request.
• Caching allows the computer to save the DHCP
  servers address in a cache on a permanent
  storage, and use the cache information on reboot
  once it has been validated.

25
Lease

• DHCP uses the concept of a "lease" or amount of
  time that a given IP address will be valid for a
  computer.
• The lease time can vary depending on how long a
  user is likely to require the Internet connection
  at a particular location.
• It's especially useful in education and other
  environments where users change frequently. Using
  very short leases, DHCP can dynamically
  reconfigure networks in which there are more
  computers than there are available IP addresses

26
APIPA

• Automatic Private IP Addressing, a feature of the
  Windows 98 and Windows 2000
• If a DHCP client finds no DHCP server when it
  boots, it uses APIPA to automatically configure
  itself with an IP address from a range that has
  been reserved especially for Microsoft.
• The IP address range is 169.254.0.1 through
  169.254.255.254. The client also configures
  itself with a default class B subnet mask of
  255.255.0.0. A client uses the self-configured IP
  address until a DHCP server becomes available.

27
Network Security

• Based on Computer Networks and Internets, Comer

28
Security Policy

• Information must be seen as part of a companys
  assets and thus worth securing.
• On the other hand, if the information is not
  accessible to an appropriate set of people, it is
  worthless.
• Thus security and accessibility must be balanced.
  There is no ideal blend that is right for all
  companies.
• An important step toward securing a network is to
  develop a security policy.

29
Security policy

• A security policy is a written document stating
  how a company intends to protect its information.

• While written, it must be flexible so it can
  adapt to changes in technology and so forth.
• A security policy might include
• A description of who has access to what
  information and for what use.
• A description of security measurements and
  penalties for the violation thereof.
• An evaluation procedure.
• A policy for educating users.

30
Security Aspects

• Some aspects of data security to address are
• Integrity the data should be protected from
  corruption (accidental or intentional).
• Availability the data should be readily
  accessible by designated users.
• Confidentiality the data should not be
  accessible by undesignated users.
• Privacy in some situations it is the users
  data that requires protecting.

31
Protecting Data from Accidental Corruption

• Checksum, CRC and parity are used to ensure
  integrity during transmission, similar approaches
  can be used on information in storage.
• A backup scheme can be seen as protecting data
  integrity.
• A RAID (Redundant Array of Independent/
  Inexpensive Disks) scheme protects integrity
  while maintaining availability.
• Protect hardware from power surges, water damage,
  etc.

32
Protecting Data from Intentional Corruption

• Authenticate users before giving them access to
  information.
• Restrict access to hardware, computers, servers,
  hubs, etc.
• Protect the network against viruses and hacker
  attacks.
• Have a recovery plan.

33
Data Availability/User Privacy

• The whole reason for a network is sharing
  information and resources.
• Data and resources must be accessible to
  authenticated users.
• Protecting system data and resources should not
  violate the users privacy rights or at least the
  users level of privacy should be acknowledged.

34
Audit trail

• One mechanism for tracking security is an audit
  trail. The term comes from accounting where it
  means the set of paperwork used to validate or
  invalidate an accounting procedure.
• Any logging of activity (paper or electronic) is
  known as an audit trail. One can track
• The information a user accesses or attempts to
  access
• Businesses maintain an audit trail for customer
  transactions.
• Some ISPs and chat rooms maintain logs of users.
• Etc.

35
Authorization and Authentication

• Authorization is the setting of users
  permissions
• Can a user read a file? Edit a file? Delete a
  file? Etc.
• Space and/or time limits on access, e.g. a user
  has so much space on a drive
• Location limits, certain information can only be
  accessed from certain locations
• Authentication is the attempt to ensure that the
  user is who he or she claims to be
• Username and password
• Biometric devices
• Possessed object

36
Sniffing Passwords

• The problem with the username/password approach
  to authentication in networks is that the
  password information must be sent over the
  network where it can be read by a sniffer
  (computer with MAC card in promiscuous mode).
• The best defense here is to encrypt the
  communication. The password packet can still be
  sniffed but it is unintelligible to the hacker.

37
Cryptography

• One way to secure data, be it in storage or in
  transit, is encryption.
• Encryption coverts information in its usual
  readable form (called plaintext) to information
  in an encoded, unreadable form (called
  cyphertext).
• PGP (Pretty Good Privacy) program a good
  encrypter that works with most email systems.

38
Encryption

• The data is stored or transmitted in binary
  (numerical) form.
• To encrypt data one applies some mathematical
  operation to it.
• The mathematical operation should have an inverse
  so that one can recover the original data
  (decrypt the message).
• The mathematical operation often has a parameter
  (known as a key in encryption) which specifies
  the precise operation within a family of
  operations.

39
Caesar Shift Example

• The Caesar shift is an early form of encryption.
• The mathematical operation is addition.
• The key (parameter) is the amount added, e.g. 3
• CAT ? FDW (ASCII for C 3 is ASCII for F)
• The inverse operation is subtraction which uses
  the same key.
• FDW ? CAT (ASCII for F - 3 is ASCII for C)

40
Public Key Encryption

• In some cases, the parameters for the
  mathematical operation and its inverse are not
  the same. Then one is said to have two keys.
• For purposes of encryption, it is ideal if
  knowledge of one of the parameters does not
  (easily) lead to knowledge of the other.
• Such a mathematical operation is the basis for
  public key encryption.

41
Public Key/Private Key

• A user is assigned two keys (a private key and a
  public key).
• The private key should be known only to the user.

• The public key is published along with the users
  name.
• Someone can send the user a private message by
  using the users public key to encrypt, then the
  user is the only person (presumably) who can
  decrypt the message.

42
Digital signature

• Use this process in reverse.
• The user encrypts the message with his or her
  private key.
• Anyone with the users public key can decrypt it.

• BUT since the users public key decoded the
  message, the message must have come from the user

• This does not give privacy but authentication.

43
Double Key Encryption

• To have a private and authenticated transaction
  use two keys.
• Mary encrypts a message with Johns public key
  and then does a second encryption using her
  private key.
• The message must be decrypted using Marys public
  key (authenticated we know its from Mary) and
  further decrypted using Johns private key
  (private only John can do this).

44
Firewalls

• A firewall guards the perimeter of a network, all
  traffic flows through and is examined by the
  firewall.
• The earliest firewalls performed a packet
  filtering service.
• If sending packets is analogous to sending mail
  then a having a firewall is analogous to having
  the mail censored.
• Certain packets are not allowed in based on their
  content or source certain packets are not
  allowed in based on their content or destination.


45
Firewall

• A firewall can help centralize part of a
  networks security effort.
• A firewall can prevent
• outsiders from probing all computers in an
  organization
• flooding the network with unwanted traffic
• attacking a computer by causing it to crash.

46
Firewall Fig. 40.1
47
Packet filter
48
Firewall

• The firewall working closely with the router, it
  examines each packet to determine whether or not
  to forward it.
• The filtering may be based on any number of
  criteria
• Source or destination IP address
• Allow only certain addresses or rule out certain
  addresses
• Direction
• Service type (FTP, SMTP, telnet, etc., identified
  by port number)
• Time

49
Firewall

• A firewall can also maintain an audit trail (log
  file).
• A firewall can be trained to look for virus
  signatures.
• The firewall can scan for tokens or tickets which
  authenticate users.
• A pair of firewalls can agree on an encryption
  scheme, for instance if two private networks are
  connected by a public line (a virtual private
  network).

50
Tunneling

• If one encrypted an entire packet it could not be
  delivered.
• But if one encrypts only the data then there are
  all those fields supplying information about the
  source, destination, etc.
• One can encrypt an entire packet and then place
  it in another packet (encapsulate it).
• The destination of this outer packet must then
  decrypt the original packet and forward it, but
  by then it has presumably reached a private,
  secure network.

51
Tunneling
52
Proxy server

• A proxy is somebody who is authorized to stand in
  for somebody else.
• A proxy server stands in for the client on a
  private network in that when the client makes a
  request of a server outside the network, the
  request is made of the proxy server, the proxy
  server then makes the request of the destination
  that is it stands in for the client.
• The reply is then passed from the proxy to
  original client.
• This way the destination does not learn the
  address of the true client, only that of the
  proxy.

53
Caching too

• The proxy server hides the private networks
  addresses.
• Another benefit of a proxy is that it can cache
  results for the entire network. Like any host
  client, it checks its cache before requesting
  something. But the proxy had made the requests
  for all of the computers on the network.

54
Proxy server
55
Other References

• http//www.webopedia.com
• http//www.whatis.com
• Computer Dictionary, Shnier
• Microsoft 2000 help
