Functional programming: LISP

1

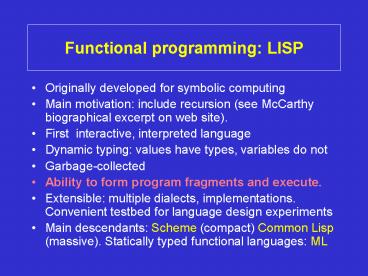

Functional programming LISP

• Originally developed for symbolic computing
• Main motivation include recursion (see McCarthy
  biographical excerpt on web site).
• First interactive, interpreted language
• Dynamic typing values have types, variables do
  not
• Garbage-collected
• Ability to form program fragments and execute.
• Extensible multiple dialects, implementations.
  Convenient testbed for language design
  experiments
• Main descendants Scheme (compact) Common Lisp
  (massive). Statically typed functional languages
  ML

2
Uniform syntax lists

• Expressions are either atoms or lists
• atoms are numeric or symbols
• lists nest, to form full trees
• Syntax is simple because programmer supplies what
  would otherwise be the internal representation of
  a program
• ( ( 10 12) ( 7 11)) evaluates
  (1012 711)
• A program is a list
• (define (factorial n) (if (eq n 0) 1
• ( n
  (factorial (- n 1))))

3
List manipulation

• Three primitives and one constant
• get head of list car
• get rest of list cdr
• add an element to a list cons
• null list nil or ()
• Add equality ( or eq) and recursion, and this
  is a universal model of computation

4
Rule of evaluation

• A number evaluates to itself
• An atom evaluates to its current binding
• A list is a computation.
• Its first element must evaluate to an operation
• the remaining elements are actual parameters
• the result is the application of the operation to
  the evaluated actuals

5
Quoted data

• If every list is a computation, how do we
  describe data?
• Another primitive quote
• (quote (1 2 3 4))
• gt (1 2 3 4)
• (quote (this is a simple declarative
  sentence)
• gt (this is a simple declarative
  sentence)
• (this also works)
• gt (this also works)

6
Decomposing a list

• (car (this is a list of symbols))
• gt this
• (cdr (this is a list of symbols))
• gt (is a list of symbols)
• (cdr (this that))
• gt (that) a list
• (cdr (singleton))
• gt () the empty list
• (car ()) run time error

7
Building lists

• (cons this (that and the other))
• gt (this that and the other)
• (cons a ())
• gt (a)
• useful shortcut list
• (list a b c d e)
• gt (a b c d e)
• equivalent to
• (cons a (cons b (cons c (cons d (cons
  e ())))))

8
Control structures

• Conditional
• (if condition expr1 expr2)
• Generalized form
• (cond
• (pred1 expr1)
• (pred2 expr2)
• (else exprn)
• Needs special rule evaluate only the successful
  entry
• if and cond are not regular functions

9
Function declarations

• (define (sqr n) ( n n))
• define is also special body is not evaluated
• defines produces a binding sqr is bound to the
  body of the computation
• (lambda (n) ( n n))
• define can produce value bindings as well
• (define x 15)
• (sqr x)
• gt 225

10
Lambda or no lambda

• (define (sqr n) ( n n))
• And
• (define sqr (lambda (n) ( n n)))
• Mean the same thing. The advantage of the lambda
  formulation is one can have nameless functions,
  e.g.
• ((lambda (x y) ( x y)) 5 6)
• The lambda brackets the formal parameters.

11
Eval

• McCarthy had the idea what if I could formulate
  some data and then execute it
• (eval ( 5 7))
• (eval '(define x 15)) creates the binding (x
  15)

12
Recursion

• (define (add1 x) ( x 1)) the
  beginnings of Peano arithmetic
• (define (sub1 x) (- x 1))
• (define (add x y)
• (if ( y 0) x
• (add ( (add1 x) (sub1 y))))
• (define (times x y)
• (cond
• (( y 0) 0)
• (( y 1) x)
• (else (add x (times (x (sub1 y)))))))

13
Recursion (ii)

• (define (exp x y)
• (cond
• ((eq y 0) 1)
• (else (times x (exp x (sub1 y))))))
• better
• (define (fast-exp x y)
• (cond ( y 0) 1)
• ( (even? y) (square (fast-exp x (/
  y 2))))
• (else ( x (fast-exp x (- y 1))))))
• (define (even? n) ( (remainder n 2) 0))
  defining a predicate

14
Recursion on lists

• (define (member elmt lis)
• (cond
• ((null? lis) ())
• ((eq elmt (car lis)) lis)
• (else (member elmt (cdr lis)))))
• convention return rest of list, starting from
  elmt, rather than t or f
• convention every non-false value is true in a
  boolean context

15
Predicates

• If variables are untyped, need run-time tests to
  determine kind
• symbol?
• number?
• list?
• null?
• zero?
• Syntax conventions differ in different dialects
  symbolp, numberp, listp, zerop...

16
Functional arguments(functional a function
that takes functions as arguments)

• (define (map fun lis)
• (cond
• ((null? lis) ())
• (cons (fun (car lis)) (map fun (cdr
  lis)))))
• (map sqr (map sqr ( 1 2 3 4))
• gt (1 16 81 256)

17
Environments

• An environment describes the current bindings of
  symbols
• A binding is a pair (symbol value)
• A frame is a list of bindings (activation
  record), i.e. an association list ((s1 v1) (s2
  v2))
• An environment is a list of frames
• In some cases we can treat the environment as a
  single association list (e.g. with dynamic
  binding)

18
Procedures and their environment

• A function has three components a list of
  formals, a body, and environment of definition.
  Formals and body are represented by a lambda
  expression
• (lambda (f1 f2 ..) expr)
• A function is evaluated in its environment of
  definition (lexical scoping) after adding the
  current bindings of the actuals (activation
  record)
• The definition must capture all three components
• (define (make-procedure spec body env)
• (list procedure (make-lambda spec
  body) env))
• make-procedure is called by eval to evaluate a
  define

19
Scoping Rules

• Consider the following examples
• (define x 5)
• (define sqr (lambda (z) ( z z )))
• (sqr x) yields 25
• (define addto (lambda (y) (define x 6) ( x y)))
• (addto 9) yields 15 given definition of x as 6
• (sqr x) what should this give?

20
Scoping Rules 2

• Because Scheme is lexically scoped, the
  answer is still 25. The scope of the definition
  of x within addto is just that function.
• Lexical scoping scope of variable is defined by
  text of program.
• A dynamically scoped Lisp variant would
  simply take the last definition of x.

21
Now Consider this

• (define x 5)
• (define sqr (lambda (z) ( z z )))
• (sqr x) yields 25
• (define x 8)
• (sqr x)

22
x has been redefined in the same scope as in its
first definition, so x changes

• Therefore answer is 64.

23
This notion naturally extends to functions(look
up closure in Scott)

• (define (compose f1 f2)
• (lambda (x) (f1 (f2 x))))
• (define (sqr x) ( x x))
• (define fourth (lambda (x)
• ((compose sqr sqr) x)))
• (fourth 4) yields 256
• When fourth is called, we need to fetch the
  latest definition of sqr at the right level of
  scoping.

24
What happens here?

• (define (compose f1 f2)
• (lambda (x) (f1 (f2 x))))
• (define (sqr x) ( x x))
• (define fourth (lambda (x)
• ((compose sqr sqr) x)))
• (define (sqr x) ( x x))
• (fourth 4) yields 16 (based on latest def
  of sqr at
  proper scope level

25
And here?

• (define (compose f1 f2)
• (lambda (x) (f1 (f2 x))))
• (define (sqr x) ( x x))
• (define fourth (lambda (x)
• ((compose sqr sqr) x)))
• (define (foo x) (define (sqr x) ( x x))
• ( 2 (sqr x)))
• (foo 15) yields 60
• (fourth 4) yields 256

26
Evaluating a function definition

• (define (name binding) (car binding))
• results in the binding
• (name
• (procedure (lambda (binding) (car
  binding)) env))
• procedure and lambda are labels to indicate kind
• Env is the current environment. At the top level
  it includes the binding for car (used in the
  body) as well as all other predefined symbols.

27
Dynamic binding

• Alternative definition for free variables use
  most recent binding for that symbol. Useful in
  cases such as
• (define (sum fun a next b)
• (if ( gt a b) 0
• ( (fun a) (sum fun (next a)
  b))))
• (define sum-powers a b n)
• (sum nth-power a incr b)
• could write (sum
  nth-power (lambda (x) ( x 1)) b)
• (define (nth-power x) (expt x n))
  Which N?
• n undefined if static binding.
• Bound in sum-powers if dynamic
  binding.

28
Implementing dynamic binding

• Change eval to pass current environment to apply
• change apply to use current environment rather
  than procedure environment
• Eval ... (else (apply
• (eval (car exp) env)
  apply function
• (eval-list (cdr exp) env)
  to arguments
• env))
  in current env
• Apply (eval (procedure-body procedure)
• (extend-environment
  add bindings
• (parameters
  procedure) of formals
• arguments
• env)))
  to current env

29
Other binding constructs

• Local variables
• (let
• ((x 5) (y 10))
  x and y bound simultaneously
• ( x y))
• (let
• ((x 5) (y (expt x 2))
  sequential bindings y after x
• ( x y 3))

30
Binding formals to actuals

• (define (make-frame formals actuals)
• (cond
• (null? formals) ()) should
  check (null? actuals) also
• ( else (cons
• (add-assoc (car formals) (car
  actuals))
• (make-frame (cdr
  formals) (cdr actuals))))))
• (define (extend-environment formals actuals
  env)
• (cons (make-frame formals actuals) env)

31
Self-definition (advanced)

• (define (eval exp env) the lisp
  interpreter
• (cond
• ((number? exp) exp)
  numbers are self-evaluating
• ((symbol? exp) (lookup exp env))
  a symbol has a binding
• ((null? exp) ())
• ((eq (car exp) quote) (car (cdr
  exp))) could write cadr
• ((eq (car exp) car) (car (car
  (cdr exp)))) caadr
• ((eq (car exp) cdr) (cdr (car
  (cdr exp)))) cdadr
• (else (apply (eval (car exp) env)
  apply function
•
  (eval-list (cdr exp) env))) to arguments

32
Function application defined (advanced)

• (define (apply procedure arguments)
• (eval (procedure-body procedure)
• (extend-environment
• (parameters procedure)
• arguments
• (environment procedure))))
• In words add actuals to environment, evaluate
  body of procedure in new environment
• Note environment is in procedure definition
  (closure)

33
Association lists

• (define (add-assoc symb val env)
• (cons (list symb val) env))
  add a binding
• (define (name binding) (car binding)) for
  readability
• (define (value binding) (car (cdr binding)))
• (define (lookup symb env)
  sequential search
• (cond
• ((null? env) ())
  error detected later
• ((eq symb (name (car env))) (value (car
  env))
• (else (lookup symb (cdr env)))))

34
Procedure components

• given the representation
• (procedure (lambda parameters
  body) env)
• the components of a procedure can be obtained as
  follows
• (define (parameters proc) (cadr
  (cadr proc)))
• (define (procedure-body proc)
  (caddr (cadr proc)))
• (define (environment proc) (caddr
  proc))

35
Tail recursion

• Tail recursive function needs single stack frame.
  mandated by semantics of Scheme
• (define (factorial n) (if (zero? N) 1)
• ( n (factorial (- n 1)))
  stack grows to size n
• define factorial n) (fact-iter 1 1 n)
  alternate definition
• (define (fact-iter prod count var)
• (if (gt count var) prod
• (fact-iter ( count prod)
  tail recursion
• ( count 1)
  implemented as loop
• var))))

36
Implementation of tail recursion

• If last operation in function is recursive call,
  overwrite actuals and go to beginning of code
• (define (last lis)
• (if (null? (cdr lis) (car lis))
• (last (cdr lis)))) can
  be done with loop
• (define (length lis)
• (if (null? lis) 0)
• ( 1 (length (cdr lis)))) not tail
  recursive!
