L10.1

1

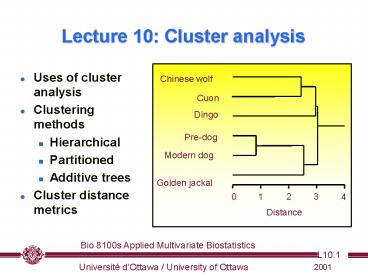

Lecture 10 Cluster analysis

• Uses of cluster analysis
• Clustering methods
• Hierarchical
• Partitioned
• Additive trees
• Cluster distance metrics

2
Cluster analysis I grouping objects

• Given a set of p variables X1, X2,, Xp, and a
  set of N objects, the task is to group the
  objects into classes so that objects within
  classes are more similar to one another than to
  members of other classes.

• Questions of interest does the set of objects
  fall into a smaller set of natural groups?
  What are the relationships among different
  objects?
• Note in most cases, clusters are not defined a
  priori.

3
Cluster analysis II grouping variables

• Given a set of p variables X1, X2,, Xp, and a
  set of N objects, the task is to group the
  variables into classes so that variables within
  classes are more highly correlated with one
  another than to members of other classes.

• Questions of interest does the set of variables
  fall into a smaller set of natural groups?
  What are the relationships among different
  variables?

4
Cluster analysis III grouping objects and
variables

• Given a set of p variables X1, X2,, Xp, and a
  set of N objects, the task is to group the
  objects and variables into classes so that
  variables and objects within classes are more
  highly correlated with one another than to
  members of other classes.

• Questions of interest does the set of
  variables/objects combinations fall into a
  smaller set of natural groups? What are the
  relationships among the different combinations?

5
The basic principle

• Objects that are similar to/highly correlated
  with one another should be in the same group,
  whereas objects that are dissimilar/uncorrelated
  should be in different groups.
• Thus, all cluster analyses begin with measures of
  similarity/dissimilarity among objects (distance
  matrices) or correlation matrices.

6
Clustering objects

• Objects that are closer together based on
  pairwise multivariate distances or pairwise
  correlations are assigned to the same cluster,
  whereas those farther apart or having low
  pairwise correlations are assigned to different
  clusters.

7
Clustering variables

• Variables that have high pairwise correlations
  are assigned to the same cluster, whereas those
  having low pairwise correlations are assigned to
  different clusters.

8
Clustering objects and variables

• Object/variable combinations are classified into
  discrete categories determined by the magnitude
  of the corresponding entries in the original data
  matrix
• Allows for easier visualization of
  object/variable clusters.

9
Types of clusters

• Exclusive each object/variable belongs to one
  and only one cluster.
• Overlapping an object or variable may belong to
  more than one cluster.

Exclusive clusters
Overlapping clusters
10
Scale considerations

• In general, correlation measures are not
  influenced by differences in scale, but distance
  measures (e.g. Euclidean distance) are affected.
• So, use distance measures when variables are
  measured on common scales, or compute distance
  measures based on standardized values when
  variables are not on the same scale.

11
Exclusive clustering methods I. Hierarchical
clustering of objects

• Begins with calculation of distances/correlations
  among all pairs of objects
• with groups being formed by agglomeration
  (lumping of objects)
• The end result is a dendogram (tree) which shows
  the distances between pairs of objects.

12
Exclusive clustering methods I. Hierarchical
clustering of variables

• Begins with calculation of correlations/distances
  between all pairs of variables
• with groups being formed lumping of highly
  correlated variables.
• The end result is a dendogram or tree which shows
  the distances between pairs of variables.

MOLARBR
MANDBRTH
MOLARL
MANDHT
MOLARS
MOLARS2
0
5
10
15
Distance
13
Hierarchical clustering of objects and variables

• Standardized data matrix is used to produce a
  two-dimensional colour/shading graph with colour
  codes/shading intensities determined by the
  magnitude of the values in the original data
  matrix
• which allows one to pick out similar objects
  and variables at a glance.

14
Hierarchical joining algorithms
Centroid
Cluster 1

• Single (nearest-neighbour) distance between two
  clusters distance between two closest members
  of the two clusters.
• Complete (furthest neighbour) distance between
  two clusters distance between two most distant
  cluster members.
• Centroid distance between two clusters
  distance between multivariate means of each
  cluster.

Single
Cluster 2
Cluster 3
Complete
15
Hierarchical joining algorithms (contd)
Cluster 1

• Average distance between two clusters average
  distance between all members of the two clusters.
• Median distance between two clusters median
  distance between all members of the two clusters.
• Ward distance between two clusters average
  distance between all members of the two clusters
  with adjustment for covariances.

Cluster 2
Cluster 3
Mean/median/adjusted mean of all pairwise
distances
16
Simple joining (nearest neighbour)
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
4 (1, 2), (3, 4, 5)
5 (1, 2, 3, 4, 5)
17
Complete joining (furthest neighbour)
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
5 (1, 2), (3, 4, 5)
10 (1, 2, 3, 4, 5)
18
Average joining
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
4.5 (1, 2), (3, 4, 5)
7.8 (1, 2, 3, 4, 5)
19
Median joining
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
3.75 (1, 2), (3, 4, 5)
5.44 (1, 2, 3, 4, 5)
20
Centroid joining
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
3.75 (1, 2), (3, 4, 5)
6.00 (1, 2, 3, 4, 5)
21
Ward joining
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
Distance matrix
Distance Cluster
0 1,2,3,4,5
2 (1, 2), 3, 4, 5
3 (1, 2), 3, (4, 5)
5 (1, 2), (3, 4, 5)
14.4 (1, 2, 3, 4, 5)
22
Important note!
Cluster Tree

• Centroid, average, median and Ward joining need
  not produce a strictly hierarchical tree with
  increasing lumping distances, resulting in
  unattached branches.
• If you encounter this problem, try another method!

23
Exclusive hierarchical clustering II.
Partitioned clustering

• In partitioned clustering, the object is to
  partition a set of N objects into a number k
  predetermined clusters by maximizing the distance
  between cluster centers while minimizing the
  within-cluster variation.

24
Partitioned clustering the procedure
X1

• Choose k seed cases which are spread apart from
  center of all objects as much as possible.
• Assign all remaining objects to nearest seed.
• Reassign objects so that within-group sum of
  squares is reduced
• and continue to do so until SSwithin is
  minimized.

Seed 1
Seed 2
Seed 3
X2
25
K-means clustering

• Because k-means clustering does not search though
  every possible partitioning, it is always
  possible that there are other solutions yielding
  smaller SSwithin.

• A method of partitioned clustering whereby a set
  of k clusters is produced by minimizing the
  SSwithin based on Euclidean distances.
• This is very much like a single-classification
  MANOVA with k groups, except that groups are not
  known a priori.

26
K-means partitioning example
k 2 clustering of 6 dog species

• Cluster means plots give z-scores for each
  variable used in clustering objects, with
  variables ordered by univariate F ratios
• Zero indicates mean of all objects.

• The more similar the profiles for objects within
  a cluster, the smaller the within-cluster
  heterogeneity.

27
K-means partitioning example
k 2 clustering of 6 dog species

• Cluster means plots give means for each variable
  used in clustering objects, with variables
  ordered by univariate F ratios
• Dashed indicates mean of all objects .

• The greater the difference in group means, the
  greater the discriminating ability of the
  variable in question

28
Some clustering distances
Distance metric Description Data type
Gamma Computed using 1 g correlation Ordinal, rank order
Pearson 1- r for each pair of objects quantitative
R2 1 r2 for each pair of objects quantitative
Euclidean Normalized Euclidean distance quantitative
Minkowski pth root of mean pth powered distance quantitative
c2 c2 measure of independence of rows and columns on 2 X N frequency tables counts
MW Increment in SSwithin if object moved into a particular cluster quantitative
29
Exclusive non-hierarchical clustering Additive
trees

• In additive trees clustering, the objective is to
  partition a set of N objects into a set of
  clusters represented by additive rather than
  hierarchical trees.
• For hierarchical trees, we assume (1) all
  within-cluster distances are smaller than between
  cluster distances (2) all within-cluster
  distances are the same. For additive trees,
  neither assumption need hold.

30
Additive trees

• In additive tree clustering, branch length can
  vary within clusters
• and objects within clusters are compared by
  considering the sum of the branch lengths
  connecting them

Hierarchical tree
1
2
3
4
5
Additive tree
31
Additive trees an example

• In additive tree clustering, branch length can
  vary within clusters
• and objects within clusters are compared by
  considering the sum of the branch lengths
  connecting them

Hierarchical tree
1
2
3
4
5
Additive tree
32
Additive trees joining
Object 1 2 3 4 5
1
2 2
3 6 5
4 10 9 4
5 9 8 5 3
5
Distance matrix
7
4
Node Length Child
1 1.5 Object1
2 0.5 Object2
6 4.0 (1, 2)
7 2.25 (4, 5)
8 0.25 (6, 3)
3
9
2
8
6
1
D1,3 1.5 4.0 0.5 6.0
33
Deciding what to cluster and how to cluster them
Question Decision
Am I interested in clustering objects, variables or both? Choose object (row), variable (column) or both (matrix) clustering
Do I want strictly hierarchical clusters? Yes hierarchical trees No partitioned clusters (e.g. k-means) or additive trees.
Are my variables quantitative? Yes quantitative metrics (e.g. Euclidean, Minkowski, etc). No non-quantitative metrics (e.g., g, c2, etc.)
