Designing Speech Interfaces for Kiosks

1

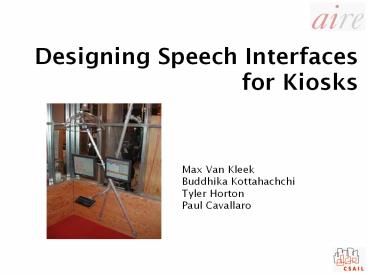

Designing Speech Interfacesfor Kiosks
Max Van KleekBuddhika Kottahachchi Tyler
Horton Paul Cavallaro
2
AGENDA

• Background
• Motivation
• Design
• Current Implementation
• Demo (Video)
• Evaluation
• Conclusions Future Work

3
Background OK-Net Oxygen Kiosk Network
4
BackgroundSmart Kiosk Information Navigation
and Noteposting Interface (SKINNI)
Provide timely, relevant information to visitors
and members of the CSAIL community through a
touchscreen GUI
5
BackgroundSmart Kiosk Information Navigation
and Noteposting Interface (SKINNI)
Provide timely, relevant information to visitors
and members of the CSAIL community through a
touchscreen GUI
6
BackgroundSmart Kiosk Information Navigation
and Noteposting Interface (SKINNI)
Provide timely, relevant information to visitors
and members of the CSAIL community through a
touchscreen GUI
7
MOTIVATION

• Searching for specific information via
  touchscreen GUIs feels tedious, error prone
  - more time consuming than desirable - poor
  pointing accuracy - widgets behave differently
  on touchscreens - no tactile feedback
• Optimizing the GUI for touchscreens, and adding
  shortcuts to allow searching/rapid information
  access yielded limited success - screen
  clutter - new vs experienced users -
  forced user to use attached keyboard

8
MOTIVATION
Searching for Howard Shrobe Touch Directory
Pane (Scan list of names, realize they are
alphabetical by last name) Touch scrollbar Down
arrow Touch scrollbar Down arrow Attempt to drag
scroll box downward (fails) Touch S shortcut at
top of screen (Scan list of names) Touch
scrollbar Down arrow Touch scrollbar Down arrow
Touch scrollbar Down arrow Touch scrollbar Down
arrow Touch scrollbar Down arrow Touch row
corresponding to Howard Shrobe
9
MOTIVATION
Searching for Howard Shrobe Touch Directory
Pane (Scan list of names, realize they are
alphabetical by last name) Touch text field
corresponding to Last name (Move hand / glance
from screen to keyboard) Type S, h, r, o,
b, e Touch row corresponding to Howard
Shrobe
Much shorter, but much less frequently used
awkward since eyes/hands are swapping between
screen and keyboard
10
Kiosk Kiosk on the wall... What's the best
interface of them all?
11
DESIGN Speech Challenges

• Robustness - Speaker independence - Speech
  dysfluencies and accents - Signal capture in
  noisy environments ...achieving good
  recognition accuracy.
• Usability - Low threshold of use - Initial
  learning curve - Visibility of system state -
  Handling misrecognition errors gracefully -
  Managing user expectations

Related work ESPIRIT MASK project Gavin et.
al. (1996) Smart Kiosk project Christian et
al. (2000)
12
DESIGN - Galaxy

• Galaxy gives us... - Speaker independence -
  Handling of Speech disfluencies/accents
• Speechbuilder gives us... - Ease of speech
  domain definition/manipulation
• Distributed architecture lends well to
  Kiosks - Thin clients dependent on more powerful
  servers

13
IMPLEMENTATION -Architecture
14
IMPLEMENTATION Speech Domain

• Constrained domain - Only directory field and
  map queries
• Iterative Design - Initial domain extended
  through informal user survey

ltopt speechbuilder"4.0"gtltclass type"Action"
name"show_room"gt ltentrygt where is
room thirty two two two six A lt/entrygt
ltentrygt can you please (show me
tell me) a map of where room thirty
two two two six A lt/entrygt ltentrygt
can you please (show me tell me) a map
of where is Ben Bitdiddle office is
lt/entrygt ltentrygt Do you know where
is Ben Bitdiddle office is
lt/entrygt lt/classgtltclass type"Key"
name"Person"gt ltentrygtHal Abelsonlt/entrygt
ltentrygtBryan Adamslt/entrygt ltentrygtEdward
Adelsonlt/entrygt . .
15
IMPLEMENTATION Innovation

• Speech state feedback GUI - Provides immediate
  visual feedback of the system state - What was
  recognized? - Is the system ready for
  interaction? - Is the system busy?

16
IMPLEMENTATION Innovation

• Advantages - User is made aware of what the
  system is trying to do - Reasons for recognition
  failures can be determined - Initial
  familiarization process is much smoother - User
  retention increases
• Disadvantages - Isn't helpful for visually
  impaired users - Takes up display space

17
DEMO
18
EVALUATION - Methodology

• Informal user study
• 10 subjects (lab members not representative)
• Task - Look up the phone number for 18 randomly
  selected lab members - First 6 using the Speech
  Interface - Second 6 using the Touchscreen
  Interface - Final 6 using the preferred
• Metric - Time taken - From when name to be
  looked up provided to the subject - To when
  subject retrieves the number from the kiosk

19
EVALUATION - Results

• Subjects were not aware of supported query
  forms - recognition rate in the first 2 queries
  50 - thereafter 72
• 8/10 subjects preferred the speech interface
• When recognition was successful, performance
  was consistently better!

20
CONCLUSIONS

• Users are receptive to using speech interfaces
• Failed recognition imposes severe penalties on
  performance
• Ramp-up time can be reduced and user
  retention increased by providing appropriate
  feedback

21
FUTURE WORK

• Improve recognition rates - Improve speech
  domain - Update voice models (current ones from
  phone data)
• Further evaluation
• Extend speech interface to support all
  functionality exposed via touchscreen interface
• Conversation support - dialog and discourse
  management
• Multi-language support - Stata visitors come
  from all over the world
