Network Traffic Anomaly Detection Based on Packet Bytes

1

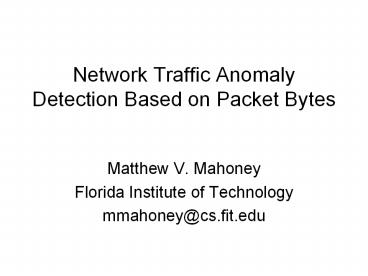

Network Traffic Anomaly Detection Based on Packet
Bytes

• Matthew V. Mahoney
• Florida Institute of Technology
• mmahoney_at_cs.fit.edu

2
Limitations of Intrusion Detection

• Host based (audit logs, virus checkers)
• Cannot be trusted after a compromise
• Network signature detection (SNORT, Bro)
• Cannot detect novel attacks
• Alarm floods (network traffic is bursty)
• Address/port anomaly detection (ADAM, SPADE,
  eBayes)
• Cannot detect attacks on public servers (web,
  mail, DNS)

3
Problem Statement

• Detect (not prevent) attacks in network traffic
• Train on attack-free traffic only

Training no attacks
Model of normal traffic
Test data with attacks
Alarms
IDS
4
Approach

• Model client protocols via inbound traffic
• 9 protocols IP, TCP, HTTP, SMTP
• Beginning of request only ( 2 of traffic)
• Test each packet independently
• Unusual bytes hostile (sometimes)
• Values seen but not often or recently
• Values never seen in training (higher score)

5
Attributes 48 IP Packet Bytes
Hdr TOS Len Len ID ID DF Frag
TTL TCP Chk Chk Src Src Src Src
Dst Dst Dst Dst SP SP DP 80
Seq Seq Seq Seq Ack Ack Ack Ack
Hdr ..AP. Win Win Chk Chk Urg Urg
G E T / H T
6
Probability of Previously Seen Values
Example XXXXXXXOOO

• Frequency model P(X) fx nx/n 7/10
• Time based model P(X) 1/tx 1/4
• Hybrid model P(X) fx/tx 7/40
• Anomaly score of X 1/P(X) tx/fx 5.7

7
Probability of Novel Values
Example XXXXXXXOOO

• Frequency model P(not X, O) r/n 2/10
• r Number of observed values 2
• Time model P(not X, O) 1/t 1/3
• t Time since last novel value 3
• Hybrid model P r/nt 2/30
• Anomaly score 1/P tn/r 15

8
1999 DARPA IDS Evaluation

• 7 days training data with no attacks
• 2 weeks test data with 177 visible attacks

IDS
Attacks
Victims
Internet (simulated)
SunOS
Solaris
Linux
WinNT
9
Injecting Real Background Traffic

• Collected on a university departmental web server

IDS
Real web server
Attacks
Internet (simulated and real)
SunOS
Solaris
Linux
WinNT
10
Evaluation Criteria

• Must identify target address
• Must identify time within 60 seconds
• Anomaly score threshold to allow 10 false alarms
  per day (100 total)
• Evaluated by percent of visible attacks detected
• Evidence of attack in sniffer traffic
• Other systems may use audit logs, BSM, etc.

11
Percent of Attacks Detected
12
Detection/False Alarm Tradeoff
Simulated Traffic
Percent Detected
Mixed Real Traffic
False alarms per day
13
Example Detections
Attack Anomaly Cause
Satan probe tests for many common vulnerabilities Unused dest. port 46 User behavior
Dosnuke Netbios TCP urgent data crashes Windows TCP urgent flag Bug in victim
Sendmail Mail server buffer overflow gives root shell Lowercase SMTP mail Bug in attack
Portsweep (nmap) Port scan with TCP FIN packets FIN without ACK flag Evasion
14
Summary

• Many novel attacks can be detected by a single
  abnormal inbound client packet
• Adaptive, no rule programming needed
• Hybrid model prevents alarm bursts
• Efficient
• I/O bound CPU is seconds per day
• Memory lt 1 MB

15
Limitations and Future Work

• False alarms (unusual ? hostile)
• Better diagnostics (help the user dispose of
  alarms)
• Model other attributes (reassembled TCP, network
  state, event rates)
• Integrate with host and signature systems
• Test in live environment
