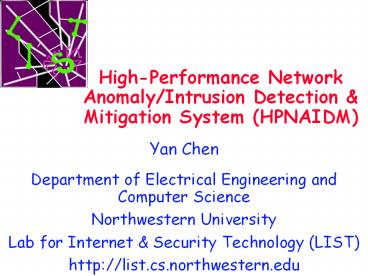

High-Performance Network Anomaly/Intrusion Detection

1
High-Performance Network Anomaly/Intrusion
Detection Mitigation System (HPNAIDM)

• Yan Chen
• Department of Electrical Engineering and Computer
  Science
• Northwestern University
• Lab for Internet Security Technology (LIST)
• http//list.cs.northwestern.edu

2
The Spread of Sapphire/Slammer Worms
3
Current Intrusion Detection Systems (IDS)

• Mostly host-based and not scalable to high-speed
  networks
• Slammer worm infected 75,000 machines in lt10 mins
• Host-based schemes inefficient and user dependent
• Have to install IDS on all user machines !
• Mostly simple signature-based
• Cannot recognize unknown anomalies/intrusions
• New viruses/worms, polymorphism

4
Current Intrusion Detection Systems (II)

• Statistical detection
• Unscalable for flow-level detection
• IDS vulnerable to DoS attacks
• Overall traffic based inaccurate, high false
  positives
• Cannot differentiate malicious events with
  unintentional anomalies
• Anomalies can be caused by network element faults
• E.g., router misconfiguration, link failures, etc.

5
High-Performance Network Anomaly/Intrusion
Detection and Mitigation System (HPNAIDM)

• Online traffic recording
• SIGCOMM IMC 2004, INFOCOM 2006, ToN to appear
• Reversible sketch for data streaming computation
• Record millions of flows (GB traffic) in a few
  hundred KB
• Small of memory access per packet
• Scalable to large key space size (232 or 264)
• Online sketch-based flow-level anomaly detection
• IEEE ICDCS 2006 IEEE CGA, Security
  Visualization 06
• Adaptively learn the traffic pattern changes
• As a first step, detect TCP SYN flooding,
  horizontal and vertical scans even when mixed

6
HPNAIDM (II)

• Integrated approach for false positive reduction
• Polymorphic worm detection (Hamsa)
• IEEE Symposium on Security and Privacy 2006
• Accurate network diagnostics ACM SIGCOMM 2006
• Scalable distributed intrusion alert fusion w/DHT
• SIGCOMM Workshop on Large Scale Attack Defense
  2006
• HPNAIDM First flow-level intrusion detection
  that can sustain 10s Gbps bandwidth even for
  worst case traffic of 40-byte packet streams

7
HPNAIDM Architecture
Remote aggregated sketch records
Streaming packet data
Part II Per-flow monitoring detection
8
Deployment of HPNAIDM

• Attached to a router/switch as a black box
• Edge network detection particularly powerful

Monitor each port separately
Monitor aggregated traffic from all ports
Original configuration
9
Hamsa Fast Signature Generation for Zero-day
Polymorphic Wormswith Provable Attack Resilience

• Zhichun Li, Manan Sanghi, Yan Chen, Ming-Yang Kao
  and Brian Chavez

Northwestern University
10
Desired Requirements for Polymorphic Worm
Signature Generation

• Network-based signature generation
• Worms spread in exponential speed, to detect them
  in their early stage is very crucial However
• At their early stage there are limited worm
  samples.
• The high speed network router may see more worm
  samples But
• Need to keep up with the network speed !
• Only can use network level information

11
Desired Requirements for Polymorphic Worm
Signature Generation

• Noise tolerant
• Most network flow classifiers suffer false
  positives.
• Even host based approaches can be injected with
  noise.
• Attack resilience
• Attackers always try to evade the detection
  systems
• Efficient signature matching for high-speed links

No existing work satisfies these requirements !
12
Outline

• Motivation
• Hamsa Design
• Model-based Signature Generation
• Evaluation
• Related Work
• Conclusion

13
Choice of Signatures

• Two classes of signatures
• Content based
• Token a substring with reasonable coverage to
  the suspicious traffic
• Signatures conjunction of tokens
• Behavior based
• Our choice content based
• Fast signature matching. ASIC based approach can
  archive 6 8Gb/s
• Generic, independent of any protocol or server

14
Unique Invariants of Worms

• Protocol Frame
• The code path to the vulnerability part, usually
  infrequently used
• Code-Red II .ida? or .idq?
• Control Data leading to control flow hijacking
• Hard coded value to overwrite a jump target or a
  function call
• Worm Executable Payload
• CLET polymorphic engine 0\x8b, \xff\xff\xff
  and t\x07\xeb
• Possible to have worms with no such invariants,
  but very hard

15
Hamsa Architecture
16
Hamsa Design

• Key idea model the uniqueness of worm invariants
• Greedy algorithm for finding token conjunction
  signatures
• Highly accurate while much faster
• Both analytically and experimentally
• Compared with the latest work, polygraph
• Suffix array based token extraction
• Provable attack resilience guarantee
• Noise tolerant

17
Hamsa Signature Generator

• Core part Model-based Greedy Signature
  Generation
• Iterative approach for multiple worms

18
Outline

• Motivation
• Hamsa Design
• Model-based Signature Generation
• Evaluation
• Related Work
• Conclusion

19
Problem Formulation
Signature Generator
Signature
false positive bound r
With noise
NP-Hard!
20
Model Uniqueness of Invariants
U(1)upper bound of FP(t1)
U(2)upper bound of FP(t1,t2)
The total number of tokens bounded by k
21
Signature Generation Algorithm
token extraction
t1
u(1)15
tokens
Suspicious pool
Order by coverage
22
Signature Generation Algorithm
Signature
t1
t2
u(2)7.5
Order by joint coverage with t1
23
Algorithm Analysis

• Runtime analysis O(T(MN))
• Provable Attack Resilience Guarantee
• Analytically bound the worst attackers can do!
• Example K5, u(1)0.2, u(2)0.08, u(3)0.04,
  u(4)0.02, u(5)0.01 and r0.01
• The better the flow classifier, the lower are the
  false negatives

Noise ratio FP upper bound FN upper bound
5 1 1.84
10 1 3.89
20 1 8.75
24
Attack Resilience Assumptions

• Two common assumptions for any sig generation sys
• Two unique assumptions for token-based schemes
• Attacks to the flow classifier
• Our approach does not depend on perfect flow
  classifiers
• With 99 noise, no approach can work!
• High noise injection makes the worm propagate
  less efficiently.
• Enhance flow classifiers

25
Improvements to the Basic Approach

• Generalizing Signature Generation
• use scoring function to evaluate the goodness of
  signature
• Iteratively use single worm detector to detect
  multiple worms
• At the first iteration, the algorithm find the
  signature for the most popular worms in the
  suspicious pool.
• All other worms and normal traffic treat as
  noise.

26
Outline

• Motivation
• Hamsa Design
• Model-based Signature Generation
• Evaluation
• Related Work
• Conclusion

27
Experiment Methodology

• Experiential setup
• Suspicious pool
• Three pseudo polymorphic worms based on real
  exploits (Code-Red II, Apache-Knacker and
  ATPhttpd),
• Two polymorphic engines from Internet (CLET and
  TAPiON).
• Normal pool 2 hour departmental http trace
  (326MB)
• Signature evaluation
• False negative 5000 generated worm samples per
  worm
• False positive
• 4-day departmental http trace (12.6 GB)
• 3.7GB web crawling including .mp3, .rm, .ppt,
  .pdf, .swf etc.
• /usr/bin of Linux Fedora Core 4

28
Results on Signature Quality
Worms TrainingFN TrainingFP EvaluationFN EvaluationFN EvaluationFP Binaryevaluation FP
Worms Signature Signature Signature Signature Signature Signature
Code-Red II 0 0 0 0 0 0
Code-Red II '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2 '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2 '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2 '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2 '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2 '.ida?' 1, 'u780' 1, ' HTTP/1.0\r\n' 1, 'GET /' 1, 'u' 2
CLET 0 0.109 0 0.06236 0.06236 0.268
CLET '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1 '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1 '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1 '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1 '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1 '0\x8b' 1, '\xff\xff\xff' 1,'t\x07\xeb' 1

• Single worm with noise
• Suspicious pool size 100 and 200 samples
• Noise ratio 0, 10, 30, 50, 70
• Noise samples randomly picked from the normal
  pool
• Always get above signatures and accuracy.
• Multiple worms with noises give similar results

29
Speed Results

• Implementation with C/Python
• 500 samples with 20 noise, 100MB normal traffic
  pool, 15 seconds on an XEON 2.8Ghz, 112MB memory
  consumption
• Speed comparison with Polygraph
• Asymptotic runtime O(T) vs. O(M2), when M
  increase, T wont increase as fast as M!
• Experimental 64 to 361 times faster (polygraph
  vs. ours, both in python)

30
Outline

• Motivation
• Hamsa Design
• Model-based Signature Generation
• Evaluation
• Related Work
• Conclusion

31
Related works
Hamsa Polygraph CFG PADS Nemean COVERS Malware Detection
Network or host based Network Network Network Host Host Host Host
Content or behavior based Contentbased Contentbased Behaviorbased Contentbased Contentbased Behavior based Behaviorbased
Noise tolerance Yes Yes (slow) Yes No No Yes Yes
Multi worms in one protocol Yes Yes (slow) Yes No Yes Yes Yes
On-line sig matching Fast Fast Slow Fast Fast Fast Slow
Generality Generalpurpose Generalpurpose Generalpurpose Generalpurpose Protocolspecific Serverspecific Generalpurpose
Provable atk resilience Yes No No No No No No
Information exploited egp egp p egp e eg p
32
Conclusion

• Network based signature generation and matching
  are important and challenging
• Hamsa automated signature generation
• Fast
• Noise tolerant
• Provable attack resilience
• Capable of detecting multiple worms in a single
  application protocol
• Proposed a model to describe the worm invariants

33
Questions ?

• Thank You !

34
Experiment Sample requirement

• Coincidental-pattern attack Polygraph
• Results
• For the three pseudo worms, 10 samples can get
  good results.
• CLET and TAPiON at least need 50 samples
• Conclusion
• For better signatures, to be conservative, at
  least need 100 samplesRequire scalable and fast
  signature generation!

35
Experiment U-bound evaluation

• To be conservative we chose k15.
• Even we assume every token has 70 false
  positive, their conjunction still only have 0.5
  false positive. In practice, very few tokens
  exceed 70 false positive.
• Define u(1) and ur, generate
• We testedu(1) 0.02, 0.04, 0.06, 0.08, 0.10,
  0.20, 0.30, 0.40, 0.5 and ur 0.20, 0.40,
  0.60, 0.8. The minimum (u(1), ur) works for all
  our worms was (0.08,0.20)
• In practice, we use conservative value (0.15,0.5)

36
Results on Signature Quality (II)

• Suspicious pool with high noise ratio
• For noise ratio 50 and 70, sometimes we can
  produce two signatures, one is the true worm
  signature, anther solely from noise.
• The false positive of these noise signatures have
  to be very small
• Mean 0.09
• Maximum 0.7
• Multiple worms with noises give similar results

37
Attack Resilience Assumptions

• Common assumptions for any sig generation sys
• The attacker cannot control which worm samples
  are encountered by Hamsa
• The attacker cannot control which worm samples
  encountered will be classified as worm samples by
  the flow classifier
• Unique assumptions for token-based schemes
• The attacker cannot change the frequency of
  tokens in normal traffic
• The attacker cannot control which normal samples
  encountered are classified as worm samples by the
  worm flow classifier

38
Normal Traffic Poisoning Attack

• We found our approach is not sensitive to the
  normal traffic pool used
• History last 6 months time window
• The attacker has to poison the normal traffic 6
  month ahead!
• 6 month the vulnerability may have been patched!
• Poisoning the popular protocol is very difficult.

39
Red Herring Attack

• Hard to implement
• Dynamic updating problem. Again our approach is
  fast
• Partial Signature matching, in extended version.

40
Coincidental Attack

• As mentioned in the Polygraph paper, increase the
  sample requirement
• Again, our approach are scalable and fast

41
Model Uniqueness of Invariants

• Let worm has a set of invariantsDetermine their
  order by
• t1 the token with minimum false positive in
  normal traffic. u(1) is the upper bound of the
  false positive of t1
• t2 the token with minimum joint false positive
  with t1 FP(t1,t2) bounded by u(2)
• ti the token with minimum joint false positive
  with t1, t2, ti-1. FP(t1,t2,,ti) bounded by
  u(i)
• The total number of tokens bounded by k

42
Problem Formulation

• Noisy Token Multiset Signature Generation Problem
  INPUT Suspicious pool M and normal traffic
  pool N value rlt1.OUTPUT A multi-set of tokens
  signature S(t1, n1), . . . (tk, nk) such that
  the signature can maximize the coverage in the
  suspicious pool and the false positive in normal
  pool should less than r
• Without noise, exist polynomial time algo
• With noise, NP-Hard

43
Token-fit Attack Can Fail Polygraph

• Polygraph hierarchical clustering to find
  signatures w/ smallest false positives
• With the token distribution of the noise in the
  suspicious pool, the attacker can make the worm
  samples more like noise traffic
• Different worm samples encode different noise
  tokens
• Our approach can still work!

44
Token-fit attack could make Polygraph fail
CANNOT merge further!NO true signature
found!
45
Generalizing Signature Generation with noise

• BEST Signature Balanced Signature
• Balance the sensitivity with the specificity
• But how? Create notation Scoring
  functionscore(cov, fp, ) to evaluate the
  goodness of signature
• Current used
• Intuition it is better to reduce the coverage
  1/a if the false positive becomes 10 times
  smaller.
• Add some weight to the length of signature (LEN)
  to break ties between the signatures with same
  coverage and false positive

46
Generalizing Signature Generation with noise

• Algorithm similar
• Running time same as previous simple form
• Attack Resilience Guarantee similar

47
Extension to multiple worm

• Iteratively use single worm detector to detect
  multiple worm
• At the first iteration, the algorithm find the
  signature for the most popular worms in the
  suspicious pool. All other worms and normal
  traffic treat as noise.
• Though the analysis for the single worm can apply
  to multiple worms, but the bound are not very
  promising. Reason high noise ratio

48
Implementation details

• Token Extraction extract a set of tokens with
  minimum length l and minimum coverage COVmin.
• Polygraph use suffix tree based approach 20n
  space and time consuming.
• Our approach Enhanced suffix array 8n space and
  much faster! (at least 20 times)
• Calculate false positive when check U-bounds
• Again suffix array based approach, but for a
  300MB normal pool, 1.2GB suffix array still
  large!
• Optimization using MMAP, memory usage 150
  250MB

49
Token Extraction

• Extract a set of tokens with minimum length lmin
  and coverage COVmin. And for each token output
  the frequency vector.
• Polygraph use suffix tree based approach 20n
  space and time consuming.
• Our approach
• Enhanced suffix array 4n space
• Much faster, at least 50(UPDATE) times!
• Can apply to Polygraph also.

50
Calculate the false positive

• We need to have the false positive to check the
  U-bounds
• Again suffix array based approach, but for a
  300MB normal pool, 1.2GB suffix array still
  large!
• Improvements
• Caching
• MMAP suffix array. True memory usage 150
  250MB.
• 2 level normal pool
• Hardware based fast string matching
• Compress normal pool and string matching
  algorithms directly over compressed strings

51
Future works

• Enhance the flow classifiers
• Cluster suspicious flows by return messages
• Malicious flow verification by replaying to
  Address Space Randomization enabled servers.

52
Experiment Attacks

• We propose a new attack token-fit.
• The attacker may study the noise inside the
  suspicious pool
• Create worm sample Wi which may has more same
  tokens with some normal traffic noise sample Ni
• This will stuck the hierarchical clustering used
  in Polygraph
• BUT We still can generate correct signature!
