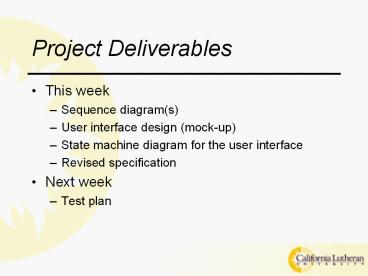

Project Deliverables

• This week
• Sequence diagram(s)
• User interface design (mock-up)
• State machine diagram for the user interface
• Revised specification
• Next week
• Test plan

2
Implementation

• Class Skeletons

3
Class Skeletons

• This is the start of the coding phase of system
  development
• Skeletons can be written in the target
  programming language or pseudo-code
• The decision really depends on
• Knowing (or not knowing) the target language
• Knowing (or not knowing) who will do the
  programming

4
Class Skeletons

• Theyre really just a formal structure for
  documentation purposes placed on top of the code
  you are writing
• Written by the designer
• Provide original designers insights/motivations
• Useful when the designer isnt the programmer
• Most useful when the designer isnt the
  maintainer
• Individual project managers may have their
  personal style preferences
• Style should be consistent across all programmers
  on the project

5
Class Skeletons

• Should consist of at least these sections
• Roles
• Information maintenance
• Attributes
• Constructors/destructors
• Methods

6
Roles

• Behavior of the class within a specified context
• In a particular situation, what does the class
  provide?
• May partition the class into functionalities that
  can be designed or maintained independently

7
Information Maintenance

• Specifies when objects of a particular class type
  are created and deleted
• Not all classes/instances will be used throughout
  the entire execution of the system
• Note that this information comes from the
  Sequence Diagram
• This section is especially important for resource
  management

8
Attributes

• Declaration of member variables
• Brief statement of what the variable will be used
  for
• If the variable represents a measured value,
  specify the units of the measurement
• If the variable stores information in a specific
  format, specify it
• If the variable has a legal range of values,
  specify it
• If the variable has dependencies on other
  variables, specify them
• Two explicit sections
• Instance variables
• Hold data specific to an instance of the class
• Non-static member variables
• Class variables
• Hold data common to all instances of the class
• Static member variables
• Group all variables of a given type together to
  improve readability

9
Constructors/Destructors

• If multiple constructors are provided they should
  be grouped together
• Specify the types of initializations or default
  assumptions made by each constructor
• If a destructor/finalizer is provided it should
  be right after the constructors
• Specify any clean-up activity performed

10
Methods

• Three distinct groups
• Public those available to the outside world
• Private those available internally (helper
  methods)
• Protected language dependent
• Grouping by access will make the code more
  readable for anyone not involved in the original
  coding
• Two distinct sub-groups within each group
• Non-static member functions
• Static member functions
• Again, grouping leads to readability

11
Skeleton Example (one way to do it)
public class Patron // Class semantics and
roles // Library patrons function in two
primary roles, // as researchers who use index,
reference, and database // materials and as
borrowers of loanable resources // Information
maintenance // Creation New patrons are
introduced into the system // by library staff
when presented with a library // membership
application or from information retrieved //
from a web-based application form. // Deletion
Patrons are removed from the library database //
3 years after their membership has expired
12
Skeleton Example (cont.)
// Private instance variables private String
name // name of Patron in // ltlast-name,
first-name, MIgt order private long PatronID //
Patrons library identification // number
sequentially generated private long homephone
// Patrons home phone number in // 11
digits (xxx)yyy-zzzz stored as //
xxxyyyzzzz private Date memberDate // date of
first membership in // mmddyyyy
format private Date expireDate //date
membership expires in // mmddyyyy
format private List resourceList // Object
reference to Patrons // list of checked
out resources private Address homeAddress //
Object reference to // patrons home
address
13
Skeleton Example (cont.)
// Public instance variables // Private class
variables private static long nextPatronID //
keeps track of the // next patron
membership ID to // be assigned //
Public class variables
14
Skeleton Example (cont.)
// Constructors public Patron(String name,
long homePhone, Date memberDate, Date
expireDate, String street, String city,
String state, long zip) // TODO List //
PatronID getnextPatronID() // Create an
Address object initialized with street, //
city, state, and zip // Create Date objects for
membership data and // expiration dates
initialized with memberDate and // expireDate.
15
Skeleton Example (cont.)
// Precondition Library database can accept
another // entry and memory allocation
succeeds // Postcondition Library database
will contain another // Patron and Address
entry // Destructors/Finalizers Patron()
// Precondition Patron object is not null
// deallocate any memory allocated by the
constructor // or other nonstatic
methods // Public static methods public
static long getnextPatronID() return
nextPatronID nextPatronID
16
Skeleton Example (cont.)
// Public static methods public static long
getnextPatronID() // controlled access return
nextPatronID nextPatronID // to patron
ID // Private static methods
17
Skeleton Example (cont.)
// Public nonstatic methods public boolean
validatePatron(Date expire) // precondition
expireDate is not null expire expireDate //
pass expiration date back to // calling
function via parameter // list // if
expireDate lt Today return false // else return
true public boolean checkout(Resource
resourceID) // precondition resourceID points
to a legitimate // Resource object that is
available for checkout // postcondition if
resource list is null, one is // created,
otherwise a new Resource reference is added //
to the patrons List of checked out resources
18
Goals

• Keep in mind that the goal is to provide readable
  code
• Readable code will reduce the chance of
  introducing bugs during both initial coding and
  maintenance phases
• Readable code will make it easier to detect bugs
  that find their way in
• Its easy to skip skeleton development but
  someone usually pays for it later on down the
  road
• Might as well practice good habits

19
End Notes

• Much of the style presented is my own
  preference you may or may not agree with it
• The key is to develop a style and stick with it
• No matter whos style you follow, you should
  (must?) provide the information
• CONSISTENCY COUNTS
• IF you know the target programming language you
  may use it for developing skeletons
• If using Java then you may as well use javadoc
  style
• doxygen is an open source version for various
  languages
• Those teams with multiple programmers have an
  inherent checks-and-balances system with respect
  to style
• Those teams with a single programmer must use
  other team members (non-programmers) to perform
  the stylistic checks-and-balances

20
Where Does This Get Us?

• Weve started the process of writing code
• Weve started the process of documenting the code

21
Implementation
22
Implementation

• Its time to start turning out code!
• In doing so, a couple of issues arise
• Configuration management
• Coding

23
Configuration Management

• Goals of configuration management (CM)
• Identify change
• Control change
• Ensure proper implementation of change
• Report change
• In this context change refers to alterations in
  the original, agreed upon specification
• Another goal of CM is to track progress (which is
  another form of change)
• The two are separated because change is much
  more difficult to deal with than is progress

24
Identifying Change

• Change is going to happen
• Market conditions change
• Seasonal
• Competition
• Timing in general
• Customer needs change
• As their understanding of the product/market
  increases
• Team structure changes
• Personnel get pulled off
• Personnel get put on
• Business resources change
• Budgets shrink/grow
• Time lines shrink/grow

25
Controlling Change

• Given that change is going to happen, wed like
  to make it as painless as possible
• Uncontrolled change has the potential to sink a
  project
• Controlling change requires both manual and
  automated systems working together

26
Controlling Change
Decision
Implement
27
Proper Implementation

• Once the change is approved, the implementation
  must follow all software engineering practices
• Formal design and review procedures
• Formal system test procedures (regression
  testing)

28
Report Change

• After implementation, the change procedure must
  be audited
• Did the change request pass all proper channels?
• Were proper S/W engineering practices adhered too?

29
Tracking Progress

• Status reporting
• Baseline generation

30
Status Reporting

• Regularly submitted reports
• What happened?
• Who did it?
• When did it happen?
• What else was/will be affected?
• Reports may be written (classical S/W
  engineering) or oral (agile methods)

31
Baseline Generation

• When you have a working (albeit incomplete)
  system you should make a copy and hide it away in
  a safe, dark corner where no one can get at it
• This way any progress or change that goes awry
  can be easily rolled back

32
Configuration Management Tools

• Various semi-automated tools exist for aiding in
  the performance of all of the aforementioned
  tasks
• The provide mechanisms for
• Version identification
• Version control
• Auditing
• Reporting
• But, the tools are only useful when used properly!

33
Configuration Management Tools

• Computer Associates AllFusion (used to be
  CCC/Harvest?)
• Rational (IBM) ClearCase
• Open source Concurrent Versions System (CVS)
• Serena ChangeMan (used to be Merant PVCS?)
• SourceForge
• Microsoft Visual SourceSafe
• SubVersion
• Perforce

34
Coding

• class Shape
• private int xPosition // -- (0,0) is the
• private int yPosition // upper-left
• // corner
• private int area // -- pixels2
• private int perimeter // -- pixels
• // -- accessors
• public int GetX()
• public int GetY()
• public int GetArea()
• public int GetPerimeter()
• // -- mutators
• public int SetX()
• public int SetY()
• public int SetArea()
• public int SetPerimeter()

35
Coding
class Square extends Shape // -- message
handlers public void ComputeArea() // --
overrides base class // method
36
Big Bang Method

• Code all the modules individually
• Integration happens when all module coding is
  complete
• Basic recipe for disaster
• Essentially how beginning programmers do things
• Because thats how theyre taught

37
Top-Down Method

• Start by defining the architecture defining
  modules
• Corresponds to the product design items we
  studied
• The main function
• Provide stub or dummy classes and methods for
  all other functionality
• Fill in details with a refinement approach
• A good approach when the details of the design
  are not fully worked out
• Allows you to get something running while design
  is ongoing

38
Bottom-Up Method

• Start with the detailed classes and methods
• Work your way up to the architecture
• A question arises
• How do you test the detailed classes and methods?
• Answer You create test drivers for each
  class/module.
• A good approach when the details are critical and
  require a lot of testing prior to product release
• Also a good approach when you have nervous
  designerslike me

39
Top-Down/Bottom-Up Method

• Top-Down and Bottom-Up are both Incremental
  approaches
• Contrary to the Big-Bang Method
• Thus, they are compatible with one another
• In practice, a combination of the two approaches
  is applied
• Results in the Threads method

40
Threads Method

• Define a minimal set of modules required to
  perform a system function
• May correspond to a Use Case
• As one thread is completed it can
• go to the customer for feedback
• go into testing
• while the next one is being developed

41
Implementation Plan

• The most important thing is to have a plan!
• Plan for coding
• Plan for unit testing
• Plan for integration
• Plan for integrated testing

42
Programming Style

• Very subjective topic
• Goals are
• Simplicity
• Readability
• General rule
• Consistency
• Uniformity

43
Consistency

• Consider the following code fragment

if (x 10) y 17 while (17 y) z
z 5

• Placement of is not consistent
• Constant comparison format is not consistent

44
Variable Naming

• Consider the following declarations

int tempA, tempb int m, n, o int localarea int
globalArea Int UniversalArea

• Name selection is inconsistent
• Use of upper/lower case is inconsistent

45
Variable Naming

• Consider the following declarations

int a, b int variableToHoldTheValueOfTheArea

• Variable names are not descriptive unless they
  have some special, acceptable meaning in context
• Variable name switched from descriptive to
  downright annoying after 3 words

46
Naming Conflicts

• Use package (Java), namespace (C),
  source/header file combinations (C and others) to
  avoid naming collisions
• Use predefined naming conventions
• e.g.
• Control department cont_ltvariable namegt
• Security department sec_ltvariable namegt
• Image Processing dept. ip_ltvariable namegt

47
Constant Values

• Thou shall not type numbers into your code
• Instead use
• final values (Java)
• const values (C)
• define values (C)

48
Side Effects

• If functions (methods) must modify values outside
  their immediate scope (i.e. global values),
  make the situation clear through documentation
• If functions (methods) modify their parameters
  (pass by reference) make the situation clear
  through documentation
• This is especially important in Java (use of
  Object class and type casting)

49
Avoid Ambiguity

• This is perfectly legal but scary

public class AClassName public AClassName ()

public class Ambiguous public static void
main(String args) Ambiguous ambiguous new
Ambiguous(42) ambiguous.AClassName() AClass
Name aclassname new AClassName() public
Ambiguous () public void AClassName ()

50
Coding Standards

• Coding standards are created to ensure
  consistency
• Although we may feel that theyre created to make
  some meddling micro-manager feel important
• Define them! (they may be defined for you)
• Make sure they are
• Useful
• Easily adhered to
• Stick to them!
• Many IDEs will define standards for you
• These are usually customizable

51
Design Patterns
52
Design Patterns

• Revolves around the principle of best practices
• i.e. figure out how to do it right then continue
  doing it that way
• Three basic categories identified
• Creational object creation as opposed to
  construction
• Factory, Singletonrevolve around
  getInstance()-like methods
• Structural groups of objects (aggregation/compos
  ition)
• Adapter, Façaderevolve around wrapping objects
  within other objects and interfaces
• Behavioral flow control and communication among
  objects
• Iterator, Visitorrevolve around traversing
  through sets of objects and passing information
  between objects

53
Basic Layout

• Pattern-name
• So that you can talk about it without doing a lot
  of hand waving (design at a high level of
  abstraction)
• Problem
• Describe the problem that this pattern is
  addressing (solvingwe hope)
• Solution
• Describe how this pattern addresses (solves) the
  specified problem
• Consequences
• Trade-offs (pros and cons) involved in utilizing
  this pattern

54
References
55
References

• Various books on this topic
• Effective C
• More Effective C
• Effective STL
• All by Scott Meyers
• Applying UML and Patterns Craig Larman
• Large-Scale C Software Design John Lakos
• The Mythical Man-Month Frederick P. Brooks, Jr.
• Design Patterns Elements of Reusable
  Object-Oriented Software Gang of Four
• etc.

56
Looking Forward

• This is week eight, meaning we have three more
  meetings
• Week 9 (next week) will be open consulting
• Week 10 will be formal design review/presentation/
  demonstration
• Week 11 final exam, project documentation turned
  in
