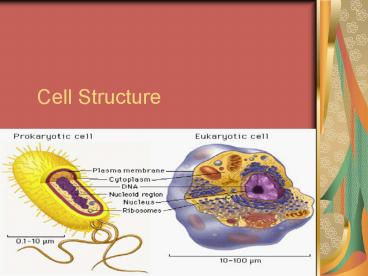

Cell Structure

1
Cell Structure
2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
Parts of a microscope
6
Scanning Electron Microscope
7
(No Transcript)
8
Weevil
9
(No Transcript)
10
Cat flea
11
Deer tick
12
(No Transcript)
13
Mosquito head
14
(No Transcript)
15
Fly foot
16
(No Transcript)
17
Diatom
18
(No Transcript)
19
Diatom
20
(No Transcript)
21
Cross section of a leaf
22
(No Transcript)
23
Radiolarian
24
Cell Theory

• All living organisms are composed of one or more
  cells.
• The cell is the most basic unit of life.
• All cells arise from pre-existing, living cells.

25

• A. There are three basic structures of all types
  of cells
• 1. Cell membrane
• a. Contains a bilayer of lipids
• b. Is selectively permeable (allows
  only certain molecules through protein carriers)
• 2. Nucleus
• 3. Cytoplasm

26
(No Transcript)
27
Plasma Membrane

• Separates intracellular fluids from extracellular
  fluids
• Allows certain substances in and out
• Glycocalyx is a glycoprotein are biological
  markers by which cells recognize one another

28
Cell walls and membranes video
29
Fluid Mosaic Model

• Double bilayer of lipids with imbedded, dispersed
  proteins
• Bilayer consists of phospholipids, cholesterol,
  and glycolipids
• Glycolipids are lipids with bound carbohydrate
• Phospholipids have hydrophobic and hydrophilic
  bipoles

30
Functions of Membrane Proteins

• Functions of Membrane Proteins
• Transport
• Enzymatic activity
• Receptors for signal transduction

31
Functions of Membrane Proteins

• Intercellular adhesion
• Cell-cell recognition
• Attachment to cytoskeleton and extracellular
  matrix

32
Membrane Junctions

• Tight junction impermeable junction that
  encircles the cell
• Desmosome anchoring junction scattered along
  the sides of cells
• Gap junction a nexus that allows chemical
  substances to pass between cells

33
Membrane Junctions Tight Junction impermeable
attachments
34

• Examples of tight junctions occur in the urinary
  system. For example the bladder.

35
Membrane Junctions Desmosomesmall space
between cells
36

• Examples of Desmosomes occur in the skin.
  Although it mostly non-permeable, some substances
  can pass through.

• Ex Lotions, mercury

37
Membrane Junctions Gap Junctionhave channels
between
38

• Examples of gap junctions occur in the lymphatic
  system where the uptake of excess fluids need to
  pass quickly from one cell to the next.

39
Diffusion movement of molecules with the
concentration gradient
40

• http//people.eku.edu/ritchisong/301notes6.htm

41
Facilitated Diffusion

• Movement of molecules with the help of proteins
  with a concentration gradient.

42
Osmosismovement of water with a concentration
gradient
43
Osmosis
44

• Isotonic solutions with the same solute
  concentration as that of the cytosol
• Hypertonic solutions having greater solute
  concentration than that of the cytosol
• Hypotonic solutions having lesser solute
  concentration than that of the cytosol

45
Sodium Potassium PumpMovement of sodium and
potassium in and out of a cell
46
Active TransportMovement of molecules with the
help of protein against a concentration gradient
47

• Transport of large particles and
  macromolecules across plasma membranes
• Exocytosis moves substance from the cell
  interior to the extracellular space
• Endocytosis enables large particles and
  macromolecules to enter the cell
• Phagocytosis pseudopods engulf solids and
  bring them into the cells interior(Eating
  particles)
• PinocytosisDrinking water

48
Ex. Of Exocytosis
49
Generation and Maintenance of Membrane Potential
50

• B. Differences between animal and plant cells,
  plant cells have
• 1. Chloroplasts
• a. Contain pigments that absorb
  sunlight.
• 2. Vacuoles
• a. Large containers that store water.
• 3. Cell walls
• a. Rigid structure(contain cellulose)
  surrounding the cell.

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
Cell Organelles
55
1. Nucleus

• a. Boss of the cell. Its in charge of all
  things that occur in the cell.
• b. Contains the genetic material of
  an organismchromosomes.
• c. Surrounded by a nuclear envelope
  with pores (openings).
• d. Contains the nucleolus which makes
  ribosomes.

56

• e. Cells or organisms with a nucleus
  (area that contains the DNA with a surrounding
  nuclear envelope) are called eukaryotic.
• f. Cells or organisms without a
  nucleus (DNA not contained within a nuclear
  envelope) are called prokaryotic.
• 1. Ex. bacteria

57
(No Transcript)
58
Nuclear Envelope

• Selectively permeable double membrane barrier
  containing pores
• Outer membrane is continuous with the rough ER
  and is studded with ribosomes
• Pores regulate transport of large molecules into
  and out of the nucleus

59
The Nucleus Video
60
(No Transcript)
61
Nucleoli (nucleolus)

• Dark-staining spherical bodies within the nucleus
• Site of ribosome production
• Acts like the assistant to the boss

62
Chromatin (protein withinchromosomes)

• Threadlike strands of DNA and histones
• Arranged in fundamental units called nucleosomes
• Form condensed, barlike bodies of chromosomes
  when the nucleus starts to divide

63
Cell Cycle

• Interphase
• Growth (G1), synthesis (S), growth (G2)
• Mitotic phase
• Mitosis and cytokinesis
• Prophase, Metaphase, Anaphase, Telophase

64
Interphase

• G1 (gap 1) metabolic activity and vigorous
  growth
• G0 cells that permanently cease dividing
• S (synthetic) DNA replication
• G2 (gap 2) preparation for division

65
2. Cytoplasmcytosol

• a. The area between the nucleus and the cell
  membrane.
• b. Holds all the organelles in place.
• c. Gives shape to the cell.

66
3. Centrioles

• a. Structures that aid in cell
  division.
• b. Found in the nucleus.

67
(No Transcript)
68
(No Transcript)
69
Centrioles Video
70
4. Mitochondria

• a. Known as the power house of
  the cell.
• b. Converts food into ATP to be
  used as energy.
• c. ATP Adenosine Triphosphate
• (Adenine plus three phosphate molecules.)

71
(No Transcript)
72
5. Ribosomes

• a. Sites of protein synthesis
  (making).
• B. Responsible for making membranes needed by
• Cell.

73
(No Transcript)
74
6. Endoplasmic ReticulumE.R.

• a. Passageway that transports materials
  throughout the cell.
• b. Rough E.R. is studded with
  ribosomes.
• c. Smooth E.R. is not studded
  with ribosomes. Also helps rid body of toxins.

75
(No Transcript)
76
(No Transcript)
77
7. Golgi apparatus

• a. Passageway that modifies and packages
  proteins as they pass through.
• b. Stacked and flattened membranous sacs (stack
  of pancakes)
• c. Functions in modification, concentration, and
  packaging of proteins

78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
8. Lysosome

• a. Round organelle that rids the cell of
  unwanted waste.
• b. Digest ingested bacteria, viruses, and toxins
• c. Degrade nonfunctional organelles

82
(No Transcript)
83
Lysosomes video
84
9. Peroxisomes

• a. Detoxify harmful or toxic substances
• b. Neutralize dangerous free radicals

85
10. Vacuole

• a. Containers that hold water and food for the
  cell.

86
Vacuole video
87
11. Cytoskeleton

• a. Contain microtubules and filaments to add
  structure to the cell.

88
Cytoskeleton
89
Microtubules

• Dynamic, hollow tubes made of the spherical
  protein tubulin
• Determine the overall shape of the cell and
  distribution of organelles

90
Microfilaments

• Dynamic strands of the protein actin
• Attached to the cytoplasmic side of the plasma
  membrane
• Braces and strengthens the cell surface
• Attach to CAMs and function in endocytosis and
  exocytosis

91
Intermediate Filaments

• Tough, insoluble protein fibers with high tensile
  strength
• Resist pulling forces on the cell and help form
  desmosomes

92
Motor Molecules

• Protein complexes that function in motility
• Powered by ATP
• Attach to receptors on organelles

93
Motor Molecules
94
(No Transcript)
95
12. Cilia and flagella

• a. Hair-like projections that help move some
  types of cells.
• Cilia act like oars

96

• Flagella act like a whip to move the cell

97
(No Transcript)
98
Ciliary Action
99
(No Transcript)
100
Processes

• Transcription- The making of a mRNA
• Translation- The making of protein
