Non-Contact Measurements Pre-Stressed Concrete Beams

1

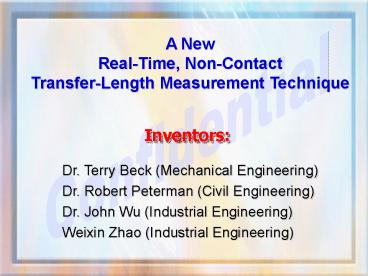

A New Real-Time, Non-Contact Transfer-Length
Measurement Technique
Inventors
Dr. Terry Beck (Mechanical Engineering) Dr.
Robert Peterman (Civil Engineering) Dr. John Wu
(Industrial Engineering) Weixin Zhao (Industrial
Engineering)
2
What is the problem for which you have a solution
?
3
Why Measure Transfer Length?

• Used for calculation of shear capacity
• Used for calculation of stresses
• Has been shown to often be a good indicator of
  strand development length
• Could be used as a tool to screen out potentially
  poor-bonding mixes

4
How is the problem being solved now?  Whats
wrong with current solutions?

• We simply dont measure it?

5
Why Dont We Measure Transfer Length at the
Present Time?

• There is currently not a convenient or
  time-efficient method to get this information
• The current method(s) interrupt the daily casting
  and de-tensioning sequence

6
(No Transcript)
7
Current Tool
Whittemore Gauge
8
Strain in Pretensioned Concrete Member
9
(No Transcript)
10
What is our solution?

• Non-Contact Measurements
• Portable as Current Tool
• Much Higher Precision
• More Flexible

11
Concept of Laser Speckle
12
Photograph of Laser Speckle on Concrete
13
(No Transcript)
14
(No Transcript)
15
Peak Distances vs. Strains Measures
0.02mm deflection
0.10mm deflection
0.20mm deflection
16
Actual experimental workwe have performed?
17
(No Transcript)
18
(No Transcript)
19
Concrete beam cutting experiment
Prototype Design
Beam Cutting
Experiment Setup
20
Cutting Pretensioned Specimen
21
Comparison of Different Strain Gauges
22
(No Transcript)
23
Prototype Specification
4?1/4 inches
8 in
Optical Sensor
Resolution lt 10me ? 1mm Weight 3
lbs Dimension 11x6x4 Measurement speed 15
samples/second
24
Concrete Cylinder Compression Experiment
Optical Strain Gage
Electronic Strain Gage
25
(No Transcript)
26
Concrete Cylinder Results
27
Concrete Cylinder Results
28
What is the closest prior art that might be cited
against the novelty of your invention?

• None !

29
What Still Needs to Be Done?

• Continue to Gather SCC Mix Ingredients
• Cast Pretensioned Transfer-Length Specimens
  Members from 5 mixes used in SCC bond study
• Compare Whittemore Gage Results with Optical
  Results

30
Additional K-State PersonnelHave Been Added

• Commercialization Manager.
• 2 MBA Students (Final Project).
• Product Design Engineer.
• 2 Other Design Engineers (Optics and Electrical).
• Precision Optical Measurements, Inc.

31
The Goal

• Version 1 available for use this summer.
• For sale within one year (Approx. 20k)

32
The Future
33
Auto Measuring System
Measurement Surface
Sensor
Traverse
34
Delta Strain Rosette
35
Who specifically would be a possible commercial
partner or licensee for your invention?

• Precision Optical Measurement Inc.
• Advanced Manufacturing Institute

36
Questions?
