E81 CSE 532S: Advanced Multi-Paradigm Software Development

1

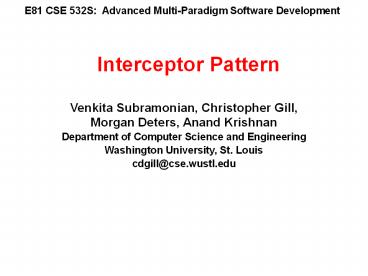

E81 CSE 532S Advanced Multi-Paradigm Software
Development
Interceptor Pattern
Venkita Subramonian, Christopher Gill, Morgan
Deters, Anand Krishnan Department of Computer
Science and Engineering Washington University,
St. Louis cdgill_at_cse.wustl.edu
2
Overview
The Interceptor architectural pattern allows
services to be added transparently to a framework
and triggered automatically when certain events
occur.

• Abstraction
• Genericity
• Conformity
• Extensibility

• Reusability
• Modularity
• Flexibility

3
Motivation
int send_data(Buffer buf, size_t n) log(buf,
n) if(!check_security(buf, n) return 0
encrypt(buf, n) // etc... finally_actually_se
nd_data(buf, n) return 1

• Simple client/server
• add logging features
• add security checks
• add encryption
• add QoS/prioritization
• add special-case or exception handling
• E.g., traffic overload, administrator access,
  etc.
• Want to add new processing for existing events
• Code easily becomes tangled and unmanageable
• Want to add new processing for new events
• Adding a new interception point is error-prone

4
Problem

• Fundamental concern
• How to integrate out-of-band tasks
• with in-band tasks?
• Straightforward (and all to common) approach
• Paste the out-of-band logic wherever its needed
• May be multiple places to paste it
• Brittle, tedious, error-prone, time/space (e.g.,
  inlining)
• Is there a better and more general approach?

Out-of-Band (Admin)
In-Band (Client)
In-Band (Server)
5
Interceptor Solution Approach

• Our goal is to find a general mechanism to
  integrate out-of-band tasks with in-band tasks
• In-band tasks
• Processed as usual via framework
• Out-of-band tasks
• register with framework via special interfaces
• are triggered by framework on certain events
• Some events are generated by in-band processing
• are provided access to framework internals (i.e.,
  context) via specific interfaces

6
Interceptor Interaction diagram
Application
Concrete Framework
Concrete Interceptor
Dispatcher
create
create
attach
Concrete Interceptor
event
create
Context Object
callback
iterate_list
Context object
callback
get_value
access_internals
7
Interceptor Pattern Structure
8
Implementation

• Model internal behavior of concrete framework
• Identify and model interception points
• Identify concrete framework state transitions
• Partition interception points into reader/writer
  sets
• Integrate them into state machine model
• Partition them into disjoint interception groups
• Specify the context object
• semantics
• number of context object types
• strategy for passing context objects to
  interceptors
• per-registration vs. per-event

9
Implementation (continued)

• Specify the interceptors
• Specify the dispatchers
• interceptor registration interface
• dispatcher callback interface
• Implement call-back mechanisms in concrete
  framework
• Implement concrete interceptors

10
Example Pattern Language Sketch

• Data streams need transparent security protection
• Apply an Interceptor to encode and decode stream
  (insert an object into a path of the
  system)
• Smart adversary might learn en/decoding in use
• Apply ACT to identify new en/decoding schemes at
  run-time
• Triggering changes may complicate threading
• Apply Reactor for in-and-out-of-band processing
• Need to trigger changes on remote applications
• Apply Acceptor/Connector to set up connection to
  a remote interceptor dispatcher
• Any point in the code might detect a need to
  change
• Apply Singleton to interceptor dispatcher
• Make these dispatchers remote Observers of one
  another

11
Design Outline

• Multi-threaded and/or reactive concurrency with
  streams of text (as in lab assignments)
• Add encode/decode interceptor capabilities
• XOR, k, -k, k, /k, rotate(k), IDEA, RSA
• Design the interceptors out-of-band interfaces
• ACTs for encoding/decoding function and argument
• Initial encoding function and argument
• Design interceptor dispatcher and registry
• Singleton for all interceptors in a process
• Event handler for reactor, also an acceptor
• How to federate across distribution boundaries?

12
Dynamic Interceptor Variant

• Base Interceptor
• virtual apply_XXX()
• Concrete Interceptors
• Logging
• Checksum
• Statistics
• Encrypt
• security checks

class Interceptor public virtual void
apply_encode(string) 0 virtual void
apply_decode(string) 0
13
The Data_Endpoint class

• Abstraction for sending and receiving data
• Two Data_Endpoints connect then send
• send_data() and receive_data() both dispatch to
  interceptors
• add_interceptor() registers new concrete
  interceptors

14
Dynamic Interceptor (1/3)
// A simple Interceptor Function class that
rot13's a message.class Rot13_Interceptor
public Interceptor class Rot13 public
unary_functionltchar, chargt public char
operator()(char c) if(islower(c)) return
c ((c gt 'a' 13) ? -13 13)
if(isupper(c)) return c ((c gt 'A' 13) ? -13
13) return c public void
apply_encode(string s) transform(s.begin(),
s.end(), s.begin(), Rot13()) void
apply_decode(string s) transform(s.begin(),
s.end(), s.begin(), Rot13())
15
Dynamic Interceptor (2/3)
class Data_Endpoint Data_Endpoint peer_
string data_ typedef vectorltInterceptorgt
Interceptor_List Interceptor_List
interceptors_ // public // void
send_data(const string s) // not mt-safe!
Encode_Dispatcher dispatch(s)
for_each(interceptors_.begin(),
interceptors_.end(), dispatch) string t
dispatch.get_result() //send data to
peer_ cout ltlt "Data_Endpoint_at_" ltlt this ltlt "
sent '" ltlt t ltlt "' on the wire" ltlt
endl //
16
Dynamic Interceptor (3/3)
class Encode_Dispatcher public
unary_functionltInterceptor, voidgt string
s_public Encode_Dispatcher(string s) s_(s)
void operator()(Interceptor i)
i-gtapply_encode(s_) string get_result(void)
return s_
17
Using Dynamic Interceptor

• Data_Endpoint foo Data_Endpoint bar
  Print_Interceptor pf new Print_Interceptor
  Rot13_Interceptor rot13 new Rot13_Interceptor
  foo.add_interceptor(pf) foo.add_interceptor(
  rot13) foo.add_interceptor(pf)
  bar.add_interceptor(pf) bar.add_interceptor(rot
  13) bar.add_interceptor(pf)
  foo.connect(bar) foo.send_data(a string)

18
Analysis of Dynamic Interceptor

• apply_XXX() design is fragile
• To add a new interception type
• add pure virtual apply_foo() to base
• implement in all existing concrete interceptors
• or refactor to have a single apply() with a
  switch
• May not need all of this flexibility
• may not need per-event context objects
• may not need to reorder or add interceptors at
  runtime

19
Consequences

• Separation of Concerns
• (Future) Flexibility
• Reusability/Portability
• - Efficiency/Heterogenity
• - Evil Interceptors

20
Interceptors using Generics

• Interceptor instances may not be needed
  (stateless)
• No context objects
• Note one interceptor
• Cant do both checksum and encrypt directly here
• Could compose both functions into interceptor
• Or, could publish trigger event which other
  interceptors can handle

Can specialize!
template ltclass Interceptorgt class Data_Endpoint
public send() ...
Interceptor()(Send_Event()) ...
... class Logging_Interceptor public
void operator()(...) ...
21
Potential Problems

• Data_Endpoint incompatibility
• arises from instantiating the Data_Endpoint
  template with different types
• connect() and send() no longer work
• Solution
• template ltclass Other_Interceptorgt
• friend class Data_Endpoint
• Single Interceptor only
• Can use Typelists to extend this approach!

22
Typelists

• List of types using templates
• No inherent runtime overhead
• Allows arbitrary number of Interceptors

template ltclass T, class Ugtstruct Typelist
typedef T Head typedef U Tail
TypelistltLogging_Interceptor,
TypelistltChecksum_Interceptor, NullTypegt gt
Andrei Alexandrescu, Modern C Design Generic
Programming and Design Patterns Applied
23
More on Typelists

• Telescoping Typelist definitions awkward
• typelist.h defines
• Mechanism includes various algorithms
• Length, TypeAt (index), Append, Erase (type from
  Typelist), Replace (type with type),
  DerivedToFront
• all for free evaluated at compile time!

define TYPELIST_1(T1) TypelistltT1,NullTypegt defi
ne TYPELIST_2(T1,T2) TypelistltT1,TYPELIST_1(T2)
gt define TYPELIST_3(T1,T2,T3) TypelistltT1,TYPELIS
T_2(T2,T3) gt ... up to TYPELIST_50(...)
24
Using Generic Interceptors

• Data_EndpointltChain_Interceptorlt
• TYPELIST_3(Print_Interceptor,
• Rot13_Interceptor,
• Print_Interceptor)gt gt foo
• Data_EndpointltChain_Interceptorlt
• TYPELIST_1(Rot13_Interceptor)gt gt bar
• foo.connect(bar)
• foo.send_data(Hello world)

25
Analysis of Generic Interceptors

• No runtime modification of Interceptors
• BUT efficient (inlined) dispatch
• Performance vs. Flexibility
• Because of template use, its compile-time
  configurable and flexible
• easy to change Interceptor attachment
• but must recompile
