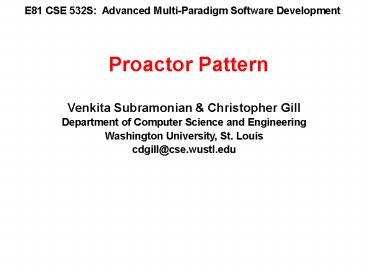

E81 CSE 532S Advanced Multi-Paradigm Software
Development
Proactor Pattern
Venkita Subramonian Christopher Gill Department
of Computer Science and Engineering Washington
University, St. Louis cdgill_at_cse.wustl.edu
2
Proactor

• An architectural pattern for asynchronous,
  decoupled operation initiation and completion
• In contrast to Reactor architectural pattern
• Synchronous, coupled initiation and completion
• I.e., reactive initiation completes when hander
  call returns
• Except for reactive completion only, e.g., for
  connector
• Proactor separates initiation and completion more
• Without multi-threading overhead/complexity
• Performs additional bookkeeping to match them up
• Dispatches a service handler upon completion
• Asynch Handler does post-operation processing
• Still separates application from infrastructure
• A small departure vs. discussing other patterns
• Well focus on using rather than implementing
  proactor
• I.e., much of the implementation already given by
  the OS

3
Context

• Asynchronous operations used by application
• Application thread should not block
• Application needs to know when an operation
  completes
• Decoupling application/infrastructure is useful
• Reactive performance is insufficient
• Multi-threading incurs excessive overhead or
  programming model complexity

4
Design Forces

• Separation of application from infrastructure
• Flexibility to add new application components
• Performance benefits of concurrency
• Reactive has coarse interleaving (handlers)
• Multi-threaded has fine interleaving
  (instructions)
• Complexity of multi-threading
• Concurrency hazards deadlock, race conditions
• Coordination of multiple threads
• Performance issues with multi-threading
• Synchronization re-introduces coarser granularity
• Overhead of thread context switches
• Sharing resources across multiple threads

5
Compare Reactor vs. Proactor Side by Side
Reactor
Proactor
Application
Application
ASYNCH accept/read/write
handle_events
Reactor
Handle
handle_event
handle_events
Event Handler
Proactor
accept/read/write
handle_event
Handle
Completion Handler
6
Proactor in a nutshell
create handlers
Completion Handler2
Completion Handler1
Application
Proactor
I/O Completion port
OS (or AIO emulation)
7
Motivating Example A Web Server
From http//www.cs.wustl.edu/schmidt/PDF/proactor
.pdf
8
First Approach Reactive (1/2)
Web Server
Acceptor
HTTP Handler
Web Browser
Reactor
9
First Approach Reactive (2/2)
Web Server
read request
3
parse request
4
Acceptor
1
HTTP Handler
Web Browser
GET/etc/passwd
5
socket read ready
send file
register for file read
2
10
8
register for socket write
7
read file
Reactor
6
file read ready
File System
9
socket write ready
10
Analysis of the Reactive Approach

• Application-supplied acceptor creates, registers
  handlers
• A factory
• Single-threaded
• A handler at a time
• Concurrency
• Good with small jobs (e.g., TCP/IP stream
  fragments)
• With large jobs?

From http//www.cs.wustl.edu/schmidt/PDF/proactor
.pdf
11
A Second Approach Multi-Threaded

• Acceptor spawns, e.g., a thread-per-connection
• Instead of registering handler with a reactor
• Handlers are active
• Multi-threaded
• Highly concurrent
• May be physically parallel
• Concurrency hazards
• Any shared resources between handlers
• Locking / blocking costs

From http//www.cs.wustl.edu/schmidt/PDF/proactor
.pdf
12
A Third Approach Proactive

• Acceptor/handler
• registers itself with OS, not with a separate
  dispatcher
• Acts as a completion dispatcher itself
• OS performs work
• E.g., accepts connection
• E.g., reads a file
• E.g., writes a file
• OS tells completion dispatcher its done
• Accepting connect
• Performing I/O

From http//www.cs.wustl.edu/schmidt/PDF/proactor
.pdf
13
Proactor Dynamics
Asynch Operation Processor
Asynch Operation
Completion Dispatcher
Completion Handler
Application
Asynch operation initiated
invoke
execute
Operation runs asynchronously
Operation completes
dispatch
handle_event
Completion handler notified
Completion handler runs
From http//www.cs.wustl.edu/schmidt/PDF/proactor
.pdf
14
Asynch I/O Factory classes

• ACE_Asynch_Read_Stream
• Initialization prior to initiating read open()
• Initiate asynchronous read read()
• (Attempt to) halt outstanding read cancel()
• ACE_Asynch_Write_Stream
• Initialization prior to initiating write open()
• Initiate asynchronous write write()
• (Attempt to) halt outstanding write cancel()

15
Asynchronous Event Handler Interface

• ACE_Handler
• Proactive handler
• Distinct from reactive ACE_Event_Handler
• Return handle for underlying stream
• handle()
• Read completion hook
• handle_read_stream()
• Write completion hook
• handle_write_stream()
• Timer expiration hook
• handle_time_out()

16
Proactor Interface (CNPV2 Section 8.5)

• Lifecycle Management
• Initialize proactor instance ACE_Proactor(),
  open ()
• Shut down proactor ACE_Proactor(), close()
• Singleton accessor instance()
• Event Loop Management
• Event loop step handle_events()
• Event loop proactor_run_event_loop()
• Shut down event loop proactor_end_event_loop()
• Event loop completion proactor_event_loop_done()
• Timer Management
• Start/stop timers schedule_timer(),
  cancel_timer()
• I/O Operation Facilitation
• Input create_asynch_read_stream()
• Output create_asynch_write_stream()

17
Proactor Consequences

• Benefits
• Separation of application, concurrency concerns
• Potential portability, performance increases
• Encapsulated concurrency mechanisms
• Separate lanes, no inherent need for
  synchronization
• Separation of threading and concurrency policies
• Liabilities
• Difficult to debug
• Opaque and non-portable completion dispatching
• Controlling outstanding operations
• Ordering, correct cancellation notoriously
  difficult
