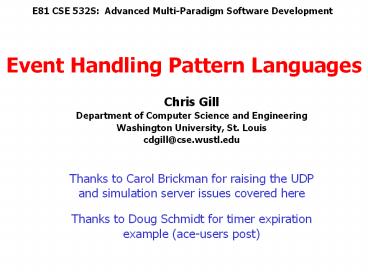

E81 CSE 532S Advanced Multi-Paradigm Software
Development
Event Handling Pattern Languages
Chris Gill Department of Computer Science and
Engineering Washington University, St.
Louis cdgill_at_cse.wustl.edu
Thanks to Carol Brickman for raising the UDP and
simulation server issues covered here
Thanks to Doug Schmidt for timer expiration
example (ace-users post)
2
What is a Pattern Language?

• A narrative that composes patterns
• Not just a catalog of the patterns
• Reconciles design forces among patterns
• Provides an ordered outline for design steps
• Not necessarily a procedure (details may be
  unspecified)
• A generator for a complete design
• Patterns may leave consequences
• Other patterns can resolve them
• Generative designs resolve all forces
• Internal tensions dont pull design apart

3
When Should We Use a Design Pattern?

• Two forms of guidance are given by (good)
  patterns
• The patterns context
• States conditions under which the pattern is
  relevant
• May state conditions under which the pattern
  doesnt apply
• The design forces that the pattern resolves
• How the design will evolve when that pattern is
  applied
• We can compare these to the current design
  setting
• I.e., is the pattern even appropriate? (context)
• I.e., is this the pattern to apply next? (design
  forces)
• Consequences of one pattern may produce context,
  design forces that affect pattern choices made
  later

4
Event Handling Patterns (Review)

• (Pattern Language Level) Context
• Programs often have limited knowledge, learn
  about things via events
• (Pattern Language Level) Intent
• Reconcile event handling design forces with
  concurrency distribution
• Uses of Event Handling Pattern Languages
• Time triggered systems
• Distributed (networked) systems
• Proactive systems
• Reactive systems
• Design patterns
• Asynchronous Completion Token
• Acceptor-Connector
• Architectural patterns
• Reactor
• Proactor
• Pattern languages for (distributed) event handling

5
Event Handling Patterns (review, continued)

• ACT
• Allows de-multiplexing of completion handling
• Reactor
• Synchronous notification of asynchronous events
• De-multiplexing and dispatch mechanisms
• Proactor
• Asynchronous notification of completion events
• Acceptor-Connector
• Decouples connection establishment from its use
• (Often) used with the reactor

6
When Should We Use ACT?

• (Pattern Level) Context
• Event-driven systems
• Invocation/response are (could be) asynchronous
• Design forces
• Completion events must be de-multiplexed
• Service does not know what a client needs to be
  able to de-multiplex responses
• Communication overhead must be minimal
• De-multiplexing should be efficient
• Need to design appropriate cookie format

7
Reactor Context

• An architectural pattern
• Context is system event architecture
• Synchronous/asynchronous events
• Event multiplexing/de-multiplexing
• In contrast ACT is a design pattern
• Context is smaller application/middleware layer
• De-multiplex service requests
• Decide which handler should be called
• Dispatch service requests
• Call the appropriate handler
• Also known as
• Dispatcher, Notifier

8
Reactor Design Forces

• Enhance scalability
• Maximize throughput
• Minimize latency
• Reduce effort to integrate new services
• Reduce concurrency complexity
• E.g., instruction vs. handler interleaving
• Handle multiple channels
• E.g., sockets
• May not scale as well as proactive approach
• May cause undue handler blocking times

9
Proactor Context

• Asynchronous operations used by application
• Application thread should not block
• Application needs to know when an operation
  completes
• Decoupling application/infrastructure is useful
• Reactive performance is insufficient
• Multi-threading incurs excessive overhead or
  programming model complexity

10
Proactor Design Forces

• Separation of application from infrastructure
• Flexibility to add new application components
• Performance benefits of concurrency
• Reactive has coarse interleaving (handlers)
• Multi-threaded has fine interleaving
  (instructions)
• Complexity of multi-threading
• Concurrency hazards deadlock, race conditions
• Coordination of multiple threads
• Performance issues with multi-threading
• Synchronization re-introduces coarser granularity
• Overhead of thread context switches
• Sharing resources across multiple threads
• Limitations on mechanism availability/portability

11
Acceptor/Connector Context

• Networked system or application
• I.e., communication between remote hosts
• Connection-oriented protocols
• E.g., TCP/IP
• Peer services
• I.e., client and server roles
• Connected via endpoints
• E.g., IP ports

12
Acceptor/Connector Design Forces

• Flexibility and performance loss if we tightly
  couple
• Configuration establishment/initialization by
  application
• Application logic for service processing
• Protocol-specific details
• Need to resolve four key design forces
• Changing connection roles to vary application
  behavior
• Adding new services, implementations, and
  protocols
• Connection establishment/initialization vs.
  protocols/services
• Protocols and services more likely to be changed
  or enhanced
• Should not be tightly coupled with connection
  management
• Reduce connection establishment latency
• Via advanced OS features and new protocols (e.g.,
  SCTP)
• May be more expensive than other approaches
• E.g., Singleton access in same process address
  space

13
Pattern Language I Logging Server

• Want to collect and record system events
• For example, printer out of paper, new clients,
  etc.
• Events from many clients to a central server
• Want to add event-specific processing
• And add new processing flexibly

From http//www.cs.wustl.edu/schmidt/patterns-ace
.html
14
Pattern Language I Logging Server
Reactor
Handler

• Design forces
• Server needs to add/remove logging features
  dynamically
• Logging actions are short lived, and event driven
• Solution
• Apply Reactor to manage registration and
  dispatching
• Consequences
• Need a way to match events to particular logging
  actions

15
Pattern Language I Logging Server
ACT
ACT
Reactor
Handler
ACT

• Design forces
• Need a way to match events to particular logging
  actions
• Clients can specify what events they will report
• Solution
• Apply ACT to identify the kinds of handlers to
  create
• Consequences
• Need to define how ACT is handled
• Need to create correct handlers for the ACT

16
Pattern Language I Logging Server
ACT
Acceptor
ACT
Reactor
Handler
ACT
Connector

• Design forces
• Need to define how ACT is handled
• Need to create correct handlers for the ACT
• Clients (dynamic) need to tell server when they
  join
• Solution
• Apply Acceptor/Connector with server taking
  passive role and clients taking active role in
  connection establishment
• Consequences
• Reactive logging with dynamic connection
  establishment and dynamic identification/creation
  of events/handlers

17
Pattern Language I Logging Server

• One subtle design/implementation issue remains
• How to pass ACT to acceptor so it knows what kind
  of handler to create?
• Could use the new socket for additional
  handshaking between the connector and the
  acceptor
• Like in lab 0 where client and server exchanged
  names
• However, this lengthens the time spent in
  acceptor upcall
• Another option
• Acceptor binds a separate UDP port
• Client connectors can mail it ACTs via UDP
• Need to add retry, etc. above UDP level (see
  Stevens UNP)

18
(?) Pattern Language II Simulation Server

• Scripted simulation server (physics, avionics,
  etc.)
• Each simulation has (possibly distinct) set of
  clients
• Clients may observe, provide control actions,
  inputs, etc.
• Similar to previous pattern language, except last
  pattern

19
Pattern Language II Simulation Server
Listening port
Listening port
Client 2
Server
Client 1

• Design forces
• Clients are static and passive (known set of
  simulation components)
• Server is dynamic and active (runs different
  simulation scenarios)
• Server (dynamic) needs to tell clients when to
  start, reset, run, etc.
• Solution
• Apply Acceptor/Connector with clients taking
  passive role and server taking active role in
  connection establishment (reverse of lab 1 roles)
• Consequences
• Similarly reactive simulation but with dynamic
  connection establishment triggered by server

20
Pattern Language II Simulation Server
data structure
Timer ACT
Handler
Code that schedules Timer
Timer Queue

• Design forces
• Simulation client or server logic may need to
  respond to passage of time
• Reactor can dispatch handlers when timers expire
• How can application pass data to handler, and
  vice versa?
• Solution
• Apply ACT pattern (pass address schedule calls
  timer_act parameter)
• Consequences
• Arbitrary data structure can pass between
  application and handler
• Creates a critical section (access to data
  structure) if multi-threaded

21
(??) Pattern Language III Data Streams

• Want to coordinate groups of different data
  streams
• For example, display multiple streams
  consistently locally
• Water temperatures and flow rates across a river
  basin
• Video frames from multiple cameras tracking an
  animal
• Poker hands dealt from multiple games at once
• Also, may pass-through streams to other
  endsystems
• Apply ACT to identify each streams source, id,
  etc.
• Lets end-user switch among streams transiting
  endsystem
• Lets end-user buffer/write related messages
  together
• Need high throughput for content rich data
  streams
• Apply Proactor to manage registration and
  dispatching
• Need to update streaming topology dynamically
• Apply Acceptor/Connector to set up remote
  connections
• May involve both active and passive roles on an
  endsystem

22
Concluding Remarks

• A single pattern is often insufficient
• May leave unresolved design consequences
• Understand how patterns fit together
• How one may reconcile forces from another
• and/or leave/introduce un-reconciled forces
• Successful pattern languages in a context can
  generate complete designs
• Weave patterns together coherently
• There are many more pattern languages than
  patterns (cardinality argument)
