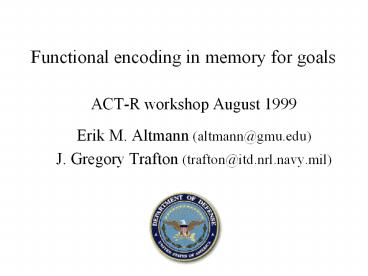

Functional encoding in memory for goals

1
Functional encoding in memory for goals

• ACT-R workshop August 1999
• Erik M. Altmann (altmann_at_gmu.edu)
• J. Gregory Trafton (trafton_at_itd.nrl.navy.mil)

2
Means-ends tasks

• Means-ends behavior
• Suspend a goal
• Work on subgoals
• Resume the goal at an appropriate time
• Examples
• Monkey and bananas
• Giving a talk
• Making photocopies

3
The Tower of Hanoi

• The foundational means-ends task
• In cognitive science
• Understood in terms of the goal stack
• Completely understood
• Or is it?
• Good data (Anderson, Kushmerick, Lebiere, 1993)

4
The Tower of Hanoi
1
2
3
4
C
A
B
5
A stack model
4C
6
The stack as representation

• The typical assumption in task analysis
• Implicit in problem behavior graph
• Explicit in GPS, GOMS, ...
• The standard theory of goal management
• In cognitive architectures
• ACT-R, Soar
• In cognitive models generally
• E.g., ACT-PRO, 3CAPS Better Raven, ...

7
The stack as representation

• The appeal
• Robust and general
• Applies to a wide variety of tasks
• Supported by empirical data
• At some level of abstraction
• The problem
• At best, a high-level simplification
• At worst, wrong

8
Goal-selection order

• LIFO order not used when not needed
• Selection order in arithmetic (VanLehn)
• Order depends on context
• Display-based problem-solving, situated action,
  distributed representation
• Capture error

9
Pending goals

• Displaced by memory load (Just Carpenter)
• Decay when not rehearsed (Byrne Bovair)
• Intrude when rehearsed (Altmann Trafton,
  1999b)
• Affected by goal content
• Intention superiority (Goschke Kuhl)
• Suggesting that activation affects availability

10
Research approach

• Model Tower of Hanoi data without a stack
• For goals
• Ask how to make up the lost functionality
• Domain knowledge
• External cues
• Existing memory theory
• If it suffices, the theory is strengthened
• If it fails, then at least we know why

11
Memory as goal store (MAGS)

• Memory encoding retention retrieval
• Assume passive retention
• Assume strategic encoding
• Using knowledge of retrieval context
• Assume strategic retrieval
• Using knowledge to select retrieval cues

12
Analytical framework Activation

• What happens to a goals activation over time?
• Two kinds of activation (in ACT-R)
• Base-level activation from use
• Priming from context
• Total activation predicts current need
• So memory returns the most active element

13
Encoding to resist decay

• Strengthen base-level activation
• Strength test to say how much is enough
• Cognition asking itself, Got it?
• If yes, stop strengthening and move on
• If no, strengthen some more
• Test interleaved with strengthening
• Strengthen enough but not too much

14
Encoding to resist decay
2C, 1B, 2C
Base-level activation
Time
15
The strength test

• Cognition can anticipate retrieval context
• Retrieval cue 3 for 3B
• Retention interval 5 to 10 seconds
• Anticipations are just knowledge
• Represent as cue chunks
• Test-retrieve the goal
• If test fails, encode some more

16
Focussed retrieval
Goal
3B
cue 3 sink S
Retrieval context
17
Retrieval production
(p retrieve focusgt isa retrieval
goalgt isa goal disk disk to peg gt
focusgt disk disk to peg !pop!)
No indexing or chaining
Noisy retrieval without partial matching
18
Empirical test

• Anderson, Kushmerick, Lebiere (1993)
• Subjects instructed in goal-recursion strategy
• Response-time data are from perfect trials
• Cognition on those trials most stack-like
• Strongest test of the MAGS model

19
Prediction

• Encoding a goal is expensive
• Not a cost-free push operation
• A second or so per goal
• Prediction from serial attention model

20
Data

• Large peaks Goal encoding

Time (sec)
21
Prediction

• People avoid unnecessary retrievals
• Retrieval is effortful and error-prone
• Use move heuristics when they apply

Dont-undo IF the just-moved disk was 1, and X
is the smaller of the two other top disks,
and Y is the larger of the two other top
disks, THEN move X on top of Y.
22
Data

• Valleys Dont-undo

23
Prediction

• Prefer goal retrieval to re-planning
• Depends on selecting the right retrieval cue
• No perfect pop operation
• Cue selection heuristic

Retrieve-uncovered IF the uncovered disk is
X, THEN try to retrieve X?
24
Data

• Small peaks goal retrieval

25
Five-disk data
26
Parameters

• ACT-R defaults
• W 1.0, F 1.0, d 0.5
• Adopted from other models
• Perceptual encoding time 185 msec (Anderson,
  Matessa, Lebiere, 1997)
• t 4.0, s 0.3 (Altmann Gray)
• No unconstrained parameters

27
Prediction

• Retrieval is error prone
• E.g., might retrieve 3C instead of 3B
• From a previous plan or previous trial
• Incorrect retrieval starts a garden path

28
Data
Length of solution path
Optimal
Optimal
29
MAGS vs. stack model (AL 98)

• Based on declarative memory
• Not on a privileged stack
• Broader empirical coverage
• Detailed account of RT and error
• Only ToH model to address both (before today)
• Functional encoding and retrieval processes
• Specified at ACT-Rs atomic level
• Generic adapted from serial attention(Altmann
  Gray, 1999b)

30
Implications

• Need a two-high architectural stack
• A main focus for problem state
• A retrieval focus for concentrating
• Main and retrieval focuses are mutually exclusive
  (Altmann Trafton, 1999b)
• One is reliable
• One is predictive

31
Conclusions

• Dont need a goal stack
• Anything it can do, MAGS can do better
• And without that much more analysis
• Dont want a goal stack
• Too easy and too wrong
• Masks real goal-management mechanisms

32
Conclusions

• 40 years of research on the Tower of Hanoi
• Yet retrieve-uncovered is unpublished
• Missing from Simons perceptual strategies
• Missing from Anzai and Simon protocol

33
Conclusions

• Why now?
• Detailed data
• A precise memory theory
• Throwing away the goal stack

34
References

• Model code hfac.gmu.edu/people/altmann/toh
• Altmann Trafton (1999a). Memory for goals An
  architectural perspective. Proc. Cog. Sci. 21.
• Altmann Trafton (1999b). Memory for goals in
  means-ends behavior. Manuscript submitted for
  publication.

35
The encoding process
disk 4 from A to C blocked t
