Title: A View From OET


1

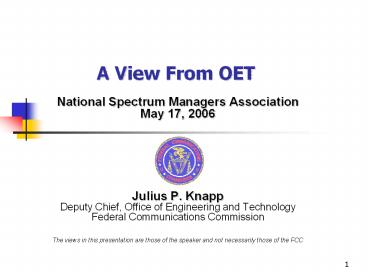

A View From OET
  • National Spectrum Managers Association
  • May 17, 2006
  • Julius P. Knapp
  • Deputy Chief, Office of Engineering and
    Technology
  • Federal Communications Commission
  • The views in this presentation are those of the
    speaker and not necessarily those of the FCC

2
Current FCC Spectrum Activities
Broadband Over Power Lines
255 MHz for unlicensed in addition to existing
300 MHz
Proposed TV White Spaces
50 MHz for Public Safety
800 MHz Public Safety Rebanding
New Broadband Communications Service
MSS/ ATC
3 GHz
4 GHz
5 GHz
6 GHz
2 GHz
0 GHz
1 GHz
90 MHz for AWS
75 MHz for Intelligent Transportation Services
900 MHz Private Radio Flexibility
New Licensed Service At 3650 3700 MHz
Spectrum Recovered From DTV Transition
Note This chart is not all-inclusive
3
Mobile (uplink)
Base (downlink)
AWS I, II, and III Bands
AWS I Blocks A-E1710-1755 2110-2155 MHz
?
AWS II Block F 1915-1920/1995-2000 MHz Block
G 2020-2025/2175-2180 MHz
AWS I Blocks A-E (45 MHz) Base
Nextel
AWS II - F
Nextel
AWS II - F
AWS II - G
AWS II - G
AWS III
AWS III 2155-2175 MHz
Federal Government Exclusive Spectrum (95
MHz) Not Available
Licensed PCS U.S. 2G Mobile transmit (60 MHz)
2 GHz MSS Handset TX (20 MHz)
Licensed PCS U.S. 2G Base station transmit (60
MHz)
AWS I Blocks A-E (45 MHz) Mobile
ET Spectrum - 5 MHz
2 GHz MSS Satellite TX (20 MHz)
MDS 1 2
UPCS (Voice) (10 MHz)
Expand AWS or Relocation (15 MHz)
Expand AWS (10 MHz)
Expand AWS - 5 MHz
UPCS (Data)
BAS (not to scale)
1885
1710
1850
1910
1930
1755
Region 2 MSS 2160-2170
MDS
Global MSS 2170-2200
Global MSS 1980-2010
Region 2 MSS 2010-2025
1920
2110
2200
1990
2025
2165
2160
2020
2180
2000
2155
2150
International
GSM 1800 European 2G Mobile transmit (75 MHz)
GSM 1800 European 2G Base station transmit (75
MHz)
Worldwide IMT-2000
Worldwide IMT-2000
Terrestrial Component Mobile transmit (60 MHz)
Satellite Component Uplinks (30 MHz)
Terrestrial Component Base station transmit (60
MHz)
Unpaired (15 Hz)
Unpaired (20 MHz)
DECT (20 MHz)
Satellite Component Downlinks (30 MHz)
2200

1805
2170
2110
2025
2010
1980
1920
1900
1785
1710
Broadband Radio Service (formerly MDS-ITFS)
2.5 GHz Band
Mid Band
MDS 2
Lower Band
Upper Band
MDS 1
Unlicensed (Wi-Fi, ISM) Licensed (BAS, Fixed from
2450 up)
MSS Big LEO
2500
2690
2400
2495
2483.5
4
3650 MHz Proceeding
  • FCC Report and Order in March made 3650 3700
    MHz available (ET Docket No. 04-151)
  • Licensed spectrum, open to all
  • Interference control
  • Registration of base stations
  • Contention based protocol
  • Reconsideration is pending

5
5.8 GHzDynamic Frequency Selection
  • FCC Implemented Rules (ET Docket 03-122) to
    provide an additional 255 MHz of Spectrum for
    U-NII Devices based on DFS
  • PN invited comments to update record for
    measurement procedures

Link Indoor Devices
Link Devices to Nodes
Link Nodes (Campus)
Provides A Total of 555 MHz of Spectrum!
50 mW Indoor Use Only
250 mW
1 W
250 mW
DFS
DFS
5150
5250
5350
5725
5825
5470
Frequency (MHz)
6
UWB Activities
  • FCC adopted an Order in March 2005 granting a
    waiver for MBOFDM and gated UWB technology to
    enable testing under normal operating conditions
  • Order noted that FCC will initiate rule making in
    the future
  • Petitions for reconsideration pending
  • Industry is poised to introduce products
  • Wireless USB
  • In-home DTV distribution
  • Several other new applications
  • UWB standards are under consideration
    internationally
  • Waivers are pending Vista/Cupid Multi Spectral
    Solutions Inc.

7
Cognitive Radio
  • SDR Cognitive radio holds promise for revamping
    paradigms for spectrum management
  • FCC has provided for SDR cognitive radio (ET
    Docket No. 03-108, 2005)
  • Revised equipment authorization rules
  • Addressed security issues
  • Synergy with secondary spectrum markets
  • Reconsideration pending
  • Much ongoing activity DYSPAN (Dynamic Spectrum
    Access Networks) IEEE P1900 SDR Forum DARPA
    (Defense Applied Research Projects Agency) XG
    project

8
Broadband Over Power Line
  • BPL rules adopted in October 2004 in ET Dkt
    04-37
  • Included numerous provisions to protect against
    harmful interference
  • Must include notching and remote shut-down
    capabilities to avoid causing Ix
  • Must avoid certain aeronautical frequencies
  • Must avoid operating on certain frequencies in
    some geographic areas (i.e., near Coast-Guard
    stations)
  • Several petitions for reconsideration are pending

9
Other Pending Issues
  • WCA petition at 57 64 GHz
  • Requests higher power operation
  • Some oppositions
  • Progeny proceeding
  • Requests rule changes for location monitoring
    service _at_ 915 MHz
  • NPRM invites broad comment
  • TV White Spaces proceeding (ET Dkt 02-380)
  • FCC Adopted NPRM May 13, 2004
  • 96 comments and 33 reply comments
  • IEEE 802.22 planning further recommendations
  • Next steps under consideration
  • RF Exposure proceeding
  • DTV Final Allotment Table

10
Presidential Spectrum Initiative
  • Presidential Spectrum Initiative is led by the
    National Telecommunications Information Admin.
    (NTIA)
  • Includes numerous recommendations to improve
    spectrum policy
  • FCC is participating as a liaison
  • Two actions of note
  • Developing OET Frequency Assignment
    Coordination System (OFACs) to automate FCC/NTIA
    license coordination
  • Considering a Notice of Inquiry on spectrum test
    bed

11
Medical Devices
  • FCC granted waivers of the Part 95 Medical
    Implant Communications Service rules to Biotronik
    and DexCom
  • Medtronic has filed a petition for rule making to
    expand the MICS rules
  • Rule making planned in the very near future
  • Consider changes to the MICS rules
  • Invite broad comment on spectrum needs and issues
    for medical devices.

12
Conclusion
  • Spectrum policy review is ongoing
  • Extensive spectrum actions are already completed
    or under way
  • Considerable future activity is planned
