Title: The five whys

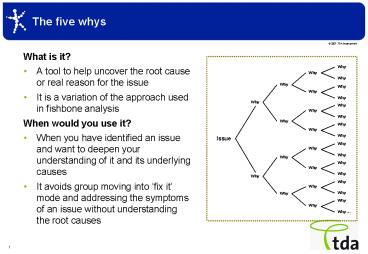

1The five whys
- What is it?
- A tool to help uncover the root cause or real
reason for the issue - It is a variation of the approach used in
fishbone analysis - When would you use it?
- When you have identified an issue and want to
deepen your understanding of it and its
underlying causes - It avoids group moving into fix it mode and
addressing the symptoms of an issue without
understanding the root causes
2Process of five whys
- The best approach is to attach a large price of
paper to a wall and have the group gather round
it. The facilitator captures the emerging picture
on the paper, moving right to left
- Clearly define the issue to be tackled and write
it on the left side of the paper - Complete the diagram by moving from left to
right. Move from the problem/issue statement by
asking the question why? - Ask the group why? and capture the responses
- For each response, again ask the question why?.
Continue to record responses and move across to
the right of the diagram. Try to go to five
levels of why? - At the end of the analysis it is often helpful to
circle the most significant insights that have
been gained
3Five whys hints and tips
- Phrasing of questions is crucial it should be
statement rather than a question, i.e. it must
lend itself to why? questions - At each level the group may choose not to pursue
all reasons to the next level it is usually
beneficial to focus on two or three - It is useful to start answering the question why
as broadly as possible to avoid reaching dead
ends quickly - There needs to be a shared agreement when a root
cause is established. It may take fewer than five
whys to reach this point, but it is usually
beneficial to progress each line of questioning
as deeply as possible - Ensure that a sufficient number of people are
involved between 6 and 10 is optimal
4Five whys example
Teachers are 70
Costs too high
Low number of TAs
Premises staff costs 3.5
5 year routine maintenance plan undercosted.
Beacon school funding not renewed
Income heavily reliant on LEA formula.
Income too low
LEA uses January PLASC for Fair Funding formula.
New Council sports centre opened locally
Schools facilities are underused
School not used for external events.
5Fishbone analysis
- What it is?
- The fishbone diagram is used to identify and list
all the possible causes of the problem at hand - This is primarily a group problem analysis
technique, but can be used by individuals as well - The process is called fishbone analysis because
of the way in which the information gathered is
arranged visually like the skeleton of a fish - When would you use it?
- To identify root causes of issues and problem
areas - It helps to show the relationship between the
causes and their relative importance - Are there any rules?
- Brainstorming works very well in conjunction with
this tool and all the rules that
apply to brainstorming apply here
6Fishbone analysis - framework
Level 1 cause
Level 1 cause
Level 1 cause
Level 2 cause
Level 2 cause
Level 2 cause
Level 2 cause
Issue
Level 2 cause
Level 2 cause
Level 2 cause
Level 2 cause
Level 1 cause
Level 1 cause
Level 1 cause
7Fishbone analysis process
- Write down the problem on the right side of
flipchart paper - Draw a straight line to the left (like the
backbone of a fish) - Draw stems at 45 angle to the backbone line. At
the end of each of these stems list all of the
causes of the problem or issue that can be
brainstormed - Place branches on each stem for further
breakdowns of each cause - When the diagram is completed, begin to analyse
the stems and branches to identify the real
problems or issues that need to be solved
8Fishbone analysis - example
Agenda starts from school s perspective, not
childrens
Friends/family not invited
Parents concerns not addressed
Dont respond to communications from school
Agenda limited to educational issues
Impersonal invitations from a stranger
Etc ...
Issue Parents not engaged
Learning seen as separate from everyday life
Think that school will tell not listen
Usually asked to come to school when there is
trouble
Negative experiences as children
Parents dont have a positive view of schools
Dont come to meetings at school
