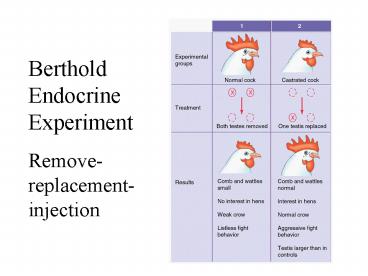

Berthold Endocrine Experiment

1
Berthold Endocrine Experiment Remove-
replacement-injection
2
Objectives
1. Chemical classes of hormones 2. Biosynthesis
of a particular hormone 3.Transport of the
hormones 4.Recognition signaling of the
hormone 5.Functions of the hormones. 6.Degradation
of the hormone.
3
Endocrine Methods

• Remove-replacement-injection
• Purification and cloning
• Synthesis and production of hormone
• Test biological activity with pure hormones
• Development of antibodies
• Localization by immunocytochemistry
• Establish assays (RIA)
• Microarray,deep sequencing, proteomics
• Knock-out/Knock down/mutants

4
Hormone Types/Functions
Three structural divisions 1) Amines--H2O sol.
(small--AA) catecholamines and thyroid
hormones 2) Steroids--lipid sol. cyclic
hydrocarbon derivatives from cholesterol
3) Peptide/protein -- H2O sol. largest, complex
5
(No Transcript)
6
Amines

• Hormones derived from tyrosine and tryptophan.
• Include hormones secreted by adrenal medulla,
  thyroid, and pineal glands.

7
Thyroid Hormones

• Tyrosine derivatives bound together.
• Contain 4 iodine atoms (T4).
• Contain 3 iodine atoms (T3).
• Small, non-polar molecules.
• Soluble in plasma membranes.

8
Steroids

• Lipids derived from cholesterol.
• Are lipophilic hormones.
• Testosterone
• Estradiol
• Cortisol
• Progesterone

9
(No Transcript)
10

11
Peptides/Proteins

• Chains of amino acids (lt 100 amino acids in
  length).
• ADH
• Insulin
• Long polypeptides (gt100) bound to one or more
  carbohydrate groups.
• FSH
• LH

12
Biosynthesis of Peptides and Protein Hormones
DNA (The gene)
RNA (Primary transcript)
RNA processing
mRNA
translation
Pre-(Pro)-hormone
Proteolysis via signal peptide cleavage
Pro-hormone
Proteolysis via second modification
Glycosylation phosphorylation
Hormone
13
(No Transcript)
14
Classification of chemical communication
systems 1) Autocrine--secretion that affects the
same cell which the secretion originated Ex
Adrenergic nerve endings 2) Paracrine--secretion
that affects neighboring cells Ex Inflammatory
response 3) Endocrine--a secretion of a chemical
substance that is released into the blood and
affects a distant target
15
4) Exocrine--secretion of a substance that is
released onto surface of animal--including
internal structures
16
Exocrine Glands/tissues --possess
ducts --salivary glands, intestinal epithelium,
secretory cells in stomach, and secretory cells
of the liver and pancreas Endocrine
Glands/tissues --lack a definite duct --Adrenal
gland, GI tract, heart, kidney, ovary, pancreas,
thyroid, pituitary, placenta, testes, and thymus
17
Hypothalamus
Bone
Hypothalamus
Optic chiasm
Connecting stalk (infundibulum)
Anterior lobe of pituitary
(b)
Posterior lobe of pituitary
Posterior pituitary
Anterior pituitary
(a)
Fig. 7-8, p.265
18
(No Transcript)
19
Anterior and posterior pituitary glands.
20
Posterior Pituitary

• Also called the neurohypophysis.
• Formed by down growth of the brain during fetal
  development.
• Is in contact with the infundibulum.
• Nerve fibers extend through the infundibulum.

21
Anterior Pituitary

• Master gland (also called adenohypophysis).
• Derived from a pouch of epithelial tissue that
  migrates upward from the mouth.
• Consists of 2 parts
• Pars distalis anterior pituitary.
• Pars tuberalis thin extension in contact with
  the infundibulum.

22
Hypothalamic Control of Posterior Pituitary

• Hypothalamus produces
• ADH supraoptic nuclei.
• Oxytocin paraventricular nuclei.
• Hormones transported along the hypothalamo-hypophy
  seal tract.
• Stored in posterior pituitary.
• Release controlled by neuroendocrine reflexes.

23
Posterior Pituitary (neurohypophysis)
--releases neurohormones 1) antidiuretic hormone
(vasopressin) 2) oxcytocin
24
(No Transcript)
25
Larhammar et al, Ann. N.Y. Acad. Sci. 1163
201208 (2009)
26
(No Transcript)
27
Hypothalamic Control of the Anterior Pituitary

• Hormonal control rather than neural.
• Hypothalamus synthesizes releasing hormones and
  inhibiting hormones.
• Hormones are transported to axon endings of
  median eminence.
• Delivers blood and hormones to anterior pituitary
  via portal system.

28
Hypothalamic Control of the Anterior Pituitary

• Hormones secreted into the hypothalamo-hypophyseal
  portal system regulate the secretions of the
  anterior pituitary.

29
Feedback Control of the Anterior Pituitary

• Anterior pituitary and hypothalamic secretions
  are controlled by the target organs they
  regulate.
• Negative feedback inhibition by target gland
  hormones.

30
Feedback Control of the Anterior Pituitary

• Negative feedback at 2 levels
• The target gland hormone can act on the
  hypothalamus and inhibit releasing hormones.
• The target gland hormone can act on the anterior
  pituitary and inhibit response to the releasing
  hormone.

31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Fig. 7-11, p.269
38
Fig. 7-12, p.270
39
Water vs. Lipid
Water soluble Lipid
soluble hydrophilic
hydrophobic external (2nd mess.)
internal external receptors
cytoplasmic rec. short half-life
long half-life intermediary resp.
Long-term resp. protein activation
gene activation
40
(No Transcript)
41
Mechanisms of Hormone Action

• Hormones of same chemical class have similar
  mechanisms of action.
• Location of cellular receptor proteins.
• Target cell must have specific receptors for that
  hormone (specificity).
• Hormones bind to receptors with high bond
  strength (affinity).
• Low capacity of receptors (saturation).

42
Hormones That Bind to Nuclear Receptor Proteins

• Lipophilic steroid and thyroid hormones bound to
  plasma carrier proteins.
• Hormones dissociate from carrier proteins to pass
  through lipid component of the target cell
  membrane.
• Receptors for the lipophilic hormones are known
  as nuclear hormone receptors.

43
Nuclear Hormone Receptors

• Function within cell to activate genetic
  transcription.
• mRNA directs synthesis of specific enzyme
  proteins that change metabolism.
• Receptor must be activated by binding to hormone
  before binding to specific region of DNA called
  HRE (hormone responsive element).
• Located adjacent to gene that will be transcribed.

44
(No Transcript)
45
Mechanisms of Steroid Hormone Action

• Steroid receptors located in cytoplasm.
• Bind to steroid hormone.
• Translocates to nucleus.
• DNA-binding domain binds to specific HRE of the
  DNA.
• Dimerization occurs.
• Stimulates transcription.

46
(No Transcript)
47
Mechanism of Thyroid Hormone Action

• Receptor proteins located in nucleus.
• T3 binds to ligand-binding domain.
• DNA-binding domain can then bind to the half-site
  of the HRE.
• Other half-site is vitamin A derivative
  9-cis-retinoic acid.
• Two partners can bind to the DNA to activate HRE.

48
Hormones That Use 2nd Messengers

• Cannot pass through plasma membrane.
• Catecholamines, polypeptides, and glycoproteins
  bind to receptor proteins on the target cell
  membrane.
• Actions are mediated by 2nd messengers
  (signal-transduction mechanisms).
• Extracellular hormones are transduced into
  intracellular second messengers.

49
Hormones That Use 2nd Messengers

• 2nd messenger systems
• Adenylate cyclase
• Phospholipase C
• Tyrosine kinase
• NO
• various kinases

50
Adenylate Cyclase-cAMP

• Hormone binds to receptor protein.
• Dissociation of a subunit of G-protein.
• G-protein binds and activates adenylate cyclase.
• ATP cAMP PPi
• cAMP attaches to inhibitory subunit of protein
  kinase.

51
Adenylate Cyclase-cAMP

• Activates protein kinase.
• Phosphorylates enzymes within the cell to produce
  hormones effects.
• Modulates activity of enzymes present in the
  cell.
• Alters metabolism of the cell.
• cAMP inactivated by phosphodiesterase.
• Hydrolyzes cAMP to inactive fragments.

52
(No Transcript)
53
Phospholipase-C-Ca

• Binding of epinephrine to alpha-adrenergic
  receptor activates a G-protein, (phospholipase
  C).
• Phospholipase C splits phospholipid into inositol
  triphosphate (IP3) and diacylglycerol (DAG).
• Both derivatives serve as second messengers.

54
Phospholipase-C-Ca

• IP3 diffuses through cytoplasm to ER.
• Binding of IP3 to receptor protein in ER causes
  Ca channels to open.
• Ca diffuses into the cytoplasm.
• Ca binds to calmodulin.
• Calmodulin activates specific protein kinase
  enzymes.
• Alters the metabolism of the cell, producing the
  hormones effects.

55
Catecholamines TRH LHRH Oxytocin ADH
56
Two ways to increase cytosol free Ca 2
1)By release of Ca2 from intracellular Calcium
storages 2)By influx of Calcium from cell
exterior Ca2 channel
57
(No Transcript)
58
Tyrosine Kinase

• Receptor protein on cell membrane is tyrosine
  kinase.
• Insulin receptor consists of 2 units that
  dimerize when they bind with insulin.
• Insulin binds to ligandbinding site, activating
  enzymatic site.
• Autophosphorylation occurs, increasing tyrosine
  kinase.
• Activates signaling molecules, altering the
  metabolism of the cell.

59
(No Transcript)
60
GH/PRL signaling mechanism
PRLR alpha
Extra-cellular
Circulation
P
P
Intra-cellular
PI3K
Src
Fyn
MAPK
61
OVERVIEW

• Physiological Effects of Hormones
• Reproduction (Gonads)
• Stress Steroids (Adrenal)
• Metabolism (Pancreas and Thyroid)
• Electrolyte/Water Balance

62
Gonads and Placenta

• Gonads (testes and ovaries)
• Secrete sex hormones.
• Testosterone.
• Estradiol.
• Progesterone.
• Placenta
• Secretes large amounts of estrogen and
  progesterone.

63
(No Transcript)
64
Sertoli cells synthesis androgen-binding protein
and inhibin. Leydig cells produce and secrete
testosterone Testosterone key hormone for
produce sperm, develop male sex characters,
protein synthesis and general growth
65
(No Transcript)
66
s
s
Cell type Ploidy/Chromosomes N Process Time of completion
Oogonium diploid/46 2N Oocytogenesis (mitosis) third trimester
primary Oocyte diploid/46 4N Meiosis I (Folliculogenesis) Dictyate in prophase I until ovulation
secondary Oocyte haploid/23 2N Meiosis II Halted in metaphase II until fertilization
Ovum haploid/23 1N
67
(No Transcript)
68
1. hypothalamic GnRH control of FSH / LH release,
2. ovarian follicular development to ovulation
and subsequent corpus luteum formation 3. the
feedback control of FSH / LH secretion by ovarian
hormones.
69

• the corpus luteum regresses,
• there is a rapid fall in the secretion of
  oestrogen and progesterone,
• the endometrium undergoes shrinkage due to
  extracellular fluid loss,
• the spiral arteries constrict,
• the endometrial blood flow decreases with cell
  death and destruction of blood vessels

70
Adrenal Glands

• Paired organs that cap the kidneys.
• Each gland consists of an outer cortex and inner
  medulla.
• Adrenal medulla
• Derived from embryonic neural crest ectoderm
  (sympathetic ganglia).
• Synthesizes and secretes
• Catecholamines (mainly epinephrine but some
  norepinephrine).

71
(No Transcript)
72
(No Transcript)
73
Adrenal Medulla

• Innervated by sympathetic nerve fibers.
• Increase respiratory rate.
• Increase heart rate, cardiac output and
  vasoconstrict blood vessels, thus increasing
  venous return.
• Stimulate glycogenolysis.
• Stimulate lipolysis.

74
Adrenal Glands

• Adrenal cortex
• Does not receive neural innervation.
• Must be stimulated hormonally.
• Consists of 3 zones
• Zona glomerulosa
• Aldosterone regulate Na and K balance.
• Zona fasciculata
• Cortisol regulate glucose metabolism.
• Zona reticularis
• Androstenedione and DHEA supplement sex steroids.

75
(No Transcript)
76
Pancreas

• Endocrine portion consists of islets of
  Langerhans.
• Alpha cells secrete glucagon.
• Stimulus is decrease in plasma glucose
  concentrations.
• Stimulates lipolysis.
• Beta cells secrete insulin.
• Stimulus is increase in plasma glucose
  concentrations.
• Promotes entry of glucose into cells.

77
Regulating Blood Glucose
Two major hormones 1) insulin 2)
glucagon Originb cells, a cells-- islet of
Langerhans Control BG high--insulin, BG
low--glucagon
78
Diabetes Mellitus
Two types 1) Type I (IDDM) --severe, insulin
dependant, juvenile onset, --loss of beta cell
mass 2) Type II (NIDDM) --less severe,
non-insulin-dependant, adult onset, more
common --defective insulin receptors untreated?f
at metabolism(ketones)? ketoacidosis ketoacidosis
79
Thyroid Hormones

• Thyroid gland located just below the larynx.
• Thyroid is the largest of the pure endocrine
  glands.
• Follicular cells secrete thyroxine.
• Parafollicular cells secrete calcitonin.

80
Production of Thyroid Hormones

• I- (iodide) actively transported into the
  follicle and secreted into the colloid.
• Oxidized to (Io) iodine.
• Iodine attached to tyrosine.
• Attachment of 1 iodine produces monoiodotyrosine
  (MIT).
• Attachment of 2 iodines produces diiodotyrosine
  (DIT).
• MIT and DIT or 2 DIT molecules coupled.

81
Production of Thyroid Hormones

• T3 and T4 produced.
• TSH stimulates pinocytosis into the follicular
  cell.
• Enzymes hydrolyze to T3 and T4 from
  thyroglobulin.
• Attached to thyroid-binding protein and released
  into blood.

82
(No Transcript)
83
T3 Effects

• Stimulates cellular respiration by
• Production of uncoupling proteins.
• Stimulate active transport Na/ K pumps.
• Lower cellular ATP.
• Increases metabolic heat.
• Increases metabolic rate.
• Stimulates increased consumption of glucose,
  fatty acids and other molecules.

84
(No Transcript)
85
Hormonal Regulation H2O, Electrolytes
Major organs kidney, intestine, and
bone Antidiuretic hormone (ADH) also
vasopressin, regulates H2O turnover in kidney --
? premeability of H2O in duct (?
urine) Aldosterone ? Na reabsorption, ? blood
osmolarity Atrial natriuretic peptide (ANP) ?
Na , (? urine)
86
(No Transcript)
