Title: Intracellular Compartments and Protein Sorting


1

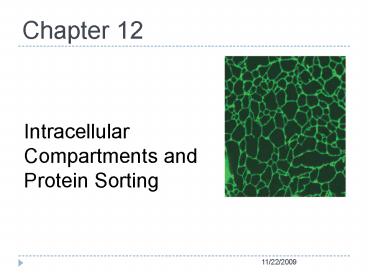

Chapter 12
  • Intracellular Compartments and Protein Sorting

2
Intracellular compartments
3
Not all cells are the same
4
  • Evolutionary origins of organelles

5
Topological relationships of organelles can be
interpreted in terms of evolutionary origins
6
(No Transcript)
7
Sidebar Construction of organelles
  • Most membrane organelles cannot be constructed
    from scratch-they need the organelles to be
    present
  • During division, daughter cells inherit portions
    of parent cell organelles
  • Epigenetic inheritance

8
  • Topological relationship between compartments
    (red)
  • Lumen of any of these compartments can
    communicate via transport vesicles

9
Vesicle budding and fusion during vesicular
transport
  • Orientation applies both to the lipid bilayer and
    transmembrane proteins

10
Roadmap of protein traffic
  • 3 modes of movement
  • Gated traffic
  • via nuclear pores
  • Transmembrane transport
  • membrane bound protein translocators
  • Vesicular transport
  • Movement between topologically related
    compartments
  • Directed by signal sequences

11
Terminal
Intrinsic
  • Signal sequences and signal patches direct
    proteins to the correct cellular address

12
  • Positively charged- red
  • Negatively charged-green
  • Hydrophobic-white
  • Hydroxylated-blue

13
Roadmap of protein traffic
  • 3 modes of movement
  • Gated traffic
  • via nuclear pores
  • Transmembrane transport
  • membrane bound protein translocators
  • Vesicular transport
  • Movement between topologically related
    compartments
  • Directed by signal sequences

14
Transport between the nucleus and the cytoplasm
15
50 different Nucleoporins
16
Gated diffusion paths through nuclear pore
  • 9nm functional pore size for diffusion (lt5000Da)
  • 26nm functional pore size for active transport

17
(No Transcript)
18
Role of signal sequences in nuclear
localization SV40 virus T-antigen
  • Normal protein located in nucleus
  • Mutant protein located in cytoplasm

19
Colloidal gold spheres coated with signal
sequence for nuclear import
20
Import into nucleus requires additional
proteins 1. Nuclear import receptors (NIRs)
  • Different cargo proteins contain different
    signals and bind to different NIRs

21
FG repeats
  • FG

22
Import into nucleus requires additional
proteins 2. Ran transporter proteins
  • Energy for import provided by Ran
  • Located on both sides of nuclear envelope
  • GTPase activity
  • Localization depends upon Ran-GAP (import) and
    Ran GEF (export)

Ran GAP- Ran GTPase activating protein Ran GEF-
Ran guanine exchange factor
23
Import into nucleus requires additional
proteins NIRs and Ran work together
Import Export
24
Import receptor Ran GTP/GDP and cargo exchange
25
  • Nuclear envelope breaks down during mitosis
  • Reassembles during telophase
  • Lamins

26
The breakdown and reformation of the nuclear
envelope during mitosis
27
Roadmap of protein traffic
  • 3 modes of movement
  • Gated traffic
  • via nuclear pores
  • Transmembrane transport
  • membrane bound protein translocators
  • Vesicular transport
  • Movement between topologically related
    compartments
  • Directed by signal sequences

28
Trafficking of proteins via transmembrane
transport
  • Import into mitochondria and chloroplasts
  • Import in ER
  • Co-translational translocation
  • Post-translational translocation
  • Transmembrane proteins

29
Roadmap of protein traffic
  • 3 modes of movement
  • Gated traffic
  • via nuclear pores
  • Transmembrane transport
  • membrane bound protein translocators
  • Vesicular transport
  • Movement between topologically related
    compartments
  • Directed by signal sequences

30
  • Positively charged- red
  • Negatively charged-green
  • Hydrophobic-white
  • Hydroxylated-blue

31
Import receptor
  • Proteins imported in mitochondria and
    chloroplasts cross more than one membrane
  • Signal sequence

32
Mitochondrial translocators
  • TOM
  • Translocator of the Outer Membrane
  • TIM
  • Translocator of the Inner Membrane
  • OXA
  • Inner membrane
  • Do proteins cross membranes simultaneously or
    sequentially?

33
  • Proteins transiently span both membranes during
    translocation into matrix

34
Import into matrix
  • Energy for translocation provided by ATP and H
    ion gradient
  • Some proteins contain multiple signal sequences

35
The role of energy in the import of proteins into
mitochondrial matrix space
36
  • Import into inter-membrane space
  • A. Stop transfer sequence
  • B. Two signal sequences
  • C. Release of peptide into the inter-membrane
    space

37
Import into inner membrane
  • D. Formation of mitochondrial transmembrane
    proteins

38
Translocation of precursor proteins into
thylakoid space of chloroplasts Part 1
39
Translocation of precursor proteins into
thylakoid space of chloroplasts Part 2
40
Endoplasmic reticulum
41
  • Smooth ER
  • Membrane synthesis
  • Vesicle formation
  • Rough ER
  • Protein synthesis and trafficking

42
  • Preparation of ER

43
  • Positively charged- red
  • Negatively charged-green
  • Hydrophobic-white
  • Hydroxylated-blue

44
Transport of protein into ER
  • A. Co-translational translocation
  • B. Post-translational translocation

45
Co-translational translocation The signal
hypothesis
  • Signal Sequences discovered in ER

46
Signal Recognition Particle
47
Signal recognition particle (SRP)
48
Common pool of ribosomal subunits
49
Transport of protein into ER
  • A. Co-translational translocation
  • B. Post-translational translocation

50
Translocation of a soluble protein
51
Single-pass transmembrane protein
  • Hydrophobic region in membrane
  • How does it stop translocation?

52
  • Integral membrane protein 1.
  • Stop transfer sequence
  • Amino terminal is inside the lumen (equivalent to
    extracellular)
  • Carboxy terminal in cytosol

53
Vesicle budding and fusion during vesicular
transport
  • Orientation applies both to the lipid bilayer and
    transmembrane proteins

54
  • Integral membrane protein 2.
  • Internal start-transfer sequence-allows amino
    terminus to remain in the cytosol. Carboxy
    terminal in lumen (equivalent to extracellular)
  • No peptidase signal

55
  • Integral membrane protein 3.

Opposite orientation of internal signal sequence
allows amino terminus to remain in ER lumen
without a stop-transfer sequence
A
B
56
Several ways that a protein can associate with a
membrane
  • Single pass a-helix (1)
  • Multi pass a-helix (2)
  • b-barrel (3)
  • Amphipathic a-helix (4)
  • Lipid anchor (5)
  • GPI anchor (6)
  • Non-covalent association with membrane integral
    proteins 78)

57
  • Integration of double pass membrane protein
  • Requires a start-transfer and a stop-transfer
    signal without a peptidase signal

58
  • Multiple pairs of start-transfer and
    stop-transfer signal sequences results in
    multi-pass membrane protein

59
N-linked Glycosylation
  • Oligosaccharide linked to asparagine in ER lumen
    (N-linked)
  • Asp-X(not proline)-Ser/Thr
  • Core region of oligosaccharide shaded

60
Glycosylation
  • Protein glycosylation in the ER occurs during
    translocation
  • Oligosaccharide transferase
  • Dolichol

61
(No Transcript)
62
Why is glycosylation so common in ER
  • Marks proteins for folding by chaperones

63
Steps in creation of a functional protein
64
Role of N-linked Glycosylation in ER protein
folding
  • ER chaperone Calnexin
  • Glucose added to cause binding to calnexin
  • Protein retained in ER until fixed.

65
Export and degradation of misfolded proteins
  • Proteins are
  • De-glycosylated
  • Ubiquitinated
  • Degraded in proteasomes

66
Roadmap of protein traffic
  • 3 modes of movement
  • Gated traffic
  • via nuclear pores
  • Transmembrane transport
  • membrane bound protein translocators
  • Vesicular transport
  • Movement between topologically related
    compartments
  • Directed by signal sequences
