Title: Raid

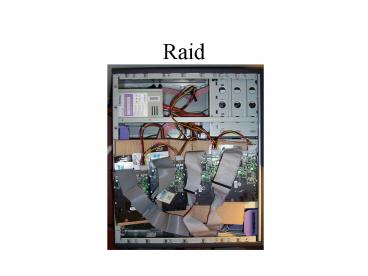

1
Raid

2
Raid
  • RAID or Redundant Array of Inexpensive Disks is a
    technology that employs the simultaneous use of
    two or more hard disk drives to achieve greater
    levels of performance reliability, and/or larger
    data volume sizes.

3
RAID
  • RAID is now used as an umbrella term for computer
    data storage schemes that can divide and
    replicate data among multiple hard disk drives.
    RAIDs various designs all involve two key design
    goals, to increase data reliability and increase
    input/output performance.

4
RAID
  • When several physical disks are set up to use
    RAID technology, they are said to be in a RAID
    array. This array distributes data across several
    disks, but the array is seen by the computer user
    and operating system as one single disk.

5
Types of raid
  • Physical and logical arrays
  • Mirroring
  • Duplexing
  • Striping
  • Parity

6
Arrays
  • The fundamental structure of RAID is the array.
  • An array is a collection of drives that is
    configured, formatted and manage in a particular
    way.
  • The number of drives in the array, and the way
    that data is split between them, is what
    determines the Raid level, the capacity of the
    array, and its overall performance and data
    protection characteristics.

7
Arrays
  • Physical Drives The actual hard disks that
    comprise the array are the building blocks of all
    data storage under RAID
  • Physical Arrays One or more physical drives are
    collected together to form a physical array.
  • Most simple RAID setups use just one physical
    array. However, some complex ones can have two or
    more physical arrays.
  • Logical arrays Logical arrays are formed by
    splitting or combining physical arrays.
    Typically, one logical array corresponds to one
    physical array. But, it is possible to set up a
    logical array that includes multiple physical
    arrays. It is also possible to set up two
    entirely different logical arrays from a single
    physical.
  • Logical drives One or more logical drives are
    formed from one logical array. These appear to
    the operating system as if they were regular
    disk volumes, and are treated accordingly, with
    the RAID controller managing the array(s) that
    underlie them.

8
Mirroring
  • Mirroring is one of the two data redundancy
    techniques used in RAID
  • In a RAID system using mirroring, all date in the
    system is written simultaneously to two hard
    disks instead of one thus the mirror concept.
    The principle behind mirroring is that this 100
    data redundancy provides full protection against
    the failure of either of he disks containing the
    duplicated data. Mirroring setups always require
    an even number of drives.
  • The chief advantage of mirroring is that it
    provides not only complete redundancy of data,
    but also reasonably fast recovery from a disk
    failure. Since all the data is on the second
    drive, it is ready to use if the first one fails.
    Mirroring also improves some forms of read
    performance.
  • The chief disadvantage of RAID 1 is expense that
    data duplication means half the space in the RAID
    is "wasted" so you must buy twice the capacity
    that you want to end up with in the array.
    Performance is also not as good as some RAID
    levels.

9
Mirroring
10
Duplexing
  • Duplexing is an extension of mirroring that is
    based on the same principle as that technique.
    Like in mirroring, all data is duplicated onto
    two distinct physical hard drives, however in
    that it also duplicates the hardware that
    controls the two hard drives.
  • If you were doing mirroring on two hard disks,
    they would both be connected to a single host
    adapter or RAID controller. If you were doing
    duplexing, one of the drives would be connected
    to one adapter and the other to a second adapter.
  • Duplexing provides the same protection against
    drive failure that mirroring does, but also
    protects against the failure of either of the
    controllers.
  • Duplexing costs more than mirroring because you
    are duplicating more hardware.
  • Since hardware RAID is typically set up under the
    assumption that the RAID controller will handle
    all the drives in the array, duplexing is not
    supported as an option in most PC hardware RAID
    solutions. Duplexing is more often found in
    software RAID solutions managed by the operating
    system, where the operating system is running the
    RAID implementation at a high level and can
    easily split the data between the host adapters.

11
Duplexing
12
Striping
  • For example, if we need to read a large file,
    instead of pulling it all from a single hard
    disk, it is much faster to chop it up into
    pieces, store some of the pieces on each of the
    drives in an array, and then use all the disks to
    read and back the file when needed.
  • This technique is called striping, where you chop
    up pieces on the various drives with a different
    color used for each file.

13
Striping

14
Parity
  • The Parity use in Raid is very similar to the
    Parity of RAM.
  • In a parity N pieces of data are taken, and from
    them, the an extra piece of data is computed.
    Then take the N1 pieces of data and store them
    on N1 drives. If you lose any one of the N1
    pieces for data, you can recreate it from the N
    that remains, regardless of which piece is lost.
  • Parity protection is used with striping, and the
    N pieces of data are typically the blocks or
    bytes distributed across the drives in the array.
    The parity information can either be stored on a
    separate, dedicated drive, or be mixed with the
    data across all the drives in the array.

15
Raid levels
  • There were five levels originally conceived, but
    many more variations have evolved, notably
    several nested levels and many non-standard
    levels.

16
Raid Levels
  • Here are some of the basic RAID levels
  • RAID 0 or striped set without parity striping
  • RAID 1 Mirrored set without parity mirroring
  • Raid 2 Hamming code parity
  • Raid 3 striped set with dedicated parity
  • RAID 4 Block level parity
  • RAID 5 striped set with distributive parity
  • Raid 6 Stripped set with dual distributed parity

17
History
  • Norman Ken Ouchi at IBM was awarded a 1978 U.S
    patent 4092732 title System fo recovering data
    stored in failed memory unit. The claims for
    this patent describe what later be termed RAID 5
    with full stripe writes. This patent also
    mentions that disk mirroring or duplexing and
    protection with dedicated parity were prior art
    at this time.

18
History
  • The term RAID was first defined by David A.
    Patterson, Garth A Gibson and Randy Katz at the
    University of California, Berkeley in 1987. They
    studied the possibility of using to or more
    drives to appear as a single device to the host
    system and published a paper. A Case of
    Redundant Arrays of Inexpensive Disks in June
    1988 at the SIGMOD conference.

19
History
  • Over the years different implementations of the
    RAID concepts have appeared. Most differ
    substantioally from the original idealized RAID
    Levels, But the numbered names remain.

20
History
  • IBM shipped RAID 1 in 1990, and it was not until
    then RAID had its breakthrough.
  • In 1991 IBM launched RAID 3 and 1992 they
    released RAID 5.

21
Manufacturers
Quantel AMCC
3pardata ANACAPA
Accordance AnecTEK
ACNC Apple
Adaptec Archion
Addonics Technologies Arco Computer Products
Adtron Arena MaxTronic
Advanced Media Services ARIO Data Networks
22
Manufacturers
Aristos Logic Bridge Technology Cepoint Networks Condre Storage Data domain Dell Computer
Atrato Broadcom Chaparral Network Storage Coraid Dataman Benlux Digi-Data
ATTO technology Caen Engineering Ciprico Corporate systems Center Data Protection Solutions Dot Hill
Axstor Cambex Concurrent Computer Data Diredt Networks Data Storage Depot DsG Storage
23
DTS
Dynamic Network Factory
EMC
Enhance Technology
European Storage Concept
ExaDrive N




24
Sources
  • http//en.wikipedia.org/wiki/Redundant_array_of_in
    dependent_disks
  • http//www.howtofriends.com/raid/
  • http//www.pcguide.com/ref/hdd/perf/raid/concepts/
    genArrays-c.html
  • http//www.pcguide.com/ref/hdd/perf/raid/concepts/
    genMirroring-c.html

25
Sources
  • http//www.pcguide.com/ref/hdd/perf/raid/concepts/
    genDuplexing-c.html
  • http//www.pcguide.com/ref/hdd/perf/raid/concepts/
    genStriping-c.html
  • http//www.pcguide.com/ref/hdd/perf/raid/concepts/
    genParity-c.html
