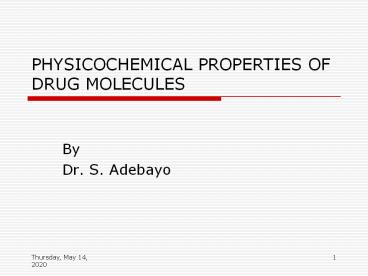

PHYSICOCHEMICAL PROPERTIES OF DRUG MOLECULES

1
PHYSICOCHEMICAL PROPERTIES OF DRUG MOLECULES

• By
• Dr. S. Adebayo

2
Polymorphism

• A function of internal arrangement/structure of
  crystalline solids
• Polymorphic substances exist in more than one
  packing arrangement

3

• McCrones Law states that every compound has
  different polymorphic forms, and that, in
  general,the number of forms known for a given
  compound is proportional to the time and money
  spent in research on that compound.

4
Polymorphism

• Occurrence of more than one morphic form
• Monotropic
• Enantiotropic
• Amorphism

5
Crystal habit

• The outward appearance of a crystal
• Independent of morphic forms
• Can be defined on the basis of variations on the
  themes of 7 systems
• Cubic, tetragonal, orthorhombic, monoclinic,
  riclinic, trigonal, hexagonal

6
Angles lengths that describe crystal habits
Crystal Angle of axes Length of axes Examples
Cubic (regular) a ß ? 90º x y z NaCl
Tetragonal a ß ? 90º x y ?z NiSO4
Orthorhombic a ß ? 90º x ?y ?z K2MNO4
Monoclinic a ß ? ? 90º x ?y ?z Sucrose
Triclinic (asymmetric) a ?ß ? ? ? 90º x ?y ?z CuSO4
Trigonal (rhombohedral) a ß ? ?90º x y z NaNO3
Hexagonal Z at 90º to base - AgNO3

7
Vector illustration of Angles and lengths of axes
that describe crystal habits
8
Crystal Systems
9
Crystal Morphology Habit
10
Monoclinic
simple monoclinic centered monoclinic

11
Rhombohedral
12
Tetragonal (Wulfenite)
simple tetragonal body-centeredtetragonal

13
Tetragonal
14
Orthorhombic xtals
simple orthorhombic base-centeredorthorhombic body-centeredorthorhombic face-centeredorthorhombic
15
Orthorhombic (Danburite)
16
Granular e.g. Tungstate (CaWO4)
17
Acicular
18
Monoclinic (Realgar)
19
Hexahedral (Vanadinite)
20
SEM OF BREADFRUIT CORN STARCH POWDERS (Adebayo
Itiola, 2005 2008)
Thursday, May 14, 2020
20
21
Scanning Electron micrographs of (A) Bitter yam,
(B) Chinese yam, (C) Round leaf yellow yam, (D)
Sweet yam and (E) Negro yam (Riley, Adebayo et al
(2008)
22
Crystal habit and drug properties

• Changes in crystal habit can influence
• dissolution rate,
• powder flow
• compressibility.

• can have significant effect on processability and
  use of dosage forms.

23
Crystal habit and drug properties

• Effect on dissolution rate can be explained by
  the changes in surface to volume ratio
• Transition from regular to acicular (needle)
  shape crystals (e.g. aspirin) may be reflected as
  poor flow property.

24
Origin of Crystal Habit

• Habit is determined by the rate of growth of
  different faces of a crystal.
• Hence, it can be altered by changes in
  crystallization process.
• Generally, the fastest growing faces tend to grow
  out of existence
• Will be the smallest faces on the final crystal
• the slowest growing faces will dominate the final
  structure.

25
Origin of Crystal Habit

• Solvent of crystallization
• crystallizing solvent may preferentially favour
  interaction with different faces and consequently
  alter the crystal habit.

26
Origin/changes in crystal habit

• The presence of impurities - may be caused by
• impurities
• breakdown products
• synthetic precursors in the crystallization
  mixture
• a deliberate addition of impurities (e.g. SAAs)

27
Crystal Defects

• Imperfections due to point defects or
  dislocations during packing of lattice
• Due to addition or accidental presence of low
  conc. of impurities
• Can cause major changes in
• Ease of processing
• Chemical reactivity
• Dissolution
• Bioavailability

28
Obtaining the right habit

• The preformulation scientist should consider the
  optimum form of habit
• Possibly influence crystallization procedures to
  ensure optimum properties are not serendipitous
  but rather a result of crystal engineering.

29
Characterization of crystal habits

• Crystal habit morphology can best be studied by
  microscopic techniques.
• Standard light microscopes fitted with polarizing
  filters and phase contrast facilities can allow
  easy examination of crystals and quantification
  of habit and size.

30
Characterization of crystal habits

• Studies on crystal properties generally involve
  standard tests such as
• melting point to indicate crystal purity and
  crystal form
• thermal analysis.
• Crystal habit can be deduced from
  photomicrography
• For photomicrography, image may be enhanced by
  using polarized light.
• Scanning electron micrography.

31
Optical isomers

• Preferred isomer should be identified
• Any other isomers are regarded as impurities
• Column based systems now available for
  determination

32
Setting acceptance criteria for drug substance
drug products
33
Concepts/Terminologies Relating to Crystalline
Phenomenon Familiarize yourself with them

• Rate of crystallization
• Polymorphism"
• Rate of transition
• Crystal habit
• Crystal growth
• Crystal morphology
• Crystal structure determination
• Interplanar spacing
• Association in the solid state
• Solid state structure properties

• Melting pressure
• Freezing point
• Glass transition temperature
• Phase diagram
• Long spacing
• Reorientation in the solid state
• Spin polarization
• Nuclear spin conversion
• Structure of the solid
• Dimensions of the unit cell

34
Polymorphism in pharmaceuticals

• Polymorphism is important in the development of
  pharmaceutical ingredients.
• Many drugs are regulatory approved based on a
  single crystal form or polymorph.

35
Crystal Properties and Solubility

• Majority of substances are crystalline in nature
  their molecules are packed in an ordered and
  reproducible manner.
• Excipients also vary from crystalline material to
  armophous polymers.
• Very few samples are, however, entirely
  homogenous
• drugs will at least be partially armophous
• polymers will be partially crystalline.
• The extent of crystallinity will affect their
  physical properties to a significant extent.

36
Polymorphism and Solubility

• BP 2001 defines polymorphism as the occurrence of
  more than one morphic forms.
• It is a function of the internal
  arrangement/structure of crystalline solids.
• A polymorphic substance therefore exists in more
  than one packing arrangement.

37
Types of polymorphism

• Two types of polymorphism have been identified
• Monotropic polymorphism Those for which only
  one form is stable, irrespective of temperature
  and pressure and the metastable form would revert
  to the stable form with time.
• Enatiotropic polymorphism Different forms are
  stable under different external conditions
• change in temperature and pressure determine the
  form that is stable (Lund, 1994).

38
Monotropic polymorphs

• Different monotropic polymorphs
• often have different melting points with the most
  stable form having the highest melting point.
• They also exhibit different x-ray diffraction
  patterns and IR spectra and dissolution rate.
• In some cases, these differences in properties
  may affect the
• handling characteristics of the material,
• the stability of formulated preparations
• bioavailability.

39
Occurence

• Occurrence of polymorphism can not be predicted
  because it can be induced in many materials at
  appropriate conditions.
• Moreover, its absence is difficult to demonstrate
  by a single specific test.
• The metastable forms usually have
• faster dissolution rate
• apparently greater equilibrium solubility
• considerably greater bioavailability.

40
Polymorphic transition

• Metastable form is not stable and will revert to
  the stable form.
• Transition in polymorphic form can be gradual and
  time-dependent and can be accelerated by increase
  in temperature, humidity or energetic treatment
  as in processing of powder.
• Therefore, unit processes such as mixing, milling
  and tabletting can induce changes in crystal type
  and, hence, change the physical and potential
  biopharmaceutical properties of the drug.

41
Need for control of morphic forms

• Necessary during processing of
• active ingredients
• excipients
• during production of formulated products
• to ensure the correct physical and
  biopharmaceutical characteristics of the product.

42
Control of morphic forms ..

• Great care is needed to determine
• which polymorph is present,
• under what condition
• how long it will be stable.
• A useful stress test for a drug substance is to

• ball-mill it for a defined time
• check for any change in polymorphic form through
  DSC analysis.

43
Armophism

• Like polymorphism, transition from armophous to
  crystalline forms and vice versa may have
  significant effect on dissolution.
• Solubility of armophous drugs can be higher than
  that of crystalline form by a factor of 10s or
  100s.
• Hancock Parkes (2000) Pharm. Res. 17 397
  404

44
Pseudopolymorphism

• Caused by changes in crystallization process
  which results in inclusion of solvent molecules
  in the crystal thereby producing solvates or
  hydrates.
• The crystals differ in properties from the
  non-solvated sample just like the different
  polymorphic forms.
• referred to as Pseudopolymorphs
• Different solvates of the same drug can produce
  different blood concentrations from administered
  solid oral dosage form.
• Unlike polymorphs in which morphic forms with the
  lowest melting point usually produce the highest
  blood concentration,
• solvates or anhydrous forms may produce higher
  concentrations depending on the particular drug.

45
Types of Polymorphism

• Packing polymorphism - polymorphism existing as a
  result of difference in crystal packing
• An example of an organic polymorph is glycine
  which is able to form monoclinic and hexagonal
  crystals.
• Conformational polymorphism - Polymorphism
  resulting from the existence of different
  conformers of the same molecule
• Pseudopolymorphism - the different crystal types
  are the result of hydration or solvation.

46
Polymorphism in pharmaceuticals Case Studies

• GlaxoSmithKline defended its patent for the
  polymorph type II of Ranitidine (Zantac).
• For Medicine administered orally as a crystalline
  solid, dissolution rates depend on the exact
  crystal form of a polymorph.

47
Polymorphism in pharmaceuticals .

• Polymorphism is not always well understood.
• In 2006 a new crystal form was discovered of
  maleic acid 124 years after the first crystal
  structure determination
• Maleic acid is a chemical manufactured on a very
  large scale in the chemical industry and is a
  salt forming component of drug molecules.

48
Polymorphism in pharmaceuticals .

• The new crystal type is produced when a caffeine
  - maleic acid co-crystal (21) is dissolved in
  chloroform and the solvent is allowed to
  evaporate slowly.
• Both polymorphs consist of sheets of molecules
  connected through hydrogen bonding of the
  carboxylic acid groups
• in form I the sheets alternate with respect of
  the net dipole moment
• in form II the sheets are oriented in the same
  direction.

49
Polymorphism in pharmaceuticals .

• Polymorphism is also established for aspirin
• A new crystal type was found following attempt to
  co-crystallization of aspirin and levetiracetam
  from hot acetonitrile.
• Form II is only stable at 100 K and reverts to
  from I at ambient temperature.

50
Polymorphism in pharmaceuticals .

• In form I two salicyl molecules form
  centrosymmetric dimers through the acetyl groups
  with the (acidic) methyl proton to carbonyl
  hydrogen bonds
• In the newly discovered form II each salicyl
  molecule forms the same hydrogen bonds but then
  with two neighboring molecules instead of one.

51
Polymorphism in pharmaceuticals .

• With respect to the hydrogen bonds formed by the
  carboxylic acid groups both polymorphs form
  identical dimer structures.

52
Disappearing Crystal Crystal Polymorphs

• The drug Paroxetine was subject to a law suit
  that hinged on such a pair of identical polymorphs

53
References

• Florence, A. T. Attwood, D. Physicochemical
  principles of pharmacy, PhP London, 2006
• Investigating the latent polymorphism of maleic
  acid Graeme M. Day, Andrew V. Trask, W. D. Samuel
  Motherwell and William Jones Chemical
  Communications, 2006, (1), 54 - 56 DOI
  10.1039/b513442k
• ?  The Predictably Elusive Form II of Aspirin
  Peddy Vishweshwar, Jennifer A. McMahon, Mark
  Oliveira, Matthew L. Peterson, and Michael J.
  Zaworotko J. Am. Chem. Soc. 2005 127(48) pp
  16802 - 16803 (Communication) DOI
  10.1021/ja056455b

54
Physicochemical Properties of Drug Molecules
THANK YOU FOR YOUR ATTENTION
