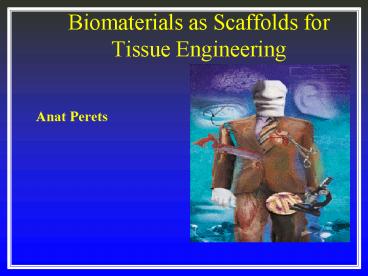

Biomaterials as Scaffolds for Tissue Engineering

1
Biomaterials as Scaffolds for Tissue Engineering

• Anat Perets

2
Goal of Tissue Engineering

• Tissue Engineering Goal regenerate tissue
• Tring to replicate the in vivo function of the
  tissue/organ being replaced

3
Why Tissue Engineering?

• One person added to wait list every 14 min
• One patient dies every 85 min waiting for
  transplant

4
Why Tissue Engineering?

• Millions suffer tissue or organ loss from
  diseases and accidents every year
• Yearly cost of treatment exceeds 400 billion
• Major medical treatment is transplantation
• Shortages of replacement tissue and organs
• Development of alternative sources for
  transplantations by engineering tissue
• In vitro tissue models may allow better
  understanding of disease pathology to avoid organ
  failure

5
Why Scaffolding shape?

• Cell grown in flat dish behave as individuals
• Cell grown in 3D structure behave as they would
  in tissue organs.
• Cells need external cues to grow into functional
  3D tissues

6
Biomedical Applications of Tissue Engineering

• In vitro Growth of Tissues for Implantation
• Replacement of Diseased or Damaged Tissues
• Skin replacement for treatment of serious burns
• Extracorporeal Support
• External Devices Containing Tissue that Replace
  the Function of Internal Organ
• Artificial liver
• Human Disease Models
• Differentiated Tissues for Pathogen Propagation
• Models for HIV, Cyclospora
• Three-Dimensional Cancer Models
• Prostate, Colon

7
Advantages of Tissue Engineering

• Scaffolds provide biomechanical support for the
  cells until they produce their ECM
• Scaffolds can incorporate signals (GFs),
  important for maintenance of tissue viability and
  for inducing scaffolds vascularization
• Control on tissue formation (shape and size)
  prior to transplantation

8
What is a biomaterial?

• What are the design constraints?

9
Biomaterial A biomaterial is a nonviable
material used in a medical device intended to
interact with biological systems (Williams 1987)
10
Some Commonly Used Biomaterials

• Material
  Applications
• Silicone rubber
  Catheters, tubing
• Dacron
  Vascular grafts
• Cellulose
  Dialysis membranes
• Poly(methyl methacrylate) Intraocular
  lenses, bone cement
• Polyurethanes
  Catheters, pacemaker leads
• Hydogels
  Opthalmological devices, Drug Delivery
• Stainless steel
  Orthopedic devices, stents
• Titanium
  Orthopedic and dental devices
• Alumina
  Orthopedic and dental devices
• Hydroxyapatite
  Orthopedic and dental devices
• Collagen (reprocessed) Opthalmologic
  applications, wound dressings

11
Skin/cartilage
Drug Delivery Devices
Ocular implants
Bone replacements
Orthopaedics screws/fixation
Heart valves
Synthetic BIOMATERIALS
Dental Implants
Dental Implants
Biosensors
Implantable Microelectrodes
12
A Little History on Biomaterials

• Romans, Chinese, and Aztecs used gold in
  dentistry over 2000 years ago
• Turn of the century, synthetic plastics came into
  use
• Parachute cloth used for vascular prosthesis
• 1960- Polyethylene and stainless steel being used
  for hip implants

13
First Generation Implants

• specified by physicians using common and borrowed
  materials
• most successes were accidental rather than by
  design

Examples First Generation Implants

• gold fillings, wooden teeth, PMMA dental
  prosthesis
• steel, gold, ivory, etc., bone plates
• glass eyes and other body parts
• dacron and parachute cloth vascular implants

14
Intraocular Lens glass eyes and other body parts
15
Vascular Grafts dacron and parachute cloth
vascular implants
16
Second generation implants

• engineered implants using common and borrowed
  materials
• developed through collaborations of physicians
  and engineers
• built on first generation experiences
• used advances in materials science (from other
  fields)

Examples Second generation implants

• titanium alloy dental and orthopaedic implants
• cobalt-chromium-molybdinum orthopaedic implants
• UHMW polyethylene bearing surfaces for total
  joint replacements
• heart valves and pacemakers

17
Artificial Hip Joints titanium alloy dental and
orthopaedic implants
18
Treatments in cardiovascular diseasePTCA heart
valves and pacemakers
19
Treatments of cardiovascular disease STENTS
20
(No Transcript)
21
LVAS Pump Drive Unit

• Stored energy propels pusher plates of blood sac
• When solenoid is de-energized, pump passively
  refills
• Balanced, symmetrical drive system eliminates
  torque

22
New Medical Devices
AbioCor Artificial Heart www.heartpioneers.com
InDuo Glucose Monitor Insulin
Pump www.lifescan.com
23
Third generation implants

• bioengineered implants using bioengineered
  materials
• few examples on the market
• some modified and new polymeric devices
• many under development

Example - Third generation implants

• tissue engineered implants designed to regrow
  rather than replace tissues
• Integra LifeSciences artificial skin
• Genzyme cartilage cell procedure
• some resorbable bone repair cements
• genetically engineered biological components
  (Genetics Institute and Creative Biomolecules
  BMPs)

24
Biomaterials for Tissue Replacements

• Bioresorbable vascular graft
• Biodegradable nerve guidance channel
• Skin Grafts
• Bone Replacements

25
Substitute Heart Valves
26
SEM displaying the cross section of a composite
disk, which had been seeded with cultured bone
marrow stromal cells.
27
Cartilage Repaircell seedingwith PLA scaffolds
5 mm
Wyre et al. (2000)
28
Synthetic polymer scaffolds ... in
the shape of a nose (left) is "seeded" with cells
called chondrocytes that replace the polymer with
cartilage over time (right) to make a suitable
implant.
29

• Biomaterials Companies
• BioForma Research Consulting, Inc.,
  fibrinolytic systems, protein-material
  interactions
• Baxter International develops technologies
  related to the blood and circulatory system.
• Biocompatibles Ltd. develops commercial
  applications for technology in the field of
  biocompatibility.
• Carmeda makes a biologically active surface
  that interacts with and supports the bodys own
  control mechanisms
• Collagen Aesthetics Inc. bovine and human
  placental sourced collagens, recombinant
  collagens, and PEG-polymers
• Endura-Tec Systems Corp. bio-mechanical
  endurance testing ofstents, grafts, and
  cardiovascular materials
• Howmedica develops and manufactures products
  in orthopaedics.
• MATECH Biomedical Technologies, development of
  biomaterials by chemical polymerization methods.
• Medtronic, Inc. is a medical technology company
  specializing in implantable and invasive
  therapies.

30
Evolution of Biomaterials
Structural
Soft Tissue Replacements
Functional Tissue Engineering Constructs
31
Tissue Engineering
32
What are some of the Challenges?

• To develop novel materials and processing
  techniques that are compatible with biological
  interfaces
• To find better strategies for immune acceptance

33
Material Selection Parameters (Requirements from
scaffold)

• Solid phase
• Mechanical properties match properties of
  component being replaced, such as elastic
  modulus. Stability and fixation.
• Chemical composition, structure, purity
• Surface properties smoothness, COF, geometry,
  hyrophilicity, surface charge
• Biostability
• Thermal/Electrical Conductivity

34
Material Selection Parameters (Requirements from
scaffold)

• Cellular structure
• pore size 100-200mm
• interconnected porosity
• mechanical integrity
• high porosity gt90
• biodegradable and Bioerodible degrade into
  non-toxic components can be eliminated from the
  body over time
• Diffusion, Water Absorption (promote cell
  adhesion and growth)
• Biocompatibility

35
Biocompatibility The ability of a material to
perform with an appropriate host response in a
specific application (Williams 1987) Host
Response The response of the host organism
(local and systemic) to the implanted material or
device.
36
Biocompatibility

• Arises from differences between living and
  non-living materials
• Bio-implants trigger inflammation or foreign
  body response
• New biomaterials must be tested prior to
  implantation according to FDA regulation to
  validate biocompatibility

37
Foreign Body Response

• Rapid dilation of capillaries, increased
  permeability of endothelial cell linings and cell
  reactions
• Macrophages release degradative enzymes
  (lysozymes) that attempt to digest the foreign
  material.
• Macrophages multiply (Mitosis) and serve as
  progenitor to the giant cell
• Undisgestable frustrated phagocytosis

38
Response to the inflammatory challenge

• Decreased tissue mass and formation of new
  tissue through granulation
• Collagen and other molecules are
• synthesized
• Formation of scar tissue
• Remodeling process differs for various tissues

39
Polymers for tissue engineering

• Synthetic polymers
• advantage
• fabrication of big repetitive amount of polymer
• Degradation, shape and mechanical properties can
  be modified for the purpose
• Disadvantage not mimics the ECM
• Natural polymers.

40
Synthetic polymers

• Polyesters polylactic acid (PLA),
  polyglycolic acid (PGA) , poly(lactic-co-glycolic
  acid) (PLGA)
• Polyurethane
• poly(2-hydroxyethylmethacrylate) (pHEMA) ,
  poly-(N-(2-hydroxypropyl)methacrylamide (pHPMA).
• Linar Polyether poly(ethylene oxide) (PEO).

41
Neutral Polymers

• Polymers that are part of our ECM body Collagen
  type II, IV
• Not ECM Polymers Alginate, Chitosan

42
Biological materials

• Structural biological materials
• Bone, Cartilage, Collagen, Elastin
• muscle fiber,lipids,vitreous humor, etc
• Problems as restorative biological materials
  infection, resorption, inflammation, donor site
  morbidity

43
Synthetic Biomaterial Classes

• POLYMERS Polyglycolic Acid, Polylactic acid,
  polyesters Uses sutures,drug delivery, in-growth
• HYDROGELS Alginate, Cellulose, Acrylic
  co-polymers Usesdrug delivery, vitreous
  implants,wound healing

44
Examples of bioerodible polymers
45
PLGA, PLA, PGA
46
Polyglycolic acid (PGA)

• Highly crystalline -
• High melting point and low solubility in organic
  solvents
• Degradation to non-toxic monomers upon exposure
  to water
• Tendency to lose mechanical strength rapidly
  (2-4 weeks after implantation)
• Limits use for sutures and pins

47
Polylactic acid (PLA)

• Hydrophobic polymer
• Undergoes less hydrolysis than PGA
• Greater stability than PGA
• Led to the development of PGA/PLA copolymers
• Choice of application based on crystallinity

48
Physical mechanisms of bioerosion

• Two distinct modes of bioerosion
• Bulk erosion
• Rate of water penetration into solid exceeds rate
  at which polymer is transformed into water
  soluble material
• Uptake of water followed by an erosion process
  throughout the bulk of the material

49
Physical mechanisms of bioerosion

• Surface erosion
• Rate at which water penetrates into polymer is
  slower than rate of water-solubility
• Transformation of polymer into a water- soluble
  material is limited to surface

50
Mechanisms of chemical degradation
51
Hydrolytic backbone cleavage affects bioerosion...

• Chemical stability of polymer backbone
• Hydrophobicity of monomer
• Morphology of polymer
• Initial molecular weight of polymer
• Presence of catalysts, additives, and
  plasticizers
• Geometry of implanted device

52
The Problems With the Current Scaffolding
Techniques

• Cell seeding is limited to scaffold periphery
• Scaffold vascularization is inefficient
• Scaffold fabrication involves toxic reagents
• Control over scaffold degradation is poor

53

• Thick Tissue-Engineered Construct

mass transport limitation
Oxygen is the major limitation factor for the
survival of transplanted cells. Oxygen
diffusion factor in a tissues indicates that
cells cannot be more than 200mm from a capillary,
if they are to survive.
54
The Challenge

• Enhancing matrix vascularization by incorporating
  growth factors

55
Alginate
????????? ??????????? ???? ??????????
????? ??????? ?????? ??? ???? ? Egg Box
56
(No Transcript)
57
Advantages of Alginate Sponges

• Highly interconnecting porous structure (gt90
  porosity)
• Large pores 100?m-200?m
• Biocompatible bioerodible
• Simple preparation method (The gelation-freeze
  dry method)
• Good mechanical properties

58
Microspheres Loaded onto Preformed Matrix

• Some microspheres penetrate into the matrix but
  most of them accumulate on the surface in an
  aggregated form.

59
Microspheres Incorporated During Matrix
Preparation

• Microspheres average diameter d3.27µm

• Microspheres do not affect porous morphology.

• Microspheres are distributed homogenously
  throughout the matrix.

• Microspheres are an integral part of the alginate
  matrix.

60
VEGF Composite 21 Days Post Implantation
61
Primary Cells vs. Cell Lines
Primary cells are used for most tissue
engineering applications.
62
Further Classification of Cell Types
