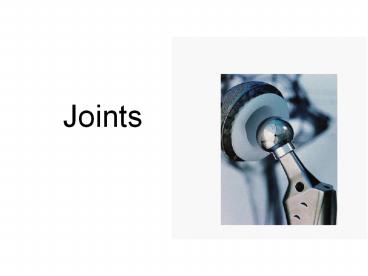

Joints

1
Joints
2
Classification of Joints

• Functional classification
• (Focuses on amount of movement)
• Synarthroses (immovable joints)
• Amphiarthroses (slightly movable joints)
• Diarthroses (freely movable joints)
• Structural classification
• (Based on the material binding them and presence
  or absence of a joint cavity)
• Bony fusion
• Fibrous
• Cartilagenous
• Synovial

3
Table of Joint Types
Functional across Structural down Synarthroses (immovable joints) Amphiarthroses (some movement) Diarthroses (freely movable)
Bony Fusion Synostosis (frontalmetopic suture epiphyseal lines)
Fibrous Suture (skull only) -fibrous tissue is continuous with periosteum Gomphoses (teeth) -ligament is periodontal ligament Syndesmoses -ligaments only between bones here, short so some but not a lot of movement (example tib-fib ligament) Syndesmoses -ligament longer (example radioulnar interosseous membrane)
Cartilagenous (bone united by cartilage only) Synchondroses -hyaline cartilage (examples manubrium-C1, epiphyseal plates) Sympheses -fibrocartilage (examples between discs, pubic symphesis
Synovial Are all diarthrotic
4
Fibrous joints

• Bones connected by fibrous tissue dense regular
  connective tissue
• No joint cavity
• Slightly immovable or
• not at all
• Types
• Sutures
• Syndesmoses
• Gomphoses

5
Sutures

• Only between bones of skull
• Fibrous tissue continuous with periosteum
• Ossify and fuse in middle age now technically
  called synostoses bony junctions

6
Syndesmoses

• In Greek ligament
• Bones connected by ligaments only
• Amount of movement depends on length of the
  fibers longer than in sutures

7
Gomphoses

• Is a peg-in-socket
• Only example is tooth with its socket
• Ligament is a short periodontal ligament

8
Cartilagenous joints

• Articulating bones united by cartilage
• Lack a joint cavity
• Not highly movable
• Two types
• Synchondroses (singular synchondrosis)
• Sympheses (singular symphesis)

9
Synchondroses

• Literally junction of cartilage
• Hyaline cartilage unites the bones
• Immovable (synarthroses)
• Examples
• Epiphyseal plates
• Joint between first ribs costal cartilage and
  manubrium of the sternum

10
Sympheses

• Literally growing together
• Fibrocartilage unites the bones
• Slightly movable (amphiarthroses)
• Resilient shock absorber
• Provide strength and flexibility
• Hyaline cartilage on articular surfaces of bones
  to reduce friction
• Examples
• Intervertebral discs
• Pubic symphysis of the pelvis

11
Synchondroses and sympheses
Also pubic symphsis
12
Synovial joints

• Include most of the bodys joints
• All are diarthroses (freely movable)
• All contain fluid-filled joint cavity

13
General Structure of Synovial Joints

• Articular cartilage
• Hyaline
• Spongy cushions absorb compression
• Protects ends of bones from being crushed
• Joint (synovial) cavity
• Potential space
• Small amount of synovial fluid

14
General structure of synovial joints (cont.)

• 3. Articular (or joint) capsule
• Two layered
• Outer fibrous capsule of dense irregular
  connective tissue continuous with periosteum
• Inner synovial membrane of loose connective
  tissue (makes synovial fluid)
• Lines all internal joint surfaces not covered by
  cartilage

15
General structure of synovial joints (cont.)

• 4. Synovial fluid
• Filtrate of blood
• Contains special glycoproteins
• Nourishes cartilage and functions as slippery
  lubricant
• Weeping lubricatioin
• 5. Reinforcing ligaments (some joints)
• Capsular (most) thickened parts of capsule
• Extracapsular
• Intracapsular

16
General structure of synovial joints (cont.)

• 6. Nerves
• Detect pain
• Monitor stretch (one of the ways of sensing
  posture and body movements)
• 7. Blood vessels
• Rich blood supply
• Extensive capillary beds in synovial membrane
  (produce the blood filtrate)

17
General structure of synovial joints
18
Some joints

• Articular disc or
• meniscus
• (literally crescent)
• Only some joints
• Those with bone
• ends of different
• shapes or fitting poorly
• Some to allow two kinds of movement (e.g. jaw)
• Of fibrocartilage
• Examples knee
• TMJ (temporomandibular
  joint)
• sternoclavicular joint

19
Bursae and tendon sheaths

• Contain synovial fluid
• Not joints but often associated with them
• Act like ball bearings
• Bursa means purse in Latin
• Flattened sac lined by synovial membrane
• Where ligaments, muscles, tendons, or bones
  overlie each other and rub together
• Tendon sheath
• Only on tendons subjected to friction

20
Bursae and tendon sheaths
21
Joint stability

• Articular surfaces
• Shape usually plays only minor role
• Some deep sockets or grooves do provide stability
• Ligaments
• Usually the more, the stronger the joint
• Can stretch only 6 beyond normal length before
  tear
• Once stretched, stay stretched
• Muscle tone
• Constant, low level of contractile force
• Keeps tension on the ligaments
• Especially important at shoulders, knees, arches
  of foot

22
Movements allowed by synovial joints

• Gliding
• Angular movements hor i the angle between two
  bones DO TOGETHER
• Flexion
• Extension
• Abduction
• Adduction
• Circumduction
• Rotation
• Special movements

23
Special movements

• Pronation
• Supination
• Dorsiflexion
• Plantar flexion
• Inversion
• Eversion

• Protraction
• Retraction
• Elevation
• Depression
• Opposition

24
Joint movements pics (from Marieb, 4th ed.)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Synovial joints classified by shape(of their
articular surfaces)

• Plane (see right)
• Hinge (see right)
• Pivot
• Condyloid
• Saddle
• Ball-and-socket

31
(No Transcript)
32
Shoulder (glenohumeral) joint
Selected synovial joints

• Stability sacrificed for mobility
• Ball and socket head of humerus with glenoid
  cavity of scapula
• Glenoid labrum rim of fibrocartilage
• Thin, loose capsule
• Strongest ligament coracohumeral
• Muscle tendons help stability
• Disorders

Rotator cuff muscles add to stability
Biceps tendon is intra-articular
33
Elbow joint

• Hinge allows only flexion and extension
• Annular ligament of radius attaches to capsule
• Capsule thickens into
• Radial collateral ligament
• Ulnar collateral ligament
• Muscles cross joint
• Trauma

34
Wrist joint Two major joint surfacesSeveral
ligaments stabilize

• Radiocarpal joint
• Between radius and proximal carpals (scaphoid and
  lunate)
• Condyloid joint
• Flexion extension adduction, abduction,
  circumduction
• Intercarpal or midcarpal joint
• Between the proximal and distal rows of carpals

35
Hip (coxal) joint

• Ball and socket
• Moves in all axes but limited by ligaments and
  deep socket
• Three ext. ligaments screw in head of femur
  when standing
• Iliofemoral
• Pubofemoral
• Ischiofemoral

36

• Acetabular labrum diameter smaller than head of
  femur
• Dislocations rare
• Ligament of head of femur supplies artery
• Muscle tendons cross joint
• Hip fractures common in elderly because of
  osteoporosis

37
Right hip, AP view
38
Knee joint

• Largest and most complex joint
• Primarily a hinge
• Compound and bicondyloid femur and tibia both
  have 2 condyles
• Femoropatellar joint shares joint cavity
• At least a dozen bursae
• Prepatellar
• Suprapatellar

39

• Lateral and medial menisci
• torn cartilage
• Capsule absent anteriorly
• Capsular and extracapsular ligaments
• Taut when knee extended to prevent hyperextension

40

• Patellar ligament
• Continuation of quad tendon
• Medial and lateral retinacula
• Fibular and tibial collateral ligaments
• Called medial and lateral
• Extracapsular
• Oblique popliteal
• Arcuate popliteal

41
Cruciate ligaments

• Cross each other (cruciate means cross)
• Anterior cruciate (ACL)
• Anterior intercondylar area of tibia to medial
  side of lateral condyl of femur
• Posterior cruciate
• Posterior intercondylar area of tibia to lateral
  side of medial condyl
• Restraining straps
• Lock the knee

42
Cruciate ligaments
43
Knee injuries

• Flat tibial surface predisposes to horizontal
  injuries
• Lateral blow multiple tears
• ACL injuries
• Stop and twist
• Commoner in women athletes
• Heal poorly
• Require surgery

44
Ankle joint

• Hinge joint
• Distal tibia and fibula to talus
• Dorsiflexion and plantar flexion only
• Medial deltoid ligament
• Lateral ligaments 3 bands
• Anterior talofibular
• Posterior talofibular
• Calcaneofibular
• Anterior and posterior tibiofibular (syndesmosis)

45
Right ankle, lateral view
46
(No Transcript)
47
(No Transcript)
48
Temporomandibular joint (TMJ)

• Head of mandible articulates with temporal bone
• Disc protects thin mandibular fossa of temporal
  bone
• Many movements
• Demonstrate movements together
• Disorders common

49
Sternoclavicular joint

• Saddle joint
• Only other example is trapezium and metacarpal 1
  (thumb), allowing opposion
• Sternum and 1st costal (rib) cartilage articulate
  with clavicle
• Very stable clavicle usually breaks before
  dislocation of joint
• Only bony attachment of axial skeleton to
  pectoral girdle
• Demonstrate movements together

50
Disorders of joints

• Injuries
• Sprains
• Dislocatios
• Torn cartilage
• Inflammatory and degenerative conditions
• Bursitis
• Tendinitis
• Arthritis
• Osteoarthritis (DJD degenerative joint
  disease)
• Rheumatoid arthritis (one of many autoimmune
  arthritites)
• Gout (crystal arthropathy)
