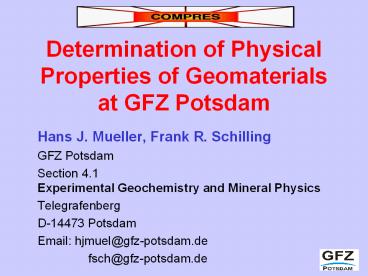

Determination of Physical Properties of Geomaterials at GFZ Potsdam

1
Determination of Physical Properties of
Geomaterialsat GFZ Potsdam

• Hans J. Mueller, Frank R. Schilling
• GFZ Potsdam
• Section 4.1Experimental Geochemistry and Mineral
  Physics
• Telegrafenberg
• D-14473 Potsdam
• Email hjmuel_at_gfz-potsdam.de
• fsch_at_gfz-potsdam.de

2
Experimental Geochemistry Mineral Physics

• Research Activities
• Element-Cyles from Core to Atmosphere
• Phase Transitions Mantle Discontinuities
• Subduction Zone Processes
• Earthquake Processes Process Parameters

3
Geochemical Cycle

• Diffusion Experiments

R. Milke
4
Mechanism Dynamic of Geodynamic Processes
Schilling - Wunder
5
Properties of Geomaterials
In-situ experiments under high P T
Hans J. Mueller
6
Thermal Transport Properties
F.R. Schilling et al.
7
Seismic velocity Measurements during dehydration
Amphibolit
intrinsische Druckabhängigkeit
2
Schließung von Mikro-rissen
7
J. Ramelow
8
IR Spectroscopye.g. OH in Coesite
M. Koch-Müller
9
Thermodynamic Modeling
M. Gottschalk
10
Transformation Plasticity
D. Bruhn C. Schmidt
11
MAX80 Multi-Anvil Apparatus at HASYLAB
In-situ experiments up to 12 GPa, 2000 K
Simultanious XRD Ultrasonic Interferometry
Hans J. Mueller, C. Lathe
12
MAX80 characteristics
Multi-anvil high pressure apparatus with six
anvils compressing a cubic sample volume
Pressure - generated by a 250-ton hydraulic
ram - measured by adding an internal pressure
marker with known p-V-T-data - tungsten carbide
anvils - maximum pressure 7 GPa for 6.0 mm
anvil truncation
9 GPa for 5.0 mm anvil truncation
12 GPa for 3.5 mm anvil
truncation
Temperature - maximum temperature 2,000 K -
produced by an internal heater - controled by a
thermocouple
13
MAX80 characteristics
Continued
Ultrasonic interferometry - compressional mode
and shear mode transducers at anvils rear side -
upper and lower anvil with ultrasonic
installation - trannsducers natural frequencies
- 10 MHz, 16.3 MHz, 33.7 MHz - symmetrical and
asymmetrical set-up

• Energy-dispersive X-ray diffraction
• a Ge solid state detector analyses the
  diffracted white beam at a fixed
• angle
• - diffracted beam size controlled by a
  crossed-slit system
• - resolution 135 eV for 6.3 keV, 450 eV for 122
  keV

Angle-dispersive X-ray diffraction -
double-crystal, fixed offset monochromator with
Si (311) single crystals calibrated in the
wavelength range of 0.4 to 0.7 D - CCD detector
(diameter 133 mm, 2048 x 2043 pixels, pixel
size 65 x 65 Fm, dynamic range 16 bits, read-out
time 5 s)
14
vp and vs for quartz and coesite
6 mm anvil truncation
5 mm
Hans J. Mueller
15
Compressibility of NaCl measured by ultrasonic
interferometry and static compression
Hans J. Mueller
16
Scheme of experimental runs
low density clinoenstatite
high density clinoenstatite
Hans J. Mueller, B. Wunder
17
vp and vs in clinoenstatite at hp-hT-conditions
Hans J. Mueller C. Lathe, B. Wunder
18
MAX200x

• Perspective

DIA Type 6/8 apparatus at a hard-wiggler
beamline at HASYLAB

• 1750t press

2 q Circle

• White and monochromatic
• X-rays

Ultrasonic interferomertry
19
Diamond Anvil Cells
GHz Ultrasonic
C. Schmidt H.J. Reichmann
20
Focused-Ion-Beamnm-sample preparation for TEM
R. Wirth
21
