Title: The COMPASS polarized target

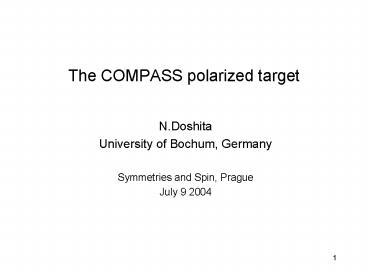

1
The COMPASS polarized target
  • N.Doshita
  • University of Bochum, Germany
  • Symmetries and Spin, Prague
  • July 9 2004

2
Contents
  • The COMPASS experiment
  • Requirement of polarized target
  • Target material
  • Dynamic nuclear polarization
  • Polarized target system
  • Polarization result

3
The COMPASS experiment
  • Muon program
  • -Nucleon spin structure --- gluon
    contribution
  • -Polarized muon beam and polarized nucleon
  • target
  • Hadron program
  • -Meson spectroscopy
  • -hadron beam and Hydrogen, carbon target

4
Motivation of muon program
Nucleon spin
1
1
DS DG Lq Lg

2
2
DS Quarks spin
DG Gluons spin
Lq, Lg Orbital angular momentum
SMC, SLAC, HERMES in 1990s
DS 0.2
DG ??
5
Gluon polarization measurement in the COMPASS
Double spin asymmetry
PB Beam polarization PT Target polarization f
Dilution factor N Number of events
Direction of beam polarization
Dilution factor polarizable nucleon rate in
material
?
Direction of target polarization
Aphys ? Gluon polarization
Extraction
What kinds of events are counted?
  • Open charm production events
  • High-PT hadron production events

D0, D0
Low statistics
6
Requirement of Polarized Target
Statistical accuracy
-High polarization -High dilution factor -Large
target -Stability during long beam period
COMPASS polarized target
  • - Target material 6LiD (high
    dilution factor), 350g
  • - Magnetic field 2.5T
    superconducting magnet
  • Temperature less than 100mK and
    high cooling power
  • dilution
    refrigerator
  • - Control system LabView and PLC

?
Dynamic Nuclear Polarization with Microwave
Deuteron polarization more than 50
7
COMPASS polarized target
Still pumping line
3He precooling line
Magnet 2.5 T solenoid 0.5 T
dipole
µ beam
Twin target cell Target material 350 g
Mixing chamber 6 L
8
Dilution refrigerator
3He Pumping line
Magnet
Beam
9
Polarization and Target Material
Definition of polarization
Granules 6LiD
Spin 1/2
Spin 1
6Li
D
6LiD Polarized target material
  • 6LiD

-gt polarizable nucleons about 50
410-10 m
  • Possibility of high polarization

10
Figure of Merit
r density k packing factor f effective
dilution factor PT polarization
The beam time needed to achieve a certain
statistical accuracy is inversely proportional
to the FoM.
FoM rk(f PT)2
kg/m3
For the extraction of the real physics Bjorken-x-d
ependence of dilution factor should be
considered.
11
Material loading
Material
Funnel
Dilution refrigerator
Target holder
Beam
Liquid N2 bath
Liquid N2 Bath
Target cell
12
Dynamic nuclear polarization
Paramagnetic centers are needed
Spin status Dipolar-dipolar interaction
Polarization _at_2.5T and 0.3K Electron
99.9 Deuteron 0.17
Transfer the high electron polarization to
deuteron polarization
13
Dynamic nuclear polarization
Paramagnetic centers are needed
Spin status Dipolar-dipolar interaction
Polarization _at_2.5T and 0.3K Electron
99.9 Deuteron 0.17
Transfer the high electron polarization to
deuteron polarization
14
COMPASS dilution refrigerator
15-20 L/h
3He of 1400 L NTP 4He of 9200 L NTP
3He flow 30-100 mmol/sec
2000 L
13500m3/h
15
Mixing chamber
Beam
?
30mm
600 mm
16
Performance of the dilution refrigerator
MC Temperature mK
0
DNP
50
Frozen mode
3He flow rate mmol/sec
17
Dilution Refrigerator Control and Monitoring
System
Monitor
Thermo-sensors, Pressure gauges, Flow meters,
Level gauges ? more than
50
Control
Valves, pumps
? more than 10
Location
Beam area, Pump room, Control room
Running time
6 month ? several years
LabVIEW
PLC
18
PLC (programmable logic controller) System
Siemens S7-300, CPU315-2DP with 48 kByte memory
intranet
Control room
  • Pressures
  • Flow rates
  • Gate valve control
  • Needle valves control
  • Interlock (still heater, MW)

Touch panel
Profibus
Pump room
Beam area
  • LN2 trap level control
  • 4He roots pump
  • 3He pumps
  • Cooling water security
  • room temperature
  • Air conditioning
  • Isolation vacuum
  • LHe valve
  • Turbo pump control
  • Diffusion pump
  • Vertical, horizontal screens

Power 48V UPS, 49 channels are used
19
Superconducting magnet
Solenoid magnet longitudinal (horizontal) 2.5T
- field homogeneity DB/B lt 3.5 x 10-5 with
16 correction coils Dipole magnet transverse
(vertical) 0.5T - field rotation (changing
the spin orientation) - transverse physics
program
20
Field Rotation
In order to cancel the systematic error
Upstream
Muon
Downstream
  • Spectrometer acceptance
  • Time dependence variation

(a)
(b)
? Transverse program
(c)
Target material spin direction
(b)
33 minutes every 8 hours
(c)
(a)
21
Microwave system
0.2W needed for both cells
Microwave cavity
Microwave stopper
holes
Mixing Chamber
2W due to long waveguide
Power control attenuators
Power supply
Microwave generator
10W output power
22
NMR System
10 coils can be operated at the same time.
NMR coil
UT-85 Cable Cu jacket semi-rigid
material 6LiD
Yale card
Liverpool Q-meter
PTS 250 Microwave generator
scope
VME-bus
10 ch ADC 12 bit
DC offset subtraction
16 ch ADC 16 bit
Splitter
ADC/DAC 12 bit
96 ch digital I/O
frequency control
gain selection signal
trigger signal
bus extender VME-MXI
PC in the control room
Windows 2000 data acquisition program
(LabVIEW) data storage
NI MXI-2 cable
23
NMR signal process
After subtracting Q curve
Q curve Signal
Q curve
signal
Subtract residual background by a polynomial
function
Subtract Q curve
Polarization determination with Aria method
Calculated by temperature and magnetic field
P0 polarization at thermal equilibrium
S0 NMR signal area at thermal
equilibrium
24
Calibration
With several different temperature points
Preliminary in 2004
S0 ? T-1
NMR signal area S0
K-1
Temperature 1/T
25
Polarization measurement errors
(in 2003)
relatively
26
Polarization build up
Polarization
Day
27
Enhanced NMR signals
28
Average polarization in the whole physics runs in
2003
Red Upstream Green Downstream
29
Polarization results
2004 polarizations almost have same values as
2003.
30
Summary and Outlook
-In order to obtain high statistics Large
6LiD target with 2.5 T magnet and dilution
refrigerator -In order to cancel the systematic
error Field rotation -The system has been
working since 2001 without any big
problems. -2004 run It also has same
polarizations as 2003. -New magnet Large
acceptance -New target material test in 2005??
31
(No Transcript)
32
Equal Spin Temperature
33
Roles of the LabView and PLC
34
Principle of cooling
300 K
Concentrated phase
Dilution phase
Evaporator
1.5 K
lt 0.1 K
0.8 K
Still
Main heat exchanger
Mixing changer
35
Cooling power measurement
36
Emergency isolation vacuum pump(Turbo pump)
Diffusion Pump
  • - large volume pumping
  • need cooling water
  • need high-pressure air

Turbo Pump
Diffusion pump stopped
Pumping speed gt 80
Diffusion pump recovered
  • - small volume pumping
  • powered by 48V UPS

37
Liquid nitrogen filling system
Present nitrogen level
If you press here, .
Alarm
38
C
D0 K- p
D0 K p-
?
C
39
Dynamic nuclear polarization
With Microwave
?????? ??? (gt 99 ) ?????? ???
40
Superconductive Magnet
?????????? ????
????????? ???????? ???????????
41
(No Transcript)
