Title: Presented by: Prof Mark Baker

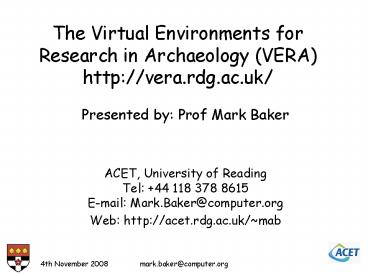

1
The Virtual Environments for Research in
Archaeology (VERA)http//vera.rdg.ac.uk/
  • Presented by Prof Mark Baker
  • ACET, University of Reading Tel 44 118 378
    8615 E-mail Mark.Baker_at_computer.org
  • Web http//acet.rdg.ac.uk/mab

2
Outline
  • Aims and objectives of the VERA project.
  • On-site activities
  • Silchester,
  • IADB,
  • IT Infrastructure,
  • Digital devices.
  • Technological Development
  • Portal Bridge,
  • Cross archival database searching,
  • 3D Visualisation.
  • Summary and Conclusions.

3
The VERA Project
  • VERA is based on a research excavation of part of
    the large Roman town at Silchester
  • It aims to trace the site's development from its
    origins before the Roman conquest to its
    abandonment in the fifth century A.D .
  • VERA is a two-year project funded by the JISC VRE
    2 programme started in April 2007.
  • It involves researchers from the University of
    Reading, University College London, and York
    Archaeological Trust.

4
VERA Aims
  • The overall aim of the project is to assess,
    enhance and introduce new tools and technologies
    that can aid the archaeological processes of
    recording, manipulating and analysing
    archaeological data.
  • To help this process we are introducing and
    testing new digital devices on-site, and
    integrating them into the archaeological workflow
    with the aim of enhancing and speeding up the
    process of recording information.
  • Our goal is to create a situation where the
    information flows seamlessly from excavation,
    through post-excavation to archive and
    publication.
  • In addition, we are creating various tools and
    utilities that help the post-excavation research
    processes.

5
Silchester/VERA Web sites
6
Silchester An Overview
  • The Silchester site is used as a research and
    training excavation (100) that has been taking
    place for 11 years.
  • The excavation takes place annually in
    July/August for about 6 weeks and includes a
    variety of archaeologists ranging from very
    experienced ones through to novices.
  • The annual excavation allows us to
  • Study the use of IT in an archaeological context
  • Investigate the tasks carried out within an
    excavation
  • Ascertain how and where technologies can be used
    to facilitate information flow within a dig
  • Inform the developers how to adapt the tools used
    in the trench and for post dig analysis.
  • To ensure that the software and tools are
    appropriate we are engaging all the on-site team
    and the researchers who undertake post excavation
    analysis in the usability studies.

7
The Silchester Town Life Project
  • Research excavation and Undergraduate Field
    School since 1997.
  • One of the largest open area excavations in the
    country.
  • Trace the site's development from its origins
    before the Roman Conquest to its abandonment in
    the fifth century A.D.
  • More information can be found on the project Web
    site.

8
Silchester, Hampshire, England
9
Where is Silchester?
10
Excavating Insula IX
11
Integrated Archaeological Database (IADB)
  • Silchester has used the IADB since the Town Life
    project began in 1997.
  • It contains most of the archaeological
    information gathered on site, including digital
    versions of context sheets, finds records,
    environmental records, photos, plans and
    matrices.
  • Post excavation digitising of a seasons records
    can take about 6 months.

12
The IADB
  • IADB is a key component within the Silchester and
    the VERA project.
  • The IADB was designed to address the data
    management requirements throughout the lifespan
    of archaeological excavation projects, from
    initial excavation recording, through
    post-excavation analysis and research to eventual
    dissemination and archiving.
  • THE IADB is used for recording
  • Finds, Contexts, Sets, Groups, Phases, Objects,
    Images, Illustrations, Stratigraphy Diagrams,
    Documents and Bibliography References.
  • Based on MySQL, PHP, Javascript, AJAX and SVG.

13
IADB
14
VERA Aims and Methodology
  • Project Aims
  • Enhance the means of documenting and archiving
    archaeological excavation data.
  • Create a Web portal that provides enhanced tools
    for the user community.
  • Develop tools that work with existing practices
    of research archaeologists unfamiliar with a VRE.
  • Test these tools out in the field with the
    archaeologists.
  • Methodology
  • Introduce new digital devices and software tools.
  • Find out what people think of the IADB, the
    software tools and recording system.
  • What else do people actually want from them?
  • Further develop the IADB, tools and recording
    system.
  • Test and update them until everyone is happy!

15
Site Recording Context Cards
  • Context cards describe the smallest unit of
    archaeology that it is possible to record
  • Traditionally recorded with pen and paper.
  • In 2008, more than 1352 contexts were recorded,
    around 43 of these with the digital pens.
  • In 2007, one area (one team) piloted 5 digital
    pens.
  • In 2008, 14 pens were in use over the whole
    trench.

16
Gathering Data with Digital Pens
  • Logitech IO2 digital pens.
  • Look and write like normal pens on what looks
    like normal paper.
  • A camera inside the pen records what has been
    written and the order in which the pen strokes
    were made.
  • OCR software interprets what is written in a
    sequential fashion!

17
Docking the Pens
  • The pages are imported and interpreted by
    software.
  • Text is converted using hand writing OCR and
  • diagrams are saved as images.

18
A Typical Context Sheet in the IADB
19
Experiences of using the Digital Pens
  • Love
  • Simple to use and train people with.
  • Robust (weather, mud and student proof).
  • Speeds up post-excavation work.
  • Encourages legible handwriting.
  • Paper master copy created in the trench in case
    of computer related disaster!
  • Hate
  • Mix of lower case and capitals hard to read.
  • User needs to be able to fill in context sheets
    without prompts.
  • User needs to keep the correct pen and book
    combination.
  • Odd formatting in some records.
  • Student or supervisor error?

20
2008 Excavation Summary
  • 591 out of 1352 or 44 of context cards recorded
    with the digital pens.
  • Simple training.
  • Robust (weather, mud and student proof).
  • Speeds up post-excavation work (context cards
    must otherwise be transcribed).
  • Encourages legible handwriting.
  • Paper master copy created in the trench in case
    of computer related disasters.

21
Setting up the Internet at Silchester
22
The Wi-Fi Receiver at the Trench
23
Other trials
  • We also experimented with
  • Hand-held IPAQs good for querying database,
  • Ruggedised tablet PCs sunlight a major problem,
  • Nokia 800s OK, but hard to use on-site.
  • Digimemo pads useful, but not very robust.
  • Wireless Web Cams.

24
On-Site Data Gathering
Hand-held IPAQs
25
On-Site Data Gathering
Ruggedised tablet PC
26
Digimemo pad
27
Global Positioning System
28
Technical Programming Aspects
  • The technical programming development in VERA is
    based on enhancing the portal that was used
    during the JISC VRE 1 programme, known as OGHAM,
    which hosts the IADB.
  • The IADB source code had to be changed
  • Updated global variables and added extra code for
    security purposes so that the system would work
    with a more secure version of PHP.
  • We decided that instead of adapting the OGHAM
    portal to work within a JSR-168 portlet, we would
    consume the portal within a portlet using
    bridging technologies
  • This approach has a number of advantages, which
    includes not forking the original application
    code, and not having to support any code migrated
    into a portlet.

29
Vanilla IADB
30
The Recycle Bridge
  • The Recycle Bridge uses an iframe to display the
    embedded application inside the portal.
  • From the users perspective the application looks
    like part of the portal.
  • We wrote a portlet called the Recycle Bridge
    which sets a cookie containing the
    username of the user logged into the portal.
  • There are settings for the Recycle Bridge to
    alter the appearance of the iframe to try and
    make the integration seamless from the users
    perspective.
  • SSO - we use the client (web browser) to link the
    authentication information between the portal and
    the embedded application being consumed.

31
Wordpress in the Recycle Bridge
32
Media Wiki in the Recycle Bridge
33
The IADB in the Recycle Bridge
34
Security for the cookie
  • Essentially the web application needs to have a
    way to trust the cookie that contains authentic
    user information.
  • The Recycle Bridge shares a secret security token
    (salt) with any web application you want to
    embed
  • When you set things up you must provide a unique
    salt in the configuration files.
  • The Recycle Bridge includes an MD5 hash with the
    cookie based on the salt and username to provide
    a way for the authentication plugin to check that
    the cookie has not been tampered with.

35
Recycle Bridge
GridSphere exposed via the Recycle Bridge
software can be found at http//vera.rdg.ac.uk/sof
tware
36
Searching Across Multiple Archival Databases
  • The communities involved in archaeology and the
    preservation of ancient documents are
    increasingly using digital devices to record
    information about artefacts, and also store
    whatever is recorded within databases.
  • Advances in information recording and storage
    make projects more productive
  • The ability to search through multiple database
    instances is limited by the fact that the
    projects predominately work alone and do not try
    to follow the prevailing standards, if available,
    in their project area.
  • Searching through multiple databases does present
    significant advantages to these communities
  • The additional information that can be can
    enhance the understanding of finds or artefacts,
  • Also provide further provenance, which helps
    match disparate entities together, that were not
    known to have a relationship before.

37
Searching Across Multiple Archival Databases
  • The XDB-Arch project aims to create a generic and
    easy to use Web-based system that can be used by
    various communities to search through the
    existing distributed databases and potentially
    find matches between the artefacts or finds being
    studied
  • e.g. an archaeologist has a piece of pottery with
    a particular stamp or graffiti mark on it
  • From their perspective it would be useful to
    gather more information about the stamp or
    graffiti, to help date the pottery, identify who
    made the it or verify where the it was produced.
  • Or an historian trying to read a text might want
    to uncover the context of the text by treating
    the documents not as disembodied texts but as
    artefacts with an original archaeological or
    physical context.
  • A collaboration between VERA, and Centre for the
    Study of Ancient Documents at the University of
    Oxford.

38
Cross Database Searching - XDB
Z39.50 semantics
39
Cross Database Searching - XDB
  • We are using the Tycho Framework a RESTful
    peer-to-peer registry with an asynchronous
    message API.
  • Tycho consists of the following components
  • Mediators that allow producers and consumers to
    discover each other and establish remote
    communications,
  • Consumers that typically subscribe to receive
    information or events from producers,
  • Producers that gather and publish information for
    consumers.
  • http//acet.rdg.ac.uk/projects/tycho/
  • There is an asynchronous messaging API 15
    calls.
  • In Tycho, producers and/or consumers (clients)
    can
  • publish their existence in a Virtual Registry
    (VR), plus it
  • can hold XML docs too.

40
XDB Peer to Peer
Query UI
Query UI
41
The Search Process
CQL parser
Term mapper
Metadata Schema
DB
Results Formatter
Query Engine
42
Searching Across Multiple Archival Databases
Prototype at http//xdb.vera.rdg.ac.uk/
43
3D Visualisation
  • The VERA project is creating the ability
    visualise the excavation site and view the finds
    and artefacts via a 3D-viewer.
  • The archaeologists believe that such a capability
    will simplify their post excavation research and
    enhance their understanding of the relationship
    between contexts and finds.
  • We have had to extrapolate and insert the Z
    coordinate into contexts in the IADB.
  • We are currently also exploring the means of
    creating the 3D views on a PC/Laptop.
  • We will export visualisation data to a CAVE and
    Powerwall systems located at Reading.

44
3D Visualisation
  • Using the Virtual Interactive Environment
    Generator (VieGen).
  • It is toolset for the configuration and control
    of Virtual Environments.
  • Freely available set of tools and utilities
    enabling scene development by non-experts
  • Also provides extensive APIs for programmers.
  • Available on a range of VR hardware
  • Desktops, Powerwalls, clusters, CAVEs.
  • Builds on existing 3rd party libraries
  • e.g. OpenSG, VTK, Xerces, OpenAL.

45
VieGen
  • CAVE Scene Manager
  • Configurable display layout (hardware
    independence).
  • Scene Configurator
  • Textual scene description language (plain/XML),
  • Automatic scene generation/storage
  • Immersive VE editor, architectural plans,
    planogram.
  • Scene Controller
  • Environment management entity
  • provides object heartbeat (actions, physics,
    simulations)
  • Extensible objects
  • Geometries, models, and textures,
  • Internal attributes (e.g. price, mobile, and
    awareness).
  • Extras
  • Such as collaborative networking, avatars, wand
    mgr.

46
Initial View of Contexts
47
Summary and Conclusions
  • The VERA project is actively investigating how
    archaeologists use IT in the context of a field
    excavation, and also for post-excavation
    analysis.
  • The project involves archaeologists computer
    scientists and researchers involved in usability
    studies in the digital humanities.
  • The cross disciplinary team are investigating and
    implementing mechanisms and tools that aid
    archaeologists in their field work, which is also
    helping them to streamline the processes they use
    to gather, analyse and later publish papers
    related to their activities.

48
Summary and Conclusions
  • To ensure that the software and tools developed
    within the project are appropriate for the
    archaeologists we are engaging all the on-site
    team and the researchers who undertake post
    excavation analysis in the usability studies
  • These have so far included a diary studies and
    workshops that are related to digital field
    recording and publications in archaeology,
  • Also we have undertaken interviews with
    individuals and groups involved with the IADB and
    Silchester project,
  • The users are providing significant information
    about not only how archaeologists work, but also
    feedback about how to improve the current tools
    and also hints about utilities that would help
    research in the future.

49
Summary and Conclusions
  • User driven design and implementation of tools
    and utilities for the project.
  • Availability of the Internet and WiFi across the
    site is very useful.
  • Up front and on-site training, and extensive
    documentation helps the archaeologists take up
    the digital technologies and various tools more
    easily.
  • Digital pens and Digimemo pads are a success,
    even though the latter was not that robust.
  • Still cannot find a screen-based digital device
    that can be used easily in direct sun light.
  • Recycle Bridge is an easy to use and efficient
    software artefact.
  • XDB and 3D Visualisation are important aspects of
    the project too.

50
The VERA Project Team
The VERA project has a core team of researchers
based at the University of Reading (UoR),
University College London (UCL), and York
Archaeological Trust (YAT). To advise the
project, VERA has a Steering Group made up of
experts in the field of Archaeology, Virtual
Research Environments, and the user community.
Project Manager and Director Professor Mark
Baker (UoR) Associate Directors Professor Mike
Fulford (UoR)Ms Amanda Clarke (UoR) Mr Mike
Rains (YAT) Dr Claire Warwick (UCL) Dr Melissa
Terras (UCL) Research Assistants Dr Hugo Mills
(UoR)Ms Emma ORiordan (UoR)Ms Claire Fisher
(UCL)
Steering Group Dr Stuart Dunn (King's College
London)Mr Steve Gough (University of
Reading)Professor Gary Lock (University of
Oxford) Dr Jeremy Huggett (University of
Glasgow) Professor Vince Gaffney (University of
Birmingham) Professor Julian Richards
(University of York) Dr Robert Allan (Daresbury
Laboratory) Mr Edmund Lee (English Heritage) Mr
Chris Brayne (Wessex Archaeology)
http//vera.reading.ac.uk
51
Questions?
Write a Comment
User Comments (0)
About PowerShow.com
