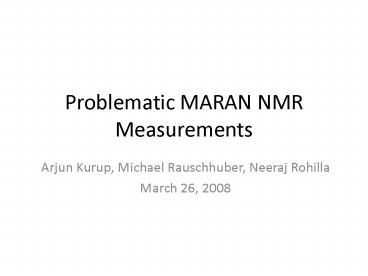

Problematic MARAN NMR Measurements

1
Problematic MARAN NMR Measurements

• Arjun Kurup, Michael Rauschhuber, Neeraj Rohilla
• March 26, 2008

2
Problematic NMR Measurements

• CPMG measurements at varying half-echo spacing, t
• Measurements with H2O, undoped
• Three types of problems
• Shape of decay at specific t
• Dependent on small increments of t, P180, O1
• Decrease in T2 with increasing t
• Noise channel remnants after rotation of data

3
Shape of Decay at Specific t (1)

• t near 4ms
• Increments of 50ms
• Broad range of problematic values
• 3.75mslttlt4.4ms
• Non-monotonic behavior common

4
Shape of Decay at Specific t (2)

• t near 2ms
• Increments of 25ms
• Narrower range of problematic values
• 2.000mslttlt2.175ms
• Non-exponential behavior visible, but no
  non-monotonic behavior

5
Decrease in T2 with increasing t

• T2 deceases sharply for short t
• T2 almost constant for tgt8-10ms
• Exponential time domain decays

6
Resultant relaxation time distributions
t 2 ms
t 4 ms
7
Example Behavior at t4 and t2ms
Water
t 4 ms
Seen only with Temco vessel, grad amp on
Water
t 2 ms
8
CPMG polar plot
9
(except small anomaly at TE0.4ms)
10
Evaluation in terms of sampling frequency
Electrical lines possibly not the source of
oscillatory errors
Data for 50mm dia. sample of water
11
T2 varies with Echo Spacing DI Water
12
(No Transcript)
13
T2 varies with Echo Spacing Yates D Core
14
Problematic MARAN NMR Measurements with un-doped
bulk DI water
15
Typical T2 measurement on Maran
16
After Sampling and Averaging
17
T2 Distribution
18
Problematic T2 Measurement
Oscillations in the signals at early
times Different patterns of Noise
19
After Sampling and Averaging
20
T2 Distribution
Two peaks observed of undoped bulk DI water
21
Noise for some problematic sets
22
Noise for some problematic sets
23
Observations

• At certain values of echo spacing, we obtain
  bi-modal distribution for a bulk sample
• The drift in O1, p90 and p180 results in shifting
  of problematic value of the echo spacing
• The problematic measurements are reproducible at
  any given day for the settings of the earlier day
  (corresponding to problematic measurements)

24
Interplay of echo spacing, p180 and O1
O1 O1problem 10 Hz
25
Interplay of echo spacing, p180 and O1
p180 p180problem 10ns
26
Observations

• The problematic measurements are due to some
  combination of echo spacing, p180 and Offset O1.
• Sometimes changing O1 by 10 Hz results in a
  unimodal distribution
• Sometimes changing p180 by 10 ns results in a
  unimodal distribution
• Sometimes changing echo spacing by 10 ns
  results in a unimodal distribution
