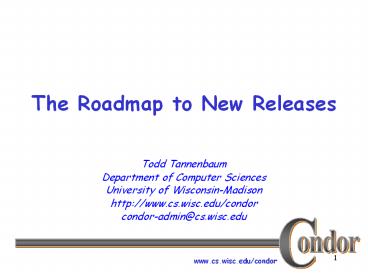

The Roadmap to New Releases

1
The Roadmap to New Releases
Todd Tannenbaum Department of Computer
Sciences University of Wisconsin-Madison http//ww
w.cs.wisc.edu/condor condor-admin_at_cs.wisc.edu
2
Stable vs. Development Series

• Much like the Linux kernel, Condor provides two
  different releases at any time
• Stable series
• Development series
• Allows Condor to be both a research project and a
  production-ready system

3
Stable series

• Series number in version is even (e.g. 6.2.0)
• Releases are heavily tested
• Only bug fixes and ports to new platforms are
  added on a stable series

4
Stable series (cont.)

• A given stable release is always compatible with
  other releases from the same series
• Recommended for production pools

5
Development Series

• Series number in the version is odd (e.g. 6.1.17,
  6.3.1)
• New features and new technology are added
  frequently
• Versions from the same development series are not
  always compatible with each other

6
Development Series (cont.)

• Releases are not as heavily tested
• Generally not recommended for production pools
• unless new features are required
• unless we recommend otherwise )

7
Where is Condor Today?

• Version 6.3.2 being released asap this is the
  v6.4.0 release candidate.
• We expect version 6.4.0 released by the end of
  March.

8
Whats new for Condor v6.4.0?
9
New Ports in 6.4.0

• Full support (with checkpointing and remote
  system calls)
• RedHat 7.x
• (Linux 2.4.x kernel glibc 2.2.x)

10
New Ports in 6.4.0 (cont.)

• Clipped" support (no checkpointing, PVM, or
  remote system calls, but all other functionality
  is available)
• Windows 2000
• Mac OS X

11
Secure Communication

• Secure network communication
• Strong user authentication
• Multiple methods supported Kerberos, X509, NT
  LanMan,
• Encryption
• Integrity
• Authorization based on host or user

12
New Job Universes

• MPI Universe
• Launch MPI jobs linked with MPICH library
• Globus Universe
• Faster, more reliable, better integrated
• Java Universe

13
Java Universe Job

• universe java
• executable Main.class
• jar_files MyLibrary.jar
• input infile
• output outfile
• arguments Main 1 2 3
• queue

condor_submit
14
Why not use Vanilla Universe for Java jobs?

• Java Universe provides more than just inserting
  java at the start of the execute line
• Knows which machines have a JVM installed
• Knows the location, version, and performance of
  JVM on each machine
• Provides more information about Java job
  completion than just JVM exit code
• Program runs in a Java wrapper, allowing Condor
  to report Java exceptions, etc.

15
Java support, cont.

• condor_status -java
• Name JavaVendor Ver State
  Activity LoadAv Mem
• aish.cs.wisc. Sun Microsy 1.2.2 Owner Idle
  0.000 249
• anfrom.cs.wis Sun Microsy 1.2.2 Owner Idle
  0.030 249
• babe.cs.wisc. Sun Microsy 1.2.2 Claimed Busy
  1.120 123
• ...

16
Condor File Transfer

• Condor will transfer job files from the submit
  machine to the execute machine
• Files to send and/or receive specified at submit
  time
• Transfer is atomic
• All files are transferred, or transfer fails
• Appeared in v6.2 only in Condor for Windows

17
File Transfer, cont.

• Example
• transfer_input_files x, y, z
• transfer_output_files a, b, c .
• transfer_files ALWAYS ONEXIT
• Note Condor can automatically figure out output
  files
• Default Send back any new/changed files

18
Remote I/O Socket

• Job can request that the condor_starter process
  on the execute machine create a Remote I/O Socket
• Used for online access of file on submit machine
  without Standard Universe.
• Use in Vanilla, Java,
• Libraries provided for Java and for C, e.g.
• Java FileInputStream -gt ChirpInputStream
• C open() -gt chirp_open()

19
starter
shadow
Secure Remote I/O
Local I/O (Chirp)
I/O Server
I/O Proxy
Fork
Local System Calls
Job
Home File System
I/O Library
Submission Site
Execution Site
20
Job Policy Expressions

• User can supply job policy expressions in the
  submit file.
• Can be used to describe a successful run.
• on_exit_remove ltexpressiongt
• on_exit_hold ltexpressiongt
• periodic_remove ltexpressiongt
• periodic_hold ltexpressiongt

21
Job Policy Examples

• Do not remove if exits with a signal
• on_exit_remove ExitBySignal False
• Place on hold if exits with nonzero status or ran
  for less than an hour
• on_exit_hold ((ExitBySignalFalse)
  (ExitSignal ! 0)) ((ServerStartTime
  JobStartDate) lt 3600)
• Place on hold if job has spent more than 50 of
  its time suspended
• periodic_hold CumulativeSuspensionTime gt
  (RemoteWallClockTime / 2.0)

22
Firewall Support

• Port Restrictions
• In condor_config file can specify
• LOWPORT x
• HIGHPORT y
• All dynamic ports will be between x and y
  inclusive
• Condor Firewalls/Private Networks
• Who Se-Chang Son
• Time 9am-12pm Weds
• Where rm 3387

23
Condor on Windows

• On both NT and Win2k
• New universes added MPI, Java, Scheduler (and
  Globus in the works!)
• DAGMan ported
• CondorView ported
• Run shadow DAGMan as the user
• Allows submission from directories on shared
  filesystems

24
And more

• Unix Man pages
• Fetch/consolidate log files remotely
• ClassAd chaining
• Many DAGMan improvements
• Bug fixes, etc

25
Whats Next?Future Directions

• Increased focus on standalone tools built with
  Condor Technology
• DAGMan
• NeST
• PFS
• HawkEye
• Condor-G

26
Whats Next?

• Big Item
• More focus on being a service provider than
  just an end-user tool
• Developer APIs / libraries
• SOAP access to services
• XML representations of user logs, ClassAds,
  accounting info, etc.

27
More whats next

• Condor on Windows
• Increased support from Microsoft Research
• Remote I/O
• Complete Shared Filesystem support
• Condor-G
• MPI Scheduling Improvements

28
More whats next

• New version of ClassAds into Condor
• Conditionals !!
• if/then/else
• Aggregates (lists, nested classads)
• Built-in functions
• String operations, pattern matching, time
  operators, unit conversions
• Clean implementations in C and Java
• ClassAd collections

29
More whats next

• Re-write of the condor_schedd
• Performance enhancements and lowered resource
  requirements (particularly RAM)
• Re-write of the checkpoint server
• Add secure communication
• NEST technology infusion
• Enhanced support for multiple servers
• Store meta-data along with checkpoint files

30
Thank you for coming to Paradyn/Condor Week!
