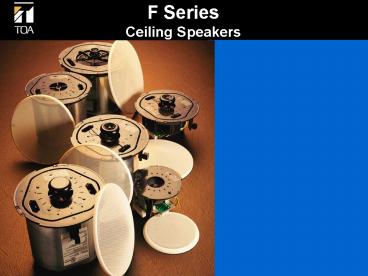

F Series Ceiling Speakers

1
F SeriesCeiling Speakers
2
F SeriesCeiling Speakers
3
F SeriesCeiling Speakers

• Wide-Dispersion, Smooth Off-Axis Coverage
• UL-Listed and Compliant Models
• Built-In 25/70.7/100 V Multi-Tap Transformer
• Low Impedance Mode (8 and 16 Ohms)
• Power Tap Selector On Front Baffle

4
F SeriesCeiling Speakers

• Integral Metal Back-Can and Safety Cable
• Low-Profile, Paintable Grille
• Overload Protection Circuitry
• C-Ring Mounting Hardware Included
• Competitive Pricing
• Individually Packaged
• Five Year Warranty
• Except F-2352SC F-1522SC

5
F SeriesCeiling Speakers
Full-Range
F-122CU5 / 30 W
F-2322C5 / 30 W
F-1522SC4 / 6 W
Co-axial
F-2352SC5 / 6 W
F-2352C5 / 30 W
F-2852C6.5 / 60 W
6
F SeriesCeiling Speakers
New for 2007 ! Four new models F-122CU2
F-2322C2 F-2352C2 F-2852C2 are now packaged
as two speakers and two tile bridges, all in one
box. The new tile bridges allow simpler and
faster installation, ordering convenience and
lower shipping costs. Existing TOA mounting
C-rings and trim rings will continue to be
available for installations that do not require
tile bridges.

• Tile bridge included with speaker
• Faster installation
• Easier ordering
• Ships two units per box
• (example
• Order (2) F-122CU2 two speakers and two tile
  bridges packaged and shipped in one box)

7
F-1522SC4 Full-range

• 4 full-range driver
• Wide-dispersion 160º
• Frequency Response
• 65 to 18k Hz
• Sensitivity
• 88 dB SPL (1 W, 1 m)
• Power Handling
• 6W (xfmr)
• 18W (8 ohms)
• C2-Mounting C-Ring Included

8
F-122CU / CU2 5 Full-range

• 5 full-range driver
• Wide-dispersion 180º
• Requires E-03R module or AC-120 processor for
  optimized equalization
• Frequency Response
• 70 to 20k Hz
• Sensitivity
• 90 dB SPL (1 W, 1 m)
• Power Handling
• 30W (xfmr)
• 120W (8 ohms)
• CU2- C-Ring Mount Included

9
AC-120

• AC-120 Dedicated Equalizer
• Built-in equalization provides even sound
  balance and wide-area intelligibility for F-122CU
• Low cut switch removes low frequencies during
  announcements.
• Built-in 100Hz, 12dB /octave crossover for use
  when F-122CU is used with a FB-100 subwoofer.

10
E-03R
Processor module for TOA F122CU speaker.
Connects between pre-amp output and power amp
input (Except E-07S). Includes dual RCA
cable. Performs same function as AC-120.
11
F-2322C / C25 Full-range

• 5 full-range driver
• Metal Back Can
• UL Compliant (UL2043)
• Wide-dispersion 170º
• Frequency Response
• 70 to 20k Hz
• Sensitivity
• 90 dB SPL (1 W, 1 m)
• Power Handling
• 30W (xfmr)
• 120W (8 ohms)
• C2-Mounting C-Ring Included

12
F-2352C / C25 Co-axial

• Co-axial 5 cone driver and dome tweeter
• Metal Back Can
• Wide-dispersion 170º
• Frequency Response
• 70 to 20k Hz
• Sensitivity
• 90 dB SPL (1 W, 1 m)
• Power Handling
• 30W (xfmr)
• 120W (8 ohms)
• C2-Mounting C-Ring Included

13
F-2352SC / C25 Co-axial

• Co-axial 5 driver and dome tweeter
• Wide-dispersion 155º
• Frequency Response
• 70 to 20k Hz
• Sensitivity
• 90 dB SPL (1 W, 1 m)
• Power Handling
• 6W (xfmr)
• 18W (8 ohms)
• C2-Mounting C-Ring Included

14
F-2852C6.5 Co-axial

• Extended bass response
• Co-axial 6.5 cone driver and dome tweeter
• Wide-dispersion 120º
• Frequency Response
• 60 to 20k Hz
• Sensitivity
• 91 dB SPL (1 W, 1 m)
• Power Handling
• 60W (xfmr)
• 180W (8 ohms)

15
F-SeriesHi Frequency Diffuser

• In a conventional speaker, higher frequencies
  normally propagate along the front axis of the
  driver, but lose energy off axis
• The Diffuser diffracts higher frequencies along
  the horizontal plane, providing a wider coverage
  angle and improved off-axis intelligibility

16
F SeriesAccessories

• HY-TB1
• TILE RAILS
• Required for T-bar ceiling mounting (24)
• Fits models
• F-122CU
• F-2322C
• F-2352C
• F-2852C
• F-2352SC

17
F SeriesAccessories

• HY-TR1
• TRIM RING
• For covering existing holes (11.8 max.) in
  retrofit applications
• Fits models
• F-122CU
• F-2322C
• F-2352C
• F-2352SC

18
F SeriesAccessories

• HY-BC1
• SURFACE BACK-CAN
• For surface-mount applications in open ceilings
• Low-gloss black paint finish
• Fits models
• F-122CU
• F-2322C
• F-2352C
• F-2352SC

19
F SeriesApplications

• Airports
• Audio/Visual
• Bars / Lounges / Nightclubs
• Convention Centers
• Corporate Boardrooms
• Hotels / Hospitality
• Houses of Worship
• Museums
• Offices
• Residential Spaces
• Restaurants
• Retail Stores
• Schools
• Theaters
• Theme Parks

20
F Series Tools
21
F Series Tools
22
F SeriesSystem Design Software
23
F Series Tools

• Speaker Design Software
• Speaker Design Guide
• EASE Data
• Architect and Engineering Specifications
• CAD Files
• Installation Manuals
• High Resolution Images
