Title: Systolic Organization

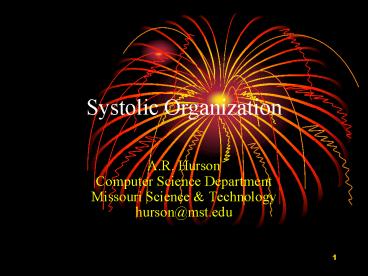

1
Systolic Organization
  • A.R. Hurson
  • Computer Science Department
  • Missouri Science Technology
  • hurson_at_mst.edu

2
Systolic Organization
  • To effectively utilize a given technology, the
    constraints of that technology must be well
    understood.
  • System designers must consider the limitations of
    the technology to design a system where those
    limitations do not impact the overall performance
    significantly.

3
Systolic Organization
  • It is generally accepted that many computational
    tasks are by their very nature sequential, and
    for others the degree of parallelism varies.
  • To maintain sufficient application flexibility
    and computational efficiency, a massively
    parallel computational architecture must offer
    reconfigurability, scalability, and
    programmability.

4
Systolic Organization
  • reconfigurable to exploit application
    dependent parallelisms,
  • high level language programmable to provide
    task control and flexibility,
  • scalable to easily extend the architecture to
    many applications,
  • capable of supporting SIMD organizations for
    vector operations and MIMD for non homogeneous
    parallelism requirements.

5
Systolic Organization
  • Systolic operation and organization is a design
    philosophy that is aimed to satisfy the
    architectural constraints imposed by the advances
    in silicon technology.
  • It offers simplicity, regularity, modularity, and
    localized communications.

6
Systolic Organization
  • Systolic arrays are typically characterized as
    having intensive local communications and
    computations yet, with decentralized parallelism
    in a compact package.
  • Systolic arrays capitalize on processes which can
    be performed in a regular, modular, rhythmic,
    synchronous, and concurrent manner that require
    intensive repetitive computations.

7
Systolic Organization
  • Systolic arrays originally were proposed for
    fixed or special purpose instances, however, this
    concept has been extended to more general purpose
    SIMD and MIMD architectures.

8
Systolic Organization
  • What is a Systolic Arrays?
  • There is no uniquely accepted definition for
    systolic arrays or systolic cells.
  • The term systolic originated in the medical
    community where it is used to describe the human
    circulatory system.
  • Systolic processes, like the circulatory system,
    perform the operations in a rhythmic,
    incremental, cellular, and repetitive manner much
    like the heart circulating blood through the
    arteries, veins, and capillaries.

9
Systolic Organization
  • What is a Systolic Arrays?
  • The systolic computational rate is restricted by
    the array's I/O operations, much the same way
    that the heart controls blood flow to the cells.
  • The term array originates from the observation
    that systolic arrays have balanced uniform
    architectures which typically look like grids
  • Each line indicates a communication path.
  • Each intersection represents a cell or a systolic
    element.

10
Systolic Organization
  • What is a Systolic Arrays?
  • Systolic arrays are more than processor arrays
    which execute systolic algorithms.
  • A systolic cell takes on one of the following
    forms
  • A special purpose cell with hardwired functions,
  • A vector-computer-like cell with instruction
    decoding and a processing element or,
  • A systolic processor complete with a control unit
    and a processing unit.

11
Systolic Organization
  • General Systolic Organization

12
Systolic Organization
  • In 1978, the first systolic arrays were
    introduced as a feasible design for special
    purpose devices which meet the VLSI constraints.
  • These special purpose devices were able to
    perform four types of matrix operations at high
    processing speeds
  • matrix-vector multiplication,
  • matrix-matrix multiplication,
  • LU-decomposition of a matrix,
  • Solution of triangular linear systems.

13
Systolic Organization
  • Although, systolic architectures originally, were
    motivated for high performance special purpose
    computational systems that meet the constraints
    of VLSI, however, it is possible to design
    systolic systems which have high throughputs and
    yet are not constrained to a single VLSI chip.

14
Systolic Organization
  • Systolic Characteristics
  • Systolic architectures are composed of a few
    basic building blocks faster design time.
  • Basic building blocks are replicated in a one,
    two, or possibly higher dimensional space.
  • The systolic cells use simple and regular
    communication paths to their nearest neighbors
    To eliminate broadcasting of data throughout the
    system. Regular interconnections also lead to
    higher densities and shorter communication paths.

15
Systolic Organization
  • Systolic Characteristics
  • The systolic cells are synchronized by a single
    global clock.
  • The input data streams are fed to the systolic
    array only at its boundaries.
  • Different data streams can flow in different
    directions at different speeds through the array.

16
Systolic Organization
  • Systolic Characteristics
  • Systolic architectures have some characteristics
    similar to pipelined or array processor
    configurations.

17
Systolic Organization
  • Systolic Characteristics
  • Systolic architectures differ from pipelined
    systems because
  • Most of the stages are identical,
  • Input data is not consumed,
  • Input data streams can flow in different
    directions,
  • Modules may be organized in a two-dimensional (or
    higher) configuration.

18
Systolic Organization
  • Systolic Characteristics
  • Systolic architectures differ from array of
    processors because
  • Processors in systolic organizations are
    synchronized by a single global clock, but are
    locally controlled different systolic cells can
    perform different operations at the same time.

19
Systolic Organization
  • Systolic Characteristics
  • Systolic architecture have several advantages
    over conventional systems
  • Systolic architectures make the design of special
    purpose systems easier cost-effective special
    purpose systems.
  • Systolic architectures are also well suited for
    the constraints of many technologies especially
    VLSI.

20
Systolic Organization
  • Systolic Characteristics
  • Systolic architectures allow higher throughputs
    concurrent operations of a large number of the
    processing cells.
  • Ability to increase the execution speed of
    compute-bound applications without increasing the
    I/O requirements reusability of the input data.

21
Systolic Organization
  • Systolic Issues
  • Algorithms and Mapping Designers must be
    intimately familiar with the algorithms that they
    are implementing on systolic arrays.
  • The heuristic design of systolic arrays from an
    algorithm is slow, error prone, requires
    simulation for verification, and often results in
    a non optimum solution.
  • Automatic array synthesis is a research area of
    interest. However, most array designs are based
    on heuristics.

22
Systolic Organization
  • Systolic Issues
  • Integration into Existing Systems Generally,
    systolic processors are integrated into an
    existing host as a backend processor.

23
Systolic Organization
  • Systolic Issues
  • Integration into Existing Systems
  • System integration is often nontrivial because of
    the arrays high I/O requirements.
  • Often, an additional memory subsystem is added
    between the existing host and the systolic array
    to support data access and data multiplexing and
    de-multiplexing since the existing I/O channel of
    the host rarely satisfies the bandwidth required
    by the systolic array.

24
Systolic Organization
  • Systolic Issues
  • Cell Granularity Low level or high level cell
    granularity will directly affect the arrays
    throughput, flexibility, and the set of
    algorithms which may be efficiently executed.

25
Systolic Organization
  • Systolic Issues
  • Cell Granularity
  • The basic operation performed in each cycle by
    each cell can range from logical or bit wise
    operations to word level multiplication and
    addition to a complete program.
  • Granularity is subject to technology capabilities
    and limitations as well as design goals.
  • Packaging will also introduce input/output pin
    restrictions.

26
Systolic Organization
  • Systolic Issues
  • Extensibility Since systolic arrays are built
    around the cellular building blocks, the cell
    design should be sufficiently flexible to allow
    it to be used in a wide variety of topologies
    implemented in a wide variety of substrate
    technologies.

27
Systolic Organization
  • Systolic Issues
  • Clock Synchronization Clock lines of different
    lengths within integrated chips, as well as
    external to the chips, can introduce skews.
  • Clock skew risk is greater when data flow within
    the systolic array is bi-directional.
  • Wave-front arrays reduce the clock skew problem
    by introducing more complicated asynchronous
    inter cellular communications.

28
Systolic Organization
  • Systolic Issues
  • Reliability As integrated circuits grow larger
    and larger, inherent fault tolerant abilities
    must be added if the same degree of reliability
    is to be maintained. Also diagnostics should be
    built in at design time so proper operation can
    more easily be verified.

29
Systolic Organization
  • Summary
  • Systolic organization
  • Definition
  • Characteristics
  • Issues
  • Systolic vs. Pipelining
  • Systolic vs. array of processor

30
Systolic Organization
  • Systolic Design Character Matching
  • A straightforward approach to search for a
    pattern within a string of characters (string) is
    simple but time-consuming.
  • The following algorithm shows the sequence of
    operations.
  • The algorithm compares the characters in the
    pattern against the characters in the text from
    left to right.
  • This simple algorithm has a time complexity of
    O(mn) where m and n are the lengths of the
    pattern and text.

31
Systolic Organization
  • Systolic Design Character Matching
  • Search for a Pattern

T-index ? 0 While T-index lt (n-m1) DO Save ?
T-index P-index ? 0 While P-index lt m and
Textsave PatternP-index DO Save ? Save
1 P-index ? P-index 1 END If P-index m
then return T-index ? T-index 1 END
32
Systolic Organization
  • Systolic Design Character Matching
  • Concept of the finite state automaton can be used
    to perform pattern matching operation in a time
    complexity of O(n).
  • Knuth proposed an algorithm with the time
    complexity of O(mn).

33
Systolic Organization
  • Systolic Design Character Matching
  • The proposed model is used for character matching
    (pattern Matching) operation.
  • The model is composed of two kind of cells
  • Comparator cells, and
  • Accumulator cells.

34
Systolic Organization
  • Systolic Design Character Matching
  • The comparator cells receive text and patterns
    from opposite directions and generate the
    Comparison results.
  • The accumulator cells transmit information
    regarding delimiters and "don't care" signals.
    In addition, it accumulates the partial match
    results.

35
Systolic Organization
  • Systolic Design Character Matching

36
Systolic Organization
  • Systolic Design Character Matching
  • Algorithm in C cells

Pout ? Pin Sout ? Sin dout ? (Pin Sin)
37
Systolic Organization
  • Systolic Design Character Matching
  • Algorithm in A cells

lout ? lin Xout ? Xin IF lin THEN rout ? t t ?
True ELSE rout ? rin t ? t AND (Xin OR din)
38
Systolic Organization
  • Systolic Design Character Matching
  • Detect pattern ISSI in text MISSISSIPPI in a
    systolic organization composed of seven cells.

39
Systolic Organization
  • Systolic Design Character Matching
  • Initial configuration

40
Systolic Organization
  • Systolic Design Character Matching

41
Systolic Organization
  • Systolic Design Character Matching

42
Systolic Organization
  • Systolic Design Character Matching

43
Systolic Organization
  • Systolic Design Character Matching

44
Systolic Organization
  • Systolic Design Character Matching

45
Systolic Organization
  • Systolic Design Character Matching

46
Systolic Organization
  • Systolic Design Character Matching
  • General Characteristics
  • Hardware utilization is low, since during each
    clock pulse only half of the cells are active.
  • Patterns have to be cycled through the array
    continuously to meet all the text characters.
  • Possible detection of more hits in the input text.

47
Systolic Organization
  • Systolic Design Join Operation
  • Within the scope of relational databases, join is
    one of the most time consuming operations.

48
Systolic Organization
  • Assume we have two product-compatible relations
    (sets) A and B. Each relation is composed of
    several tuples (records).
  • Further, let ? ???, ?, ?, ...?, then the ?-Join
    of relation A on attribute X with relation B on
    attribute Y is a relation consist of tuples
    t(lta,bgt) from Cartesian product of A and B such
    that tx ? ty is true.

49
Systolic Organization
  • Systolic Design Join Operation
  • Assume we have the following two relations

50
Systolic Organization
  • Systolic Design Join Operation

51
Systolic Organization
  • Systolic Design Join Operation
  • In relational database system, join operation is
    used as a measure to evaluate the performance of
    the system. This is due to the
  • Complexity of the join, and
  • application of join in de-normalizing the
    relations.

52
Systolic Organization
  • Systolic Design Join Operation
  • Let us look at a systolic model for join
    operation
  • A collection of basic cells replicated in a two
    dimensional space.
  • System is highly parallel and satisfies the
    constraints imposed by the VLSI technology.

53
Systolic Organization
  • Systolic Design Join Operation
  • A Systolic Cell

as and bs are the attributes and t is a control
signal that reflects the comparison between a and
b.
54
Systolic Organization
  • Systolic Design Join Operation
  • A Systolic Cell

Tout ? tin ? (ain ? bin) aout ? ain bout ? bin
55
Systolic Organization
  • Systolic Design Join Operation

56
Systolic Organization
  • Systolic Design Join Operation

57
Systolic Organization
  • Systolic Design Join Operation

58
Systolic Organization
  • Systolic Design Join Operation

59
Systolic Organization
  • Systolic Design Join Operation

60
Systolic Organization
  • Systolic Design Join Operation

61
Systolic Organization
  • Systolic Design Join Operation
Write a Comment
User Comments (0)
About PowerShow.com
