Applications of Systolic Array

1

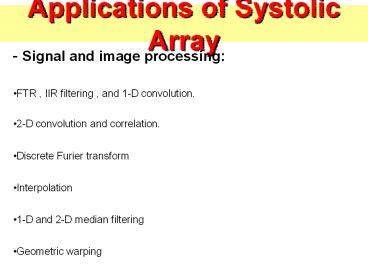

Applications of Systolic Array
- Signal and image processing

• FTR , IIR filtering , and 1-D convolution.
• 2-D convolution and correlation.
• Discrete Furier transform
• Interpolation
• 1-D and 2-D median filtering
• Geometric warping

2
Applications of Systolic Array
- Matrix arithmetic

• Matrix-vector multiplication
• Matrix-matrix multiplication
• Matrix triangularization
• (solution of linear systems , matrix inversion)
• QR decomposition
• (eigenvalue , least-square computation)
• Solution of triangular linear systems

3
Applications of Systolic Array
- Non-numeric applications

• Data structure
• Graph algorithm
• Language recognition
• Dynamic programming
• Encoder (polynomial division)
• Relational data-base operations

4
Matrix Multiplication

• Recurences Cij(1) 0
• Cij(k1) Cij(k) ajkbkj
• Cij Cij(n1)
• Band width wa, wb
• Total step 3n min(wa, wb)

5

• Recurences Cij(1) 0
• Cij(k1) Cij(k) ajkbkj
• Cij Cij(n1)

6
(No Transcript)
7
Systolic array multiplier of numbers

• For nn multiplier
• (3n1)n/2 cells are required
• Before saturation, 3n clock cycles are required
  for the multiplication.
• After saturation, a product will be output on
  every clock cycle.

8
Systolic array multiplier of numbers

• Basic Cell

The main idea is calculate partial product and
direct them to appropriate places
9
Systolic array multiplier of numbers

• Multiplier structure

Delay elements

• Basic Cell

10
Performance of 8-bit multiplier

11
Triangular Architecture For solving triangular
linear systems
On-the-fly least-squares solutions using one and
two dimensional systolic array, with p4.
12
Systolic Organization for future (nano)
technologies

• To effectively utilize a given technology, the
  constraints of that technology must be well
  understood.
• System designers must consider the limitations of
  the technology to design a system where those
  limitations do not impact the overall performance
  significantly.

13
Systolic Organization requirements

• reconfigurable to exploit application
  dependent parallelisms,
• high level language programmable to provide
  task control and flexibility,
• scalable to easily extend the architecture to
  many applications,
• capable of supporting SIMD organizations for
  vector operations and MIMD for non homogeneous
  parallelism requirements.

14
Systolic Organization is the future

• Systolic operation and organization is a design
  philosophy that is aimed to satisfy the
  architectural constraints imposed by the advances
  in silicon technology.
• This design is becoming even more important for
  all new nano-technologies
• It offers simplicity, regularity, modularity, and
  localized communications.

15
Principle of Local Communication

• Systolic arrays are typically characterized as
  having intensive local communications and
  computations yet, with decentralized parallelism
  in a compact package.
• Systolic arrays capitalize on processes which can
  be performed in a regular, modular, rhythmic,
  synchronous, and concurrent manner that require
  intensive repetitive computations.

16
New concept in Computer Architecture

• Systolic arrays originally were proposed for
  fixed or special purpose instances,
• However, this concept has been extended to more
  general purpose SIMD and MIMD architectures.

17
Systolic Characteristics

• The systolic cells are synchronized by a single
  global clock.
• The input data streams are fed to the systolic
  array only at its boundaries.
• Different data streams can flow in different
  directions at different speeds through the array.

18
Systolic different than pipelined

• Systolic architectures differ from pipelined
  systems because
• Most of the stages are identical,
• Input data is not consumed,
• Input data streams can flow in different
  directions,
• Modules may be organized in a two-dimensional (or
  higher) configuration.

19
Systolic different than array processors

• Systolic architectures differ from array of
  processors because
• Processors in systolic organizations are
  synchronized by a single global clock, but are
  locally controlled
• different systolic cells can perform different
  operations at the same time.

20
Systolic Characteristics

• Systolic architectures allow higher throughputs
  concurrent operations of a large number of the
  processing cells.
• Ability to increase the execution speed of
  compute-bound applications without increasing the
  I/O requirements reusability of the input data.

21
Automatic Design?

• Algorithms and Mapping Designers must be
  intimately familiar with the algorithms that they
  are implementing on systolic arrays.
• The heuristic design of systolic arrays from an
  algorithm is slow, error prone, requires
  simulation for verification, and often results in
  a non optimum solution.
• Automatic array synthesis is a research area of
  interest. However, most array designs are based
  on heuristics.

22
Integration

• Integration into Existing Systems Generally,
  systolic processors are integrated into an
  existing host as a backend processor.

23
Systolic Issues

• Integration into Existing Systems
• System integration is often nontrivial because of
  the arrays high I/O requirements.
• Often, an additional memory subsystem is added
  between the existing host and the systolic array
  to support data access and data multiplexing and
  de-multiplexing since the existing I/O channel of
  the host rarely satisfies the bandwidth required
  by the systolic array.

24
Systolic Issues

• Cell Granularity
• Low level or high level cell granularity will
  directly affect the arrays throughput,
  flexibility, and the set of algorithms which may
  be efficiently executed.

25
Systolic Issues

• Cell Granularity
• The basic operation performed in each cycle by
  each cell can range from logical or bit wise
  operations to word level multiplication and
  addition to a complete program.
• Granularity is subject to technology capabilities
  and limitations as well as design goals.
• Packaging will also introduce input/output pin
  restrictions.

26
Systolic Issues

• Extensibility Since systolic arrays are built
  around the cellular building blocks, the cell
  design should be sufficiently flexible to allow
  it to be used in a wide variety of topologies
  implemented in a wide variety of substrate
  technologies.

27
Systolic Issues

• Clock Synchronization Clock lines of different
  lengths within integrated chips, as well as
  external to the chips, can introduce skews.
• Clock skew risk is greater when data flow within
  the systolic array is bi-directional.
• Wave-front arrays reduce the clock skew problem
  by introducing more complicated asynchronous
  inter cellular communications.

28
Systolic Issues

• Reliability As integrated circuits grow larger
  and larger, inherent fault tolerant abilities
  must be added if the same degree of reliability
  is to be maintained.
• Also diagnostics should be built in at design
  time so proper operation can more easily be
  verified.
