An improved succinct representation for dynamic kary trees

1

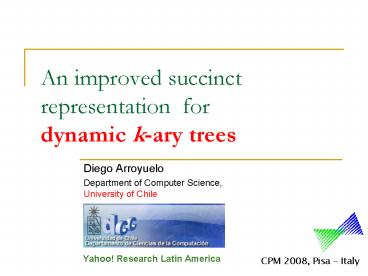

An improved succinct representation for dynamic
k-ary trees

• Diego Arroyuelo
• Department of Computer Science, University of
  Chile

Yahoo! Research Latin America
2
k-ary trees (tries)
Every node has at most k children
Edges labeled with a symbol in the set 1,, k
(k is the alphabet size) (k is large enough to be
regarded as a constant)
Pointer-based representation requires O(nlog n)
bits
Applications text searching (suffix trees), text
compression (LZTries), DOM trees, etc.
3
Succinct data structures

• A succinct data structure requires space close to
  the information-theoretic lower bound
• There are different
  k-ary trees with n nodes
• Therefore, the information-theoretical lower
  bound is about
  bits

4
Succinct data structures

• We are interested in succinct representations
  that can be navigated
• We are interested in operations

• parent(x)
• child(x, i)
• child(x, a)
• depth(x)
• degree(x)

• subtree-size(x)
• preorder(x)
• insertions (in the leaves)
• deletions (in the leaves)

5
Succinct tree representations (static)

• Succinct representations for static trees
• LOUDS Jacobson, FOCS89
• Balanced Parentheses MR, STOC97
• DFUDS Benoit et al., Algorithmica 2005
• xbw Ferragina et al., FOCS05
• Ultra succinct trees Jansson et al., SODA07
• These must be rebuilt from scratch upon insertion
  or deletion of nodes

6
Succinct tree representations (static)
DFUDS representation
2n o(n) bits
Constant-time operations
7
Succinct tree representations (dynamic)

• The case of succinct dynamic trees was first
  studied for binary trees only
• Munro, Raman, and Storm SODA01 2n o(n) bit
• Raman and Rao ICALP03 2n o(n) bits
• k-ary trees basic navigation in O(k) time
• Chan et al. TALG 2007 2n nlog k o(nlog k)
  bits
• Operation times related to n rather than to k
  (O(log n) time)
• It cannot take advantage of asymptotically
  smaller values of k e.g., k O(polylog(n))

We look to achieve o(log n) time whenever log k
o(log u)
8
Our basic tree representation

• We incrementally divide the tree into disjoint
  blocksMunro et al., Raman and Rao
• Every block represents a connected component of N
  nodes such that
• Nmin N Nmax
• We arrange these blocks in a tree by adding
  inter-block pointers (entire tree is tree of
  subtrees)

9
Our basic tree representation
Blocks are trees by themselves We only need to
update one block upon tree updates
10
Our basic tree representation

• We define Nmin (minimum block size) as follows
• Inter-block pointers should use o(n) bits
• By choosing Nmin Q(log2n) we have O(n / log2n)
  blocks(In general, Nmin Q(log n f(n)), for
  f(n) w(1))
• In this way we have one pointer out of Q(log2n)
  nodes in the worst case
• And hence o(n) bits for pointers

11
Defining block sizes

• We define Nmax (maximum block size) as follows
• In case of block overflow we must be able to
  create a new block of size at least Nmin
  Q(log2n)
• In the worst case, the root of the block has its
  k children, all of them having a subtree of the
  same size
• By choosing Nmax Q(klog2n) we solve this problem

Remark every time a block overflows, at least
one of the roots children has size at least
Q(log2n)
12
Our basic tree representation

• The blocks cannot be as small as we would like
• We support dynamic operations on the tree by
• Dividing the tree into blocks (we only need to
  rebuild a block upon updates)
• Making these smaller trees dynamic (different to
  other approaches)
• We represent the tree topology Tp of blocks using
  a dynamic DFUDS representation on top of Chan et
  al.s TALG, 2007
• Basic navigation inside blocks in O(log N)
  O(log(k log2n)) O(log k loglog n) (including
  updates)
• Overall, this require 2no(n) bits

13
Representing the tree symbols

• We represent the symbols labeling the edges of
  the tree in the following way

Tp ...((((()...
Overall nlog k O(n log k / log log k)
bits O(log N) time for operation childp(x, a)
14
Representing the frontier of a block

• We need to indicate which nodes in a block have a
  pointer to a child block
• This can be done by using a bit vector
• However this would require 3no(n) bits overall
  for the tree structure
• We define array Fp storing the preorders of the
  nodes having a child pointer
• Since there are O(n/log2n) pointers, this
  requires o(n) bits

15
Representing the frontier of a block
Array Fp is represented in differential form with
a data structure for Searchable Partial Sums
O(log N) time
Tp (((())(()))((())))
Fp

• 2 4 2 2
• (2) (6) (8) (10)

• 2 3 2 2
• (2) (5) (7) (9)

We must update all preorders in Fp since this
position
16
Solving the basic operations

• child(x, i)
• child(x,a)
• parent(x)

17
Solving the basic operations

• Insert
• We use the corresponding insertion operation on
  the block
• When a block p becomes full
• Choose node z in block p with local subtree of
  size at least Nmin
• Reinsert the nodes in the subtree of z in a new
  block q (time proportional to reinserted
  subtree)
• Delete the subtree of z from p(time proportional
  to reinserted subtree)
• To amortize the insertion cost, the overall
  reinsertion process must be carried out in time
  proportional to the size of the reinserted subtree

18
Solving the basic operations

• Selecting the node to be reinserted
• We define a list of candidate nodes Cp for every
  block p
• maintaining (in preorder) the candidates to be
  reinserted in a new block upon overflow
• Cp must be dynamically maintained sampling nodes
  of Tp such that
• Every time p overflows, there must be at least
  one candidate in Cp
• The space for Cp data structures must be o(n)
  bits overall

19
Solving the basic operations

• Maintaining the list of candidate nodes
• Every time we descend in the tree we maintain the
  last node z in block p whose subtree has size at
  least Nmin
• We add z to Cp whenever
• z is not the root of p, and
• There is no other candidate in the subtree of z

20
Solving the basic operations
In this way we mark one out of Nmin nodes This
means o(n) bits for the candidates
Prospective candidate z
Cp
21
Solving the basic operations

• Insert
• Every time a block overflows, Cp has at least one
  candidate
• The insertion cost is proportional to the size of
  the reinserted subtree
• As we have already paid to insert these nodes,
  the total cost is
  amortized

22
Conclusions

• We have defined a representation for dynamic
  k-ary trees requiring space close to the
  information-theoretical lower bound
• 2n nlog k o(nlog k) bits
• We can profit from small alphabets
• O(log k loglog n) time for operations
• In particular, O(loglog n) time for k
  O(polylog(n))
• Versus O(log n) time of Chan et al.s for any
  alphabet size

23
Conclusions

• Corollary
• New trade-off for succinct dynamic binary trees
• faster updates O(loglog n) vs. O((loglog n)1e),
  for e 0
• at the cost of slower navigations O(loglog n)
  vs. O(1)
• Our data structure works under standard model of
  dynamic memory allocation (see the paper)
• We can support more involved operations

24

• Questions?
• Thanks for your attention
