Cosmic test stand current status

1

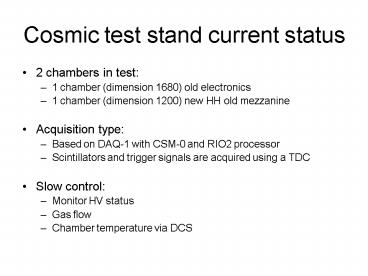

Cosmic test stand current status

• 2 chambers in test
• 1 chamber (dimension 1680) old electronics
• 1 chamber (dimension 1200) new HH old mezzanine
• Acquisition type
• Based on DAQ-1 with CSM-0 and RIO2 processor
• Scintillators and trigger signals are acquired
  using a TDC
• Slow control
• Monitor HV status
• Gas flow
• Chamber temperature via DCS

2
Cosmic test stand upgrade

• 2 o 3 chambers in test
• All chambers with final electronics
• Acquisition type
• Based on DAQ release testbeam 2004 with
  Concurrent Technologies CPU
• We plan to use on chamber adapter and CSM-0
• Slow control
• Add environmental parameter (temperature,
  humidity and pressure) monitoring
