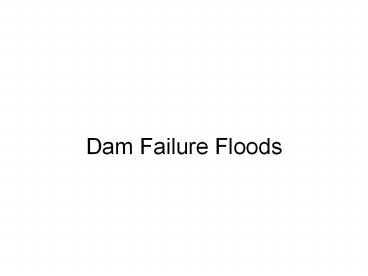

Dam Failure Floods

1
Dam Failure Floods
2
The Huang He Chinas Sorrow

• 1887 2,000,000 dead
• 1931 3,700,000 dead
• 1938 The Chinese dynamite levees to slow the
  Japanese half a million Chinese died.

3
Relief of Eastern China
4
Loess in China
5
Huang He and Mississippi
6
Japanese Plan, 1938
7
Flood Fatalities, 1938
8
Affected Population
9
Johnstown, Pennsylvania

• May 31, 1889
• Heavy Rain, Dam Failure. 2200 killed
• March 17, 1936
• Heavy rain snow melt. 25 fatalities
• July 19-20, 1977
• 11.8 inches rain, multiple dam failures. 85
  killed

10
The Johnstown Flood
11
Flood Aftermath
12
Flood Aftermath
13
Flood Aftermath
14
St. Francis Dam, California

• March 12, 1928, 1157 PM
• Reservoir drained in one hour
• Water 140 feet deep
• 500 killed
• 50 mile flood

15
St. Francis Dam, California
16
St. Francis Dam, California

• Built to supply water and power to Los Angeles
• Hydraulic lifting
• Solution of gypsum in bedrock
• Presence of fault and leakage through fault gouge
• Reactivation of paleo-landslide

17
Teton Dam, Idaho

• June 5, 1976
• 14 killed
• Generally sound engineering practices
• Cause of failure
• Dam fill inadequately compacted, too dry
• Fractured bedrock abutments
• Excessive reliance on grout barrier
• Piping erosion of tunnels by leaking water

18
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
19
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
20
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
21
Teton Dam, Idaho The Moment of Failure
(University of Notre Dame, Department of
Engineering and Geological Sciences)
22
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
23
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
24
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
25
Teton Dam, Idaho(Bureau of Reclamation)
26
Teton Dam, Idaho(University of Notre Dame,
Department of Engineering and Geological Sciences)
27
Teton Dam, Idaho in 2001(A. G. Sylvester)
28
Teton Dam, Idaho in 2001(A. G. Sylvester)
29
Tangiwai Rail Disaster, 1953

• North Island, New Zealand, Dec. 24, 1953
• Crater of Mount Ruapehu collapsed, releasing
  flood
• Mudflow takes out support of rail bridge at
  Tangiwai
• Bridge collapses as train crosses it
• 151 killed, 134 survivors

30
Jokulhlaups

• Glacial Floods
• Subglacial volcanism (Iceland)
• Subglacial outbursts
• Mont Blanc, July 12, 1898, 200 killed
• Ice dam failure
• Missoula floods (Pleistocene)
• Altai floods (Pleistocene)
• Russell Fiord, Alaska, 1986

31
Russell Fiord, Alaska, 2002(National Park
Service)
32
Patagonia, 2004(ESA)
33
Predicting Flood Fatalities

• Wayne J. Graham, 1999
• A Procedure for Estimating Loss of Life Caused by
  Dam Failure
• DSO-99-06
• U.S. Department of Interior, Bureau of
  Reclamation, Dam Safety Office

34
Fatal Dam Failures 1960-1998

• 23 Events
• Piping 6
• Overtopping 9
• Slope Failure 2
• Spillway Failure 2
• Other 4

35
Fatality Factors

• Flood Severity
• Warning Time
• Understanding of risk based on events upstream

36
Flood Severity

• High Area swept clean
• Medium Homes destroyed but trees and wreckage
  provide refuge, flooding depth greater than 10
  feet
• Low Buildings survive, flooding depth less than
  10 feet

37
High Severity

• 30-100 fatality rate
• 75 used in risk planning
• If there is warning, percents apply to people who
  remain in risk zone

38
Medium Severity

• No warning
• Fatality rate 3 35
• 15 used in risk planning
• 15 60 minutes warning
• Fatality rate 1 8
• 4 used in risk planning
• More than 60 minutes warning
• Fatality rate 0.5 6
• 1 used in risk planning

39
Low Severity

• No warning
• Fatality rate 0 2
• 1 used in risk planning
• 15 60 minutes warning
• Fatality rate 0 1.5
• 0.7 used in risk planning
• More than 60 minutes warning
• Fatality rate 0 .06
• .03 used in risk planning
