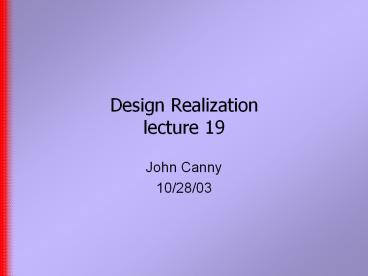

Design Realization lecture 19

1
Design Realization lecture 19

• John Canny
• 10/28/03

2
Last time

• Sensors

3
This time

• Real-time programming

4
Threads and Processes

• A thread is a sequence of program steps that may
  be executed concurrently (with other threads).
• Threads contrast with processes, which run in
  different address spaces. Threads share a common
  address space.

5
Threads and Processes

• Inter-process communication requires file,
  message or socket communication.
• Threads can communicate simply via shared
  variables.

6
Threads in real-time code

• Threads are almost always a good idea in
  real-time code.
• They provide a clean way to deal with outside
  events happening at different rates.
• Switching between threads can be very fast,
  supporting fast event streams.

7
Threads and interrupts

• On a single-processor machine, the processor
  executes all the threads (not true concurrency).
• Changes from one thread to another (context
  switches) are triggered by hardware interrupts,
  and by software (e.g. return instruction).
• Typical interrupt triggers
• Serial port send/receive buffer full (or empty).
• Digital I/O pin change
• A/D or D/A conversion complete
• Timer interrupt

8
Interrupts and masks

• Interrupt masks specify what the processor should
  pay attention to. You set these first then
  execute an enable interrupts instruction.
• You can also disable interrupts while executing a
  critical section of code, e.g. processing another
  interrupt. But make sure to re-enable them fast
  enough to catch the fastest event stream.

9
Interrupts and state saving

• Interrupts on small machines dont save much
  state. Perhaps only the program counter and a
  status byte.
• Youre responsible for saving any variables that
  are shared by the original program and the
  interrupt routine.
• You should then restore these values before you
  return from the interrupt.
• But check whether the compiler takes care of
  this

10
Interrupts vs. polling

• Sometimes an event doesnt trigger an interrupt,
  or it may not be desirable to allow a certain
  kind of interrupt.
• In such cases the code can explicitly test the
  condition periodically.
• This is called polling.

11
Inter-thread communication

• Usually no direct software support implement
  using semaphores in variables
• Main thread
• DataReady 0
• // Set some data here
• DataReady 1
• Other thread
• While (! DataReady)
• // Read new data
• // Set DataReady 0, or set another semaphore

12
Example

• Serial data to r/c control servo PIC program.
• Receives time-stamped values for two servos over
  a serial port.
• Variable network delays, so data must be
  delay-adjusted.
• Output is r/c pulse data, a kind of PWM.

13
r/c servo control signals

• Each servo is controlled by a pulse whose width
  varies from 1-2 ms and occurs every 20 ms.
• To get 8-bit (256 levels) resolution in the pulse
  width requires a temporal resolution of 1 ms/256
  4 ?s.

14
r/c control example

• Real-time needs serial port data receive and r/c
  pulse output.
• Delay correction requires a moving average filter
  which is math intensive.
• Implement with 4 threads
• Two timer threads
• One for clock updates (to resync the data)
• One for PWM updates
• One polling thread for serial input
• One main thread for math
• Communication with semaphores

15
Larger systems

• eCos an open-source operating system for small
  (PDA-sized) devices.
• Architectures PowerPC, ARM, IA32, H8, M68K
• Component-based and configurable only needed
  modules are included.
• TCP/IP stack and USB slave support.
• Based on GNU tools, open-source, popular.

16
Larger systems

• VxWorks popular but expensive real-time
  operating system for many devices.
• Good suite of development tools for debugging the
  running system.
• High reliability code (widely used by aerospace
  and military).

17
Mobile systems

• Symbian OS designed for phones.
• API for contacts, messaging, browsing
• TCP/IP stack (?)
• WAP, HTTP, SSL, XML and XHTML support.
• Communication Irda, Bluetooth, USB, Serial
• POP, Imap mail support
• Java VMs personal Java and J2ME

18
Real-time OSes

• Hard-hat Linux
• Qnx
• Lynx
• Nucl(e)ar
• Tiny-OS

19
Mobile systems

• Qualcomms BREW, aka Verizons Get It Now
• Similar features to Symbian, but allows binary
  applets to be downloaded from the server.
• Designed for native code or native browsers, e.g.
  they have Flash and SVG (2d graphics).
• Not really an OS, but a set of APIs for device
  services.

20
Network protocol stacks

• Network software is deeply layered e.g. TCP/IP

21
Bluetooth protocol stack

• Lets take a quick look at the Bluetooth stack

Software (on microcontroller)
Bluetooth radio module
22
Bluetooth protocol stack

• These (core) layers are always present
• HCI The Host Controller Interface layer provides
  a standard communications protocol between the
  stack and the Bluetooth module. HCI communication
  packets can be transmitted using UART, RS232 or
  USB interface.
• L2CAP The Logical Link Control and Adaptation
  Protocol layer allows multiple channels to share
  a single Bluetooth link. It also handles
  segmentation and assembly of long messages, group
  management and quality of service functionalities.

23
Bluetooth protocol stack

• These core layers are always present
• RFCOMM The RFCOMM layer implements the
  functionalities of a virtual RS232 link. Most of
  the application Profiles uses RFCOMM as a means
  of transmitting and receiving data.
• SDP The Service Discovery Protocol layer provides
  functionalities to publish supported Bluetooth
  functionalities (SDP server), as well as for
  querying remote Bluetooth devices for supported
  functionalities (SDP client).

24
Bluetooth protocol stack

• The higher layers implement one or more
  bluetooth profiles with specific APIs
• Bluetooth audio
• Bluetooth printing
• Data access profiles (incl. TCP/IP over
  Bluetooth)
• Information transfer profiles (calendar, contacts
  sync.)
• Human Interface device profiles (mouse,
  keyboard,)
• Overall, this is a lot of code! But many
  Bluetooth stack implementations exist, including
  open source stacks. E.g. BlueZ for Linux and
  Smart-Its for Atmel AVR chips.

25
CAN stack

• CAN stack is relatively simple, possibly built
  into hardware.
• Another protocol stack called Devicenetis built
  on the CANphysical layer.

26
Direct communication

• Note that standard protocols are designed to
  allow devices to communicate with other devices
  of unknown origin.
• If all your devices are configured by you, you
  can bypass the protocol and use low-level
  protocols directly (like RS485).
