Title: The History of Astronomy


1

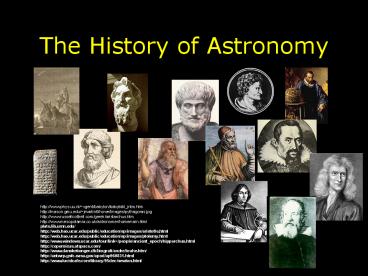

The History of Astronomy
http//www.phys.uu.nl/vgent/babylon/babybibl_intr
o.htmhttp//mason.gmu.edu/jmartin6/howe/Images/p
ythagoras.jpghttp//www.russellcottrell.com/greek
/aristarchus.htmhttp//www.mesopotamia.co.uk/astr
onomer/homemain.htmlplato.lib.umn.edu/http//web
.hao.ucar.edu/public/education/sp/images/aristotle
.htmlhttp//web.hao.ucar.edu/public/education/sp/
images/ptolemy.htmlhttp//www.windows.ucar.edu/to
ur/link/people/ancient_epoch/hipparchus.htmlhttp
//copernicus.atspace.com/http//www.danskekonger
.dk/biografi/andre/brahe.htm/http//antwrp.gsfc.n
asa.gov/apod/ap960831.htmlhttp//www.lucidcafe.co
m/library/95dec/newton.html
2
The Model of the Cosmos
  • Its a natural thing for people to want to
    understand the world around them.
  • People build models, a (simplified?) conceptual
    framework that represents the real world and
    operates in a manner consistent with
    observations.
  • To be successful, a model MUST be able to do two
    things

3
Model Building
  • A model must accept and incorporate all careful,
    accurate observations. No observations may be
    conveniently discarded, simply because they
    contradict the model. The model must be
    refined!
  • A model must be able to make accurate predictions
    of future events.

4
Models Change
  • Take note of how the model of the cosmos changes
    as new observations become available.
  • Take note also of the forces which resisted
    logical changes mental inertia, political
    censorship and religious dogma.

5
The First Astronomers
  • The first astronomers were the Babylonians.
  • Other cultures observed the stars, but the
    Babylonians were the first to keep records of the
    positions of objects in the sky.

6
Babylonian Astronomy
  • The Babylonians kept careful records on clay
    tablets for 1400 years, from 1600 B.C. until 200
    B.C., even though they were repeatedly conquered,
    and their culture declined.

The tablet aboverecords a lunar eclipse.
7
Religious Motivation
  • To the Babylonians, the objects moving regularly
    or erratically through the sky were deities, gods
    who could influence the events and futures of
    men.
  • Marduk was their chief.

Mardukhttp//www.ancientneareast.net/religion
_mesopotamian/gods/marduk.html
8
Religious Motivation
  • Because the motivation for the Babylonians
    astronomy was religious rather than scientific
    (they wouldnt even have recognized the word!),
    the Babylonians never bothered to make a model of
    what the cosmos (universe to them, solar system
    to us) was like.

9
The Ancient Greeks
  • The Greek culture overlapped the end of the
    Babylonian period (600 to 100 B.C.)
  • Certain Greek sub-cultures (notably the
    Athenians) came to prize logic and philosophy as
    the way to understand the world.
  • You might recognize some of the names
    Pythagoras, Plato, Aristotle, Democritus,
    Aristarchus, and Hipparchus.

10
Pythagoras
  • The philosopher Pythagoras was the first to
    propose a model of the cosmos.
  • Because of their symmetry, Pythagoras thought
    that some shapes were more perfect than others.

11
Pythagoras (2)
  • Because the sphere was perfectly symmetrical in
    every direction, it was considered to be the most
    shape.
  • The sky and everything in it appeared to be
    spherical. It was also thought that the earth,
    being the center of life and thought, was
    spherical and therefore perfect.
  • It follows that things that are perfect dont
    ever need to change.

12
Pythagoras (3)
  • Pythagoras proposed a series of nested,
    concentric, crystalline spheres which rotated at
    constant speeds around the earth.
  • Each sphere would carry a single object on its
    inner surface.
  • The moon was on the closest sphere, followed by
    Mercury, Venus, the Sun, the outer planets.
  • The stars were painted on the outermost sphere.
  • The spheres were each able to rotate
    independently at different, but uniform speeds.

13
http//csep10.phys.utk.edu/astr161/lect/retrograde
/aristotle.html
14
Plato
  • Plato was an extremely influential person in
    ancient Greece. Because he was so highly
    regarded, what he said was often taken as
    absolute truth.

http//plato.lib.umn.edu/Images/plato.jpg
15
Plato (2)
  • Plato didnt change Pythagoras model of the
    cosmos, but Platos contribution to the
    model-building process was his insistence that
    any model save the appearances. By this, Plato
    meant that any model of the universe had to
    accurately match the positions of the objects in
    the sky.

16
Plato (3)
  • Platos belief in the Pythagorean model and his
    insistence that a model must save the
    appearances became driving forces in the early
    understanding of the arrangement of the cosmos.
  • (Note, however, that Plato himself couldnt live
    up to his own pronouncements Pythagoras model
    couldnt explain retrograde motion of the
    planets!)

17
Aristotle
  • Aristotle was a student of Platos.
  • He was the first to try to understand not just
    the way the cosmos was arranged, but the why and
    how of its functioning.

http//www.seanet.com/realistic/chpt4.html
18
Aristotle (2)
  • A Greek philosopher, Democritus, had proposed
    that every different substance in the universe
    had its own type of atom. Imagine cheese,
    wood, hair atoms!
  • A competing idea was that there were only 5
    elements, fire, air, water, earth, and ether and
    that every different substance was composed of
    different ratios of these elements.

19
Aristotle (3)
  • Aristotle believed that the elements would always
    try to return to their sources.
  • No forces were necessary for this to occur
    rather it was natural for these movements to
    happen.

20
Aristotle (4)
  • Some examples
  • Smoke rises, because it is mostly air.
  • Flames rise because they were trying to return to
    the sun.
  • Water flows downhill because its attempting to
    return to the sea.
  • A thrown rock falls because its returning to the
    earth.

21
http//www.24hourmuseum.org.uk/nwh_gfx_en/ART23268
.htmlhttp//www.fs.fed.us/r9/mnf/index.shtml
22
Natural Motion
  • Aristotle used arguments like these to explain
    that Pythagoras crystalline spheres turned
    naturally no force or engine was required to
    drive the revolution.
  • Today, we reject natural motion and accept
    something equally non-intuitive action at a
    distance, forces like gravity and magnetism,
    transmitted with no visible mechanism or
    connection.

23
Aristotle (5)
  • Aristotle also had other reasons for believing
    that the earth didnt move, but that the heavens
    did
  • He reasoned that if the earth were moving, a
    stone thrown into the air would fall back to the
    earth along a parabolic track, not a vertical
    track.

24
Aristotle (6)
  • An arrow fired directly north, would appear to
    veer to the west as the earth under the arrow
    rotated eastward.
  • Since neither of these things appeared to happen,
    it was quite natural for Aristotle to believe
    that the earth did not rotate.

25
A competing idea
  • Aristarchus of Samos proposed a heliocentric
    model of the cosmos.
  • It incorporated a rotating earth which revolved
    around the sun, along with all the other planets.

http//www.krzysiek.finka.pl/szkoly/foto/rel02_fot
26
A Prediction
  • Why wasnt Aristarchus model accepted?
  • It made the prediction of heliocentric stellar
    parallax, which wasnt observed.
  • Parallax is the apparent movement of a nearby
    object that is really due to the movement of the
    observer.

27
http//www.physics.carleton.ca/watson/410_notes/H
istory_of_Astronomy/410_Astro_history.html
Angle a gt Angle b
28
A Modern Explanation of Parallax
http//www.yourdictionary.com/images/ahd/jpg/A4par
29
Try these animations
  • http//instruct1.cit.cornell.edu/courses/astro101/
    java/parallax/parallax.html
  • http//physics.bgsu.edu/layden/Anim/Parallax/para
    llax.htm

30
Parallax (2)
  • Today, with large telescopes, we are able to
    detect and measure the parallax of nearby stars.
  • Even the nearest stars show parallaxes of less
    than about 0.3 arcsecond, an apparent motion far
    too small to see with the naked eye.
  • Parallax is real, but the ancients couldnt see
    it without the technology of the telescope.

31
Problems begging for solutions
  • After the time of Aristotle, there were several
    problems that the model of the cosmos couldnt
    explain.
  • Retrograde motion of the planets.
  • The apparent speeding up and slowing down of the
    sun and planets at different times of the year.
  • Varying shapes and durations of the planetary
    retrograde motions.

32
Hipparchus of Rhodes
  • Hipparchus worked from about 160 to 130 B.C.
  • He was a mathematician who used geometry to try
    to solve the problem of retrograde motion.

http//universe-review.ca/I08-18-Hipparchus.jpg
33
A Clockwork Cosmos
  • Hipparchus extended the idea of the crystalline
    spheres. The main path or orbit of the planet
    was termed the deferent.
  • Attached to and centered on the deferent was a
    second, smaller orbit called the epicycle. The
    planet revolved as the deferent and epicycle both
    revolved.

34
http//faculty.uml.edu/awalters/43.311/lecturesf2k
2/Slide9.GIF
35
Real backward motion
  • As the deferent and epicycle both turned
    independently, the planet would actually move
    backward during the retrograde (westward) portion
    of its motion.
  • With a correctly sized deferent and epicycle, the
    predicted positions of the planets would match
    the actual positions within naked-eye accuracy
    limits!!!

36
http//pl.wikipedia.org/wiki/GrafikaEpicycle_et_d
37
Attacking problem 2
  • To try to solve the problem of the sun and
    planets traveling faster at some times of the
    year than others, Hipparchus proposed the
    eccentric.
  • Despite the requirement that the earth be at the
    center of the cosmos, Hipparchus placed the earth
    off-center by a small distance.

38
The Eccentric
  • The off-center placement allowed the sun and
    planets to appear to speed up when they were
    closer to the earth and appear to slow down when
    they were farther away. (The angular velocity no
    longer appears to be uniform.)

39
The Eccentric
  • Imagine standing in the exact center of the
    infield of a race track. Walk towards the
    tracks inner edge and the cars appear to be
    moving faster on the side youre closer to, and
    slower on the opposite side.

40
http//www-astronomy.mps.ohio-state.edu/pogge/Ast
161/Unit3/Images/epicycle.gif
41
The 3rd Problem
  • The last problem to be solved was that of
    different shape duration planetary retrograde
    motions from one year to the next.

http//www.xtec.es/recursos/astronom/articulos/ret
ro/indexe.htmhttp//jcboulay.free.fr/astro/sommai
re/astronomie/univers/galaxie/etoile/systeme_solai
re/mars/page_mars3.htm
42
Ptolemy
  • Hipparchus never solved this last problem. It
    had to wait for a Greek astronomer working in
    Alexandria, Egypt around 125 A.D. Claudius
    Ptolemy

http//www.livius.org/a/1/greeks/ptolemy.jpg
43
The Equant
  • Ptolemy proposed a point in space opposite the
    eccentric point, called the equant, where the
    angular speeds of the sun and planets would
    appear to be uniform.

http//www-astronomy.mps.ohio-state.edu/pogge/Ast
161/Unit3/Images/equant.gif
44
The Equant (2)
  • While this helped solve the problem of
    differently shaped retrograde loops, it also
    violated the premise that the crystalline spheres
    turned with uniform speeds. Now they were
    required to actually speed up and slow down.
  • How does this happen when no force or engine
    drives the crystalline spheres?

45
A Special Problem - Epicycles of Venus Mercury
  • Ptolemy also realized that Hipparchus model had
    another problem with Mercury, Venus, and the
    Sun all revolving around the earth, Mercury and
    Venus should sometimes appear in opposition to
    the sun (180o from the sun in our sky).
  • However this never happened. Venus was never
    more than 46o from the sun, and Mercury never
    more than 28o.

46
The Solution for Mercury Venus
  • Ptolemy proposed that the epicycles of Mercury
    Venus be pinned to a line drawn between the Sun
    and the Earth.
  • In this way, those two planets could oscillate
    from one side of the sun to the other, yet
    continue orbiting the earth.

47
The Epicycles of Venus and Mercury, pinned to a
line drawn fromthe Sun to the Earth.
48
A Prediction
  • Ptolemys setup for the epicycles of Mercury and
    Venus makes a prediction each planet should be
    able to show crescent and new phases as seen from
    the earth, but never a full phase.
  • Later, well see that we actually do see full
    phases for Mercury and nearly-full phases for
    Venus.

49
Ptolemys 2 other accomplishments
  • Ptolemy calculated what he believed to be the
    size of the cosmos 20,000 earth radii or
    134,000,000 kilometers (radius).
  • Ptolemy wrote the first astronomy textbook, the
    Almagest (the Majestic Book).

50
The Almagest
http//www.er.uqam.ca/nobel/r14310/Ptolemy/Images/
Regiomontanus/1496.g.jpg
51
Why does an idea persist?
  • Because these ideas were now in print and were
    published at then Great Library in Alexandria,
    these ideas became institutionalized.

http//ils.unc.edu/dpr/path/alexandria/
52
Heres the kicker!
  • Despite the complex geometry and logical
    inconsistencies, this model worked well enough to
    accurately predict the positions of the planets
    to within a few minutes of arc!
  • The Ptolemaic model works well enough that the
    planetarium projector mechanism is based on it!
  • Its no wonder that this system wasnt seriously
    challenged for 1400 years!
Write a Comment
User Comments (0)
About PowerShow.com
