Title: CO2 Car Definitions


1

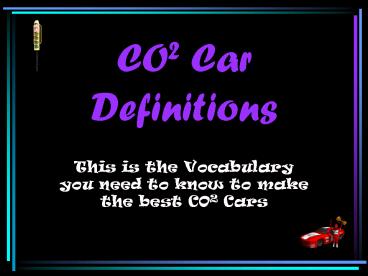

CO2 Car Definitions
  • This is the Vocabulary you need to know to make
    the best CO2 Cars

2
Your goal in designing your car
  • Design a car that is going to go FAST
  • Design a car that LOOKS COOL
  • Design a car that has a GREAT PAINT JOB

3
You must make a parts list
  • How much is your budget?
  • What are you going to put on your car?

4
What you get for FREE!!!
5
You also get 4 wheels for Free
6
Your choice of any 4 colors of paint
  • You get to paint your car any color you want.
  • You may not waste paint you must choose which
    colors you want before you paint.
  • You must design your paint job before you paint.
  • Paint cost 0.50

7
That means that Mr. K is giving each of you FREE
  • .

8
Everything else is extra!
9
Balsa wood is extra!
  • Available in
  • Standard triangle body 2X2X12
  • Cost 5.00
  • Rectangular Prism 3X3X12
  • Cost 8.00

10
(No Transcript)
11
Copy the following terms into your journal.
Leave about 3 lines between each one
  • Guidance
  • Guideways
  • Propulsion
  • Suspension
  • Control
  • Structure
  • Support

12
Guidance
  • Information required to operate a vehicle or
    vehicular system in a prescribed path

13
Guideways
  • Pathways for transportation vehicles

14
Propulsion
  • The process of causing a body to move by exerting
    a natural or mechanical force

15
Spinners are extra!
16
Suspension
  • The methods employed to suspend a vehicle in or
    on a given environmental medium

17
Control
  • Mechanical or automated procedures used to
    control a vehicle and/or vehicular system

18
Structure
  • Structural makeup and design of vehicles and
    other systems physical components

19
Support
  • Operation, maintenance, and regulation of total
    system

20
10
5.00
8.00
1
4
5.00
18.00
21
End of Day ONE
  • If your notes are not complete, you will not be
    allowed to start working on your CO2 car.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
22
Copy the following terms into your journal.
Leave about 3 lines between each one
  • Acceleration
  • Airfoil
  • Camber
  • Upper Camber
  • Lower Camber
  • Chord
  • Relative Wind
  • Angle of Attack
  • Speed
  • Velocity

23
Acceleration
  • The force involved in overcoming inertia (it
    means changing speed and/or changing direction)
  • Accelerate - to increase in speed
  • Decelerate - to decrease in speed

24
Airfoil
  • Any surface designed to obtain reaction such as
    lift from the air through which it moves

25
Camber
  • The curvature of an airfoil from the leading edge
    to the trailing edge
  • Upper camber - curvature of upper surface
  • Lower camber - curvature of lower surface

26
Chord
  • An imaginary straight line drawn from the leading
    edge to the trailing edge of an airfoil

27
Relative Wind
  • The direction of airflow produced by an object
    moving through the air (usually parallel with and
    in the opposite direction of the movement of the
    vehicle)

28
Angle of Attack
  • The angle between the chord line of the wing and
    the direction of the relative wind.

29
Speed
  • The distance traveled in a certain time
  • Speed Distance / Time

30
Velocity
  • The speed or rate of movement in a certain
    direction.

31
(No Transcript)
32
End of Day TWO
  • If your notes are not complete, you will not be
    allowed to start working on your CO2 car.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
33
Copy the following terms into your journal.
Leave about 3 lines between each one
  • Lift
  • Weight
  • Thrust
  • Drag
  • Types of Drag
  • Parasite Drag
  • Form Drag
  • Skin Drag
  • Interference Drag

34
Lift
  • Upward acting force created when an object moves
    through the air

35
Weight
  • (Gravity) - Downward acting force which pulls
    objects to the earth

36
Thrust
  • Forward acting force that pushes or pulls object
    through the air

37
Drag
  • Rearward acting force (retarding) which resists
    the forward movement of an object through the
    air.

38
Parasite Drag
  • The resistance of the air produced by any part of
    the object that does not produce lift.

39
Form Drag
  • Is caused by the frontal area of the objects
    components being exposed to the airstream. (This
    is why streamlining is necessary)

40
Skin Drag
  • Is caused by air passing over the objects
    surfaces, and increases considerably if the
    object surfaces are rough and dirty

41
Interference Drag
  • The interference of the airflow between adjacent
    parts of the object such as the intersection of
    cartridge body and wheel sections with the main
    body

42
Factors Affecting Parasite Drag
  • The more streamlined an object is, the less
    parasite drag
  • The more dense the air moving past an object, the
    greater the parasite drag
  • The larger the size of the object in the
    airstream, the greater the parasite drag
  • As speed increases, the amount of parasite drag
    increases (if speed is doubled, four times as
    much drag is produced)

43
IMPORTANT NOTE FOR STUDENT!!!
  • Make an effort to increase the performance of
    your vehicle.
  • Increase the efficiency of the desirable forces
    lift and thrust.
  • Reduce, as much as possible, the undesirable
    forces weight and drag.

44
IMPORTANT!!!
  • It is the total drag that determines the amount
    of thrust required at a given airspeed.
  • In other words, the more drag produced by your
    design
  • THE SLOWER YOUR CAR!

45
(No Transcript)
46
End of Day THREE
  • If your notes are not complete, you will not be
    allowed to start working on your CO2 car.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
47
(No Transcript)
